0-60 — ENGINE ELECTRICAL CONTROL PARTS (#48640) — 181 parça

46 46 46 46 424 424 424 424 10 10 10 10 424 424 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	RELAY; STARTER 12V YAZAKI THA	8-98146-837-0	01	1	0909-	●	●
10	RELAY; STARTER 12V YAZAKI THA	8-97309-295-0	01	1	0303-0408			●
10	RELAY; STARTER 12V YAZAKI THA	8-97309-295-0	01	1	0409-0412	●
10	RELAY; STARTER 12V YAZAKI THA	8-97309-295-0	01	1	0501-0908	●	●
46	RELAY; GLOW PLUG 12V YAZAKI THA	8-98146-837-0	01	1	0909-	●	●
46	RELAY; GLOW PLUG 12V YAZAKI THA	8-97309-295-0	01	1	0409-0412	●
46	RELAY; GLOW PLUG 12V YAZAKI THA	8-97309-295-0	01	1	0501-0908	●	●
424	RELAY; SAFETY,STARTER 12V YAZAKI THA	8-97309-292-0	01	1	0311-0408			●
424	RELAY; SAFETY,STARTER 12V YAZAKI THA	8-97309-292-0	01	1	0409-0412	●
424	RELAY; SAFETY,STARTER 12V YAZAKI THA	8-97309-292-0	01	1	0501-0710	●	●
424	RELAY; SAFETY,STARTER 12V YAZAKI THA	8-97309-292-0	02	1	0711-0808	●	●

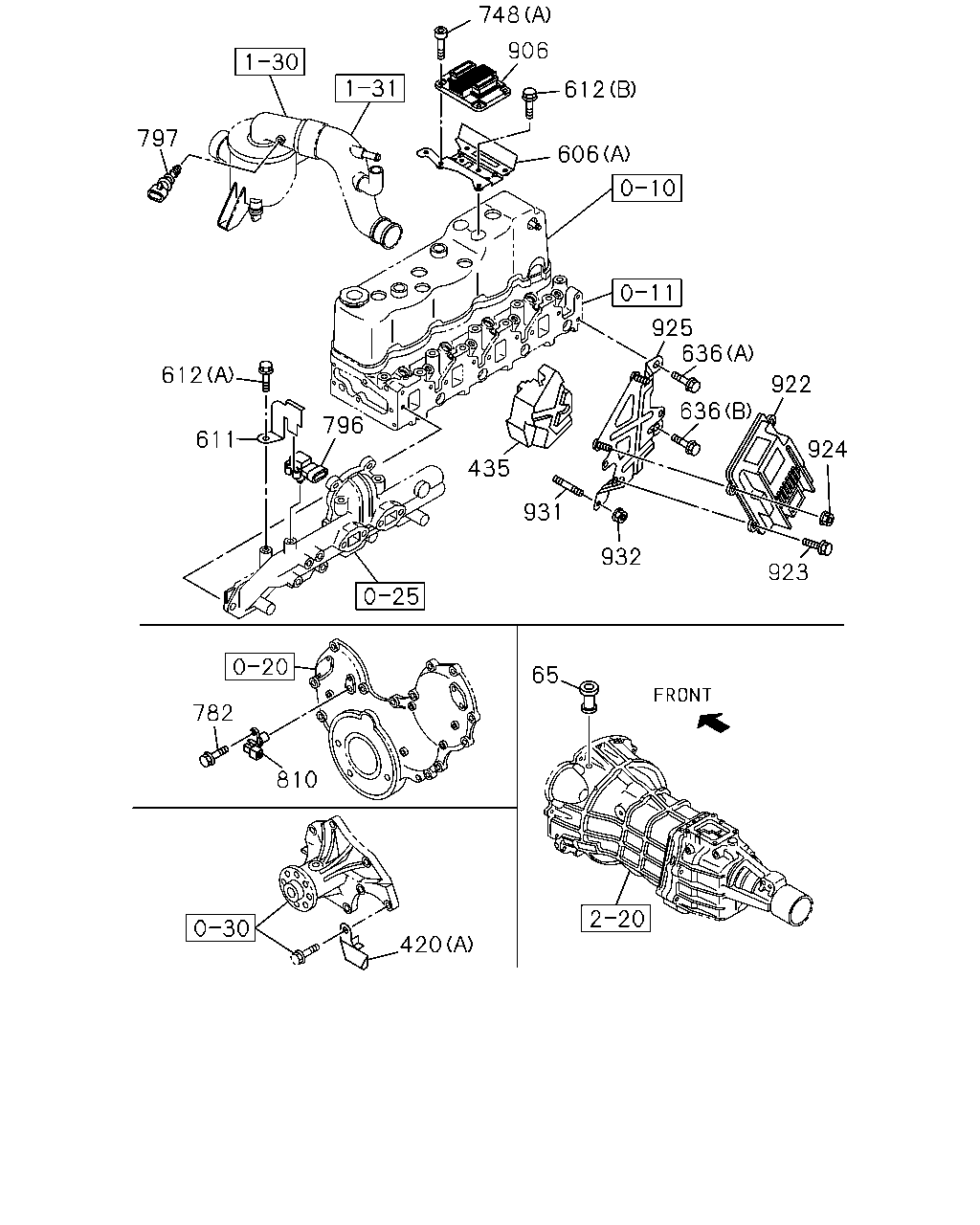

748 906 612 797 606 796 925 636 612 922 636 611 924 435 931 932 923 65 782 810 420

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
65	PLUG; SENSOR HOLE THA	8-97318-961-0	01	1	0303-0306			●
65	PLUG; SENSOR HOLE A/T 4 SPEED-JATCO<RMK> THA	8-97318-961-0	01	1	0307-0408			●
420	BRACKET; HARNESS (A) THA	8-97920-750-3	01	1	0303-0408			●
420	BRACKET; HARNESS (B) THA	8-97370-591-1	01	1	0409-0412	●
420	BRACKET; HARNESS (B) THA	8-97370-591-1	01	1	0501-0606	●	●
420	BRACKET; HARNESS (B) THA	8-98011-538-0	01	1	0607-	●	●
435	RUBBER; CUSHION THA	8-97942-630-0	01	1	0303-0308			●
435	RUBBER; CUSHION THA	8-97943-636-0	01	1	0309-0408			●
606	BRACKET; CONT UNIT (A) THA	8-97921-240-0	01	1	0303-0408			●
606	BRACKET; CONT UNIT (C) THA	8-97364-729-2	01	1	0409-0412	●
606	BRACKET; CONT UNIT (C) THA	8-97364-729-2	01	1	0501-0710	●	●
606	BRACKET; CONT UNIT (D) THA	8-98064-201-2	01	1	0711-0808	●	●
606	BRACKET; CONT UNIT (D) THA	8-98113-306-0	01	1	0809-	●	●
606	BRACKET; CONT UNIT (B) THA	8-97364-731-2	01	1	0409-0412	●
606	BRACKET; CONT UNIT (B) THA	8-97364-731-2	01	1	0501-0710	●	●
606	BRACKET; CONT UNIT (E) THA	8-98064-202-0	01	1	0711-	●	●
611	BRACKET; SENSOR THA	8-97943-116-0	01	1	0303-0408			●
612	BOLT; BRKT (A) M6X10 FLANGE THA	0-28050-610-0	01	1	0303-0408			●
612	BOLT; BRKT (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0303-0408			●
636	BOLT; BRKT (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0303-0408			●
636	BOLT; BRKT (B) M14X25 FLANGE THA	0-28651-425-0	01	1	0303-0408			●
748	BOLT; CONT UNIT (A) M6X20 HEX SOCKET THA	9-05820-620-0	04	1	0303-0408			●
748	BOLT; CONT UNIT (B) M6X20 FLANGE THA	0-28650-620-0	03	1	0409-0412	●
748	BOLT; CONT UNIT (B) M6X20 FLANGE THA	0-28650-620-0	03	1	0501-	●	●
748	BOLT; CONT UNIT (C) M6X25 HEX SOCKET THA	0-58310-625-0	04	1	0409-0412	●
748	BOLT; CONT UNIT (C) M6X25 HEX SOCKET THA	0-58310-625-0	04	1	0501-0601	●	●
748	BOLT; CONT UNIT (C) M6X25 HEX SOCKET THA	0-58330-625-0	04	1	0602-0710	●	●
748	BOLT; CONT UNIT (D) M6X16 FLANGE THA	0-28650-616-0	03	1	0711-	●	●
782	BOLT; SENSOR M6X16 FLANGE THA	0-28050-616-0	01	1	0303-0408			●
782	BOLT; SENSOR M6X16 FLANGE THA	0-28050-616-0	01	1	0409-0412	●
782	BOLT; SENSOR M6X16 FLANGE THA	0-28050-616-0	01	1	0501-	●	●
796	SENSOR; MAP IMA	8-97180-655-0	01	1	0303-0408			●
797	SENSOR; MAT THA	8-12160-244-0	01	1	0303-0408			●
810	SENSOR; CRANK ANGLE IMA	8-97180-388-0	01	1	0303-0408			●
906	CONTROL UNIT; FUEL INJ A/T 4 SPEED-JATCO<RMK> THA	8-97352-569-3	01	1	0303-0408			●
906	CONTROL UNIT; FUEL INJ M/T MUA 5 SPEED<RMN> THA	8-97352-568-3	01	1	0303-0408			●
922	DRIVE UNIT; INJ PUMP THA	8-97189-136-3	01	1	0303-0408			●
923	BOLT; DRIVE UNIT M6X25 FLANGE THA	0-28650-625-0	02	1	0303-0408			●
924	NUT; DRIVE UNIT M6 FLANGE THA	0-91180-106-0	02	1	0303-0408			●
925	BRACKET; DRIVE UNIT THA	8-97920-067-1	01	1	0303-0305			●
925	BRACKET; DRIVE UNIT THA	8-97943-777-0	01	1	0306-0408			●
931	STUD; BRKT,EDU M8X20 L=32 THA	0-41010-820-0	01	1	0303-0408			●
932	NUT; BRKT,EDU M8 FLANGE THA	0-91180-208-0	01	1	0303-0408			●

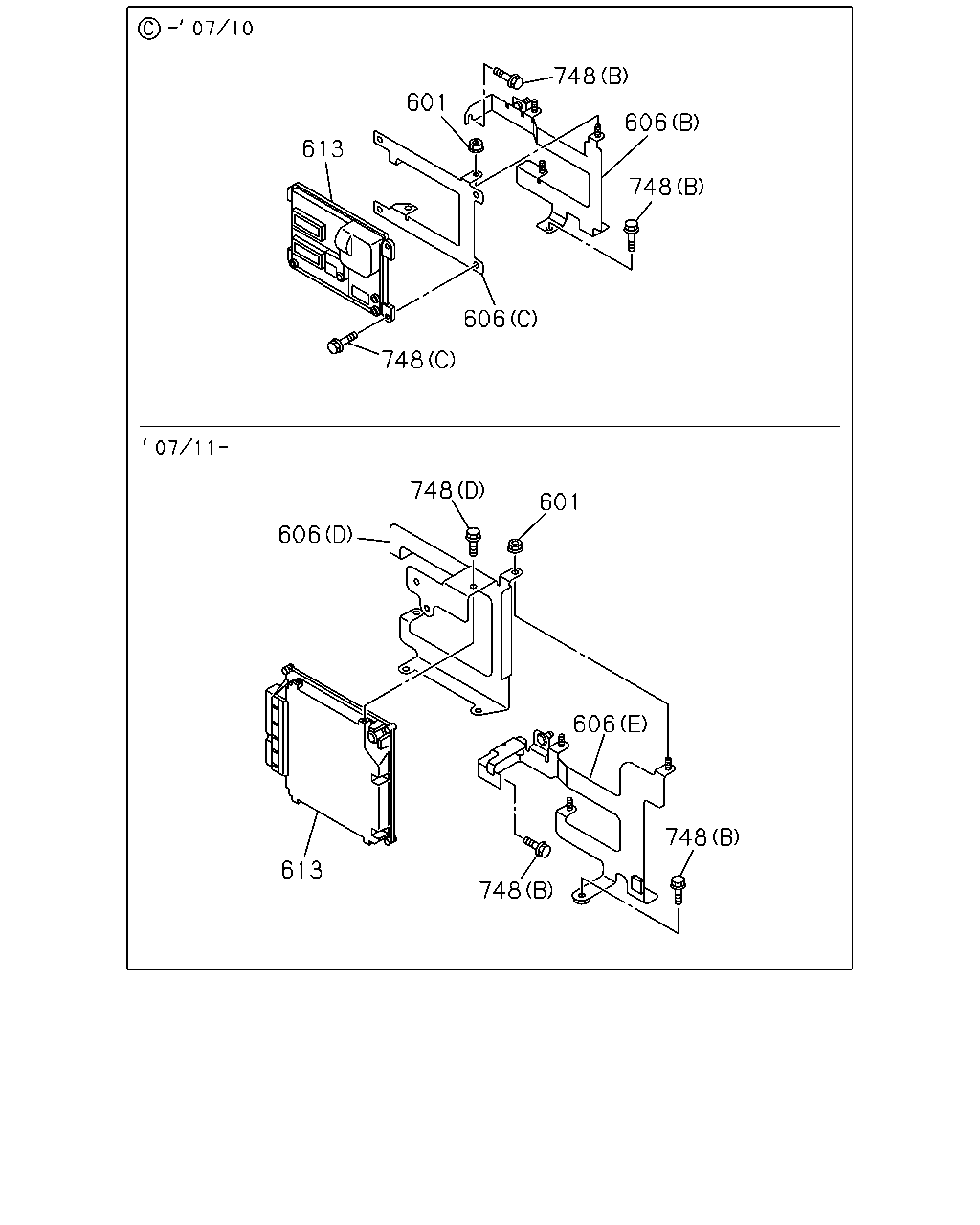

748 601 606 613 748 606 748 748 601 606 606 748 613 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
601	NUT; UNIT M6 FLANGE THA	0-91180-106-0	03	1	0409-0412	●
601	NUT; UNIT M6 FLANGE THA	0-91180-106-0	03	1	0501-	●	●
606	BRACKET; CONT UNIT (A) THA	8-97921-240-0	01	1	0303-0408			●
606	BRACKET; CONT UNIT (C) THA	8-97364-729-2	01	1	0409-0412	●
606	BRACKET; CONT UNIT (C) THA	8-97364-729-2	01	1	0501-0710	●	●
606	BRACKET; CONT UNIT (D) THA	8-98064-201-2	01	1	0711-0808	●	●
606	BRACKET; CONT UNIT (D) THA	8-98113-306-0	01	1	0809-	●	●
606	BRACKET; CONT UNIT (B) THA	8-97364-731-2	01	1	0409-0412	●
606	BRACKET; CONT UNIT (B) THA	8-97364-731-2	01	1	0501-0710	●	●
606	BRACKET; CONT UNIT (E) THA	8-98064-202-0	01	1	0711-	●	●
613	CONTROL UNIT; ENG A/T 4 SPEED-JATCO<RMK> THA	8-98002-452-0	01	1	0409-0412	●
613	CONTROL UNIT; ENG A/T 4 SPEED-JATCO<RMK> THA	8-98006-349-0	01	1	0501-0508	●
613	CONTROL UNIT; ENG A/T 4 SPEED-JATCO<RMK> THA	8-98006-353-0	01	1	0509-0603	●
613	CONTROL UNIT; ENG A/T 4 SPEED-JATCO<RMK> THA	8-98029-983-0	01	1	0604-0606	●
613	CONTROL UNIT; ENG A/T 4 SPEED-JATCO<RMK> THA	8-98017-337-8	01	1	0607-0704	●
613	CONTROL UNIT; ENG A/T 4 SPEED-JATCO<RMK> THA	8-98079-707-0	01	1	0705-0710	●
613	CONTROL UNIT; ENG A/T 4 SPEED-JATCO<RMK> THA	8-98057-397-3	01	1	0711-0808	●
613	CONTROL UNIT; ENG A/T 4 SPEED-JATCO<RMK> THA	8-98126-953-0	01	1	0809-0901	●
613	CONTROL UNIT; ENG A/T 4 SPEED-JATCO<RMK> THA	8-98135-352-0	01	1	0902-0909	●
613	CONTROL UNIT; ENG A/T 4 SPEED-JATCO<RMK> THA	8-98152-081-1	01	1	0910-	●
613	CONTROL UNIT; ENG M/T MUA 5 SPEED 5G<RSP> THA	8-98002-451-0	01	1	0409-0412	●
613	CONTROL UNIT; ENG M/T MUA 5 SPEED 5G<RSP> THA	8-98006-345-0	01	1	0501-0508	●
613	CONTROL UNIT; ENG M/T MUA 5 SPEED 5G<RSP> THA	8-98006-351-0	01	1	0509-0603	●
613	CONTROL UNIT; ENG M/T MUA 5 SPEED 5G<RSP> THA	8-98029-982-0	01	1	0604-0606	●
613	CONTROL UNIT; ENG M/T MUA 5 SPEED 5H<MWQ> THA	8-98017-335-8	01	1	0607-0704	●
613	CONTROL UNIT; ENG M/T MUA 5 SPEED 5H<MWQ> THA	8-98079-705-0	01	1	0705-0710	●
613	CONTROL UNIT; ENG M/T MUA 5 SPEED 5H<MWQ> THA	8-98057-395-3	01	1	0711-0808	●
613	CONTROL UNIT; ENG M/T MUA 5 SPEED 5H<MWQ> THA	8-98126-951-0	01	1	0809-0901	●
613	CONTROL UNIT; ENG M/T MUA 5 SPEED 5H<MWQ> THA	8-98135-350-0	01	1	0902-0909	●
613	CONTROL UNIT; ENG M/T MUA 5 SPEED 5H<MWQ> THA	8-98152-079-1	01	1	0910-	●
613	CONTROL UNIT; ENG THA	8-98006-354-0	01	1	0501-0508		●
613	CONTROL UNIT; ENG THA	8-98006-355-0	01	1	0509-0603		●
613	CONTROL UNIT; ENG THA	8-98029-986-0	01	1	0604-0606		●
613	CONTROL UNIT; ENG THA	8-98017-342-8	01	1	0607-0704		●
613	CONTROL UNIT; ENG THA	8-98079-712-0	01	1	0705-0710		●
613	CONTROL UNIT; ENG THA	8-98057-404-3	01	1	0711-0802		●
613	CONTROL UNIT; ENG THA	8-98097-107-0	01	1	0803-0808		●
613	CONTROL UNIT; ENG THA	8-98126-977-0	01	1	0809-0901		●
613	CONTROL UNIT; ENG THA	8-98135-362-0	01	1	0902-0909		●
613	CONTROL UNIT; ENG THA	8-98152-105-1	01	1	0910-		●
748	BOLT; CONT UNIT (A) M6X20 HEX SOCKET THA	9-05820-620-0	04	1	0303-0408			●
748	BOLT; CONT UNIT (B) M6X20 FLANGE THA	0-28650-620-0	03	1	0409-0412	●
748	BOLT; CONT UNIT (B) M6X20 FLANGE THA	0-28650-620-0	03	1	0501-	●	●
748	BOLT; CONT UNIT (C) M6X25 HEX SOCKET THA	0-58310-625-0	04	1	0409-0412	●
748	BOLT; CONT UNIT (C) M6X25 HEX SOCKET THA	0-58310-625-0	04	1	0501-0601	●	●
748	BOLT; CONT UNIT (C) M6X25 HEX SOCKET THA	0-58330-625-0	04	1	0602-0710	●	●
748	BOLT; CONT UNIT (D) M6X16 FLANGE THA	0-28650-616-0	03	1	0711-	●	●

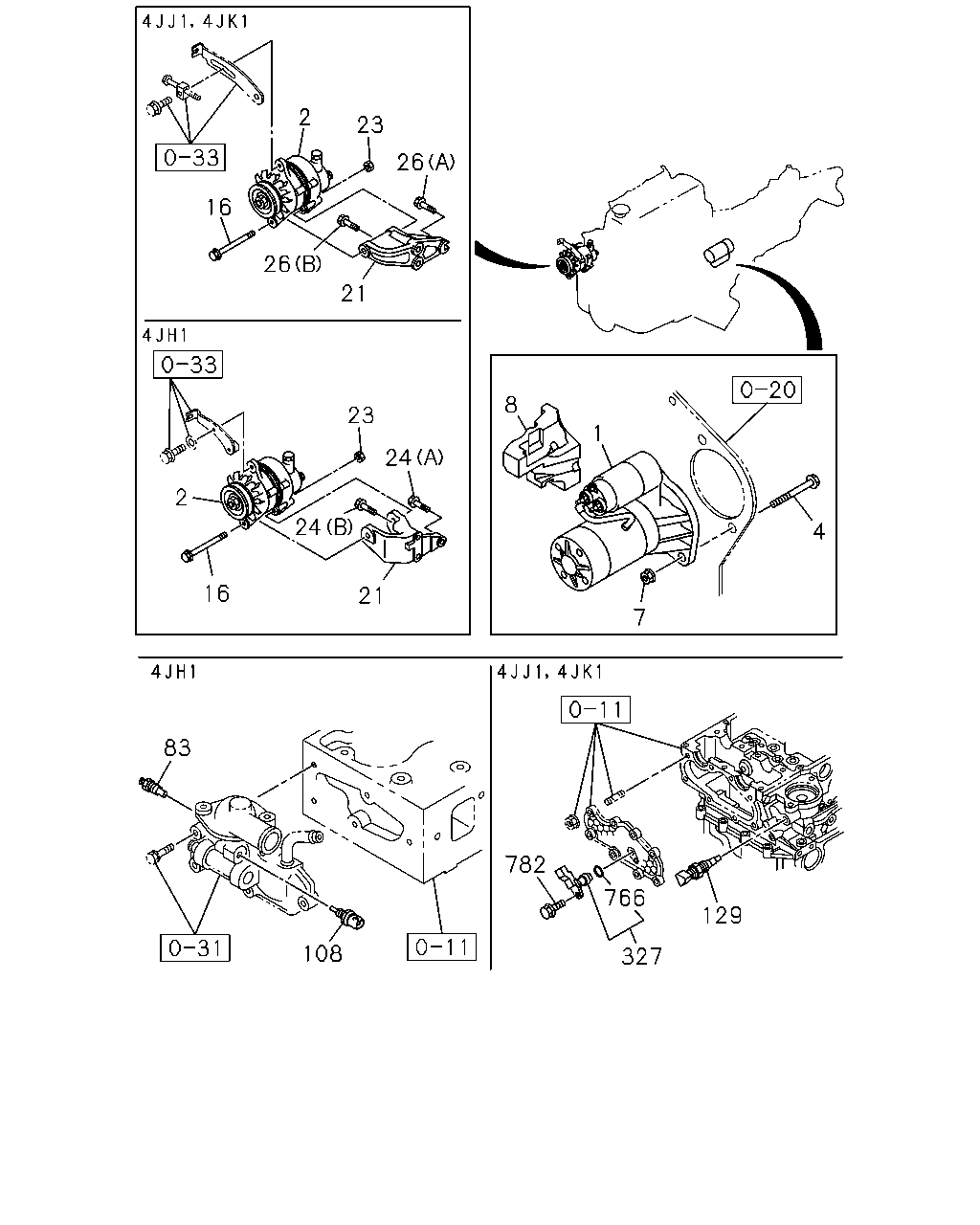

2 23 26 16 26 21 8 23 1 24 2 24 4 16 21 7 83 782 766 129 108 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW HITACHI THA	8-97941-018-2	01	1	0303-0408			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA	8-97357-756-1	01	1	0409-0412	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA	8-97357-756-1	01	1	0501-0511	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA	8-98028-199-0	01	1	0512-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A THA	8-97245-850-2	01	1	0303-0408			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA	8-97361-871-0	01	1	0409-0606	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA	8-98006-084-0	01	1	0607-1012	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA	8-97369-716-1	01	1	0501-1004		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA	8-98153-004-0	01	1	1005-1012		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA	8-98153-004-0	01	1	1101-1107	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA	8-98196-585-0	01	1	1108-1211	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA	8-98229-071-1	01	1	1212-	●	●
4	BOLT; STARTER M12X60 THA	8-97161-846-0	02	1	0303-0408			●
4	BOLT; STARTER M12X60 THA	8-97161-846-0	02	1	0409-0412	●
4	BOLT; STARTER M12X60 THA	8-97161-846-1	02	1	0501-	●	●
7	NUT; STARTER M12 FLANGE THA	0-91180-112-0	02	1	0303-0408			●
7	NUT; STARTER M12 FLANGE THA	0-91180-112-0	02	1	0409-0412	●
7	NUT; STARTER M12 FLANGE THA	0-91180-112-0	02	1	0501-	●	●
8	SPACER; STARTER THA	8-97942-635-0	01	1	0303-0308			●
8	SPACER; STARTER THA	8-97943-635-0	01	1	0309-0408			●
16	BOLT; GEN M10X130 FLANGE IMA	0-28056-013-0	01	1	0303-0408			●
16	BOLT; GEN M10X125 FLANGE THA	8-97226-470-0	01	1	0409-0412	●
16	BOLT; GEN M10X125 FLANGE THA	8-97226-470-1	01	1	0501-	●	●
21	BRACKET; GEN THA	8-97912-659-0	01	1	0303-0408			●
21	BRACKET; GEN THA	8-97356-020-1	01	1	0409-0412	●
21	BRACKET; GEN THA	8-97356-020-1	01	1	0501-	●	●
23	NUT; GEN M10 FLANGE THA	0-91180-210-0	01	1	0303-0408			●
23	NUT; GEN M10 FLANGE THA	0-91180-210-0	01	1	0409-0412	●
23	NUT; GEN M10 FLANGE THA	0-91180-210-0	01	1	0501-	●	●
24	BOLT; GEN BRKT (B) M10X70 W/LK WASHER THA	0-50041-070-0	02	1	0303-0408			●
24	BOLT; GEN BRKT (A) M10X35 W/LK WASHER THA	0-50541-035-0	01	1	0303-0408			●
26	BOLT; GEN BRKT (A) M10X35 FLANGE THA	0-28651-035-0	01	1	0409-0412	●
26	BOLT; GEN BRKT (A) M10X35 FLANGE THA	0-28651-035-0	01	1	0501-	●	●
26	BOLT; GEN BRKT (B) M10X40 FLANGE THA	0-28651-040-0	02	1	0409-0412	●
26	BOLT; GEN BRKT (B) M10X40 FLANGE THA	0-28651-040-0	02	1	0501-	●	●
83	THERMOMETER UNIT DENSO THA	8-94235-691-0	01	1	0303-0408			●
83	THERMOMETER UNIT YAZAKI THA	8-94237-861-0	01	1	0303-0408			●
108	SWITCH; THERMO THA	8-15326-386-0	01	1	0303-0408			●
129	SENSOR; GLOW PLUG,THERMO TRANSTRON THA	8-97170-327-0	01	1	0409-0412	●
129	SENSOR; GLOW PLUG,THERMO TRANSTRON THA	8-97170-327-0	01	1	0501-0606	●	●
129	SENSOR; GLOW PLUG,THERMO NIPPON THERMOSTAT IMA	8-98023-717-0	01	1	0607-	●	●
327	SENSOR; CAMSHAFT POSITION IMA	8-97312-108-1	01	1	0409-0412	●
327	SENSOR; CAMSHAFT POSITION IMA	8-97312-108-1	01	1	0501-	●	●
766	GASKET; SENSOR ID=14.2 OD=18.8 IMA	8-97369-404-0	01	1	0409-0412	●
766	GASKET; SENSOR ID=14.2 OD=18.8 IMA	8-97369-404-0	01	1	0501-	●	●
782	BOLT; SENSOR M6X16 FLANGE THA	0-28050-616-0	01	1	0303-0408			●
782	BOLT; SENSOR M6X16 FLANGE THA	0-28050-616-0	01	1	0409-0412	●
782	BOLT; SENSOR M6X16 FLANGE THA	0-28050-616-0	01	1	0501-	●	●

424 424 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	RELAY; STARTER 12V YAZAKI THA	8-98146-837-0	01	1	0909-	●	●
10	RELAY; STARTER 12V YAZAKI THA	8-97309-295-0	01	1	0303-0408			●
10	RELAY; STARTER 12V YAZAKI THA	8-97309-295-0	01	1	0409-0412	●
10	RELAY; STARTER 12V YAZAKI THA	8-97309-295-0	01	1	0501-0908	●	●
424	RELAY; SAFETY,STARTER 12V YAZAKI THA	8-97309-292-0	01	1	0311-0408			●
424	RELAY; SAFETY,STARTER 12V YAZAKI THA	8-97309-292-0	01	1	0409-0412	●
424	RELAY; SAFETY,STARTER 12V YAZAKI THA	8-97309-292-0	01	1	0501-0710	●	●
424	RELAY; SAFETY,STARTER 12V YAZAKI THA	8-97309-292-0	02	1	0711-0808	●	●

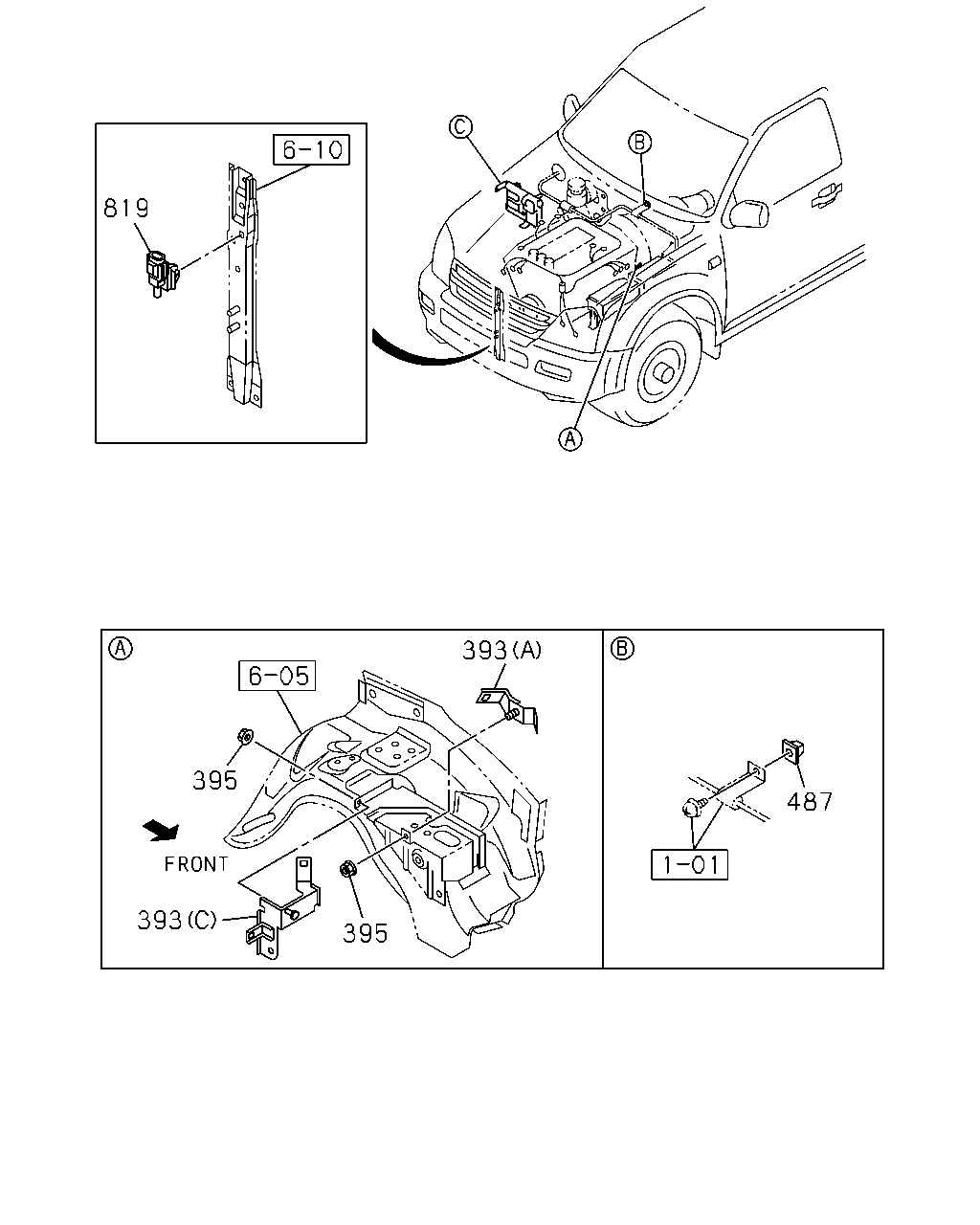

819 393 395 487 393 395

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
393	BRACKET; HARNESS TO BODY (A) THA	8-97236-163-1	01	1	0303-0408			●
393	BRACKET; HARNESS TO BODY (B) THA	8-97363-410-1	01	1	0409-0412	●
393	BRACKET; HARNESS TO BODY (B) THA	8-97363-410-1	01	1	0501-0608	●	●
393	BRACKET; HARNESS TO BODY (B) THA	8-98050-833-0	01	1	0609-	●	●
393	BRACKET; HARNESS TO BODY (C) THA	8-97378-730-0	01	1	0409-0412	●
393	BRACKET; HARNESS TO BODY (C) THA	8-97378-730-0	01	1	0501-0608	●	●
393	BRACKET; HARNESS TO BODY (C) THA	8-98050-884-0	01	1	0609-	●	●
395	NUT; BRKT FIX M6 FLANGE THA	0-91150-106-0	01	1	0303-0408			●
395	NUT; BRKT FIX M6 FLANGE THA	0-91150-106-0	01	1	0409-0412	●
395	NUT; BRKT FIX M6 FLANGE THA	0-91150-106-0	01	1	0501-0603	●	●
395	NUT; BRKT FIX M6 FLANGE THA	0-91180-106-0	01	1	0604-	●	●
487	NUT D=9.7X9.7 L=8 THA	8-94222-314-0	01	1	0303-0408			●
819	SENSOR; MASS AIR FLOW (MAF) IMA	8-98008-687-0	01	1	0607-	●	●

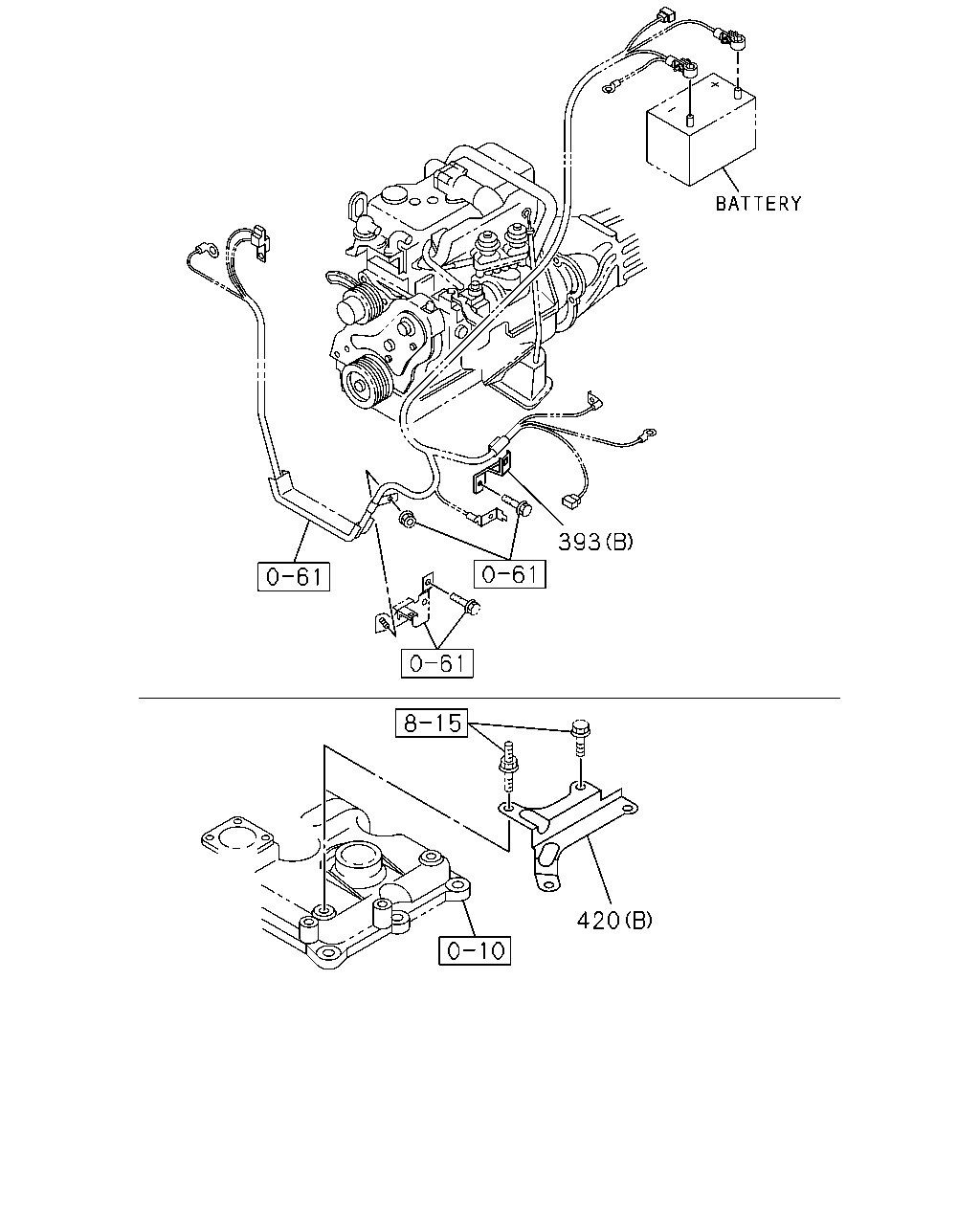

393 420

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
393	BRACKET; HARNESS TO BODY (A) THA	8-97236-163-1	01	1	0303-0408			●
393	BRACKET; HARNESS TO BODY (B) THA	8-97363-410-1	01	1	0409-0412	●
393	BRACKET; HARNESS TO BODY (B) THA	8-97363-410-1	01	1	0501-0608	●	●
393	BRACKET; HARNESS TO BODY (B) THA	8-98050-833-0	01	1	0609-	●	●
393	BRACKET; HARNESS TO BODY (C) THA	8-97378-730-0	01	1	0409-0412	●
393	BRACKET; HARNESS TO BODY (C) THA	8-97378-730-0	01	1	0501-0608	●	●
393	BRACKET; HARNESS TO BODY (C) THA	8-98050-884-0	01	1	0609-	●	●
420	BRACKET; HARNESS (A) THA	8-97920-750-3	01	1	0303-0408			●
420	BRACKET; HARNESS (B) THA	8-97370-591-1	01	1	0409-0412	●
420	BRACKET; HARNESS (B) THA	8-97370-591-1	01	1	0501-0606	●	●
420	BRACKET; HARNESS (B) THA	8-98011-538-0	01	1	0607-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
