0-57 — EMISSION PIPING
(#48639) — 95 parça
Tümü
A - 4JH1 ENG
B - 4JJ1 ENG
C - 4JK1 ENG
◀

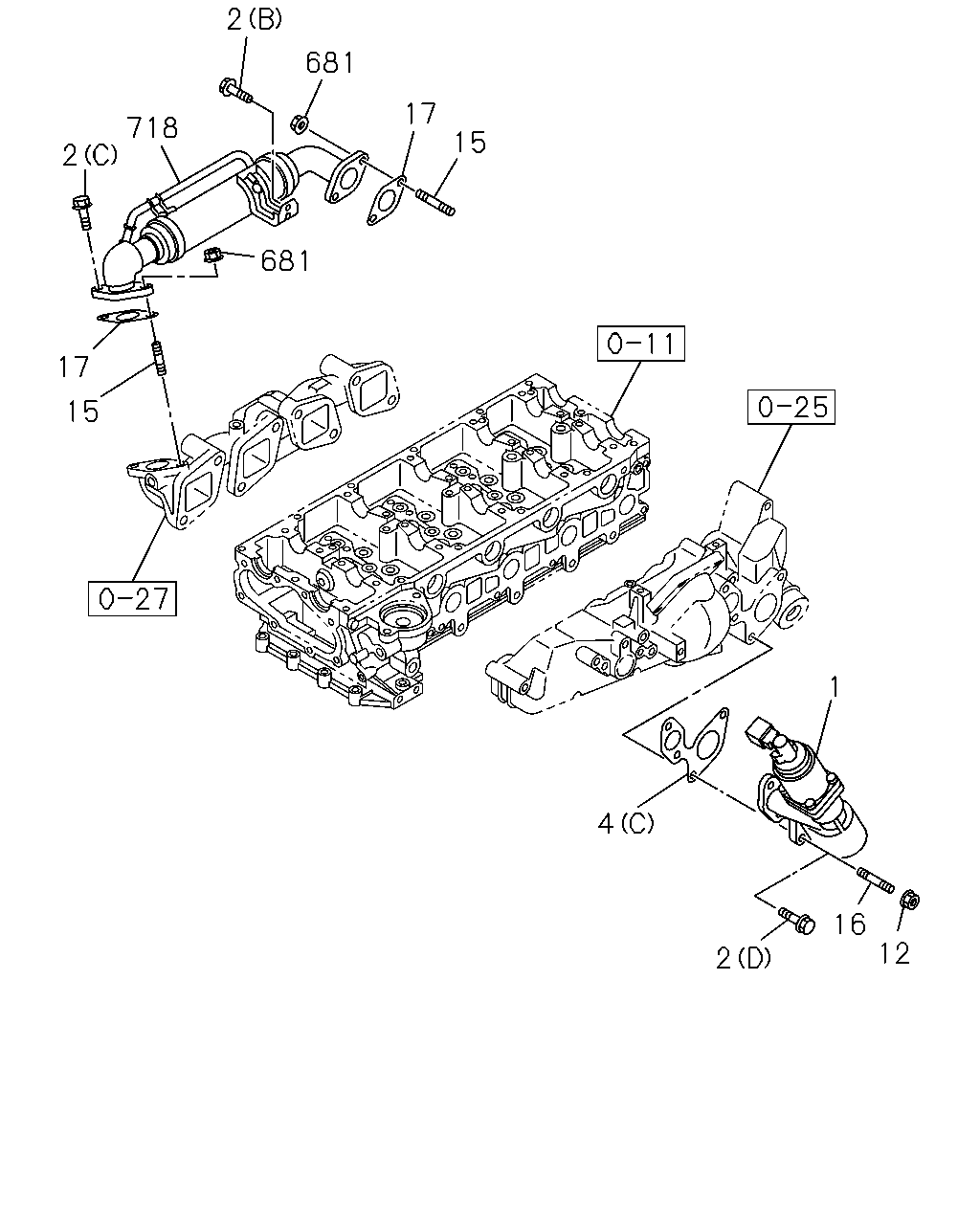

[057A] 4JJ1,4JK1 (37 parça)

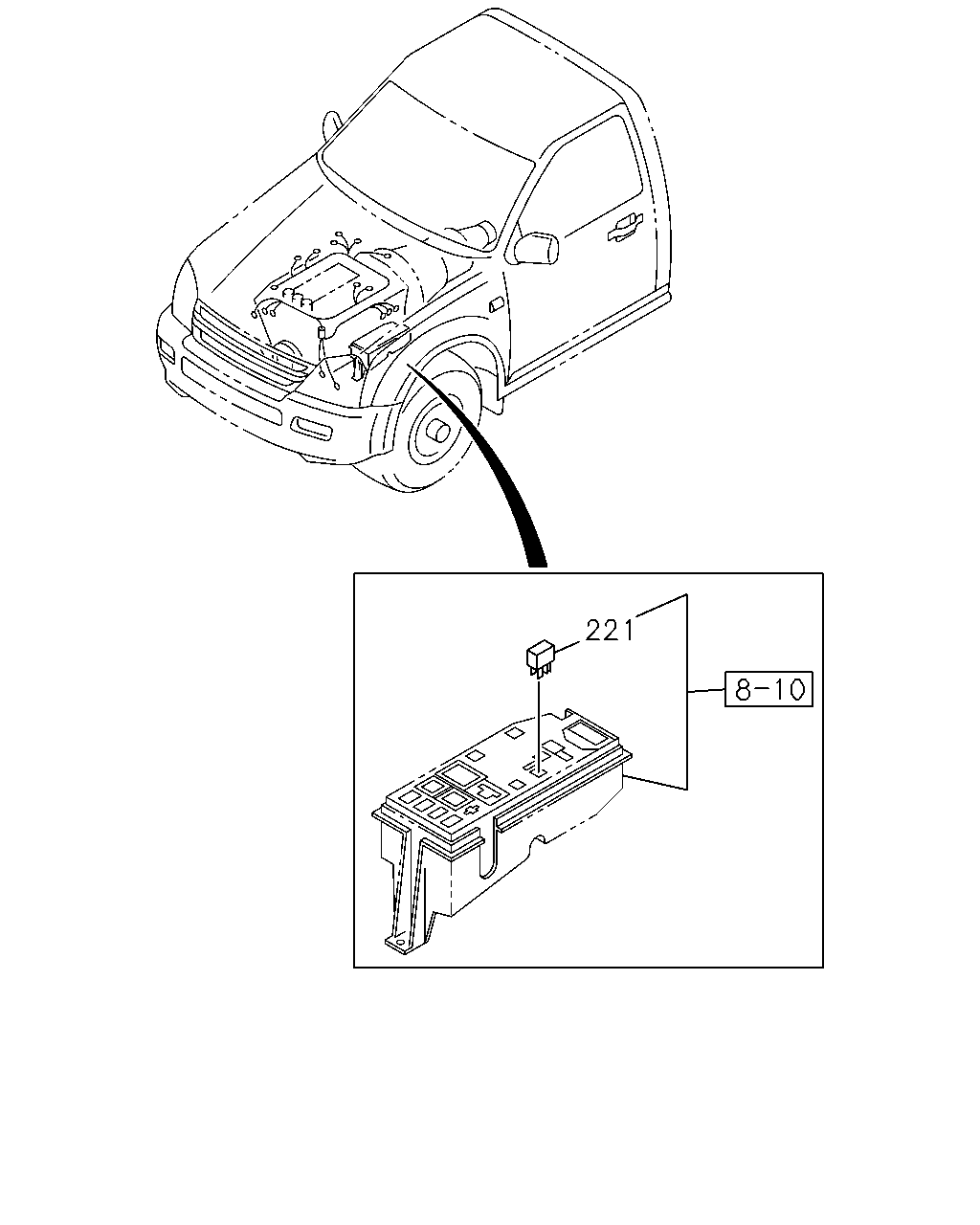

[057A] RELAY;MAIN (6 parça)

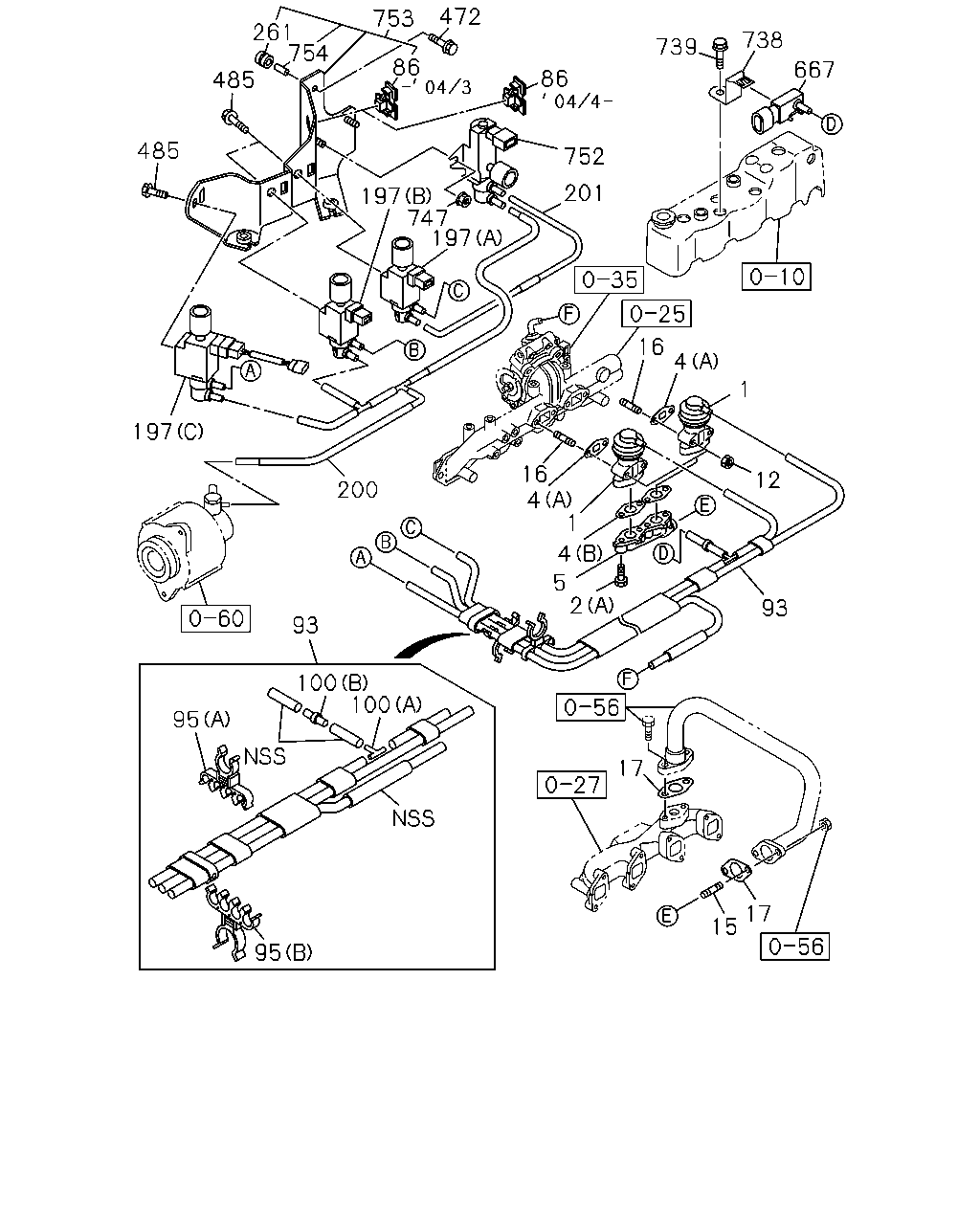

[057A] 4JH1 (52 parça)
▶
2
681
17
718
2
15
681
17
15
1
4
16
12
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
VALVE; EGR
IMA
8-97124-164-6
02
1
0303-0408
●
1
VALVE; EGR
THA
8-97312-282-4
01
1
0409-0412
●
1
VALVE; EGR
THA
8-97312-282-4
01
1
0501-0503
●
●
1
VALVE; EGR
THA
8-98012-302-0
01
1
0504-0505
●
●
1
VALVE; EGR
THA
8-98013-702-0
01
1
0506-0606
●
●
1
VALVE; EGR
THA
8-98013-911-1
01
1
0607-
●
●
2
BOLT; EGR VLV
(A) M8X40 FLANGE THA
0-28050-840-0
04
1
0303-0408
●
2
BOLT; EGR VLV
(B) M8X12 FLANGE THA
0-28050-812-0
01
1
0409-0412
●
2
BOLT; EGR VLV
(B) M8X12 FLANGE THA
0-28050-812-0
01
1
0501-
●
●
2
BOLT; EGR VLV
(C) M8X23 FLANGE THA
8-94103-629-2
01
1
0409-0409
●
2
BOLT; EGR VLV
(C) M8X23 FLANGE IMA
8-97378-077-0
01
1
0410-0412
●
2
BOLT; EGR VLV
(C) M8X23 FLANGE IMA
8-97378-077-0
01
1
0501-
●
●
2
BOLT; EGR VLV
(D) M8X25 FLANGE THA
0-28650-825-0
02
1
0508-
●
●
4
GASKET; EGR VLV
(B) THA
8-94379-754-0
01
1
0303-0308
●
4
GASKET; EGR VLV
(B) THA
8-97943-117-0
01
1
0309-0408
●
4
GASKET; EGR VLV
(A) THA
8-97910-300-0
02
1
0303-0408
●
4
GASKET; EGR VLV
(C) THA
8-97356-711-2
01
1
0409-0412
●
4
GASKET; EGR VLV
(C) THA
8-97356-711-3
01
1
0501-
●
●
12
NUT; EGR VLV
M8 FLANGE THA
0-91180-208-0
04
1
0303-0408
●
12
NUT; EGR VLV
M8 FLANGE THA
0-91180-208-0
04
1
0409-0412
●
12
NUT; EGR VLV
M8 FLANGE THA
0-91180-208-0
04
1
0501-0507
●
●
12
NUT; EGR VLV
M8 FLANGE THA
0-91180-208-0
02
1
0508-
●
●
15
STUD; EGR PIPE
M8X22 L=33 THA
8-94257-319-0
03
1
0711-
●
●
15
STUD; EGR PIPE
M8X25 L=37 THA
0-41010-825-0
02
1
0303-0408
●
16
STUD; EGR VLV
M8X45 L=57 IMA
8-94105-162-1
04
1
0303-0408
●
16
STUD; EGR VLV
M8X22 L=40 THA
0-49140-822-0
04
1
0409-0412
●
16
STUD; EGR VLV
M8X22 L=40 THA
0-49140-822-0
04
1
0501-0507
●
●
16
STUD; EGR VLV
M8X22 L=40 THA
0-49140-822-0
02
1
0508-
●
●
17
GASKET; EGR PIPE
THA
8-97942-749-0
02
1
0303-0408
●
17
GASKET; EGR PIPE
THA
8-97357-684-2
02
1
0409-0412
●
17
GASKET; EGR PIPE
THA
8-97357-684-3
02
1
0501-
●
●
681
NUT; EGR PIPE
M8 FLANGE THA
0-91180-208-0
03
1
0409-0412
●
681
NUT; EGR PIPE
M8 FLANGE THA
0-91180-208-0
03
1
0501-
●
●
718
COOLER; EGR
THA
8-97312-095-2
01
1
0409-0412
●
718
COOLER; EGR
THA
8-97312-095-2
01
1
0501-0510
●
●
718
COOLER; EGR
THA
8-98031-836-0
01
1
0511-0907
●
●
718
COOLER; EGR
THA
8-98150-750-2
01
1
0908-
●
●
221
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
221
RELAY; MAIN
12V YAZAKI THA
8-98146-834-0
01
1
0909-
●
●
221
RELAY; MAIN
12V YAZAKI THA
8-97309-293-0
01
1
0303-0408
●
221
RELAY; MAIN
12V YAZAKI THA
8-97309-294-0
01
1
0409-0412
●
221
RELAY; MAIN
12V YAZAKI THA
8-97309-294-0
01
1
0501-0606
●
●
221
RELAY; MAIN
12V OMRON THA
8-97125-441-1
01
1
0509-0908
●
●
221
RELAY; MAIN
12V YAZAKI THA
8-97309-294-0
01
1
0711-0908
●
●
472
753
261
754
738
739
86
667
86
485
485
752
201
197
747
197
16
4
1
197
16
4
1
200
1
4
5
2
93
93
100
100
95
17
17
15
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
VALVE; EGR
IMA
8-97124-164-6
02
1
0303-0408
●
1
VALVE; EGR
THA
8-97312-282-4
01
1
0409-0412
●
1
VALVE; EGR
THA
8-97312-282-4
01
1
0501-0503
●
●
1
VALVE; EGR
THA
8-98012-302-0
01
1
0504-0505
●
●
1
VALVE; EGR
THA
8-98013-702-0
01
1
0506-0606
●
●
1
VALVE; EGR
THA
8-98013-911-1
01
1
0607-
●
●
2
BOLT; EGR VLV
(A) M8X40 FLANGE THA
0-28050-840-0
04
1
0303-0408
●
2
BOLT; EGR VLV
(B) M8X12 FLANGE THA
0-28050-812-0
01
1
0409-0412
●
2
BOLT; EGR VLV
(B) M8X12 FLANGE THA
0-28050-812-0
01
1
0501-
●
●
2
BOLT; EGR VLV
(C) M8X23 FLANGE THA
8-94103-629-2
01
1
0409-0409
●
2
BOLT; EGR VLV
(C) M8X23 FLANGE IMA
8-97378-077-0
01
1
0410-0412
●
2
BOLT; EGR VLV
(C) M8X23 FLANGE IMA
8-97378-077-0
01
1
0501-
●
●
2
BOLT; EGR VLV
(D) M8X25 FLANGE THA
0-28650-825-0
02
1
0508-
●
●
4
GASKET; EGR VLV
(B) THA
8-94379-754-0
01
1
0303-0308
●
4
GASKET; EGR VLV
(B) THA
8-97943-117-0
01
1
0309-0408
●
4
GASKET; EGR VLV
(A) THA
8-97910-300-0
02
1
0303-0408
●
4
GASKET; EGR VLV
(C) THA
8-97356-711-2
01
1
0409-0412
●
4
GASKET; EGR VLV
(C) THA
8-97356-711-3
01
1
0501-
●
●
5
ADAPTER ASM
IMA
8-97943-013-0
01
1
0303-0408
●
15
STUD; EGR PIPE
M8X22 L=33 THA
8-94257-319-0
03
1
0711-
●
●
15
STUD; EGR PIPE
M8X25 L=37 THA
0-41010-825-0
02
1
0303-0408
●
16
STUD; EGR VLV
M8X45 L=57 IMA
8-94105-162-1
04
1
0303-0408
●
16
STUD; EGR VLV
M8X22 L=40 THA
0-49140-822-0
04
1
0409-0412
●
16
STUD; EGR VLV
M8X22 L=40 THA
0-49140-822-0
04
1
0501-0507
●
●
16
STUD; EGR VLV
M8X22 L=40 THA
0-49140-822-0
02
1
0508-
●
●
17
GASKET; EGR PIPE
THA
8-97942-749-0
02
1
0303-0408
●
17
GASKET; EGR PIPE
THA
8-97357-684-2
02
1
0409-0412
●
17
GASKET; EGR PIPE
THA
8-97357-684-3
02
1
0501-
●
●
86
CLIP
L=15 IMA
8-94315-436-1
01
1
0303-0408
●
93
HOSE ASM
THA
8-97251-361-5
01
1
0303-0303
●
93
HOSE ASM
THA
8-97943-487-0
01
1
0303-0305
●
93
HOSE ASM
THA
8-97943-811-0
01
1
0306-0408
●
95
CLIP; HOSE
(B) ID=14.5 & 7X4 THA
8-94368-499-0
01
1
0303-0408
●
95
CLIP; HOSE
(A) ID=20 & 7X4 THA
8-94368-500-0
01
1
0303-0303
●
100
JOINT; HOSE
(A) 3WAY THA
8-94210-631-0
01
1
0303-0408
●
100
JOINT; HOSE
(B) 2WAY THA
8-94426-435-0
01
1
0303-0408
●
197
VALVE; VAC SWITCHING
(A) THA
8-97043-750-0
01
1
0303-0408
●
197
VALVE; VAC SWITCHING
(C) THA
8-97070-554-0
01
1
0303-0408
●
197
VALVE; VAC SWITCHING
(B) THA
8-97171-030-0
01
1
0303-0408
●
200
HOSE; VAC
THA
8-97235-562-4
01
1
0303-0408
●
201
HOSE; VSV
THA
8-97322-312-0
01
1
0303-0303
●
261
GROMMET
THA
5-19389-002-0
03
1
0303-0408
●
472
BOLT; BRKT
M6X16 FLANGE THA
0-28650-616-0
03
1
0303-0408
●
485
BOLT; VSV
M5X10 W/LK+PL WASHER THA
9-03920-510-0
03
1
0303-0408
●
667
SENSOR; VAC
IMA
8-16258-659-0
01
1
0303-0408
●
738
BRACKET; SENSOR,VAC
THA
8-97322-263-1
01
1
0303-0408
●
739
BOLT; BRKT,SENSOR
M8X12 FLANGE THA
0-28050-812-0
01
1
0303-0408
●
747
NUT; VAC REG VALVE
M8 FLANGE THA
0-91180-208-0
02
1
0303-0408
●
752
VALVE; EVRV
THA
8-97137-812-0
01
1
0303-0408
●
753
BRACKET; VALVE
THA
8-97307-069-2
01
1
0303-0403
●
753
BRACKET; VALVE
THA
8-97943-948-0
01
1
0404-0408
●
754
BUSHING; RUBBER
THA
5-19389-009-0
03
1
0303-0408
●
