Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#48637) — 213 parça

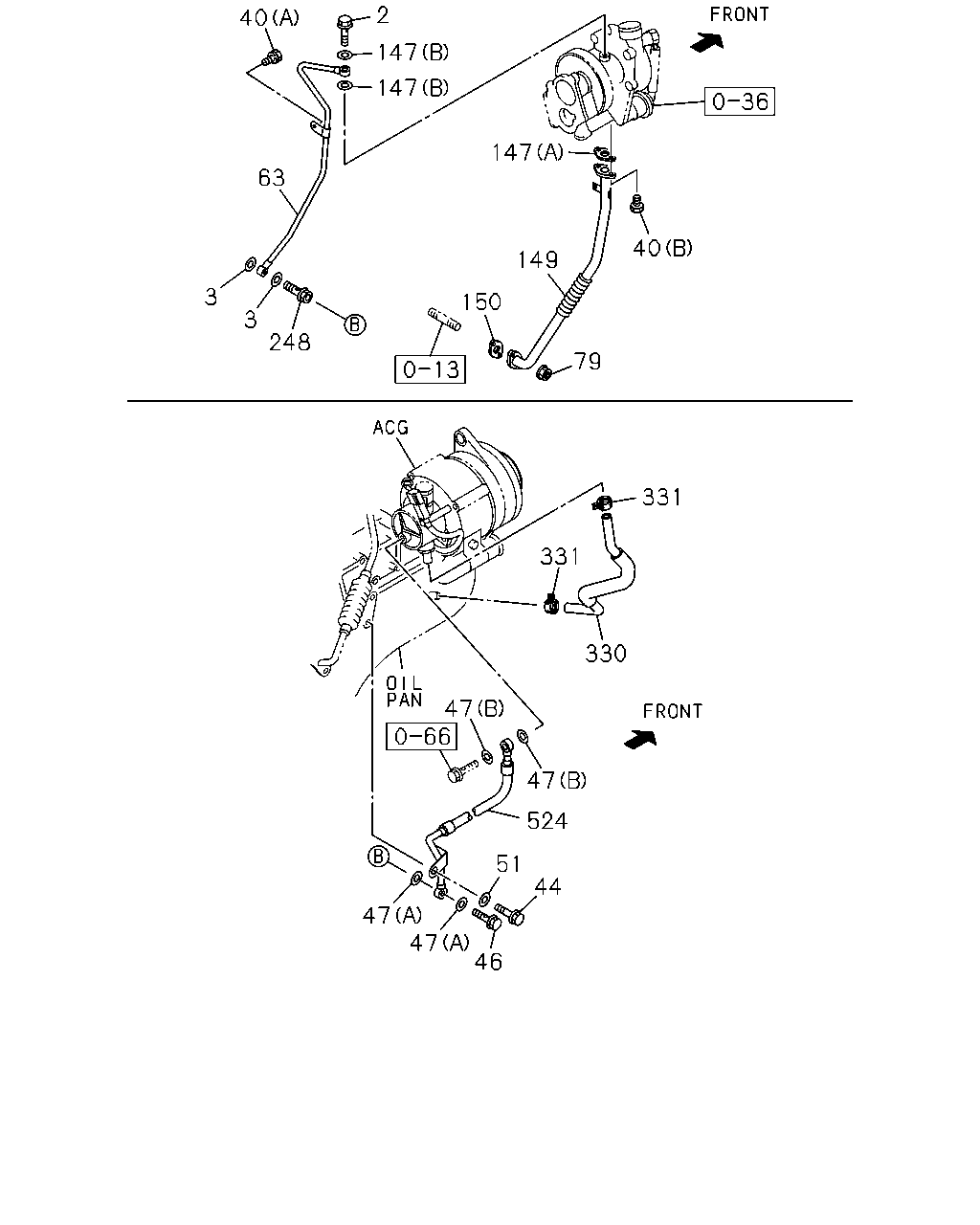

2 40 147 147 147 63 40 149 3 150 3 248 79 331 331 330 47 47 524 51 44 47 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE M10X27 FLANGE IMA	8-94443-535-0	01	1	0303-0408	●
2	BOLT; EYE,OIL PIPE M10X24 IMA	9-09906-205-1	01	1	0409-0412		●
2	BOLT; EYE,OIL PIPE M10X24 IMA	9-09906-205-1	01	1	0501-0506		●	●
2	BOLT; EYE,OIL PIPE M10X24 THA	8-97944-505-0	01	1	0507-0606		●	●
2	BOLT; EYE,OIL PIPE M10X27 FLANGE IMA	8-94443-535-0	01	1	0607-		●	●
3	GASKET; EYE BOLT,OIL PIPE ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0303-0408	●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0409-0412		●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0501-		●	●
40	BOLT; OIL PIPE (A) M8X16 FLANGE IMA	0-28450-816-0	01	1	0303-0408	●
40	BOLT; OIL PIPE (B) M6X20 W/LK&PL WASHER THA	0-50640-620-0	02	1	0303-0408	●
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER IMA	0-50540-816-0	01	1	0303-0408	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28680-630-0	01	1	0409-0412		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28680-630-0	01	1	0501-0601		●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0602-		●	●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 EYE-BOLT THA	8-97910-296-0	01	1	0303-0408	●
47	GASKET; OIL PIPE (A) ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	02	1	0303-0408	●
47	GASKET; OIL PIPE (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0303-0408	●
51	WASHER; PL,OIL PIPE,VAC PUMP ID=8.4 OD=18 THA	9-09164-608-0	01	1	0303-0408	●
63	PIPE; OIL,TURBOCHARGER FEED IMA	8-97086-341-0	01	1	0303-0408	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0409-0412		●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0501-0606		●	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98011-899-0	01	1	0607-		●	●
79	NUT; OIL DRAIN PIPE M8 FLANGE THA	8-97943-102-0	02	1	0303-0408	●
147	GASKET; OIL PIPE TO TURBOCHARGER (A) ID=14 THA	8-97910-643-0	01	1	0303-0408	●
147	GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-97354-056-0	01	1	0409-0412		●
147	GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-97354-056-0	01	1	0501-		●	●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0303-0408	●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0409-0412		●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0501-		●	●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-97245-772-2	01	1	0303-0408	●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-97355-431-4	01	1	0409-0412		●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-97355-431-4	01	1	0501-0606		●	●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-98011-900-0	01	1	0607-		●	●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0303-0408	●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0409-0412		●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0501-		●	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X25 THA	8-94315-336-1	01	1	0303-0408	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 IMA	9-09906-205-1	01	1	0409-0412		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 IMA	9-09906-205-1	01	1	0501-0506		●	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 THA	8-97944-505-1	01	1	0507-		●	●
330	HOSE; VAC PUMP,RETURN THA	8-97322-311-2	01	1	0303-0408	●
331	CLAMP; VAC HOSE,PUMP RETURN THA	8-97108-102-0	02	1	0303-0408	●
524	PIPE; OIL,VAC PUMP FEED THA	8-97942-810-0	01	1	0303-0408	●

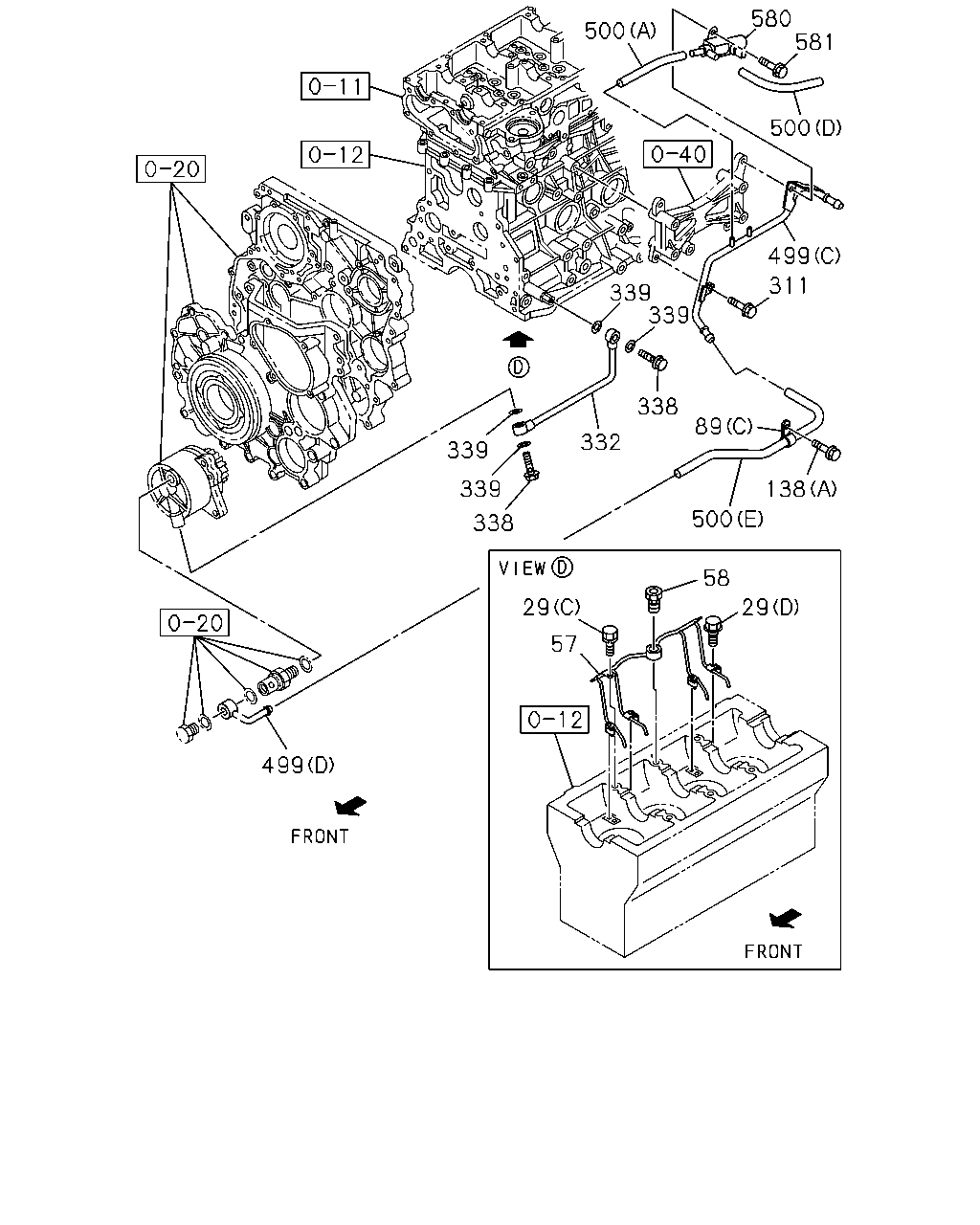

500 580 581 500 499 311 339 339 338 138 500 332 58 29 29 57 338 339 339 499 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER THA	0-50540-812-0	01	1	0303-0408	●
29	BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-0	04	1	0409-0412		●
29	BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-1	04	1	0501-		●	●
29	BOLT; OIL PIPE,OIL JET (B) M6X20 THA	8-97920-485-0	04	1	0303-0408	●
29	BOLT; OIL PIPE,OIL JET (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0409-0412		●
29	BOLT; OIL PIPE,OIL JET (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0501-		●	●
57	PIPE; OIL,OIL JET THA	8-97920-033-3	01	1	0303-0408	●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0409-0412		●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0501-		●	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97920-423-0	01	1	0303-0408	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0409-0412		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0501-		●	●
89	CLIP; VAC HOSE (A) ID=12 L=20 IMA	1-09700-911-1	02	1	0409-0412		●
89	CLIP; VAC HOSE (A) ID=12 L=20 IMA	1-09700-911-1	02	1	0501-0606		●	●
89	CLIP; VAC HOSE (C) ID=16 L=20 THA	0-95235-536-0	01	1	0607-		●	●
89	CLIP; VAC HOSE (B) THA	9-09520-835-0	01	1	0409-0412		●
89	CLIP; VAC HOSE (B) THA	9-09520-835-0	01	1	0501-0606		●	●
138	BOLT; CLIP FIX (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0409-0412		●
138	BOLT; CLIP FIX (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0501-		●	●
138	BOLT; CLIP FIX (B) M6X16 FLANGE THA	0-28650-616-0	02	1	0409-0412		●
138	BOLT; CLIP FIX (B) M6X16 FLANGE THA	0-28650-616-0	02	1	0501-0606		●	●
311	BOLT; PIPE FIX M8X12 FLANGE THA	0-28050-812-0	02	1	0303-0408	●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0409-0412		●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0501-0606		●	●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	01	1	0607-		●	●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-97312-302-1	01	1	0409-0412		●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-97312-302-1	01	1	0501-0606		●	●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-98038-929-0	01	1	0607-		●	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-0	02	1	0409-0412		●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-1	02	1	0501-		●	●
339	GASKET; OIL PIPE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0409-0412		●
339	GASKET; OIL PIPE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0501-		●	●
499	PIPE; VACUUM (B) THA	8-97357-846-2	01	1	0409-0412		●
499	PIPE; VACUUM (B) THA	8-97357-846-2	01	1	0501-0606		●	●
499	PIPE; VACUUM (D) THA	8-98011-527-1	01	1	0607-		●	●
499	PIPE; VACUUM (A) THA	8-97369-442-2	01	1	0409-0412		●
499	PIPE; VACUUM (A) THA	8-97369-442-2	01	1	0501-0606		●	●
499	PIPE; VACUUM (C) THA	8-98013-802-1	01	1	0607-		●	●
500	HOSE; VACUUM (A) THA	0-04320-160-0	01	1	0409-0412		●
500	HOSE; VACUUM (A) THA	0-04320-160-0	01	1	0501-0606		●	●
500	HOSE; VACUUM (A) THA	0-04420-110-0	01	1	0607-		●	●
500	HOSE; VACUUM (B) THA	8-97358-019-0	01	1	0409-0412		●
500	HOSE; VACUUM (B) THA	8-97358-019-0	01	1	0501-0606		●	●
500	HOSE; VACUUM (E) THA	0-08508-230-0	01	1	0607-		●	●
500	HOSE; VACUUM (C) THA	8-97369-587-1	01	1	0409-0412		●
500	HOSE; VACUUM (C) THA	8-97369-587-1	01	1	0501-0606		●	●
500	HOSE; VACUUM (D) THA	8-97369-589-0	01	1	0409-0412		●
500	HOSE; VACUUM (D) THA	8-97369-589-0	01	1	0501-		●	●
580	VALVE; VAC SW IMA	8-97352-145-0	01	1	0409-0412		●
580	VALVE; VAC SW IMA	8-97352-145-0	01	1	0501-		●	●
581	BOLT; VSV M8X16 FLANGE THA	0-28050-816-0	01	1	0409-0412		●
581	BOLT; VSV M8X16 FLANGE THA	0-28050-816-0	01	1	0501-		●	●

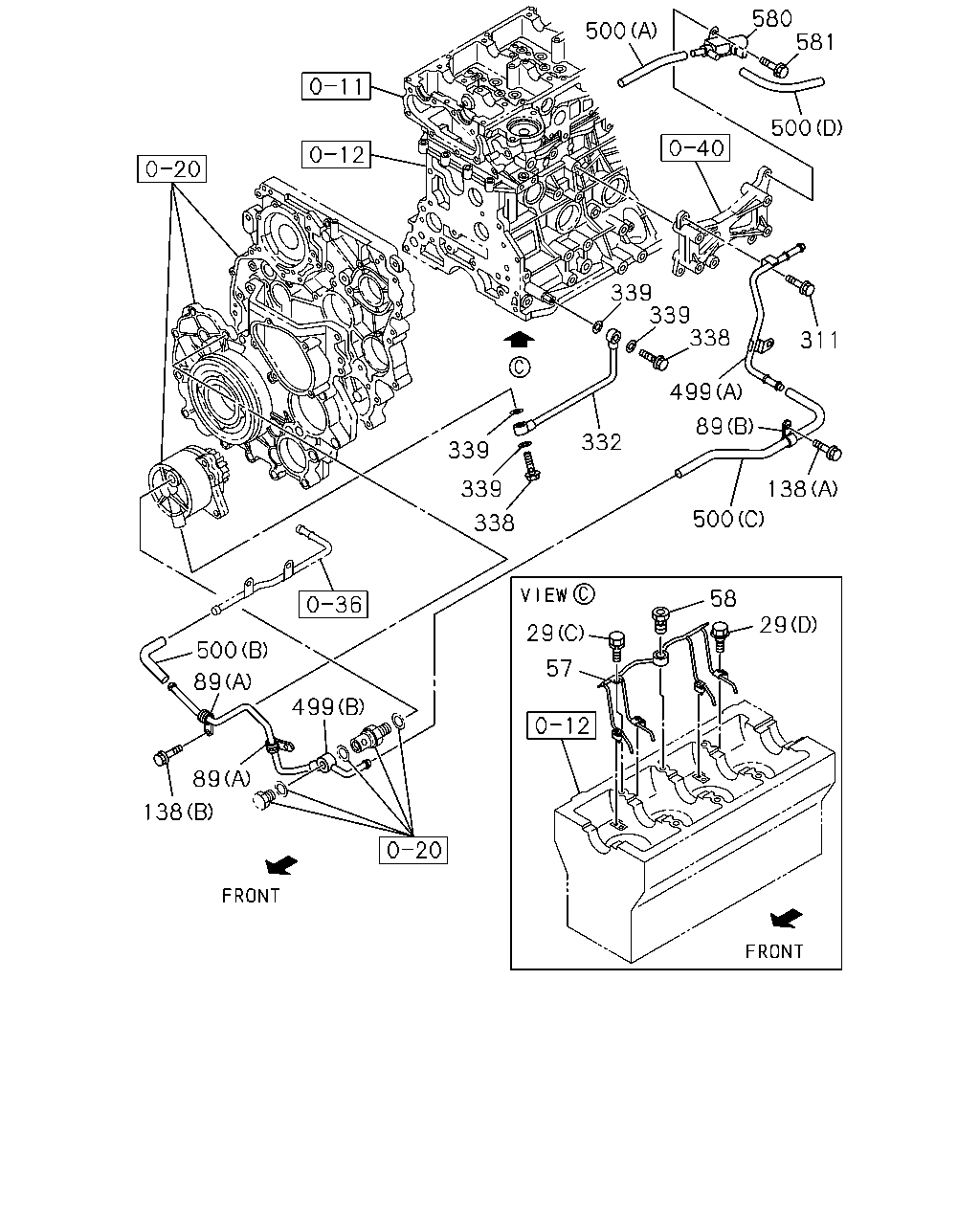

580 581 500 500 311 338 339 339 499 89 138 500 332 339 339 338 500 89 89 138 499 29 57 58 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER THA	0-50540-812-0	01	1	0303-0408	●
29	BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-0	04	1	0409-0412		●
29	BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-1	04	1	0501-		●	●
29	BOLT; OIL PIPE,OIL JET (B) M6X20 THA	8-97920-485-0	04	1	0303-0408	●
29	BOLT; OIL PIPE,OIL JET (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0409-0412		●
29	BOLT; OIL PIPE,OIL JET (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0501-		●	●
57	PIPE; OIL,OIL JET THA	8-97920-033-3	01	1	0303-0408	●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0409-0412		●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0501-		●	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97920-423-0	01	1	0303-0408	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0409-0412		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0501-		●	●
89	CLIP; VAC HOSE (A) ID=12 L=20 IMA	1-09700-911-1	02	1	0409-0412		●
89	CLIP; VAC HOSE (A) ID=12 L=20 IMA	1-09700-911-1	02	1	0501-0606		●	●
89	CLIP; VAC HOSE (C) ID=16 L=20 THA	0-95235-536-0	01	1	0607-		●	●
89	CLIP; VAC HOSE (B) THA	9-09520-835-0	01	1	0409-0412		●
89	CLIP; VAC HOSE (B) THA	9-09520-835-0	01	1	0501-0606		●	●
138	BOLT; CLIP FIX (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0409-0412		●
138	BOLT; CLIP FIX (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0501-		●	●
138	BOLT; CLIP FIX (B) M6X16 FLANGE THA	0-28650-616-0	02	1	0409-0412		●
138	BOLT; CLIP FIX (B) M6X16 FLANGE THA	0-28650-616-0	02	1	0501-0606		●	●
311	BOLT; PIPE FIX M8X12 FLANGE THA	0-28050-812-0	02	1	0303-0408	●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0409-0412		●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0501-0606		●	●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	01	1	0607-		●	●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-97312-302-1	01	1	0409-0412		●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-97312-302-1	01	1	0501-0606		●	●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-98038-929-0	01	1	0607-		●	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-0	02	1	0409-0412		●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-1	02	1	0501-		●	●
339	GASKET; OIL PIPE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0409-0412		●
339	GASKET; OIL PIPE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0501-		●	●
499	PIPE; VACUUM (B) THA	8-97357-846-2	01	1	0409-0412		●
499	PIPE; VACUUM (B) THA	8-97357-846-2	01	1	0501-0606		●	●
499	PIPE; VACUUM (D) THA	8-98011-527-1	01	1	0607-		●	●
499	PIPE; VACUUM (A) THA	8-97369-442-2	01	1	0409-0412		●
499	PIPE; VACUUM (A) THA	8-97369-442-2	01	1	0501-0606		●	●
499	PIPE; VACUUM (C) THA	8-98013-802-1	01	1	0607-		●	●
500	HOSE; VACUUM (A) THA	0-04320-160-0	01	1	0409-0412		●
500	HOSE; VACUUM (A) THA	0-04320-160-0	01	1	0501-0606		●	●
500	HOSE; VACUUM (A) THA	0-04420-110-0	01	1	0607-		●	●
500	HOSE; VACUUM (B) THA	8-97358-019-0	01	1	0409-0412		●
500	HOSE; VACUUM (B) THA	8-97358-019-0	01	1	0501-0606		●	●
500	HOSE; VACUUM (E) THA	0-08508-230-0	01	1	0607-		●	●
500	HOSE; VACUUM (C) THA	8-97369-587-1	01	1	0409-0412		●
500	HOSE; VACUUM (C) THA	8-97369-587-1	01	1	0501-0606		●	●
500	HOSE; VACUUM (D) THA	8-97369-589-0	01	1	0409-0412		●
500	HOSE; VACUUM (D) THA	8-97369-589-0	01	1	0501-		●	●
580	VALVE; VAC SW IMA	8-97352-145-0	01	1	0409-0412		●
580	VALVE; VAC SW IMA	8-97352-145-0	01	1	0501-		●	●
581	BOLT; VSV M8X16 FLANGE THA	0-28050-816-0	01	1	0409-0412		●
581	BOLT; VSV M8X16 FLANGE THA	0-28050-816-0	01	1	0501-		●	●

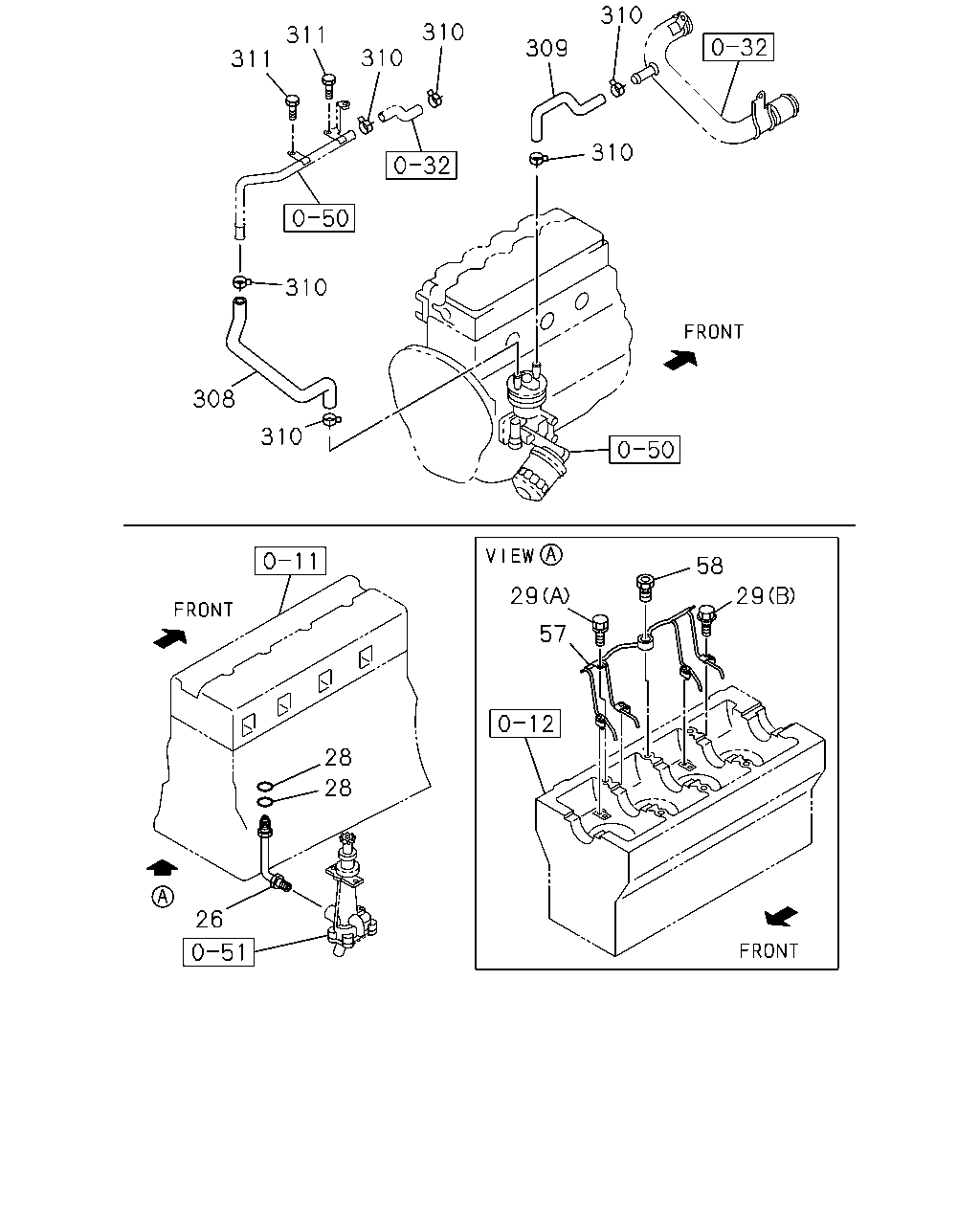

310 310 311 309 310 311 310 310 308 310 58 29 29 57 28 28 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	PIPE; OIL,PUMP TO C/BL THA	8-97920-470-0	01	1	0303-0408	●
28	GASKET; OIL PIPE THA	8-97912-535-0	02	1	0303-0408	●
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER THA	0-50540-812-0	01	1	0303-0408	●
29	BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-0	04	1	0409-0412		●
29	BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-1	04	1	0501-		●	●
29	BOLT; OIL PIPE,OIL JET (B) M6X20 THA	8-97920-485-0	04	1	0303-0408	●
29	BOLT; OIL PIPE,OIL JET (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0409-0412		●
29	BOLT; OIL PIPE,OIL JET (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0501-		●	●
57	PIPE; OIL,OIL JET THA	8-97920-033-3	01	1	0303-0408	●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0409-0412		●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0501-		●	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97920-423-0	01	1	0303-0408	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0409-0412		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0501-		●	●
308	HOSE; OIL COOLER FEED THA	8-97943-163-0	01	1	0303-0408	●
309	HOSE; OIL COOLER RETURN THA	8-97920-080-1	01	1	0303-0408	●
310	CLIP; WATER HOSE FIX ID=20.8 IMA	8-94125-862-1	06	1	0303-0408	●
311	BOLT; PIPE FIX M8X12 FLANGE THA	0-28050-812-0	02	1	0303-0408	●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0409-0412		●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0501-0606		●	●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	01	1	0607-		●	●

2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE M10X27 FLANGE IMA	8-94443-535-0	01	1	0303-0408	●
2	BOLT; EYE,OIL PIPE M10X24 IMA	9-09906-205-1	01	1	0409-0412		●
2	BOLT; EYE,OIL PIPE M10X24 IMA	9-09906-205-1	01	1	0501-0506		●	●
2	BOLT; EYE,OIL PIPE M10X24 THA	8-97944-505-0	01	1	0507-0606		●	●
2	BOLT; EYE,OIL PIPE M10X27 FLANGE IMA	8-94443-535-0	01	1	0607-		●	●
3	GASKET; EYE BOLT,OIL PIPE ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0303-0408	●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0409-0412		●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0501-		●	●
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER IMA	0-50540-816-0	01	1	0303-0408	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28680-630-0	01	1	0409-0412		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28680-630-0	01	1	0501-0601		●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0602-		●	●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25 THA	1-09701-228-2	01	1	0409-0411		●
48	CLIP; OIL PIPE (A) THA	8-97389-843-0	01	1	0412-0412		●
48	CLIP; OIL PIPE (A) THA	8-97389-843-1	01	1	0501-		●	●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25 THA	1-09701-229-1	01	1	0409-0411		●
48	CLIP; OIL PIPE (B) THA	8-97389-844-0	01	1	0412-0412		●
48	CLIP; OIL PIPE (B) THA	8-97389-844-0	01	1	0501-		●	●
63	PIPE; OIL,TURBOCHARGER FEED IMA	8-97086-341-0	01	1	0303-0408	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0409-0412		●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0501-0606		●	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98011-899-0	01	1	0607-		●	●
147	GASKET; OIL PIPE TO TURBOCHARGER (A) ID=14 THA	8-97910-643-0	01	1	0303-0408	●
147	GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-97354-056-0	01	1	0409-0412		●
147	GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-97354-056-0	01	1	0501-		●	●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0303-0408	●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0409-0412		●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0501-		●	●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-97245-772-2	01	1	0303-0408	●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-97355-431-4	01	1	0409-0412		●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-97355-431-4	01	1	0501-0606		●	●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-98011-900-0	01	1	0607-		●	●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0303-0408	●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0409-0412		●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0501-		●	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X25 THA	8-94315-336-1	01	1	0303-0408	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 IMA	9-09906-205-1	01	1	0409-0412		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 IMA	9-09906-205-1	01	1	0501-0506		●	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 THA	8-97944-505-1	01	1	0507-		●	●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0409-0412		●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0501-		●	●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0409-0412		●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0501-		●	●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0409-0412		●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0501-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
