Isuzu WW
▶
PICKUP
▶
TFR
▶
50936 - TFR/TFS(AUSTRALIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE
▶

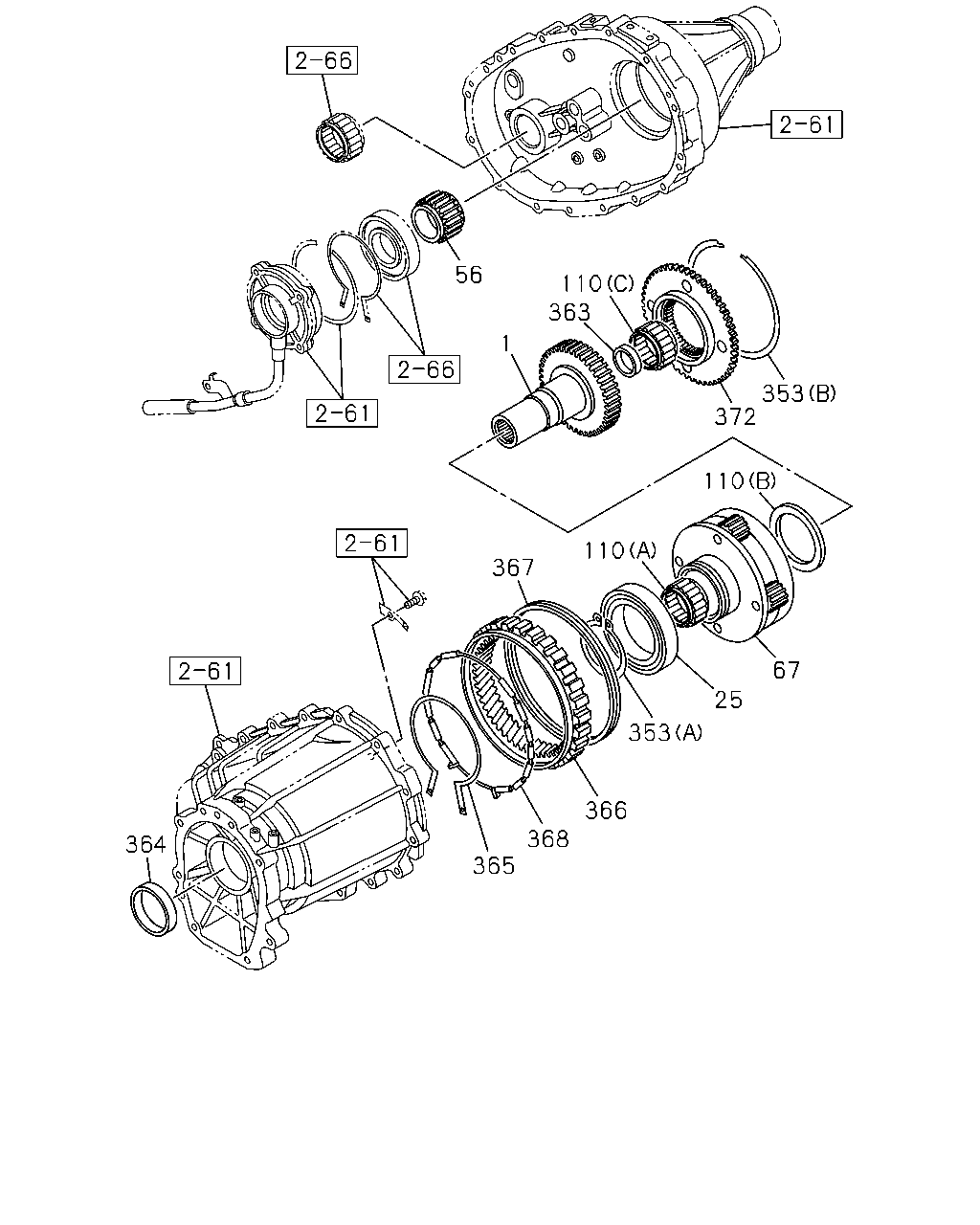

2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE
(#48634) — 17 parça
Tümü
A - TFS5CF
B - TFS5CK
C - TFS5SK
D - TFS5W
56
110
363
1
353
372
110
110
367
67
25
353
366
364
368
365
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.162 SHAFT; GEAR,INPUT
8-97231-827-1
01
1
0211-
●
●
●
●
25
04.164 BEARING; BALL,INPUT SHAFT
NSK
8-97234-735-0
01
1
0211-
●
●
●
●
56
04.343 GEAR; SPD DRIVE,TRANSFER
Z=6
8-97238-581-0
01
1
0211-
●
●
●
●
67
04.532 CARRIER; TRANSFER
8-97252-987-1
01
1
0211-
●
●
●
●
110
04.532 BEARING; NEEDLE
(A)
8-97234-739-0
01
1
0211-
●
●
●
●
110
04.532 BEARING; NEEDLE
(B)
8-97234-741-0
01
1
0211-
●
●
●
●
110
04.532 BEARING; NEEDLE
(C)
8-97234-743-0
01
1
0211-
●
●
●
●
353
04.545 RING; SNAP,CARRIER
(A) ID=65.5
8-97305-403-0
01
1
0211-
●
●
●
●
353
04.545 RING; SNAP,CARRIER
(B) ID=137
8-97305-406-0
01
1
0211-
●
●
●
●
363
04.545 CAP; SEAL,INPUT SHAFT
8-97238-725-0
01
1
0211-
●
●
●
●
364
04.545 SEAL; OIL,COVER,INPUT
04.510 NOK
8-97238-999-0
01
1
0211-
●
●
●
●
365
04.545 RING; RETAINING,OUTER INPUT
ID=97
8-97305-010-1
01
1
0211-
●
●
●
●
366
04.532 GEAR; INTERNAL,HIGH-LOW
Z=27
8-97231-831-2
01
1
0211-
●
●
●
●
367
04.545 RING; RETAINING,SPIRAL TYPE
ID=162 OD=176
8-97247-459-0
01
1
0211-
●
●
●
●
368
04.545 RING; DAMPER,TRANSFER
ID=168.4 OD=178
8-97320-914-0
01
1
0211-
●
●
●
●
372
04.162 TEETH; DOG,PLANETARY
01.462
8-97233-025-1
01
1
0211-0211
●
●
●
●
372
04.162 TEETH; DOG,PLANETARY
01.462 Z=56
8-97358-244-0
01
1
0212-
●
●
●
●
