◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#48632) — 29 parça

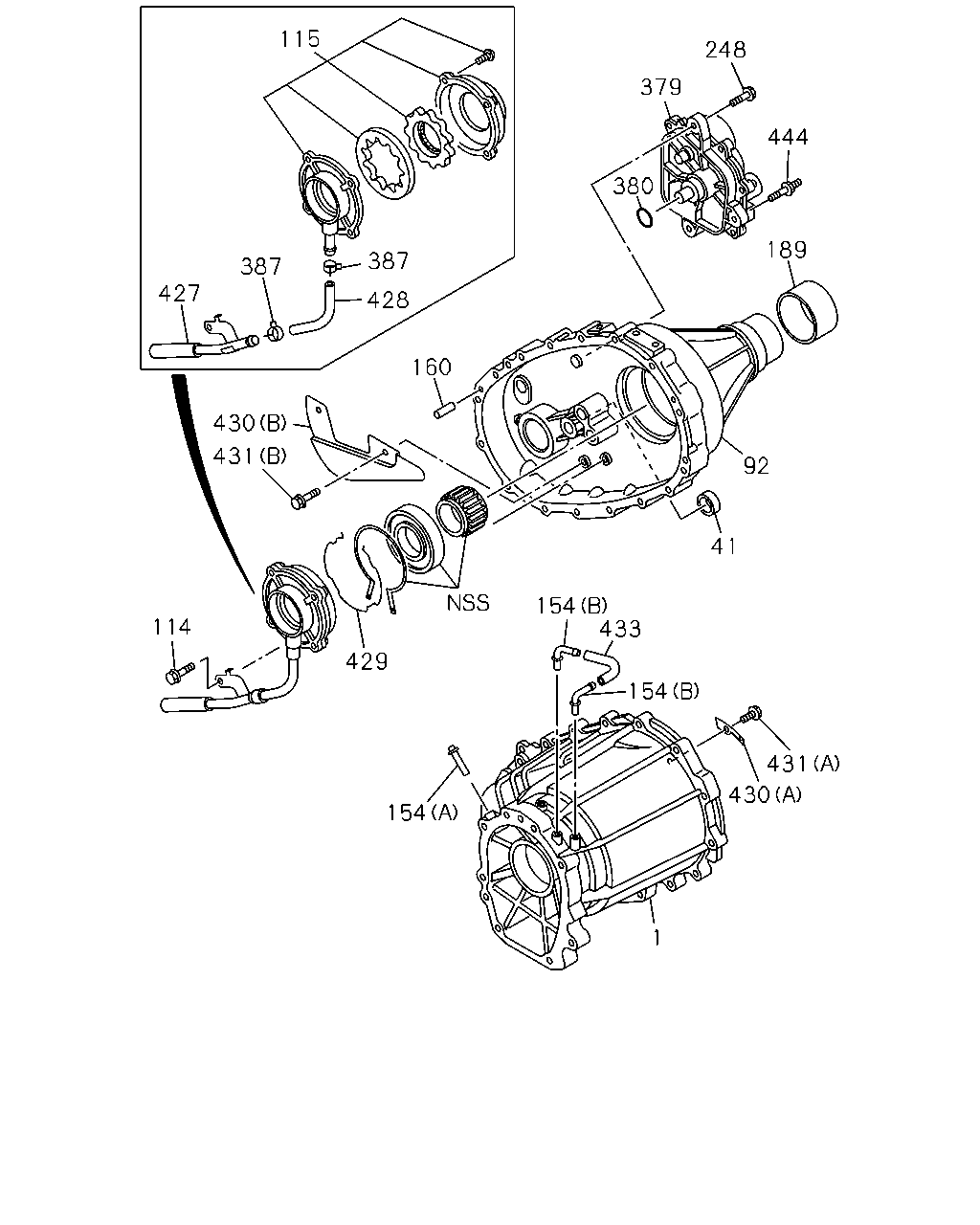

çizim 49473
115 248 379 444 380 189 387 387 427 428 160 430 431 92 41 154 433 114 429 154 431 430 154 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.510 CASE; TRANSFER 8-97306-571-5 01 1 0211- ● ● ● ●
41 04.515 SEAL; OIL,SHIFT ROD 8-97238-998-0 01 1 0211- ● ● ● ●
92 04.552 COVER; RR,TRANSFER 8-97306-579-3 01 1 0211- ● ● ● ●
114 04.200 BOLT; OIL PUMP,TRANSFER
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211- ● ● ● ●
115 04.200 PUMP ASM; OIL,TRANSFER 8-97233-741-0 01 1 0211- ● ● ● ●
154 04.510 PIPE; BREATHER
(A) 		8-97173-545-0 01 1 0211- ● ● ● ●
154 04.510 PIPE; BREATHER
04.302 (B) 		8-97305-517-0 02 1 0211- ● ● ● ●
160 04.107 PIN; KNOCK,SHIFT CASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0211- ● ● ● ●
189 04.510 COVER; DUST,OIL SEAL
04.317 		8-94310-493-0 01 1 0211- ● ● ● ●
248 04.105 BOLT
4JH1-TC ENG(RDM) 04.686 M8X30 FLANGE 		0-28680-830-0 03 1 0211- ● ● ●
248 04.105 BOLT
04.686 M8X30 FLANGE 		0-28680-830-0 03 1 0211- ●
248 04.105 BOLT
6VE1 ENG(RJQ) 04.686 M8X30 FLANGE 		0-28680-830-0 01 1 0211- ● ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
4JH1-TC ENG(RDM) 		8-97234-664-2 01 1 0211-0305 ● ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT 8-97234-664-2 01 1 0211-0305 ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
4JH1-TC ENG(RDM) 		8-97366-626-0 01 1 0306- ● ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT 8-97366-626-0 01 1 0306- ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
6VE1 ENG(RJQ) 		8-97317-686-0 01 1 0211-0305 ● ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
6VE1 ENG(RJQ) 		8-97366-627-0 01 1 0306- ● ● ●
380 04.505 GASKET; ACTUATOR
ID=29.7 OD=36.7 		8-97318-475-0 01 1 0211- ● ● ● ●
387 04.319 CLAMP; HOSE
03.162 ID=14.2 		8-97087-056-1 02 1 0211- ● ● ● ●
427 04.510 SCREEN; OIL PUMP 8-97234-488-3 01 1 0211- ● ● ● ●
428 04.510 HOSE; OIL PUMP
04.128 L=80 SERVICED BY L=3000 		0-02259-300-0 01 1 0211- ● ● ● ●
429 04.525 RING; SNAP,OIL PUMP 8-97240-666-0 01 1 0211- ● ● ● ●
430 04.500 PLATE; BAFFLE
(A) 		8-97239-130-0 01 1 0211- ● ● ● ●
430 04.500 PLATE; BAFFLE
(B) 		8-97249-300-1 01 1 0211- ● ● ● ●
431 04.200 BOLT; BAFFLE PLATE
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0211- ● ● ● ●
431 04.200 BOLT; BAFFLE PLATE
02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0211- ● ● ● ●
433 04.510 HOSE; AIR,TRANSFER 8-97236-080-0 01 1 0211- ● ● ● ●
444 04.510 STUD; ACTUATOR
6VE1 ENG(RJQ) 06.008 M8X12,M8X30 L=50 		8-97032-290-0 02 1 0211- ● ● ●
