Isuzu WW
▶
PICKUP
▶
TFR
▶
50936 - TFR/TFS(AUSTRALIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-56 - AUTO TRANS CONTROL LINK
▶
2-56 — AUTO TRANS CONTROL LINK
(#48630) — 30 parça
Tümü
A - A/T AISIN
B - A/T 4 SPEED-JATCO
C - M/T MUA 5 SPEED 5G
D - M/T MUA 5 SPEED 5S
◀
[256A] A/T AISIN,A/T 4 SPEED-JATCO (3 parça)
[256A] A/T 4 SPEED-JATCO (12 parça)
[256A] A/T AISIN (15 parça)
▶
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
114

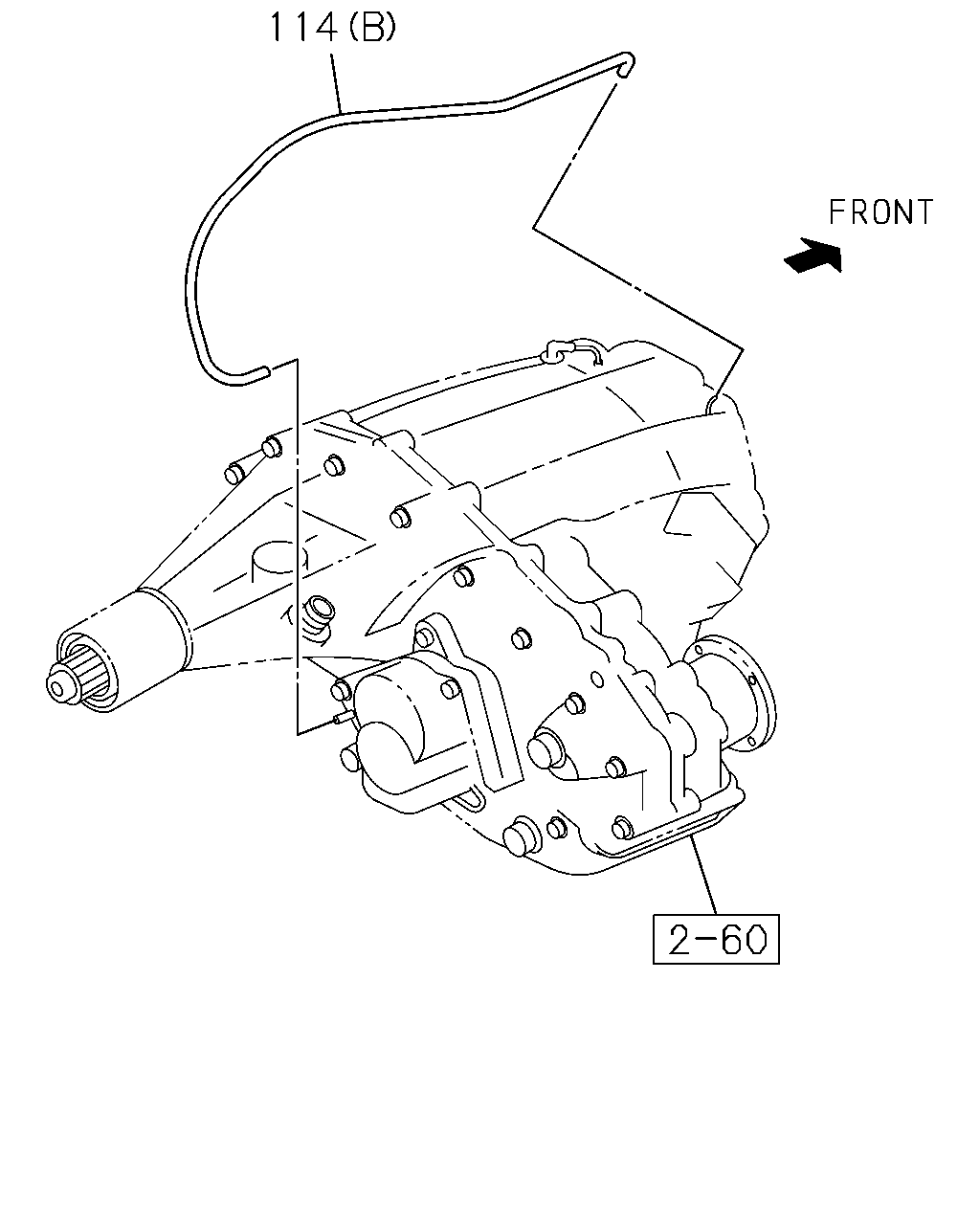

08.962 HOSE; BREATHER
4X2 SPACE CAB LONG(TFB5CF) 4X2 SPACE CAB EXTRA LONG(TFB5CK) 4X2 SINGLE CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 CREW CAB LONG(TFS5WF) 6VE1 ENG(RJQ) (A)
8-97323-846-4
01
1
0211-
●
114
08.962 HOSE; BREATHER
4X4 SPACE CAB LONG(TFS5CF) 4X4 SPACE CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (B)
8-97236-081-0
01
1
0211-
●
●
●
●
114
08.962 HOSE; BREATHER
4X4 SINGLE CAB(TFS*S*) TRANSFER CONTROL SW TYPE HIGH-LOW<8CE> (B)
8-97236-081-0
01
1
0211-
●
●
●
●
79
68
79
127
84
82
125
127
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
21

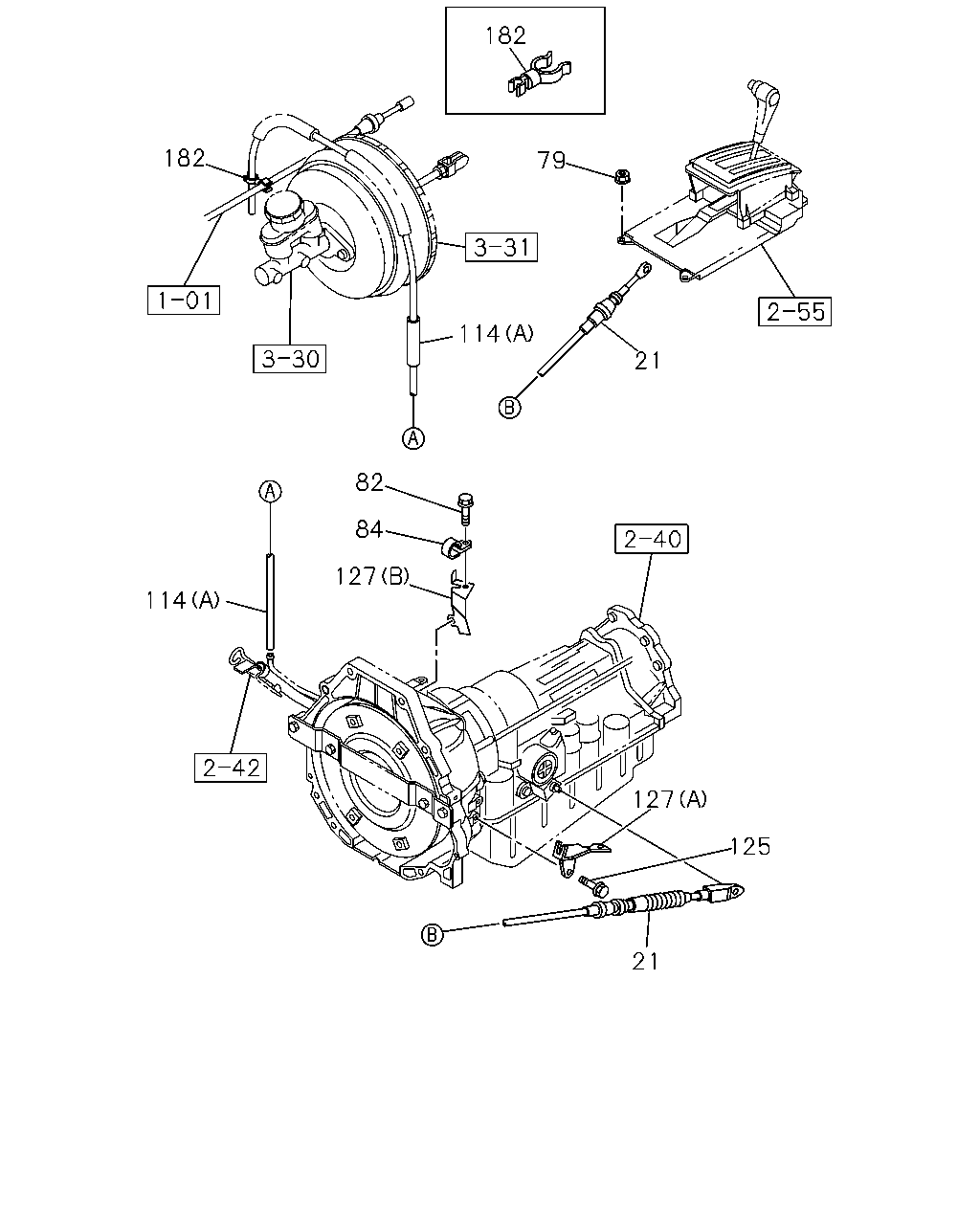

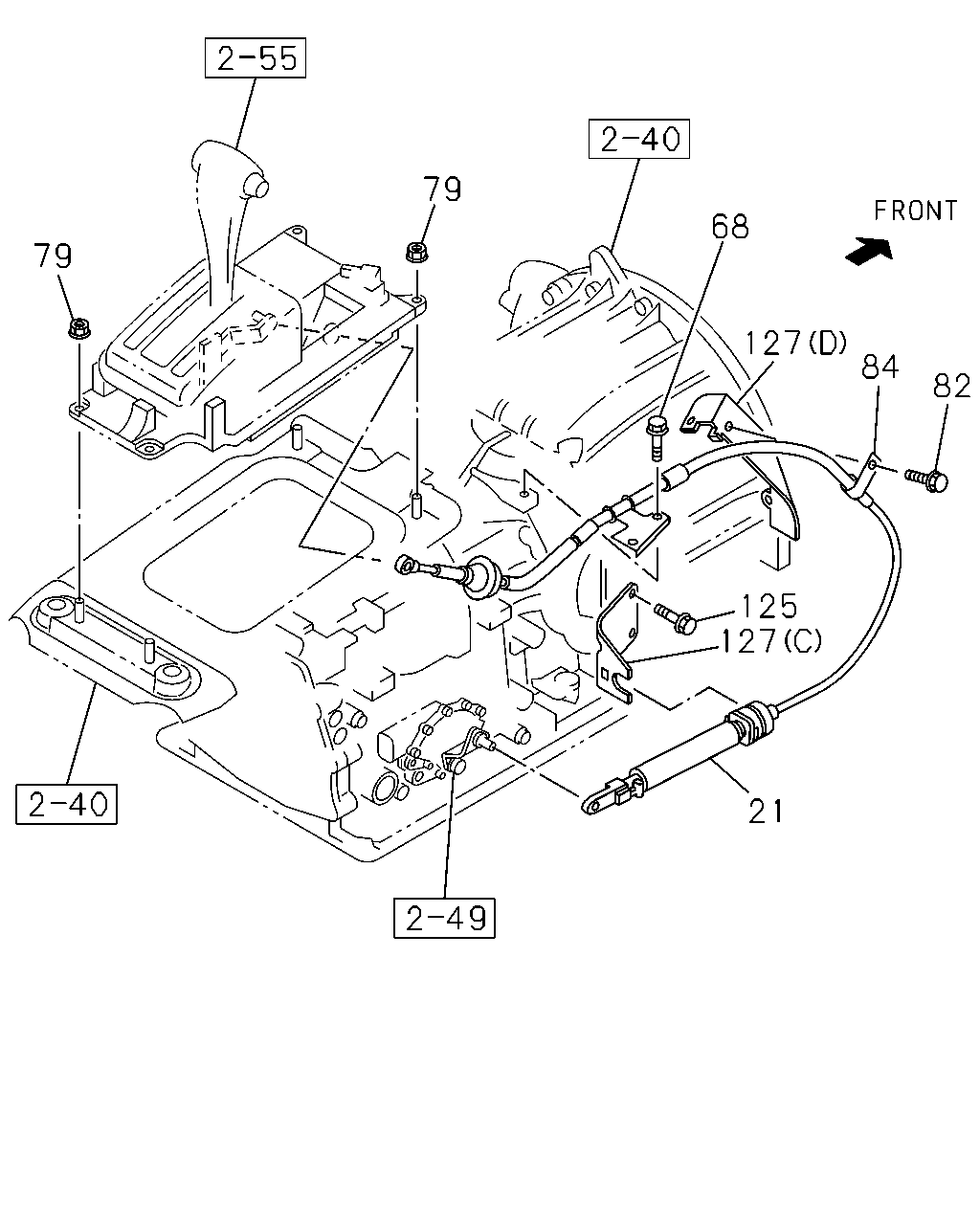

04.047 CABLE; A/T
8-97307-472-2
01
1
0211-
●
21
04.047 CABLE; A/T
8-97301-821-1
01
1
0211-0302
●
21
04.047 CABLE; A/T
8-97363-357-0
01
1
0303-
●
68
04.047 BOLT; A/T CONT CABLE
03.162 M6X12 FLANGE
0-28050-612-0
01
1
0211-
●
79
04.047 NUT; CONT CABLE
07.833 M6 FLANGE
8-97063-399-0
04
1
0211-
●
●
82
04.047 BOLT; A/T CONT CABLE
02.343 M6X16 FLANGE
0-28650-616-0
01
1
0211-
●
●
84
04.047 CLIP; A/T CONT CABLE
02.559 ID=11 L=28
9-09525-052-0
01
1
0211-
●
●
125
04.047 BOLT; BRKT
02.343 M8X16 FLANGE
0-28050-816-0
02
1
0211-
●
●
127
04.047 BRACKET; A/T CONT CABLE
(A)
8-97307-474-1
01
1
0211-
●
127
04.047 BRACKET; A/T CONT CABLE
(B)
8-97307-475-0
01
1
0211-
●
127
04.047 BRACKET; A/T CONT CABLE
(C)
8-97236-021-1
01
1
0211-
●
127
04.047 BRACKET; A/T CONT CABLE
(D)
8-97301-831-1
01
1
0211-
●
182
182
79
114
21
82
84
127
114
127
125
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
21
04.047 CABLE; A/T
8-97307-472-2
01
1
0211-
●
21
04.047 CABLE; A/T
8-97301-821-1
01
1
0211-0302
●
21
04.047 CABLE; A/T
8-97363-357-0
01
1
0303-
●
79
04.047 NUT; CONT CABLE
07.833 M6 FLANGE
8-97063-399-0
04
1
0211-
●
●
82
04.047 BOLT; A/T CONT CABLE
02.343 M6X16 FLANGE
0-28650-616-0
01
1
0211-
●
●
84
04.047 CLIP; A/T CONT CABLE
02.559 ID=11 L=28
9-09525-052-0
01
1
0211-
●
●
114
08.962 HOSE; BREATHER
4X2 SPACE CAB LONG(TFB5CF) 4X2 SPACE CAB EXTRA LONG(TFB5CK) 4X2 SINGLE CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 CREW CAB LONG(TFS5WF) 6VE1 ENG(RJQ) (A)
8-97323-846-4
01
1
0211-
●
114
08.962 HOSE; BREATHER
4X4 SPACE CAB LONG(TFS5CF) 4X4 SPACE CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) (B)
8-97236-081-0
01
1
0211-
●
●
●
●
114
08.962 HOSE; BREATHER
4X4 SINGLE CAB(TFS*S*) TRANSFER CONTROL SW TYPE HIGH-LOW<8CE> (B)
8-97236-081-0
01
1
0211-
●
●
●
●
125
04.047 BOLT; BRKT
02.343 M8X16 FLANGE
0-28050-816-0
02
1
0211-
●
●
127
04.047 BRACKET; A/T CONT CABLE
(A)
8-97307-474-1
01
1
0211-
●
127
04.047 BRACKET; A/T CONT CABLE
(B)
8-97307-475-0
01
1
0211-
●
127
04.047 BRACKET; A/T CONT CABLE
(C)
8-97236-021-1
01
1
0211-
●
127
04.047 BRACKET; A/T CONT CABLE
(D)
8-97301-831-1
01
1
0211-
●
182
04.104 CLIP; BREATHER HOSE
03.430 ID=12 & 6
8-94145-893-0
01
1
0211-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
