2-55 — AUTO TRANS SHIFT CONTROL LEVER (#48629) — 26 parça

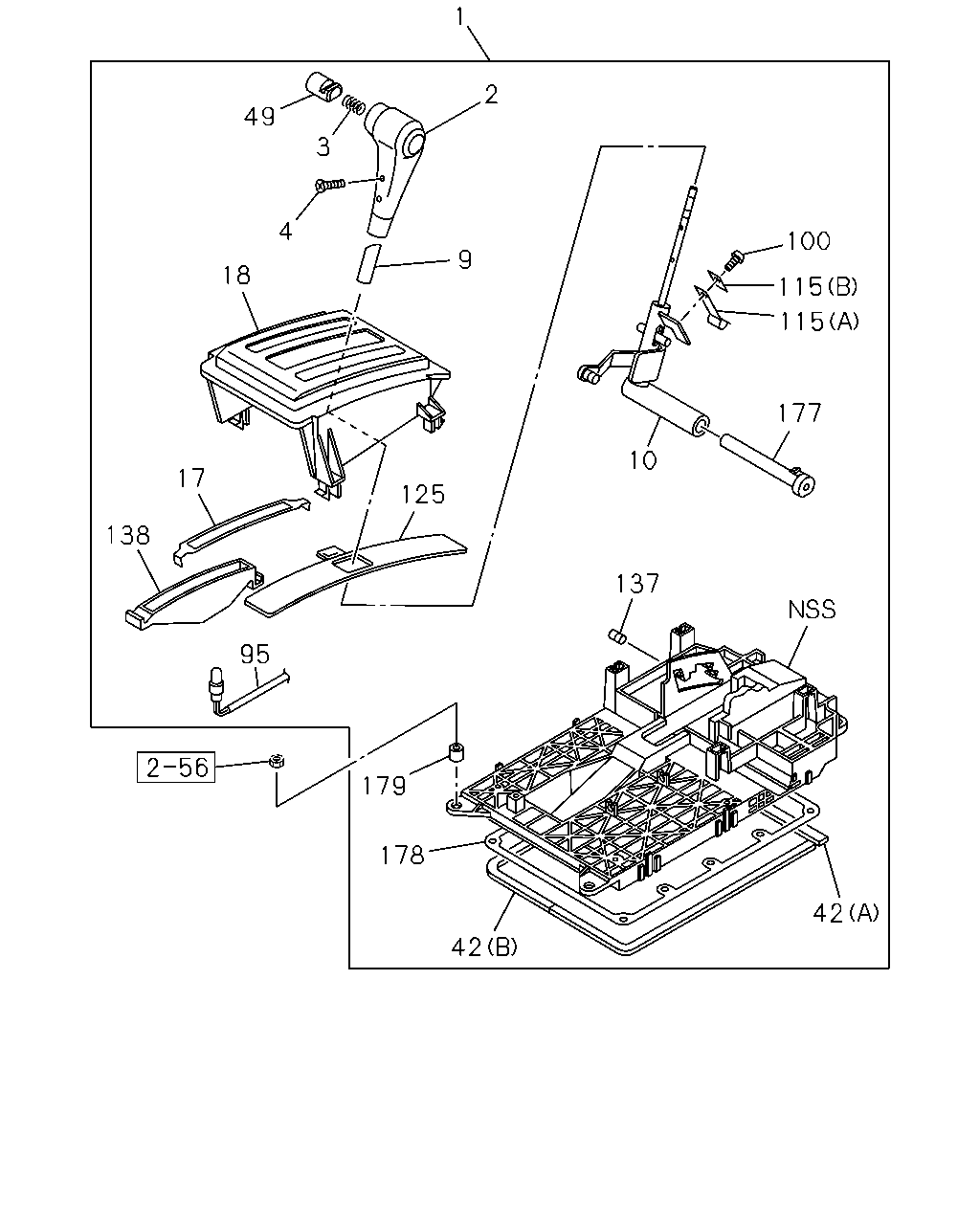

çizim 47955
1 2 49 3 4 100 9 18 115 115 177 10 17 125 138 137 95 179 178 42 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97391-003-3 01 1 0211- ●
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97298-774-3 01 1 0211- ●
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97298-467-4 01 1 0211- ●
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97298-775-3 01 1 0211- ●
2 04.006 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97393-975-0 01 1 0211- ● ●
2 04.006 KNOB ASM; AUTO CONT LEVER
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97393-976-0 01 1 0211- ● ●
3 04.008 SPRING; RETURN,KNOB 8-97332-979-0 01 1 0211- ● ●
4 04.006 SCREW; KNOB TO LEVER 8-97332-950-0 02 1 0211- ● ●
9 04.006 SLEEVE; KNOB,SHIFT LEVER 8-97332-980-0 01 1 0211- ● ●
10 04.006 LEVER; A/T CONT 8-97332-956-0 01 1 0211- ● ●
17 04.020 PLATE; INDICATOR 8-97332-933-0 01 1 0211- ● ●
18 04.020 COVER; INDICATOR,UPR
DARK GRAY 		8-97393-973-0 01 1 0211- ● ●
42 04.057 SEAL; RUBBER
(A) 		8-97332-954-0 01 1 0211- ● ●
42 04.057 SEAL; RUBBER
(B) 		8-97332-955-0 02 1 0211- ● ●
49 04.006 BUTTON; PUSH,KNOB
DARK GRAY 		8-97393-974-0 01 1 0211- ● ●
95 04.006 LAMP; INDICATOR 8-97355-621-0 01 1 0211- ●
95 04.006 LAMP; INDICATOR 8-97332-977-0 01 1 0211- ●
100 04.012 SCREW 8-97332-953-0 01 1 0211- ● ●
115 04.008 PLATE; SPR,LEVER
(A) 		8-97332-936-0 01 1 0211- ● ●
115 04.008 PLATE; SPR,LEVER
(B) 		8-97332-939-0 01 1 0211- ●
125 04.020 COVER; SHIFT LEVER 8-97332-934-0 01 1 0211- ● ●
137 04.010 CUSHION 8-97332-938-0 03 1 0211- ● ●
138 04.030 BOX; LAMP 8-97332-976-0 01 1 0211- ● ●
177 04.040 SHAFT; SHIFT LEVER,A/T 8-97332-952-0 01 1 0211- ● ●
178 04.008 SHEET; SHIFT LEVER 8-97332-935-0 01 1 0211- ● ●
179 04.008 COLLAR; SHIFT LEVER 8-97332-951-0 04 1 0211- ● ●
