Isuzu WW
▶
PICKUP
▶
TFR
▶
50936 - TFR/TFS(AUSTRALIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

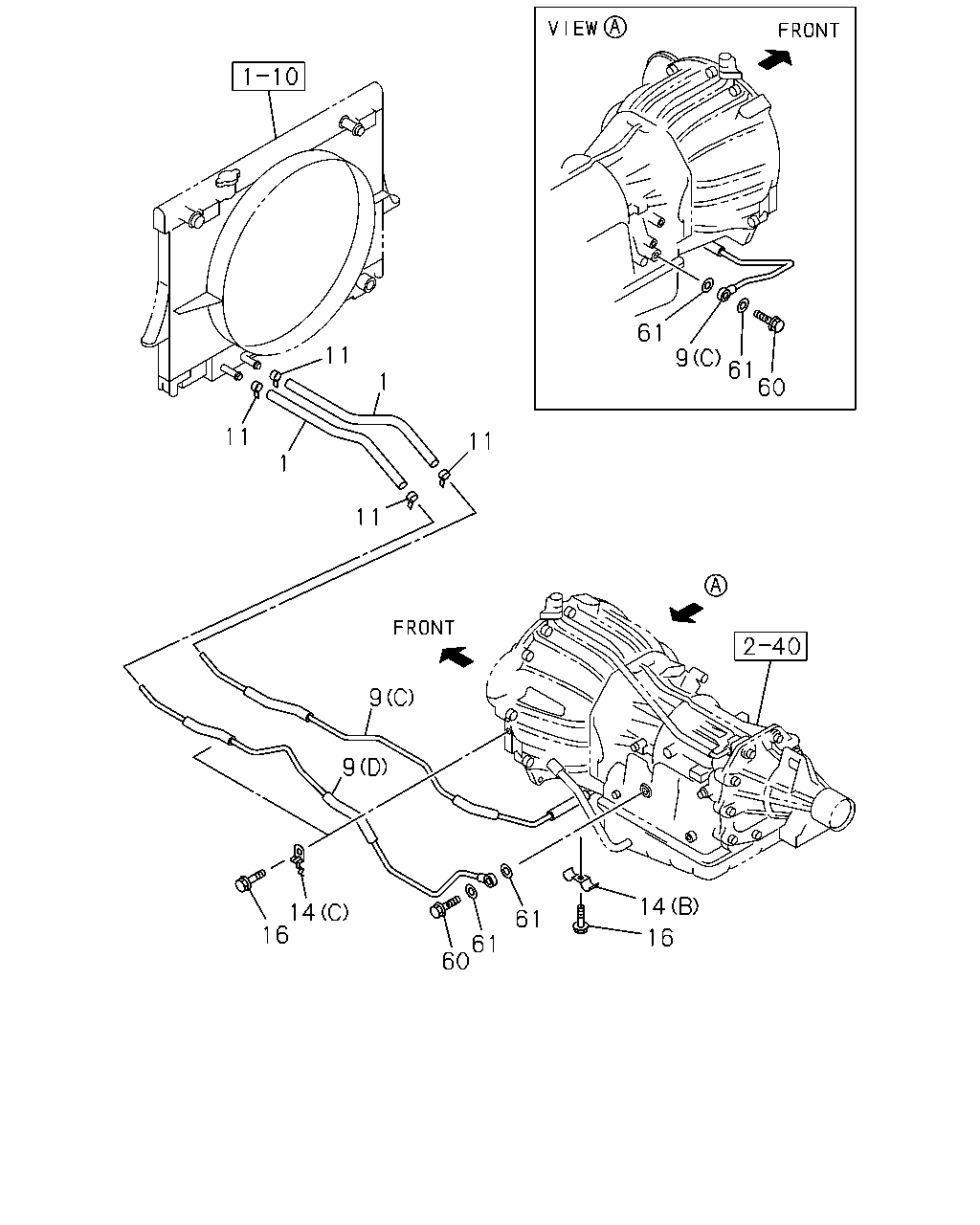

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#48628) — 29 parça
Tümü
A - A/T AISIN
B - A/T 4 SPEED-JATCO
◀
[253A] A/T 4 SPEED-JATCO (15 parça)
[253A] A/T AISIN (14 parça)
▶
61
11
9
61
60
1
11
11
1
11
9
9
14
14
16
61
16
61
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.128 HOSE; ATF
L=250 SERVICED BY L=3000
0-02259-300-0
02
1
0211-
●
●
9
04.128 PIPE; ATF,INL,A/T
(A)
8-97941-535-2
01
1
0211-
●
9
04.128 PIPE; ATF,INL,A/T
(B)
8-97941-536-2
01
1
0211-
●
9
04.128 PIPE; ATF,INL,A/T
(C)
8-97941-850-0
01
1
0211-0306
●
9
04.128 PIPE; ATF,INL,A/T
(C)
8-97368-297-0
01
1
0307-
●
9
04.128 PIPE; ATF,INL,A/T
(D)
8-97941-851-2
01
1
0211-0306
●
9
04.128 PIPE; ATF,INL,A/T
(D)
8-97368-298-0
01
1
0307-
●
11
04.128 CLIP; PIPE
00.034 ID=13.5
8-97015-754-1
04
1
0211-
●
●
14
04.128 CLIP; PIPE TO ENG SIDE
(A)
8-97062-040-0
03
1
0211-
●
14
04.128 CLIP; PIPE TO ENG SIDE
(B)
8-94334-345-1
01
1
0211-
●
14
04.128 CLIP; PIPE TO ENG SIDE
(C)
8-97062-040-0
02
1
0211-
●
16
04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE
0-28050-816-0
02
1
0211-
●
16
04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE
0-28050-816-0
03
1
0211-
●
60
04.128 BOLT; EYE,ATF PIPE
1-09675-033-0
02
1
0211-
●
61
04.128 GASKET; EYE BOLT,ATF PIPE
08.955 ID=14.2 OD=20.0
9-09571-414-0
04
1
0211-
●
11
1
11
9
11
1
9
11
14
14
16
14
16
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.128 HOSE; ATF
L=250 SERVICED BY L=3000
0-02259-300-0
02
1
0211-
●
●
9
04.128 PIPE; ATF,INL,A/T
(A)
8-97941-535-2
01
1
0211-
●
9
04.128 PIPE; ATF,INL,A/T
(B)
8-97941-536-2
01
1
0211-
●
9
04.128 PIPE; ATF,INL,A/T
(C)
8-97941-850-0
01
1
0211-0306
●
9
04.128 PIPE; ATF,INL,A/T
(C)
8-97368-297-0
01
1
0307-
●
9
04.128 PIPE; ATF,INL,A/T
(D)
8-97941-851-2
01
1
0211-0306
●
9
04.128 PIPE; ATF,INL,A/T
(D)
8-97368-298-0
01
1
0307-
●
11
04.128 CLIP; PIPE
00.034 ID=13.5
8-97015-754-1
04
1
0211-
●
●
14
04.128 CLIP; PIPE TO ENG SIDE
(A)
8-97062-040-0
03
1
0211-
●
14
04.128 CLIP; PIPE TO ENG SIDE
(B)
8-94334-345-1
01
1
0211-
●
14
04.128 CLIP; PIPE TO ENG SIDE
(C)
8-97062-040-0
02
1
0211-
●
16
04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE
0-28050-816-0
02
1
0211-
●
16
04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE
0-28050-816-0
03
1
0211-
●
108
04.128 NUT; PIPE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0211-
●
