2-50 — AUTO TRANS BRAKE AND DISC CLUTCH (#48626) — 34 parça

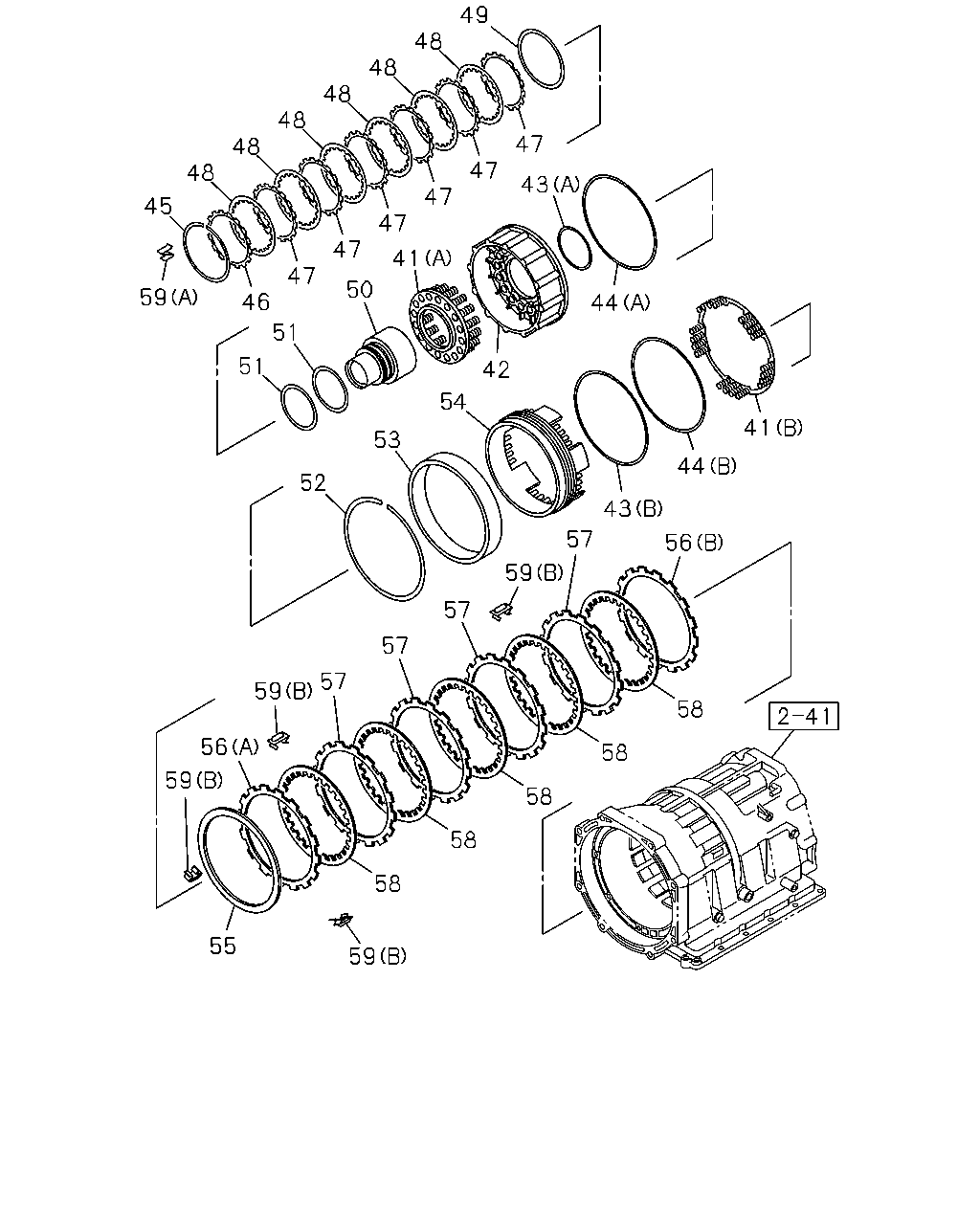

çizim 9737
49 48 48 48 48 47 48 47 48 43 47 45 47 47 41 47 50 59 46 44 51 51 42 54 41 53 44 52 43 57 56 59 57 57 57 59 58 56 58 59 58 58 58 55 59
BalonParca AdiParca NoAdetTipApplied Date
41 04.164 SPRING; RETURN,PISTON,BRAKE
(A) 		8-97331-047-0 01 1 0211-
41 04.164 SPRING; RETURN,PISTON,BRAKE
(B) 		8-97331-048-0 01 1 0211-
42 04.264 PISTON; LOW BRAKE 8-97331-046-0 01 1 0211-
43 04.212 SEAL; BRAKE PISTON,INNER
04.166 (A) 		8-94483-385-0 01 1 0211-
43 04.212 SEAL; BRAKE PISTON,INNER
(B) 		8-97330-992-0 01 1 0211-
44 04.212 SEAL; BRAKE PISTON,OUTER
04.166 (A) 		8-94483-382-0 01 1 0211-
44 04.212 SEAL; BRAKE PISTON,OUTER
(B) 		8-97330-993-0 01 1 0211-
45 04.166 RING; SNAP,LOW BRAKE PLATE 8-97330-964-0 01 1 0211-
46 04.265 PLATE; RET,LOW BRAKE
T=5.2 		8-97331-051-0 01 1 0211-
46 04.265 PLATE; RET,LOW BRAKE
T=5.4 		8-97331-052-0 01 1 0211-
46 04.265 PLATE; RET,LOW BRAKE
T=5.6 		8-97331-053-0 01 1 0211-
46 04.265 PLATE; RET,LOW BRAKE
T=5.8 		8-97331-054-0 01 1 0211-
46 04.265 PLATE; RET,LOW BRAKE
T=6.0 		8-97331-055-0 01 1 0211-
47 04.265 PLATE; DRIVEN,LOW BRAKE 8-97331-050-0 06 1 0211-
48 04.265 PLATE; DRIVE,LOW BRAKE 8-97330-996-0 06 1 0211-
49 04.265 PLATE; DISHED,LOW BRAKE 8-97331-001-0 01 1 0211-
50 04.265 SUPPORT; LOW BRAKE 8-97330-958-0 01 1 0211-
51 04.266 RING; SEAL,SUPPORT 8-97330-982-0 02 1 0211-
52 04.266 RING; SNAP,RET,2 & 4 BRAKE 8-97330-972-0 01 1 0211-
53 04.266 RETAINER; PISTON,2 & 4 BRAKE 8-97331-045-0 01 1 0211-
54 04.264 PISTON; 2 & 4 BRAKE 8-97331-042-0 01 1 0211-
55 04.265 PLATE; DISHED,2 & 4 BRAKE 8-97331-002-0 01 1 0211-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.0 		8-97331-025-0 01 1 0211-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.2 		8-97331-026-0 01 1 0211-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.4 		8-97331-027-0 01 1 0211-
56 04.265 PLATE; RET,2 & 4 BRAKE
(B) T=5.6 		8-97331-028-0 01 1 0211-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.8 		8-97331-029-0 01 1 0211-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=6.0 		8-97331-030-0 01 1 0211-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=6.2 		8-97331-031-0 01 1 0211-
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=6.4 		8-97331-032-0 01 1 0211-
57 04.265 PLATE; DRIVEN,2 & 4 BRAKE 8-97331-009-0 04 1 0211-
58 04.265 PLATE; DRIVE,2 & 4 BRAKE 8-97330-999-0 05 1 0211-
59 04.164 SPRING; PLATE HOLD
(A) 		8-97331-043-0 01 1 0211-
59 04.164 SPRING; PLATE HOLD
(B) 		8-97331-044-0 03 1 0211-
