2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#48624) — 66 parça

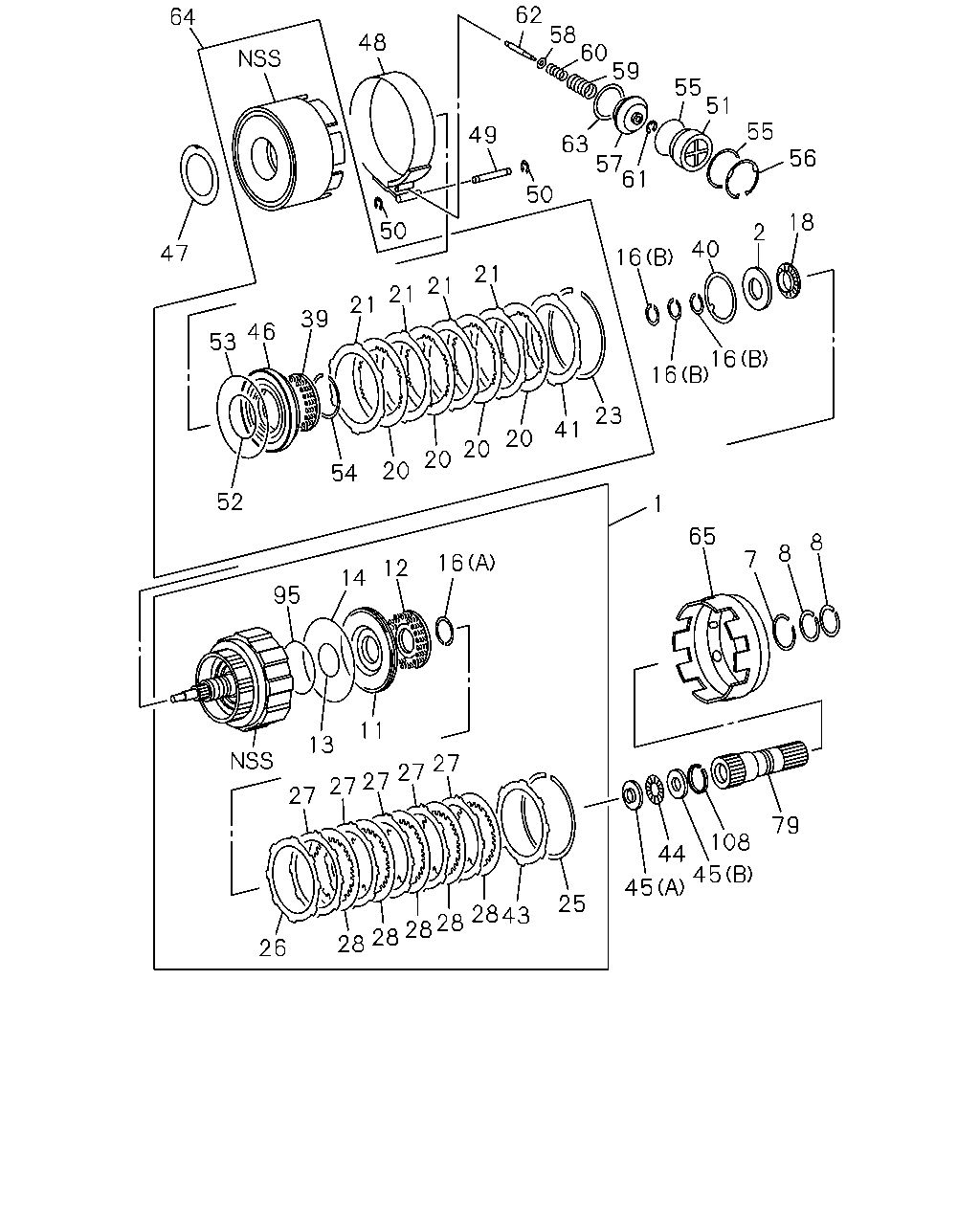

çizim 11404
62 58 60 59 64 48 55 51 55 49 63 57 61 56 50 18 50 2 40 47 16 21 21 21 21 39 46 53 16 16 23 41 20 20 20 20 54 52 1 65 8 8 7 16 12 14 95 11 13 27 27 27 27 27 79 108 44 45 45 25 28 28 28 28 26 28 43
BalonParca AdiParca NoAdetTipApplied Date
1 04.164 HUB ASM; CLU,INPUT SHAFT,A/T 8-97331-536-0 01 1 0211-
2 04.164 RACE; THRUST BRG,A/T
04.472 		8-94479-763-0 01 1 0211-
7 04.159 RING; RET,PLANETARY GEAR,A/T 8-94479-844-0 01 1 0211-
8 04.169 RING; SEAL,PLANETARY GEAR,A/T 8-94166-003-0 02 1 0211-
11 04.166 PISTON ASM; CLU,A/T 8-97025-836-0 01 1 0211-
12 04.164 SPRING; CLU RETURN,A/T 8-94479-770-0 01 1 0211-
13 04.166 GASKET; INNER,CLU,A/T 8-94364-919-0 01 1 0211-
14 04.166 GASKET; OUTER,CLU,A/T 8-94364-920-0 01 1 0211-
16 04.166 RING; SNAP,CLU,A/T
(A) 		8-94479-769-0 01 1 0211-
16 04.166 RING; SNAP,CLU,A/T
(B) 		8-94479-775-0 03 1 0211-
18 04.164 BEARING; THRUST,CLU,A/T 8-94479-764-0 01 1 0211-
20 04.163 DISC; CLU,A/T 8-97214-544-0 04 1 0211-
21 04.163 DISC ASM; CLU & FACING,A/T 8-97214-543-0 04 1 0211-
23 04.164 RING; RET,CLU,A/T 8-97214-553-0 01 1 0211-
25 04.164 RING; RET,BACKING PLATE,A/T 8-94250-342-0 01 1 0211-
26 04.163 PLATE; CLU,BACKING,A/T 8-94479-772-0 01 1 0211-
27 04.163 DISC ASM; CLU & FACING,A/T
STD 		8-97025-838-0 05 1 0211-
27 04.163 DISC ASM; CLU & FACING,A/T
OPT 		8-97184-342-0 05 1 0211-
28 04.163 DISC; CLU,A/T 8-97143-083-0 05 1 0211-
39 04.164 SPRING; DIRECT CLU RETURN 8-97019-543-0 01 1 0211-
40 04.164 WASHER; THRUST,CLU DRUM,INPUT SH 8-94479-796-0 01 1 0211-
41 04.164 FLANGE; DIRECT CLU
T=3.9 		8-97214-551-0 01 1 0211-
41 04.164 FLANGE; DIRECT CLU
T=4.1 		8-97288-906-0 01 1 0211-
41 04.164 FLANGE; DIRECT CLU
T=3.3 		8-97288-908-0 01 1 0211-
41 04.164 FLANGE; DIRECT CLU
T=3.4 		8-97288-909-0 01 1 0211-
41 04.164 FLANGE; DIRECT CLU
T=3.5 		8-97288-910-0 01 1 0211-
41 04.164 FLANGE; DIRECT CLU
T=3.6 		8-97288-911-0 01 1 0211-
41 04.164 FLANGE; DIRECT CLU
T=3.7 		8-97288-912-0 01 1 0211-
41 04.164 FLANGE; DIRECT CLU
T=3.8 		8-97288-913-0 01 1 0211-
41 04.164 FLANGE; DIRECT CLU
T=4.0 		8-97331-540-0 01 1 0211-
41 04.164 FLANGE; DIRECT CLU
T=4.2 		8-97331-541-0 01 1 0211-
43 04.164 FLANGE; FWD CLU
T=3.6 		8-97232-043-0 01 1 0211-
43 04.164 FLANGE; FWD CLU
T=3.8 		8-97232-044-0 01 1 0211-
43 04.164 FLANGE; FWD CLU
T=4.0 		8-97232-045-0 01 1 0211-
43 04.164 FLANGE; FWD CLU
T=3.2 		8-97232-046-0 01 1 0211-
43 04.164 FLANGE; FWD CLU
T=3.4 		8-97232-047-0 01 1 0211-
43 04.164 FLANGE; FWD CLU
T=3.0 		8-97331-537-0 01 1 0211-
43 04.164 FLANGE; FWD CLU
T=4.2 		8-97331-538-0 01 1 0211-
43 04.164 FLANGE; FWD CLU
T=4.4 		8-97331-539-0 01 1 0211-
44 04.164 BEARING; THRUST,INPUT SHAFT RR 8-94479-778-0 01 1 0211-
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(A) 		8-94479-776-0 01 1 0211-
45 04.164 RACE; THRUST BRG,INPUT SHAFT
04.180 (B) 		8-94479-777-0 01 1 0211-
46 04.166 PISTON; DIRECT CLU,A/T 8-94364-921-0 01 1 0211-
47 04.164 WASHER; THRUST,DIRECT CLU DRUM 8-94479-779-0 01 1 0211-
48 04.251 BAND; 2ND COAST BRK 8-97143-086-0 01 1 0211-
49 04.169 PIN; 2ND COAST BRK BAND 8-94479-825-0 01 1 0211-
50 04.169 RING; SNAP,2ND COAST BRK BAND,A/
04.166 		8-94479-818-0 02 1 0211-
51 04.166 COVER; 2ND COAST BRK,A/T 8-97331-546-0 01 1 0211-
52 04.167 GASKET; PISTON INNER,DIRECT CLU,
04.460 		8-97184-321-0 01 1 0211-
53 04.167 GASKET; PISTON OUTER,DIRECT CLU,
04.166 		8-94364-920-0 01 1 0211-
54 04.166 RING; SNAP,PISTON RETURN SPRING 8-94479-783-0 01 1 0211-
55 04.167 GASKET; COVER,2ND COAST BRK,A/T 8-94479-824-0 02 1 0211-
56 04.166 RING; SNAP,2ND COAST BRK COVER,A 8-97069-458-0 01 1 0211-
57 04.166 PISTON; 2ND COAST BRK,A/T 8-97331-542-0 01 1 0211-
58 04.164 WASHER; 2ND COAST BRK PISTON,A/T 8-94479-817-0 01 1 0211-
59 04.164 SPRING; OUTER,2ND COAST BRK PIST 8-94479-812-0 01 1 0211-
60 04.164 SPRING; INNER,2ND COAST BRK PIST 8-97331-545-0 01 1 0211-
61 04.166 RING; SNAP,2ND COAST BRK 8-94479-818-0 01 1 0211-
62 04.164 ROD; 2ND COAST BRK PISTON
L=78.4 		8-97331-543-0 01 1 0211-
62 04.164 ROD; 2ND COAST BRK PISTON
L=79.9 		8-97331-544-0 01 1 0211-
63 04.164 RING; SEAL,2ND COAST BRK PISTON 8-94479-813-0 01 1 0211-
64 04.169 DRUM ASM; DIRECT CLU,A/T 8-97288-905-0 01 1 0211-
65 04.169 DRUM; SUN GEAR INPUT 8-97024-255-0 01 1 0211-
79 04.262 GEAR ASM; INPUT SUN
04.159 		8-94479-846-0 01 1 0211-
95 04.166 GASKET; CLU HUB 8-97122-978-0 01 1 0211-
108 04.159 RING; SNAP,SUN GEAR 8-94479-845-0 01 1 0211-
