2-45 — AUTO TRANS CLUTCH AND PLANETARY GEAR (#48621) — 28 parça

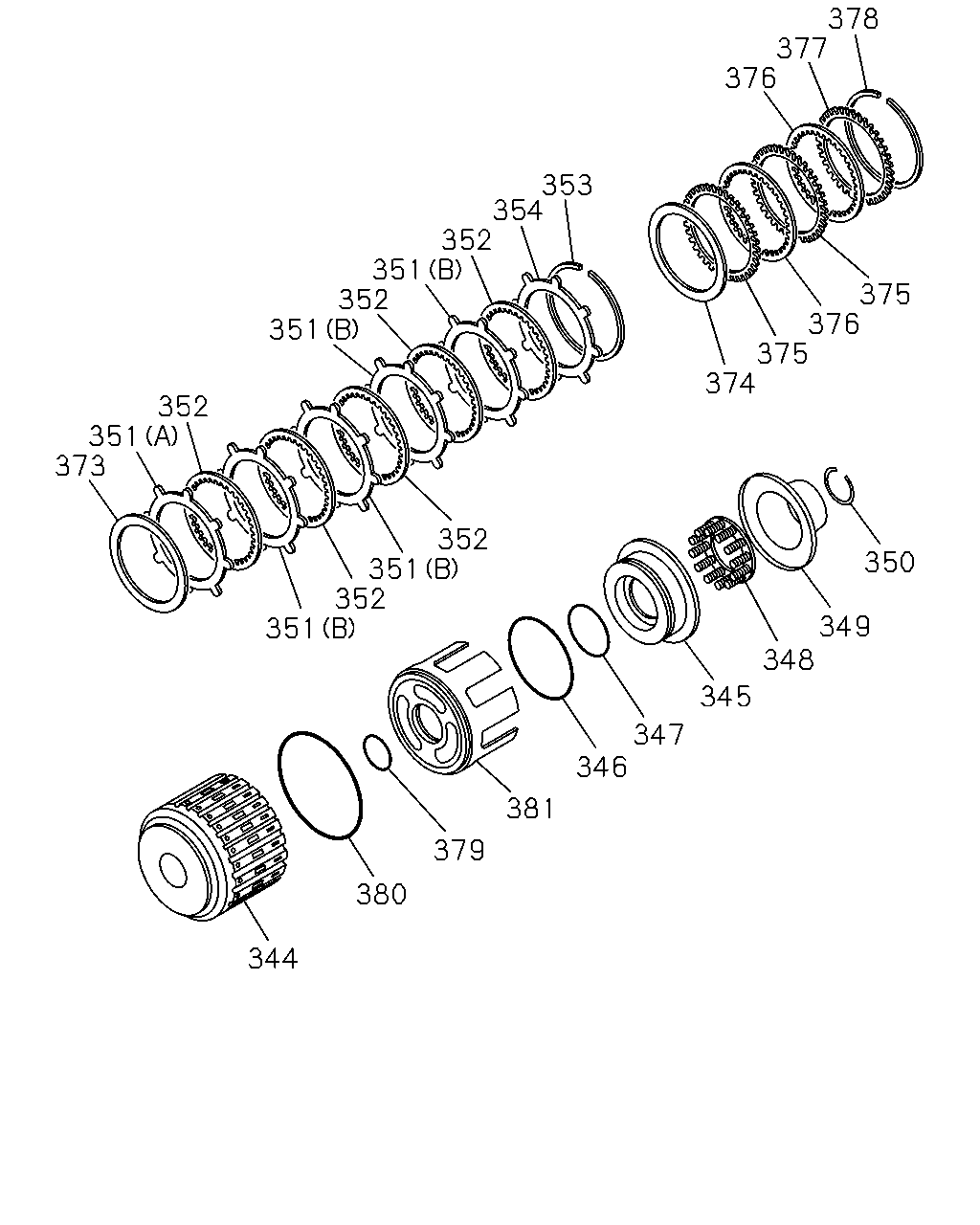

çizim 53870
378 377 376 353 354 352 351 352 351 375 376 375 374 352 351 373 352 351 352 351 350 349 348 345 347 346 381 379 380 344
BalonParca AdiParca NoAdetTipApplied Date
344 04.169 DRUM; HIGH CLU 8-97330-978-0 01 1 0211-
345 04.166 PISTON; HIGH CLU 8-97331-033-0 01 1 0211-
346 04.166 SEAL; HIGH CLU PISTON,OUTER 8-97330-989-0 01 1 0211-
347 04.166 SEAL; HIGH CLU PISTON,INNER 8-97331-035-0 01 1 0211-
348 04.164 SPRING; RETURN,HIGH CLU PISTON 8-97330-980-0 01 1 0211-
349 04.164 RETAINER; RETURN SPRING,CLU PIST 8-97331-034-0 01 1 0211-
350 04.164 RING; SNAP,SPRING RET,HIGH CLU 8-97330-975-0 01 1 0211-
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
(A) T=2.0 		8-97331-007-0 01 1 0211-
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
(B) T=2.9 		8-97357-799-0 04 1 0211-
352 04.176 PLATE; DRIVE,HIGH CLU,A/T 8-97331-000-0 05 1 0211-
353 04.176 RING; SNAP,HIGH CLU PLATE 8-97330-976-0 01 1 0211-
354 04.176 PLATE; RET,HIGH CLU
T=4.6 		8-97331-019-0 01 1 0211-
354 04.176 PLATE; RET,HIGH CLU
T=4.8 		8-97331-020-0 01 1 0211-
354 04.176 PLATE; RET,HIGH CLU
T=5.0 		8-97331-021-0 01 1 0211-
354 04.176 PLATE; RET,HIGH CLU
T=5.2 		8-97331-022-0 01 1 0211-
354 04.176 PLATE; RET,HIGH CLU
T=5.4 		8-97331-023-0 01 1 0211-
373 04.176 PLATE; DISHED,HIGH CLU 8-97331-003-0 01 1 0211-
374 04.176 PLATE; DISHED,REV CLU 8-97331-049-0 01 1 0211-
375 04.176 PLATE; DRIVEN,REV CLU 8-97331-006-0 02 1 0211-
376 04.176 PLATE; DRIVE,REV CLU 8-97330-997-0 02 1 0211-
377 04.176 PLATE; RET,REV CLU
T=4.8 		8-97331-015-0 01 1 0211-
377 04.176 PLATE; RET,REV CLU
T=5.0 		8-97331-016-0 01 1 0211-
377 04.176 PLATE; RET,REV CLU
T=5.2 		8-97331-017-0 01 1 0211-
377 04.176 PLATE; RET,REV CLU
T=5.4 		8-97331-018-0 01 1 0211-
378 04.176 RING; SNAP,REV CLU PLATE 8-97330-973-0 01 1 0211-
379 04.176 SEAL; REV CLU PISTON,INNER 8-97330-994-0 01 1 0211-
380 04.176 SEAL; REV CLU PISTON,OUTER 8-97330-995-0 01 1 0211-
381 04.176 PISTON; REV CLUTCH 8-97357-798-0 01 1 0211-
