◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-44 - AUTO TRANS CONTROL VALVE; LOWER BODY ▶
2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#48620) — 99 parça

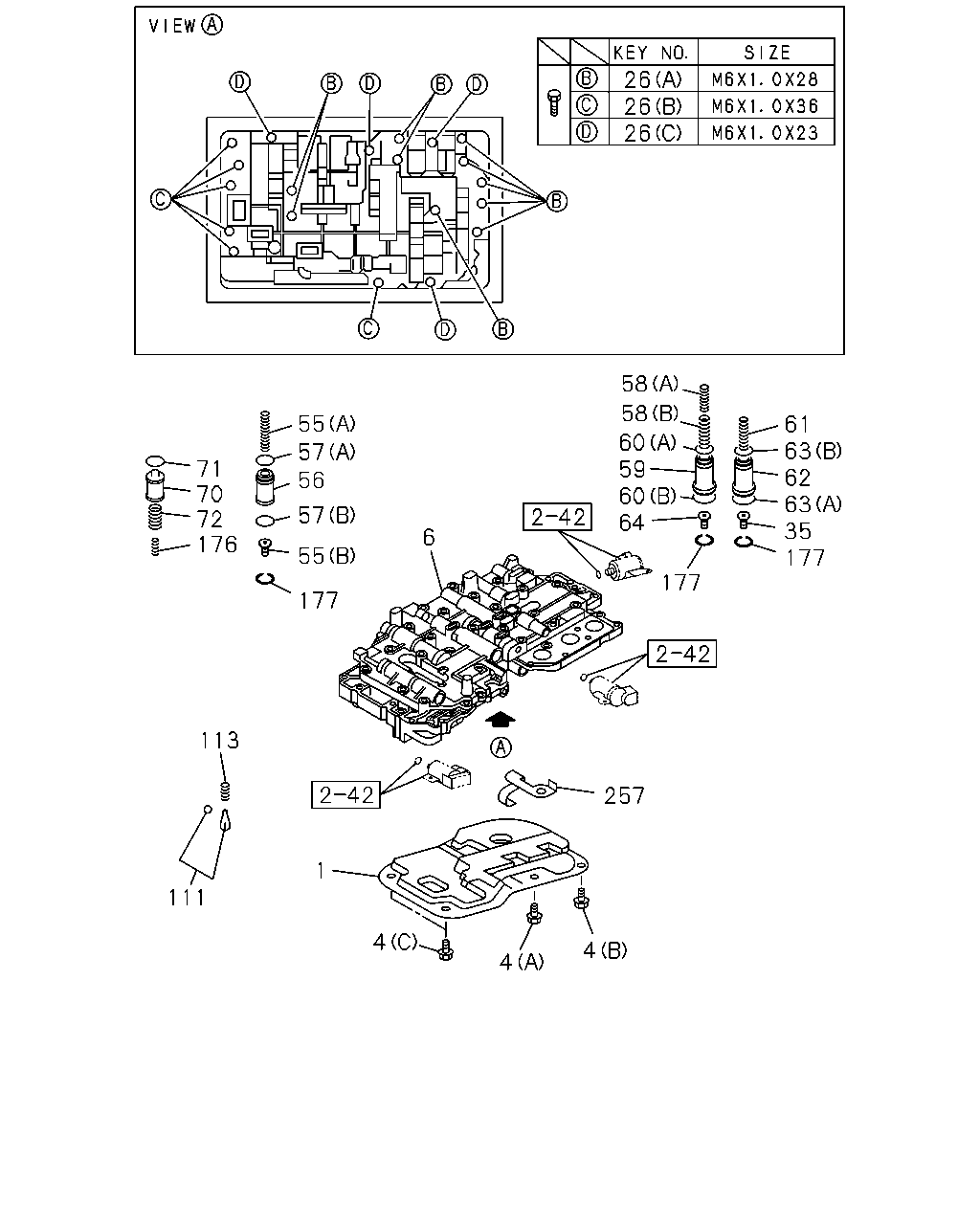

çizim 9738
26 26 26 58 58 55 61 63 62 63 35 177 60 59 60 64 57 71 70 72 176 56 57 6 55 177 177 113 257 1 111 4 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.197 STRAINER ASM; OIL,A/T 8-97207-143-0 01 1 0211- ●
1 04.197 STRAINER ASM; OIL,A/T 8-97331-063-0 01 1 0211- ●
4 04.197 BOLT; OIL STRAINER,A/T
04.265 (A) M6X20 		8-94479-922-0 01 1 0211- ●
4 04.197 BOLT; OIL STRAINER,A/T
04.265 (B) M6X23 		8-94479-925-0 01 1 0211- ●
4 04.197 BOLT; OIL STRAINER,A/T
(C) 		8-97207-142-0 02 1 0211- ●
4 04.197 BOLT; OIL STRAINER,A/T
(D) 		8-97331-102-0 09 1 0211- ●
4 04.197 BOLT; OIL STRAINER,A/T
(E) M6X45 FLANGE 		8-97331-104-0 04 1 0211- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-97354-971-0 01 1 0211- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-97331-059-0 01 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(A) M6X28 		8-94473-611-0 10 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X36 		8-94473-630-0 06 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X23 		8-94479-925-0 04 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(D) M6X40 		8-94385-941-0 10 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(E) M6X50 FLANGE 		8-97331-101-0 02 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(F) M6X35 FLANGE 		8-97331-103-0 13 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
04.197 (G) M6X45 FLANGE 		8-97331-104-0 02 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(H) M6X30 FLANGE 		8-97331-122-0 02 1 0211- ●
35 04.265 SPRING; LWR VLV BODY 8-97025-856-0 01 1 0211- ●
55 04.246 SPRING; ACCUMLATOR PISTON
04.164 (A) 		8-97027-209-0 01 1 0211- ●
55 04.246 SPRING; ACCUMLATOR PISTON
(B) 		8-97232-087-0 01 1 0211- ●
56 04.241 PISTON; ACCUMLATOR 8-97027-207-0 01 1 0211- ●
57 04.241 GASKET; 2ND SPD PISTON,A/T
(A) ID=20 		8-97184-885-0 01 1 0211- ●
57 04.241 GASKET; 2ND SPD PISTON,A/T
(B) ID=27 		8-97184-886-0 01 1 0211- ●
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A
(B) 		8-97025-822-0 01 1 0211- ●
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A
(A) 		8-97027-204-0 01 1 0211- ●
59 04.166 PISTON; DIRECT CLU,A/T 8-97025-819-0 01 1 0211- ●
60 04.169 GASKET; DIRECT CLU PISTON,A/T
(A) 		8-97184-887-0 01 1 0211- ●
60 04.169 GASKET; DIRECT CLU PISTON,A/T
04.167 (B) 		8-97184-888-0 01 1 0211- ●
61 04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 8-97331-532-0 01 1 0211- ●
62 04.166 PISTON; FWD CLU,A/T 8-97025-817-0 01 1 0211- ●
63 04.167 GASKET; FWD CLU,A/T
(A) 		8-97184-888-0 01 1 0211- ●
63 04.167 GASKET; FWD CLU,A/T
(B) ID=24 		8-97184-889-0 01 1 0211- ●
64 04.164 SPRING; DIRECT CLU 8-97184-335-0 01 1 0211- ●
70 04.241 PISTON; ACCUMLATOR 8-97027-205-0 01 1 0211- ●
71 04.241 GASKET; ACCUMLATOR PISTON 8-97184-884-0 01 1 0211- ●
72 04.233 SPRING; ACCUMLATOR PISTON 8-97027-206-0 01 1 0211- ●
111 04.169 BODY; CHECK BALL 8-94479-931-0 01 1 0211- ●
113 04.164 SPRING; CHECK BALL 8-94479-930-0 01 1 0211- ●
176 04.265 SPRING; ACCUM INNER 8-97025-825-0 01 1 0211- ●
177 04.265 RING; SNAP
ID=19 		8-97025-821-0 03 1 0211- ●
257 04.265 CLAMP; HARNESS 8-97232-037-0 01 1 0211- ●

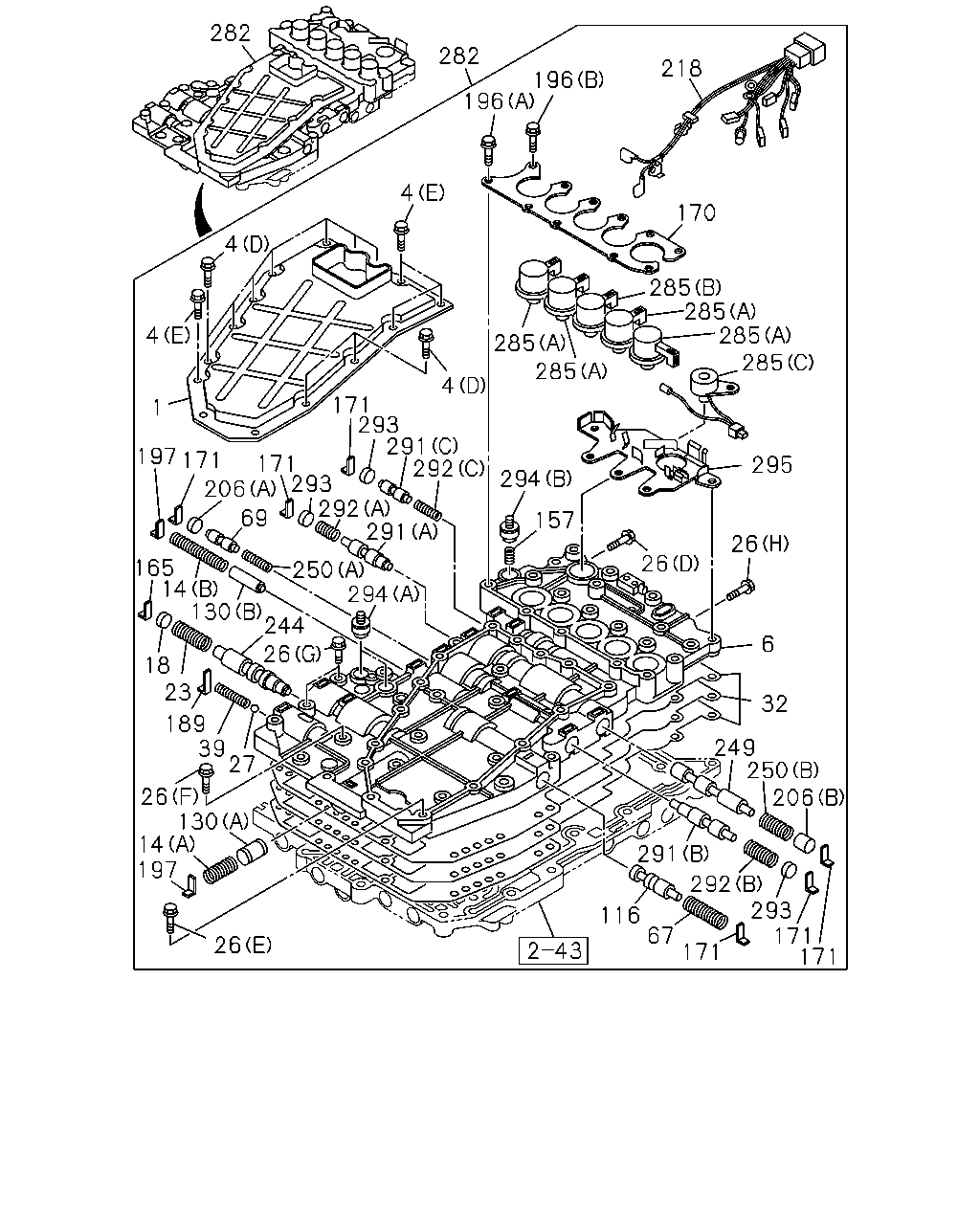

çizim 9740
282 282 218 196 196 4 170 4 285 285 285 285 4 285 285 4 171 293 291 292 1 197 171 171 293 206 292 291 295 294 69 157 165 14 130 244 26 26 250 294 6 26 18 23 32 189 39 27 249 250 206 292 293 171 171 26 130 14 197 291 116 67 26 171
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.197 STRAINER ASM; OIL,A/T 8-97207-143-0 01 1 0211- ●
1 04.197 STRAINER ASM; OIL,A/T 8-97331-063-0 01 1 0211- ●
4 04.197 BOLT; OIL STRAINER,A/T
04.265 (A) M6X20 		8-94479-922-0 01 1 0211- ●
4 04.197 BOLT; OIL STRAINER,A/T
04.265 (B) M6X23 		8-94479-925-0 01 1 0211- ●
4 04.197 BOLT; OIL STRAINER,A/T
(C) 		8-97207-142-0 02 1 0211- ●
4 04.197 BOLT; OIL STRAINER,A/T
(D) 		8-97331-102-0 09 1 0211- ●
4 04.197 BOLT; OIL STRAINER,A/T
(E) M6X45 FLANGE 		8-97331-104-0 04 1 0211- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-97354-971-0 01 1 0211- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-97331-059-0 01 1 0211- ●
14 04.246 SPRING; ACCUMLATOR CONT VALVE
(A) 		8-97092-821-0 01 1 0211- ●
14 04.246 SPRING; ACCUMLATOR CONT VALVE
(B) 		8-97331-078-0 01 1 0211- ●
18 04.265 PLUG; PRESSURE 8-97331-096-0 01 1 0211- ●
23 04.265 SPRING; REG VLV,VLV LWR,A/T 8-97331-075-0 01 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(A) M6X28 		8-94473-611-0 10 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X36 		8-94473-630-0 06 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X23 		8-94479-925-0 04 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(D) M6X40 		8-94385-941-0 10 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(E) M6X50 FLANGE 		8-97331-101-0 02 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(F) M6X35 FLANGE 		8-97331-103-0 13 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
04.197 (G) M6X45 FLANGE 		8-97331-104-0 02 1 0211- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(H) M6X30 FLANGE 		8-97331-122-0 02 1 0211- ●
27 04.265 BALL; STEEL,VLV,A/T 8-97330-895-0 01 1 0211- ●
32 04.265 PLATE; SEPARATOR,VLV BODY,A/T 8-97331-060-0 01 1 0211- ●
39 04.265 SPRING; BALL VALVE 8-97331-071-0 01 1 0211- ●
67 04.265 SPRING; PRESSURE,RELIEF VLV,A/T 8-97331-072-0 01 1 0211- ●
69 04.265 VALVE; SHIFT,LOW COAST,VLV LWR,A 8-97331-082-0 01 1 0211- ●
116 04.265 VALVE; PRESSURE RELIEF 8-97331-091-0 01 1 0211- ●
130 04.241 PISTON; ACCUMLATOR CONT
(A) 		8-94342-922-0 01 1 0211- ●
130 04.241 PISTON; ACCUMLATOR CONT
(B) 		8-97331-057-0 01 1 0211- ●
157 04.265 FILTER; OIL,LWR VALVE BODY 8-97331-062-0 01 1 0211- ●
165 04.265 PLATE; PRESS REG VLV,A/T 8-94385-905-0 01 1 0211- ●
170 04.265 PLATE; VLV,A/T 8-97331-081-0 01 1 0211- ●
171 04.265 PLATE; SHIFT VLV,A/T 8-97331-080-0 06 1 0211- ●
189 04.246 RETAINER; SPR
04.265 		8-94385-905-0 01 1 0211- ●
196 04.265 BOLT; SOLENOID
04.197 (A) M6X45 FLANGE 		8-97331-104-0 07 1 0211- ●
196 04.265 BOLT; SOLENOID
(B) M6X16 		8-97331-121-0 05 1 0211- ●
197 04.241 PLATE; ACCUMLATOR CONT VLV
04.265 		8-97331-080-0 02 1 0211- ●
206 04.054 PLUG; SHIFT VALVE
04.265 (A) 		8-97331-099-0 01 1 0211- ●
206 04.054 PLUG; SHIFT VALVE
(B) 		8-97331-100-0 01 1 0211- ●
218 04.115 HARNESS; SOLENOID WIRE 8-97331-115-0 01 1 0211- ●
244 04.265 VALVE; PRESSURE CONT 8-97331-064-0 01 1 0211- ●
249 04.265 VALVE; SHIFT 8-97331-083-0 01 1 0211- ●
250 04.265 SPRING; SHIFT VALVE
(A) 		8-97331-070-0 01 1 0211- ●
250 04.265 SPRING; SHIFT VALVE
(B) 		8-97331-076-0 01 1 0211- ●
282 04.265 BODY ASM; VLV,A/T 8-97333-561-0 01 1 0211- ●
285 04.265 SOLENOID; LWR VLV BODY
(A) 		8-97331-109-0 04 1 0211- ●
285 04.265 SOLENOID; LWR VLV BODY
(B) 		8-97331-110-0 01 1 0211- ●
285 04.265 SOLENOID; LWR VLV BODY
(C) 		8-97331-111-0 01 1 0211- ●
291 04.265 VALVE; SPOOL,LWR VLV
(A) 		8-97331-086-0 01 1 0211- ●
291 04.265 VALVE; SPOOL,LWR VLV
(B) 		8-97331-087-0 01 1 0211- ●
291 04.265 VALVE; SPOOL,LWR VLV
(C) 		8-97331-089-0 01 1 0211- ●
292 04.265 SPRING; SPOOL VALVE
(A) 		8-97331-068-0 01 1 0211- ●
292 04.265 SPRING; SPOOL VALVE
(B) 		8-97331-069-0 01 1 0211- ●
292 04.265 SPRING; SPOOL VALVE
(C) 		8-97331-073-0 01 1 0211- ●
293 04.265 PLUG; SPOOL VALVE 8-97331-098-0 03 1 0211- ●
294 04.265 SWITCH; OIL PRESSURE
(A) 		8-97330-896-0 02 1 0211- ●
294 04.265 SWITCH; OIL PRESSURE
(B) 		8-97330-897-0 01 1 0211- ●
295 04.265 BRACKET; HARNESS,LWR VLV BODY 8-97331-061-0 01 1 0211- ●
