2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#48617) — 128 parça

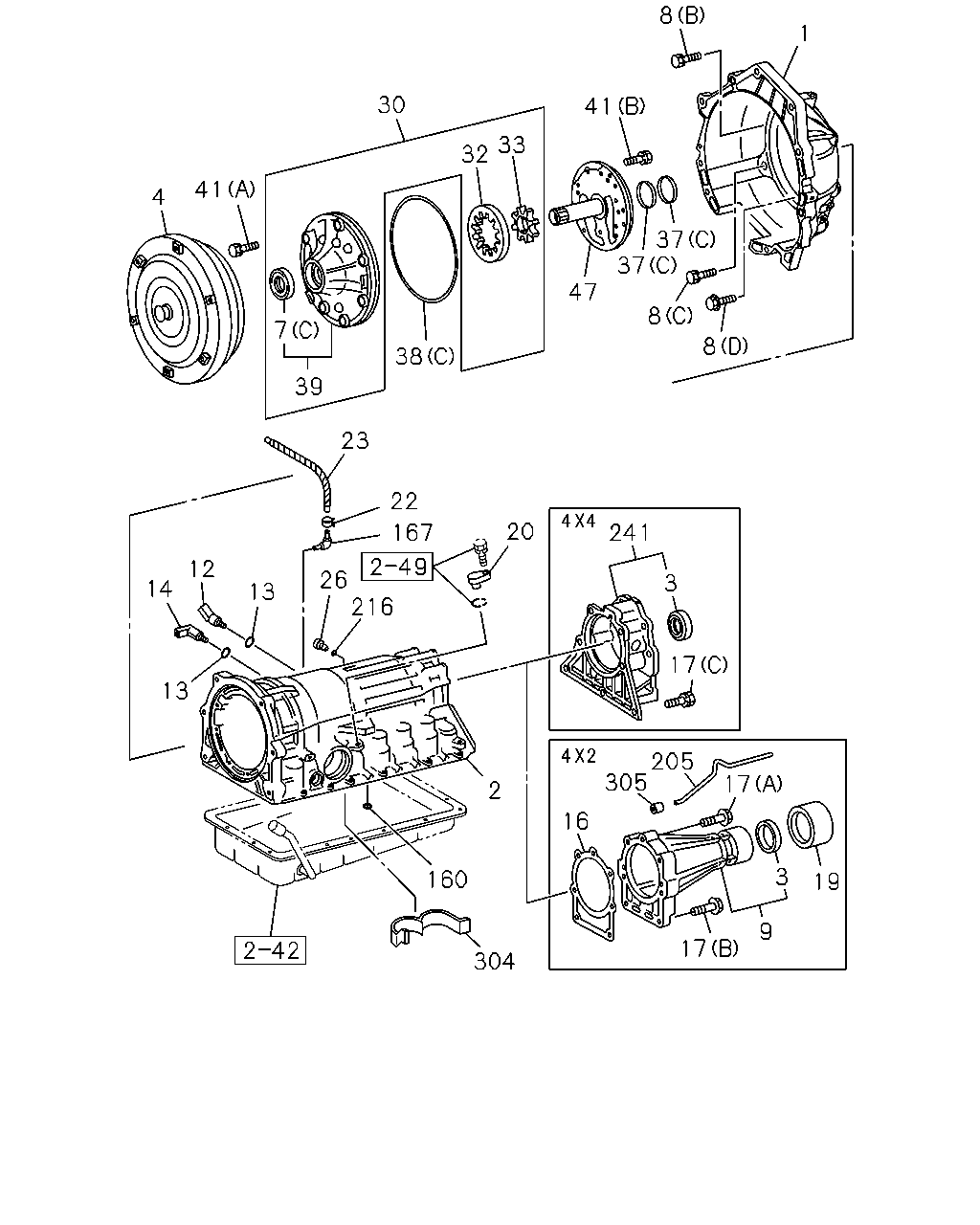

çizim 11298
8 1 30 41 33 32 41 4 37 37 47 8 7 8 38 39 23 22 20 241 167 12 26 216 3 14 13 17 13 205 305 17 2 16 3 160 19 9 17 304
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.103 HOUSING; CONV,A/T 8-97331-569-0 01 1 0211- ●
1 04.103 HOUSING; CONV,A/T 8-97330-899-0 01 1 0211- ●
2 04.103 CASE ASM; A/T
4X2(TFB***) 		8-97288-902-0 01 1 0211- ●
2 04.103 CASE ASM; A/T
4X4(TFS***) 		8-97232-111-0 01 1 0211- ●
2 04.103 CASE ASM; A/T 8-97330-900-0 01 1 0211- ●
3 04.241 SEAL; OIL,RR COVER,A/T
4X2(TFB***) 		8-97184-430-0 01 1 0211- ●
3 04.241 SEAL; OIL,RR COVER,A/T
4X4(TFS***) 		8-97069-465-0 01 1 0211- ●
3 04.241 SEAL; OIL,RR COVER,A/T
4X2(TFB***) 		8-97330-910-0 01 1 0211- ●
3 04.241 SEAL; OIL,RR COVER,A/T
4X4(TFS***) 		8-97330-909-0 01 1 0211- ●
4 04.115 CONVERTER ASM; TORQUE,A/T 8-97354-872-0 01 1 0211- ●
4 04.115 CONVERTER ASM; TORQUE,A/T 8-97330-898-0 01 1 0211- ●
7 04.226 SEAL; OIL,LIP,A/T
(C) 		8-94479-742-0 01 1 0211- ●
7 04.226 SEAL; OIL,LIP,A/T
02.559 (A) 		8-94385-664-0 01 1 0211- ●
7 04.226 SEAL; OIL,LIP,A/T
(B) 		8-97330-904-0 01 1 0211- ●
8 04.217 BOLT; HSG TO CASE
(B) M10X35 		8-90257-082-0 04 1 0211- ●
8 04.217 BOLT; HSG TO CASE
(C) M12X45 		8-94257-083-0 01 1 0211- ●
8 04.217 BOLT; HSG TO CASE
(D) M12X45 		8-97331-533-0 01 1 0211- ●
8 04.217 BOLT; HSG TO CASE
(A) M8X35 		8-97330-912-0 08 1 0211- ●
9 04.317 COVER ASM; RR,A/T
4X2(TFB***) 04.217 		8-97331-555-0 01 1 0211- ●
9 04.317 COVER ASM; RR,A/T
4X2(TFB***) 04.217 		8-97330-901-0 01 1 0211- ●
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP
04.265 		8-94450-761-0 01 1 0211- ●
13 04.205 GASKET; OIL COOLER PIPE
04.265 ID=11.7 		8-94479-724-0 02 1 0211- ●
14 04.205 UNION; OIL COOLER RETURN PIPE
04.265 		8-94450-762-0 01 1 0211- ●
16 04.318 GASKET; EXT HSG
4X2(TFB***) 		8-97032-928-0 01 1 0211- ●
17 04.319 BOLT; REAR COVER TO CASE
4X2(TFB***) (A) M10X45 		8-94473-632-0 04 1 0211- ●
17 04.319 BOLT; REAR COVER TO CASE
4X2(TFB***) (B) M10X35 		8-94479-951-0 02 1 0211- ●
17 04.319 BOLT; REAR COVER TO CASE
4X4(TFS***) (C) 		8-94479-936-0 07 1 0211- ●
17 04.319 BOLT; REAR COVER TO CASE
04.217 (D) M8X35 		8-97330-912-0 10 1 0211- ●
19 04.241 COVER; DUST,REAR COVER
4X2(TFB***) 		8-97184-432-0 01 1 0211- ●
20 04.105 PLUG; TAPER,A/T CASE 8-97232-067-0 01 1 0211- ●
22 04.101 CLIP; BREATHER HOSE,A/T 8-94479-730-0 01 1 0211- ●
23 04.101 HOSE; BREATHER,A/T 8-97331-530-0 01 1 0211- ●
23 04.101 HOSE; BREATHER,A/T
08.962 L=580 SERVICED BY L=3000 		0-04750-300-0 01 1 0211- ●
26 04.195 PLUG; TRANS CASE
04.103 		5-34119-002-0 02 1 0211- ●
30 04.224 PUMP ASM; OIL,A/T 8-97143-135-0 01 1 0211- ●
30 04.224 PUMP ASM; OIL,A/T 8-97357-220-0 01 1 0211- ●
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.715 H MARK 		8-97184-337-0 01 1 0211- ●
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.695 F MARK 		8-97213-029-0 01 1 0211- ●
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.705 G MARK 		8-97213-030-0 01 1 0211- ●
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.725 J MARK 		8-97213-031-0 01 1 0211- ●
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.735 K MARK 		8-97213-032-0 01 1 0211- ●
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.715 H MARK 		8-97147-426-0 01 1 0211- ●
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.695 F MARK 		8-97213-025-0 01 1 0211- ●
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.705 G MARK 		8-97213-026-0 01 1 0211- ●
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.725 J MARK 		8-97213-027-0 01 1 0211- ●
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.735 K MARK 		8-97213-028-0 01 1 0211- ●
37 04.226 RING; SEAL,OIL PUMP,A/T
(C) 		8-94479-747-0 02 1 0211- ●
37 04.226 RING; SEAL,OIL PUMP,A/T
04.166 (A) 		8-94483-322-0 02 1 0211- ●
37 04.226 RING; SEAL,OIL PUMP,A/T
(B) 		8-97330-984-0 02 1 0211- ●
38 04.226 GASKET; OIL PUMP,A/T
(C) 		8-94479-748-0 01 1 0211- ●
38 04.226 GASKET; OIL PUMP,A/T
(A) 		8-97330-985-0 01 1 0211- ●
38 04.226 GASKET; OIL PUMP,A/T
(B) 		8-97330-986-0 01 1 0211- ●
39 04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 8-94479-741-0 01 1 0211- ●
41 04.226 BOLT; OIL PUMP HSG,A/T
(A) M8X35 		8-94479-749-0 07 1 0211- ●
41 04.226 BOLT; OIL PUMP HSG,A/T
(B) M6X15.5 		8-97019-532-0 13 1 0211- ●
41 04.226 BOLT; OIL PUMP HSG,A/T
(C) M8X45 FLANGE 		8-97330-913-0 08 1 0211- ●
41 04.226 BOLT; OIL PUMP HSG,A/T
(D) M6X25 FLANGE 		8-97331-123-0 08 1 0211- ●
47 04.226 SHAFT; OIL PUMP,A/T 8-97019-531-0 01 1 0211- ●
160 04.265 GASKET; BRK DRUM,A/T 8-94313-576-0 01 1 0211- ●
167 04.052 CONNECTOR; CASE,A/T
04.104 		8-97126-812-0 01 1 0211- ●
205 04.103 TUBE; EXT HSG
4X2(TFB***) 		8-97027-228-0 01 1 0211- ●
216 04.265 GASKET; SOLENOID OUTER
04.103 ID=6 		5-34119-001-0 02 1 0211- ●
241 04.317 ADAPTER; A/T
4X4(TFS***) 		8-97331-556-0 01 1 0211- ●
241 04.317 ADAPTER; A/T
4X4(TFS***) 		8-97330-902-0 01 1 0211- ●
304 04.205 SPRING; LEAF,A/T 8-97184-331-0 01 1 0211- ●
305 04.103 GASKET; TUBE,EXT HSG
4X2(TFB***) 		8-97331-557-0 01 1 0211- ●

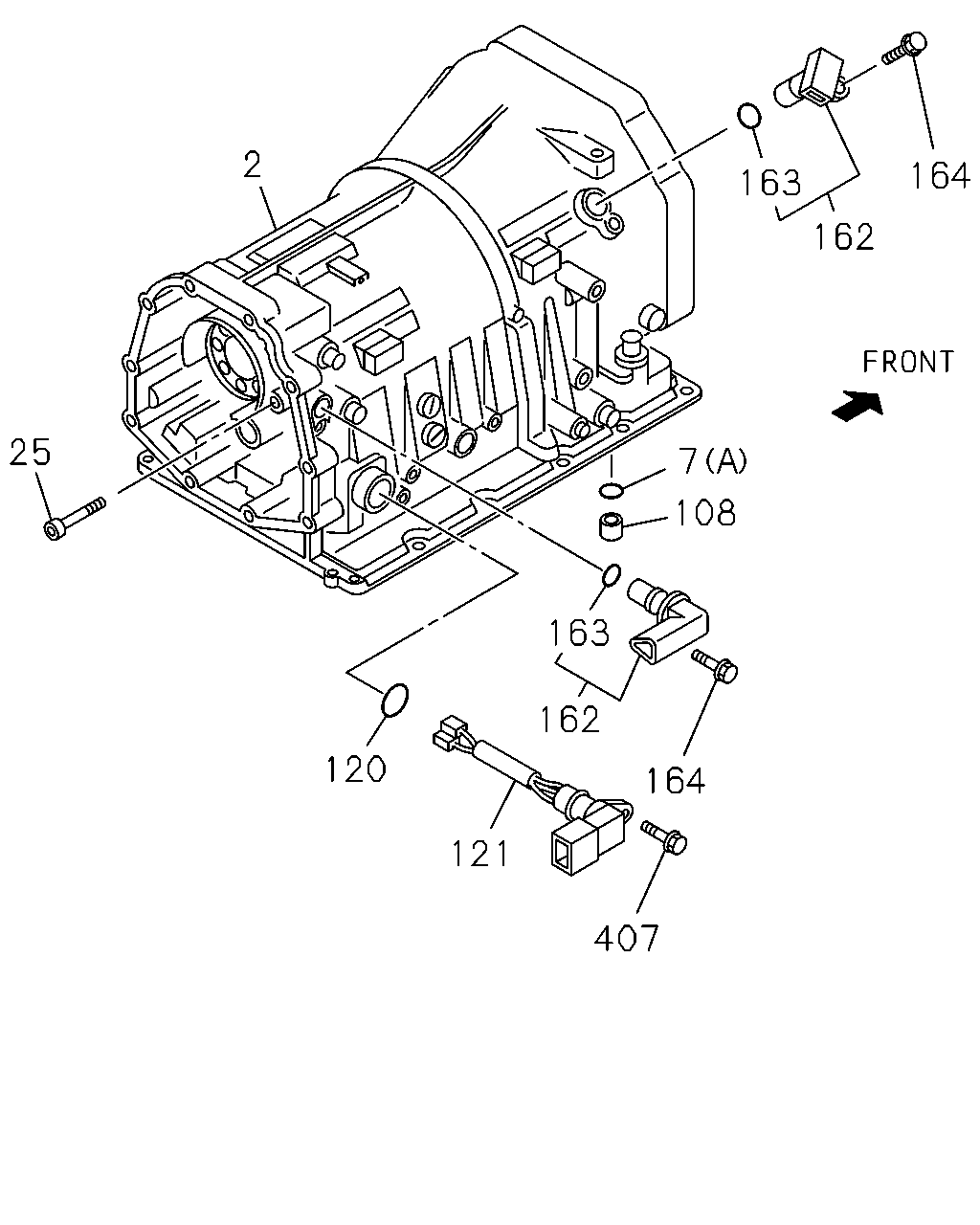

çizim 50102
2 164 163 162 25 7 108 163 162 120 164 121 407
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.103 CASE ASM; A/T
4X2(TFB***) 		8-97288-902-0 01 1 0211- ●
2 04.103 CASE ASM; A/T
4X4(TFS***) 		8-97232-111-0 01 1 0211- ●
2 04.103 CASE ASM; A/T 8-97330-900-0 01 1 0211- ●
7 04.226 SEAL; OIL,LIP,A/T
(C) 		8-94479-742-0 01 1 0211- ●
7 04.226 SEAL; OIL,LIP,A/T
02.559 (A) 		8-94385-664-0 01 1 0211- ●
7 04.226 SEAL; OIL,LIP,A/T
(B) 		8-97330-904-0 01 1 0211- ●
25 04.105 PIN; SPR,BRG HSG,A/T 8-97330-914-0 07 1 0211- ●
108 04.180 SLEEVE; LOW & REV BRAKE,A/T 8-94385-683-0 01 1 0211- ●
120 04.180 SEAL; TRANS,ELEC CONN 8-97330-987-0 01 1 0211- ●
121 04.226 CONNECTOR; ELEC 8-97331-112-0 01 1 0211- ●
162 04.054 SENSOR; REVOLUTION,A/T CONT 8-97331-108-0 02 1 0211- ●
163 04.054 GASKET; REV SENSOR,A/T 8-97330-988-0 02 1 0211- ●
164 04.054 BOLT; REV SENSOR,A/T
04.205 		8-94483-616-0 02 1 0211- ●
407 04.226 BOLT; ELEC CONNECTOR
04.205 		8-94483-616-0 01 1 0211- ●

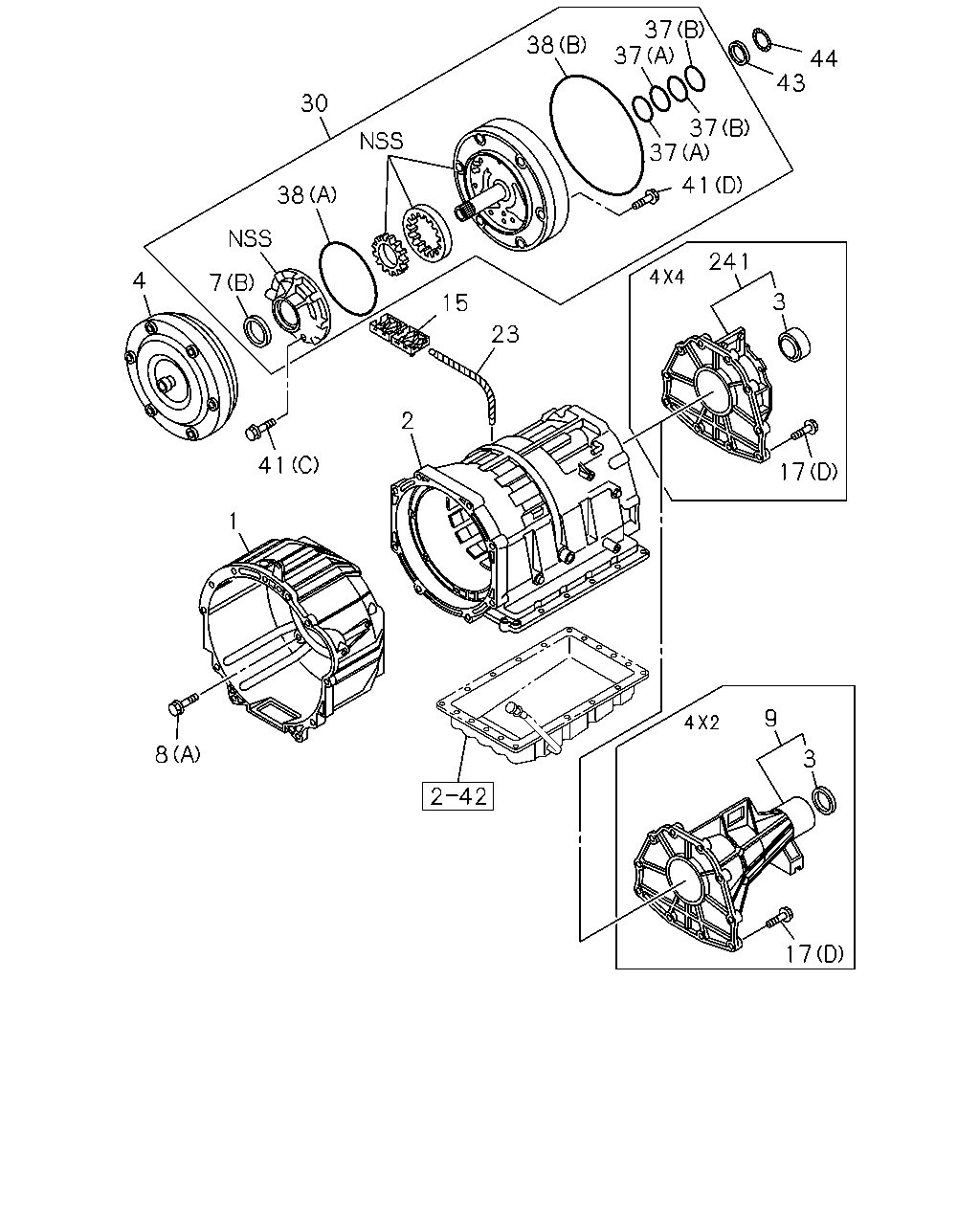

çizim 50917
37 37 38 44 43 30 37 37 41 38 241 4 7 3 15 23 2 41 17 1 9 8 3 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.103 HOUSING; CONV,A/T 8-97331-569-0 01 1 0211- ●
1 04.103 HOUSING; CONV,A/T 8-97330-899-0 01 1 0211- ●
2 04.103 CASE ASM; A/T
4X2(TFB***) 		8-97288-902-0 01 1 0211- ●
2 04.103 CASE ASM; A/T
4X4(TFS***) 		8-97232-111-0 01 1 0211- ●
2 04.103 CASE ASM; A/T 8-97330-900-0 01 1 0211- ●
3 04.241 SEAL; OIL,RR COVER,A/T
4X2(TFB***) 		8-97184-430-0 01 1 0211- ●
3 04.241 SEAL; OIL,RR COVER,A/T
4X4(TFS***) 		8-97069-465-0 01 1 0211- ●
3 04.241 SEAL; OIL,RR COVER,A/T
4X2(TFB***) 		8-97330-910-0 01 1 0211- ●
3 04.241 SEAL; OIL,RR COVER,A/T
4X4(TFS***) 		8-97330-909-0 01 1 0211- ●
4 04.115 CONVERTER ASM; TORQUE,A/T 8-97354-872-0 01 1 0211- ●
4 04.115 CONVERTER ASM; TORQUE,A/T 8-97330-898-0 01 1 0211- ●
7 04.226 SEAL; OIL,LIP,A/T
(C) 		8-94479-742-0 01 1 0211- ●
7 04.226 SEAL; OIL,LIP,A/T
02.559 (A) 		8-94385-664-0 01 1 0211- ●
7 04.226 SEAL; OIL,LIP,A/T
(B) 		8-97330-904-0 01 1 0211- ●
8 04.217 BOLT; HSG TO CASE
(B) M10X35 		8-90257-082-0 04 1 0211- ●
8 04.217 BOLT; HSG TO CASE
(C) M12X45 		8-94257-083-0 01 1 0211- ●
8 04.217 BOLT; HSG TO CASE
(D) M12X45 		8-97331-533-0 01 1 0211- ●
8 04.217 BOLT; HSG TO CASE
(A) M8X35 		8-97330-912-0 08 1 0211- ●
9 04.317 COVER ASM; RR,A/T
4X2(TFB***) 04.217 		8-97331-555-0 01 1 0211- ●
9 04.317 COVER ASM; RR,A/T
4X2(TFB***) 04.217 		8-97330-901-0 01 1 0211- ●
15 04.104 BREATHER; A/T CASE 8-97301-433-1 01 1 0211- ●
17 04.319 BOLT; REAR COVER TO CASE
4X2(TFB***) (A) M10X45 		8-94473-632-0 04 1 0211- ●
17 04.319 BOLT; REAR COVER TO CASE
4X2(TFB***) (B) M10X35 		8-94479-951-0 02 1 0211- ●
17 04.319 BOLT; REAR COVER TO CASE
4X4(TFS***) (C) 		8-94479-936-0 07 1 0211- ●
17 04.319 BOLT; REAR COVER TO CASE
04.217 (D) M8X35 		8-97330-912-0 10 1 0211- ●
23 04.101 HOSE; BREATHER,A/T 8-97331-530-0 01 1 0211- ●
23 04.101 HOSE; BREATHER,A/T
08.962 L=580 SERVICED BY L=3000 		0-04750-300-0 01 1 0211- ●
30 04.224 PUMP ASM; OIL,A/T 8-97143-135-0 01 1 0211- ●
30 04.224 PUMP ASM; OIL,A/T 8-97357-220-0 01 1 0211- ●
37 04.226 RING; SEAL,OIL PUMP,A/T
(C) 		8-94479-747-0 02 1 0211- ●
37 04.226 RING; SEAL,OIL PUMP,A/T
04.166 (A) 		8-94483-322-0 02 1 0211- ●
37 04.226 RING; SEAL,OIL PUMP,A/T
(B) 		8-97330-984-0 02 1 0211- ●
38 04.226 GASKET; OIL PUMP,A/T
(C) 		8-94479-748-0 01 1 0211- ●
38 04.226 GASKET; OIL PUMP,A/T
(A) 		8-97330-985-0 01 1 0211- ●
38 04.226 GASKET; OIL PUMP,A/T
(B) 		8-97330-986-0 01 1 0211- ●
41 04.226 BOLT; OIL PUMP HSG,A/T
(A) M8X35 		8-94479-749-0 07 1 0211- ●
41 04.226 BOLT; OIL PUMP HSG,A/T
(B) M6X15.5 		8-97019-532-0 13 1 0211- ●
41 04.226 BOLT; OIL PUMP HSG,A/T
(C) M8X45 FLANGE 		8-97330-913-0 08 1 0211- ●
41 04.226 BOLT; OIL PUMP HSG,A/T
(D) M6X25 FLANGE 		8-97331-123-0 08 1 0211- ●
43 04.226 RACE; THRUST BRG,OIL PUMP,A/T
T=1.4 		8-97330-940-0 01 1 0211- ●
43 04.226 RACE; THRUST BRG,OIL PUMP,A/T
T=1.6 		8-97330-941-0 01 1 0211- ●
43 04.226 RACE; THRUST BRG,OIL PUMP,A/T
T=1.8 		8-97330-942-0 01 1 0211- ●
43 04.226 RACE; THRUST BRG,OIL PUMP,A/T
T=2.0 		8-97330-943-0 01 1 0211- ●
43 04.226 RACE; THRUST BRG,OIL PUMP,A/T
T=2.2 		8-97330-944-0 01 1 0211- ●
43 04.226 RACE; THRUST BRG,OIL PUMP,A/T
T=2.4 		8-97330-945-0 01 1 0211- ●
44 04.226 BEARING; THRUST,OIL PUMP,A/T 8-97330-924-0 01 1 0211- ●
241 04.317 ADAPTER; A/T
4X4(TFS***) 		8-97331-556-0 01 1 0211- ●
241 04.317 ADAPTER; A/T
4X4(TFS***) 		8-97330-902-0 01 1 0211- ●
