◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#48615) — 15 parça

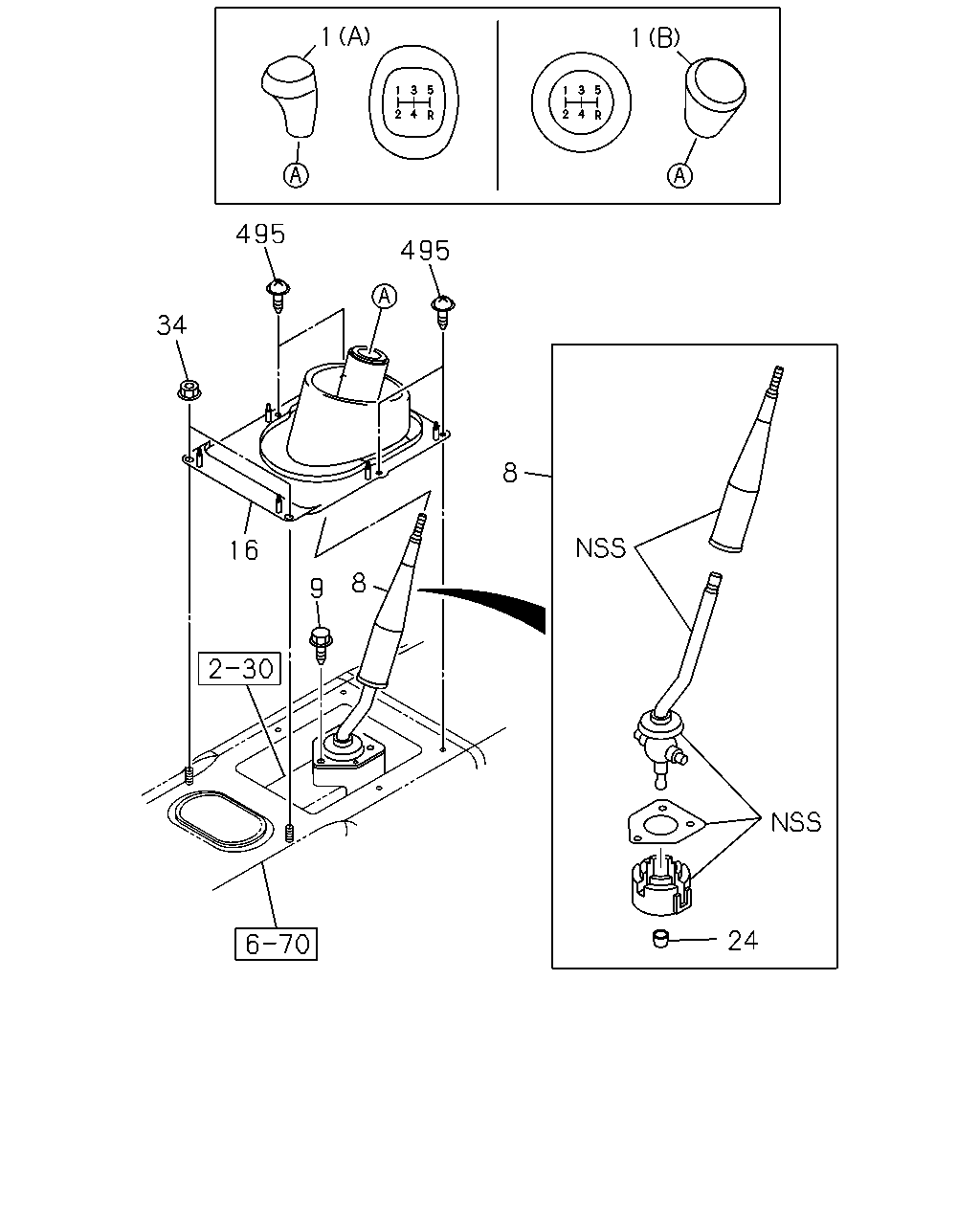

çizim 49501
1 1 495 495 34 8 16 8 9 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY 		8-97298-804-0 01 1 0211- ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTY<M09> (A) DARK GRAY 		8-97298-803-0 01 1 0211- ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTY<M09>,SHIFT KNOB LEATHER<VY7> (B) 		8-94473-778-0 01 1 0211- ● ●
8 04.006 LEVER; CHANGE
4JH1-TC ENG(RDM) 		8-97235-806-3 01 1 0211-0304 ●
8 04.006 LEVER; CHANGE
4JH1-TC ENG(RDM) 		8-97943-608-0 01 1 0305- ●
8 04.006 LEVER; CHANGE
6VE1 ENG(RJQ) 		8-97235-802-3 01 1 0211-0304 ●
8 04.006 LEVER; CHANGE 8-97235-802-3 01 1 0211-0304 ●
8 04.006 LEVER; CHANGE
6VE1 ENG(RJQ) 		8-97943-607-0 01 1 0305- ●
8 04.006 LEVER; CHANGE 8-97943-607-0 01 1 0305- ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0211- ● ●
16 04.015 BOOT; CHANGE LEVER 8-97235-879-2 01 1 0211- ● ●
24 04.008 BUSHING; CHANGE LEVER 8-97161-606-0 01 1 0211-0304 ● ●
24 04.008 BUSHING; CHANGE LEVER 8-97943-618-0 01 1 0305- ● ●
34 08.915 NUT
07.833 M6 FLANGE 		8-97063-399-0 02 1 0211- ● ●
495 04.012 SCREW; GROMMET
10.240 M5X16 TAPPING W/PL WASHER 		0-74305-516-0 04 1 0211- ● ●
