◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#48614) — 68 parça
çizim 47958
262 288 459 271 172 391 271 289 22 261 174 22 132 248 268 248 274
BalonParca AdiParca NoAdetTipApplied Date A B
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0211- ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 0211- ● ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 0211- ● ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 0211- ● ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 0211- ● ●
261 04.309 ROD; GEAR CONT
4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 0211- ●
261 04.309 ROD; GEAR CONT
6VE1 ENG(RJQ) 		8-97257-909-0 01 1 0211- ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0211- ●
262 04.105 BOX ASM; SHIFT CONT
4JH1-TC ENG(RDM) 		8-97180-891-2 01 1 0211-0305 ●
262 04.105 BOX ASM; SHIFT CONT
4JH1-TC ENG(RDM) 		8-97357-040-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
6VE1 ENG(RJQ) 		8-97257-824-0 01 1 0211- ●
262 04.105 BOX ASM; SHIFT CONT 8-97257-824-0 01 1 0211- ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0211- ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-97203-909-0 02 1 0211- ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0211- ● ●
288 04.307 PLUG; AIR BREATHER
6VE1 ENG(RJQ) 		9-00097-517-0 01 1 0211- ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 0211- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97181-327-0 01 1 0211- ● ●
391 04.104 PLUG; SW HOLE
M14X11 		8-94252-142-0 01 1 0211- ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0211- ● ●

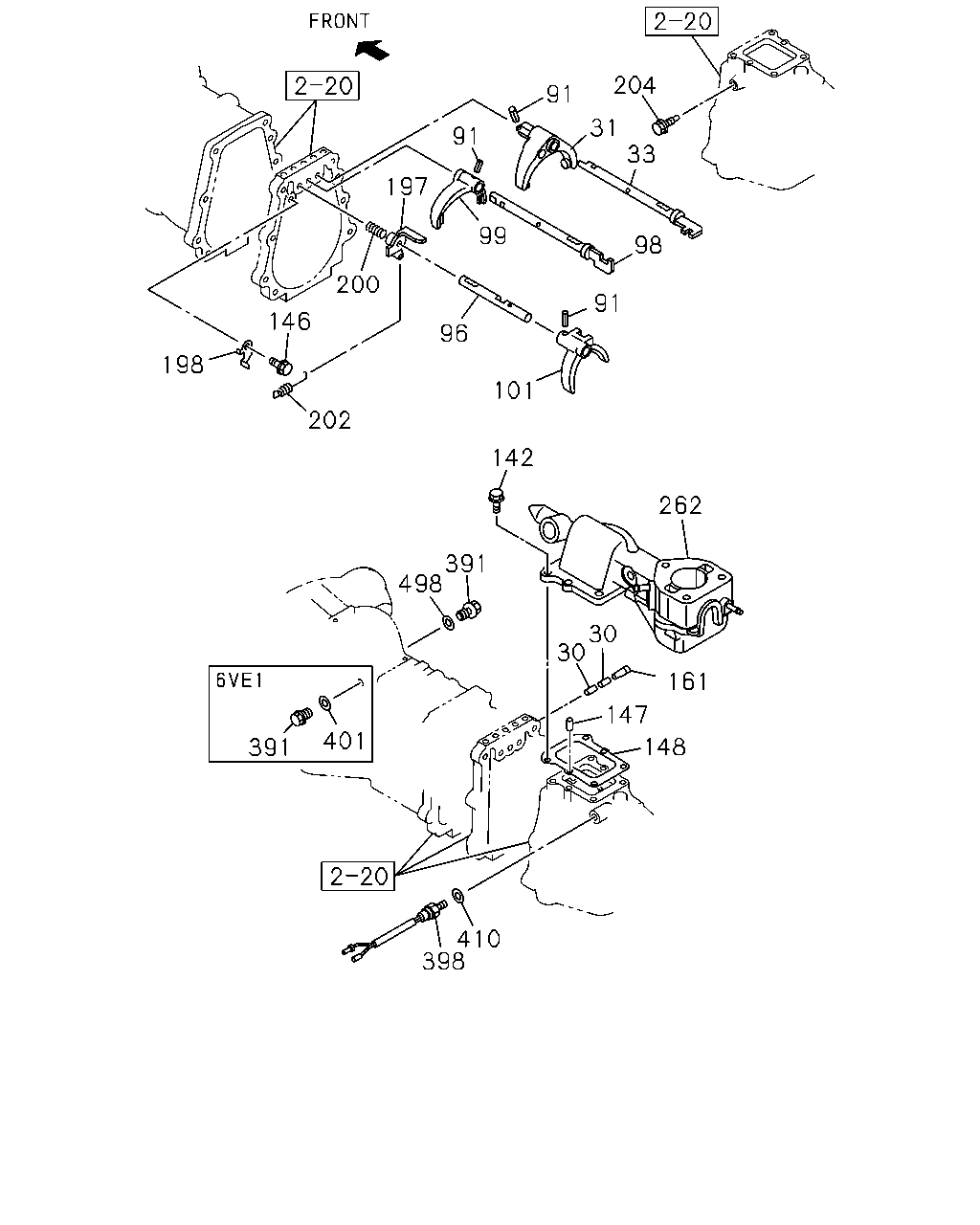

çizim 49915
204 91 31 91 33 197 99 98 200 91 146 96 198 101 202 142 262 391 498 30 30 161 147 401 148 391 410 398
BalonParca AdiParca NoAdetTipApplied Date A B
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 0211- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 0211- ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 0211- ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 0211- ● ●
96 04.309 ROD; SHIFT,5TH 8-94440-079-1 01 1 0211- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 0211- ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 0211- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94448-755-2 01 1 0211- ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 0211- ● ●
146 04.032 BOLT; REV INHIBITOR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 0211- ● ●
147 04.020 PIN; KNOCK
04.510 OD=6 L=12 		9-08150-612-0 02 1 0211- ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 0211- ● ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0211- ● ●
197 04.309 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 0211- ● ●
198 04.309 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 0211- ● ●
200 04.309 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 0211- ● ●
202 04.309 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 0211- ● ●
204 04.309 STOPPER; REV INHIBITOR 8-94479-434-2 01 1 0211- ● ●
262 04.105 BOX ASM; SHIFT CONT
4JH1-TC ENG(RDM) 		8-97180-891-2 01 1 0211-0305 ●
262 04.105 BOX ASM; SHIFT CONT
4JH1-TC ENG(RDM) 		8-97357-040-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
6VE1 ENG(RJQ) 		8-97257-824-0 01 1 0211- ●
262 04.105 BOX ASM; SHIFT CONT 8-97257-824-0 01 1 0211- ●
391 04.104 PLUG; SW HOLE
M14X11 		8-94252-142-0 01 1 0211- ● ●
398 02.698 SWITCH; REV LAMP 8-97138-635-0 01 1 0211- ● ●
401 04.075 GASKET; SWITCH,TOP & 3RD
6VE1 ENG(RJQ) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0211- ●
410 04.054 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0211- ● ●
498 04.075 GASKET; SWITCH,1ST & 2ND
08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0211- ●
çizim 52142
262 511 271 268 271 289 172 171 568 22 22 132 248 174 261 248 459 274
BalonParca AdiParca NoAdetTipApplied Date A B
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0211- ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 0211- ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JH1-TC ENG(RDM) 		8-97138-631-0 01 1 0211- ● ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-97138-631-0 01 1 0211- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 0211- ● ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 0211- ● ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 0211- ● ●
261 04.309 ROD; GEAR CONT
4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 0211- ●
261 04.309 ROD; GEAR CONT
6VE1 ENG(RJQ) 		8-97257-909-0 01 1 0211- ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0211- ●
262 04.105 BOX ASM; SHIFT CONT
4JH1-TC ENG(RDM) 		8-97180-891-2 01 1 0211-0305 ●
262 04.105 BOX ASM; SHIFT CONT
4JH1-TC ENG(RDM) 		8-97357-040-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
6VE1 ENG(RJQ) 		8-97257-824-0 01 1 0211- ●
262 04.105 BOX ASM; SHIFT CONT 8-97257-824-0 01 1 0211- ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0211- ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-97203-909-0 02 1 0211- ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0211- ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97181-327-0 01 1 0211- ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0211- ● ●
511 04.302 PIPE; AIR
4JH1-TC ENG(RDM) 04.510 		8-97173-545-0 01 1 0211-0305 ●
568 04.302 PIPE; BREATHER
4JH1-TC ENG(RDM) 04.510 		8-97173-544-0 01 1 0211-0305 ●
