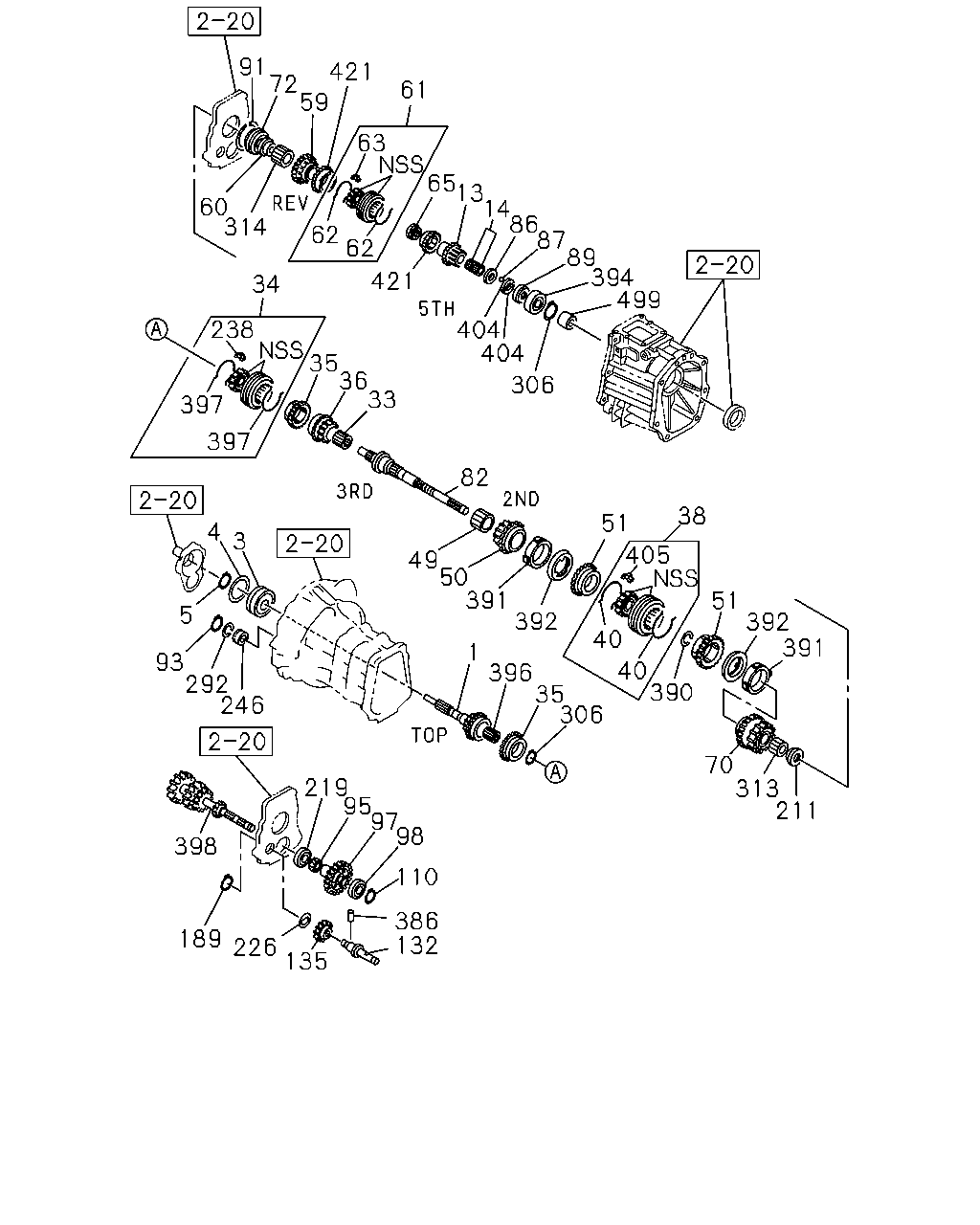

2-26 — MANUAL TRANSMISSION GEAR (#48613) — 175 parça

91 72 59 421 61 63 65 13 4 86 87 89 394 499 60 314 62 62 421 404 404 34 238 35 36 33 306 397 397 82 38 51 4 3 405 49 50 391 392 51 5 392 391 40 1 93 292 246 40 390 396 35 306 70 313 211 219 95 97 98 398 110 386 132 135 189 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97300-948-0	01	1	0211-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-214-1	01	1	0211-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0211-	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0211-	●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0211-	●	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-0	01	1	0211-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0211-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0211-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0211-	●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0211-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-0	01	1	0211-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97104-021-2	01	1	0211-		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0211-	●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0211-	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0211-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-0	01	1	0211-	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0211-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0211-	●	●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0211-	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0211-	●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0211-	●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0211-	●	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0211-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-0	01	1	0211-	●	●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0211-	●	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0211-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	0211-		●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0211-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0211-	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0211-	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0211-	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0211-	●	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0211-	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0211-	●	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0211-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0211-	●	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0211-	●	●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0211-	●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0211-		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0211-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0211-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0211-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0211-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0211-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0211-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0211-	●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0211-	●	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-0	01	1	0211-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0211-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0211-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0211-	●	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0211-	●	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0211-	●	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0211-	●	●
238	04.384 INSERT	8-94448-202-2	03	1	0211-	●	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0211-	●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0211-	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) ID=27.9	9-09180-030-0	02	1	0211-	●
306	04.416 RING; SNAP,MAINSHAFT ID=27.9	9-09180-030-0	02	1	0211-		●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) ID=27.9	9-09180-030-0	01	1	0211-	●
306	04.416 RING; SNAP,MAINSHAFT T=1.90 BLUE	8-97129-615-0	01	1	0211-	●	●
306	04.416 RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-97129-616-0	01	1	0211-	●	●
306	04.416 RING; SNAP,MAINSHAFT T=1.80 WHITE	8-97129-617-0	01	1	0211-	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0211-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0211-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0211-	●	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0211-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0211-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0211-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0211-	●	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0211-	●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0211-	●	●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 04.352 NSK	8-97018-921-1	01	1	0211-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0211-	●	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0211-	●	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0211-	●
398	04.421 GEAR; COUNTER Z=46-38-25-19	8-97104-161-1	01	1	0211-		●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0211-	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0211-	●	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0211-	●	●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***)	8-97300-954-0	01	1	0211-	●

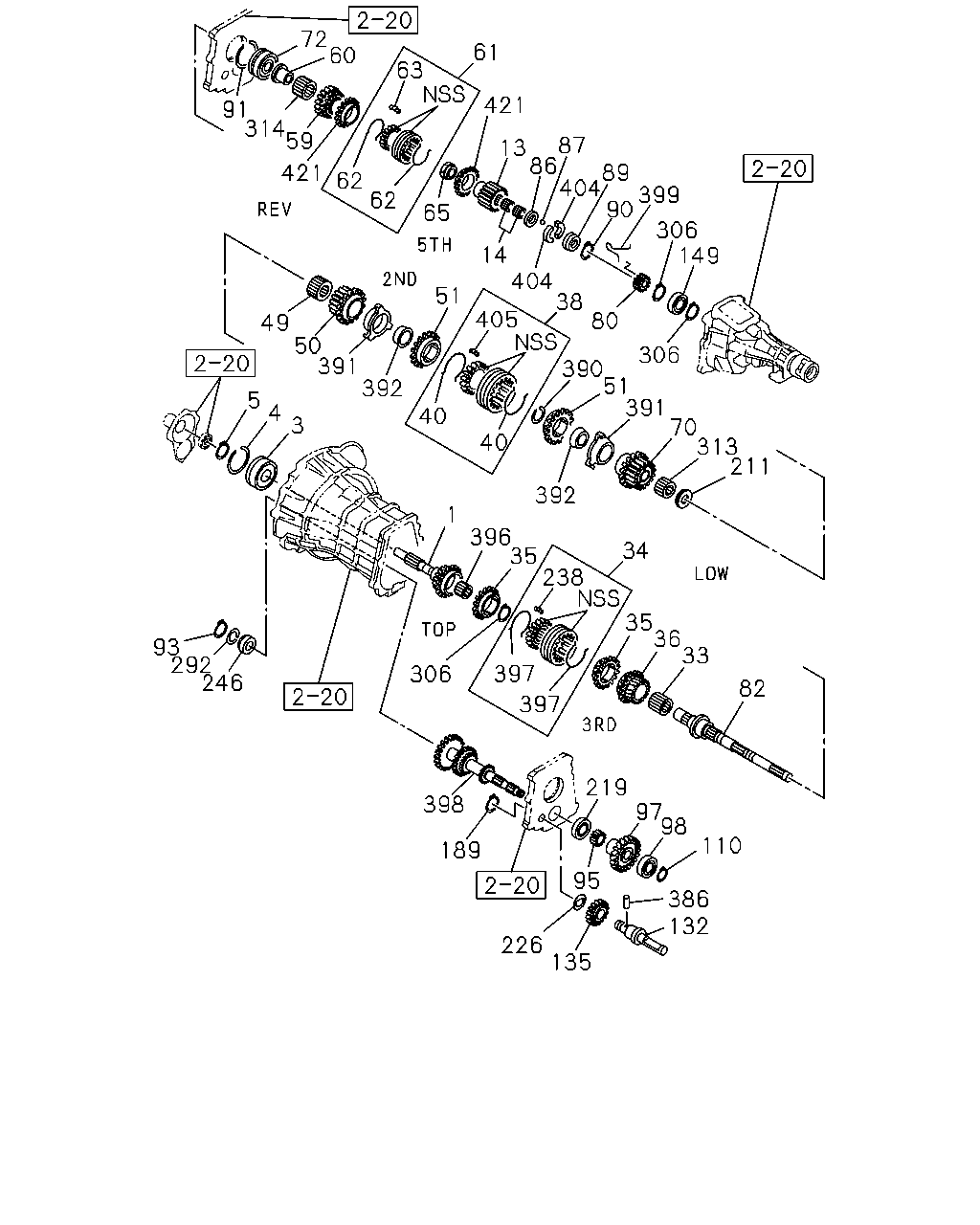

72 60 61 63 421 91 314 59 13 87 86 89 404 399 90 421 62 62 65 306 149 14 404 38 80 51 405 390 51 391 70 313 211 49 50 391 392 306 5 4 3 40 40 392 1 396 35 238 35 36 33 34 93 292 246 397 306 82 397 219 97 98 398 110 189 95 386 132 226 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97300-948-0	01	1	0211-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-214-1	01	1	0211-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0211-	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0211-	●	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0211-	●	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-0	01	1	0211-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0211-		●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0211-	●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0211-	●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0211-	●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0211-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-0	01	1	0211-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97104-021-2	01	1	0211-		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0211-	●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0211-	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0211-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-0	01	1	0211-	●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0211-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0211-	●	●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0211-	●	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0211-	●	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0211-	●	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0211-	●	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0211-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-0	01	1	0211-	●	●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0211-	●	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	0211-	●
80	04.343 GEAR; SPD DRIVE Z=5	8-94472-606-1	01	1	0211-		●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0211-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	0211-		●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0211-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0211-	●	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0211-	●	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0211-	●	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0211-	●	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0211-	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0211-	●	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	0211-	●
90	04.416 RING; SNAP,THRUST RING 04.422 ID=29.6	9-09180-032-0	01	1	0211-		●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0211-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0211-	●	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0211-	●	●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0211-	●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0211-		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0211-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0211-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0211-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0211-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0211-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0211-	●	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0211-	●	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0211-	●	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-0	01	1	0211-	●	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) 04.422 NSK	8-94173-863-0	01	1	0211-	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 04.422 NSK	8-94173-863-0	01	1	0211-		●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0211-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0211-	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0211-	●	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0211-	●	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0211-	●	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0211-	●	●
238	04.384 INSERT	8-94448-202-2	03	1	0211-	●	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0211-	●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0211-	●	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) ID=27.9	9-09180-030-0	02	1	0211-	●
306	04.416 RING; SNAP,MAINSHAFT ID=27.9	9-09180-030-0	02	1	0211-		●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) ID=27.9	9-09180-030-0	01	1	0211-	●
306	04.416 RING; SNAP,MAINSHAFT T=1.90 BLUE	8-97129-615-0	01	1	0211-	●	●
306	04.416 RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-97129-616-0	01	1	0211-	●	●
306	04.416 RING; SNAP,MAINSHAFT T=1.80 WHITE	8-97129-617-0	01	1	0211-	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0211-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0211-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0211-	●	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0211-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0211-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0211-	●	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0211-	●	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0211-	●	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0211-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0211-	●	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0211-	●	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0211-	●
398	04.421 GEAR; COUNTER Z=46-38-25-19	8-97104-161-1	01	1	0211-		●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	0211-	●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	0211-		●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0211-	●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0211-	●	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0211-	●	●

259 152 376 377 377 145 376 376

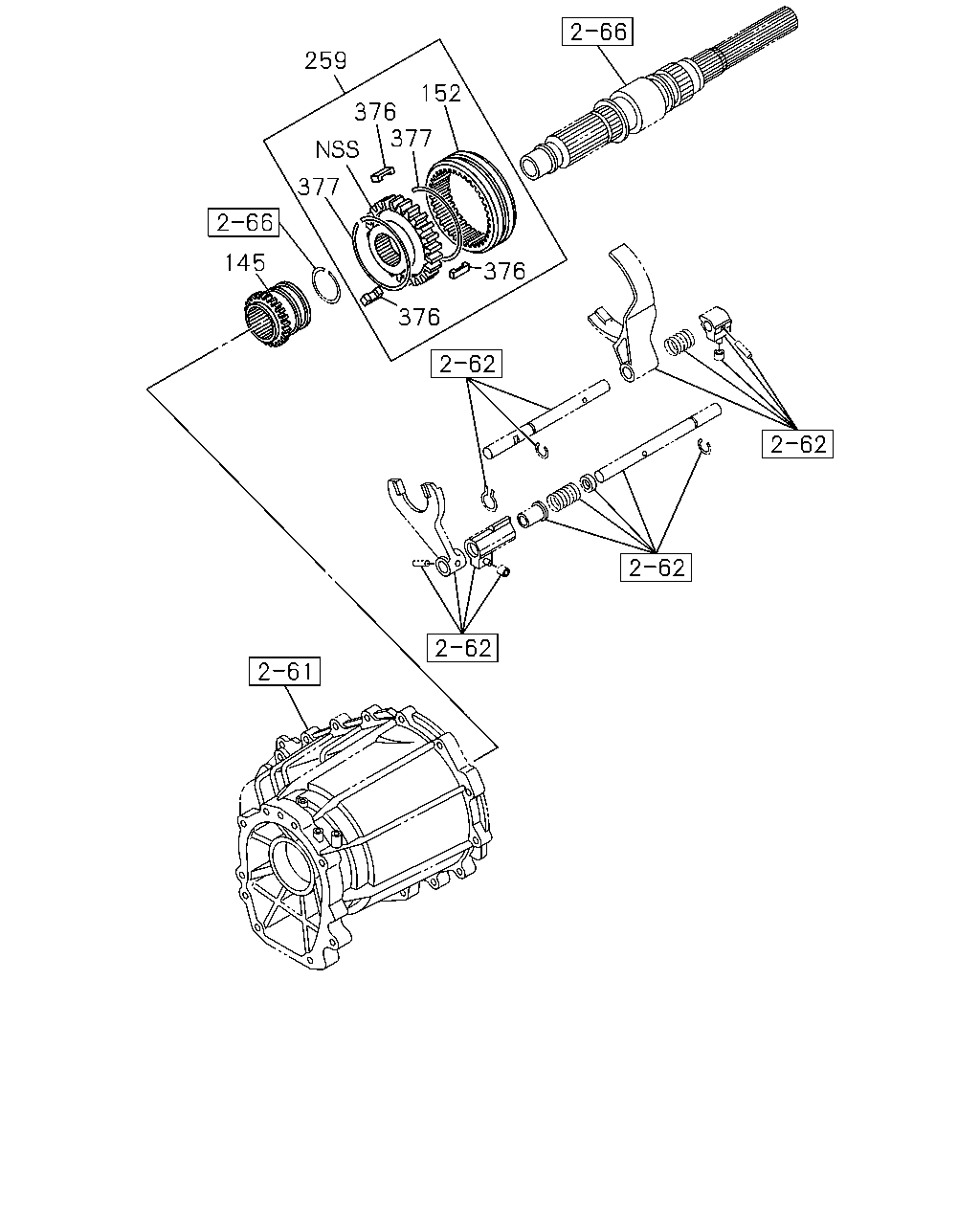

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-97232-692-0	01	1	0211-0211	●	●	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-97358-245-0	01	1	0212-	●	●	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	0211-	●	●	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	0211-	●	●	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	0211-	●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	0211-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
