Sayfa 2-25 - Isuzu EPC

2-25 — SPEEDOMETER DRIVEN GEAR (#48612) — 205 parça

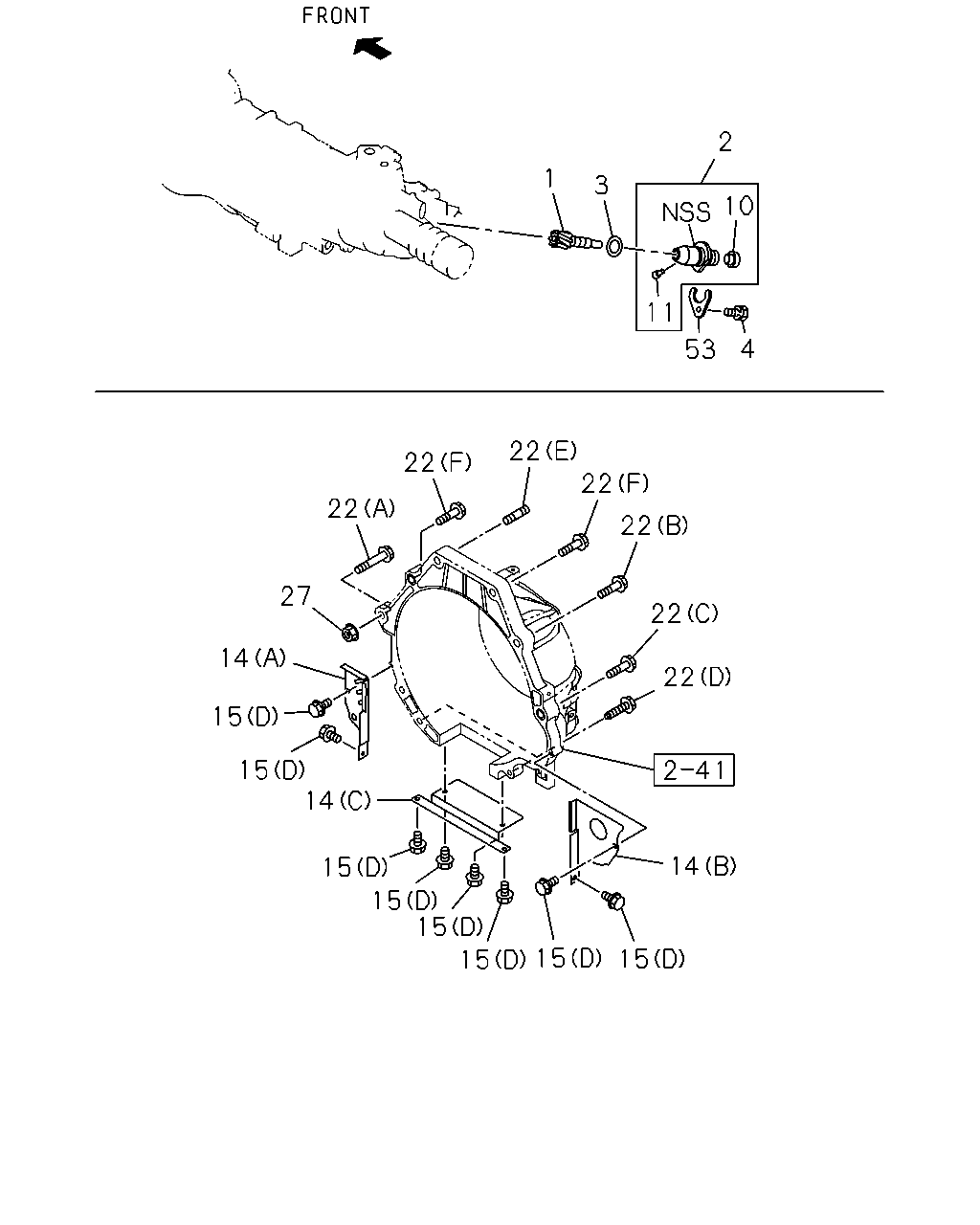

2 1 3 10 11 53 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FRT&RR 215/70R15C(BSU) Z=19	8-94473-303-2	01	1	0211-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD) Z=18	8-97012-086-2	01	1	0211-	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) Z=18	8-97238-584-2	01	1	0211-	●	●
1	04.337 GEAR; DRIVEN,SPD Z=18	8-94473-306-2	01	1	0211-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) Z=20	8-97181-542-0	01	1	0211-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) Z=20	8-97238-586-1	01	1	0211-				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0211-	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0211-	●	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97181-543-0	01	1	0211-				●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	9-09921-100-0	01	1	0211-	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0211-			●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0211-		●		●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=19	8-97181-545-0	01	1	0211-				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0211-	●
4	04.338 BOLT; RET,DRIVEN GEAR 4X2(TFB***) M8X20 FLANGE	0-28050-820-0	01	1	0211-			●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0211-		●		●
4	04.338 BOLT; RET,DRIVEN GEAR 4X2(TFB***) M8X14 W/WASHER	8-94480-043-0	01	1	0211-				●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T).	8-97131-328-1	01	1	0211-	●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) NOK	8-97131-328-1	01	1	0211-			●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97131-328-1	01	1	0211-		●		●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) NOK	8-94480-040-0	01	1	0211-				●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) JTEKT	8-97181-544-0	01	1	0211-				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0211-	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X2(TFB***)	8-94446-571-1	01	1	0211-			●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0211-		●		●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0211-	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X2(TFB***)	8-97021-019-0	01	1	0211-			●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0211-		●		●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X2(TFB***) 04.265	8-94479-720-0	01	1	0211-				●

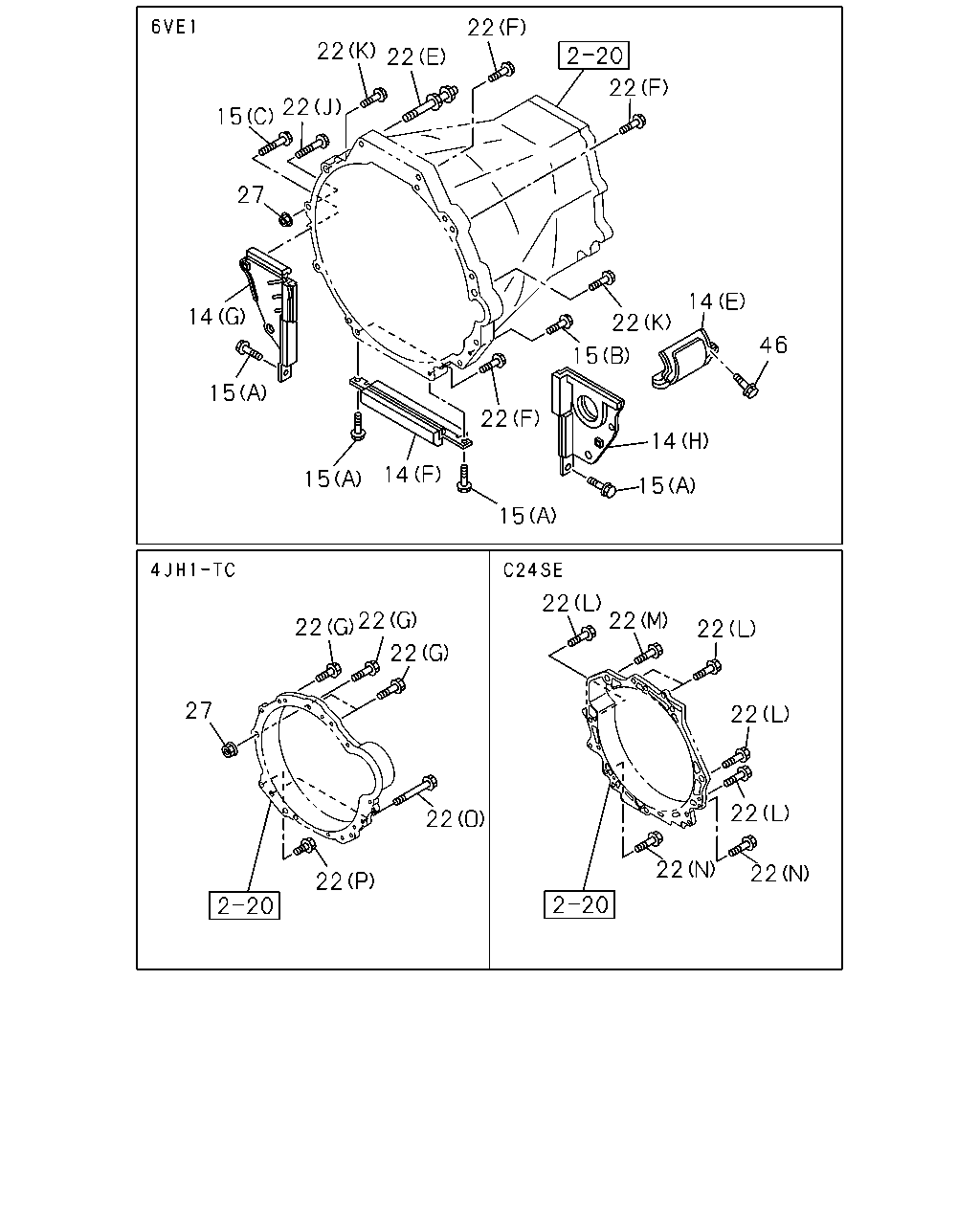

22 22 22 22 22 15 27 14 14 22 46 15 15 22 14 14 1 15 15 22 22 22 22 22 22 27 22 22 22 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FRT&RR 215/70R15C(BSU) Z=19	8-94473-303-2	01	1	0211-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD) Z=18	8-97012-086-2	01	1	0211-	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) Z=18	8-97238-584-2	01	1	0211-	●	●
1	04.337 GEAR; DRIVEN,SPD Z=18	8-94473-306-2	01	1	0211-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) Z=20	8-97181-542-0	01	1	0211-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) Z=20	8-97238-586-1	01	1	0211-				●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ) 00.797 (E)	8-94380-259-1	01	1	0211-	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ) (F)	8-97164-174-1	01	1	0211-	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ) (G)	8-97164-175-1	01	1	0211-	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ) (H)	8-97164-176-3	01	1	0211-	●
14	00.679 COVER; UNDER,TRANS (C)	8-97164-521-1	01	1	0211-				●
14	00.679 COVER; UNDER,TRANS (B)	8-97164-547-3	01	1	0211-				●
14	00.679 COVER; UNDER,TRANS (A)	8-97194-751-0	01	1	0211-				●
14	00.679 COVER; UNDER,TRANS (D)	8-94375-252-0	01	1	0211-		●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) 03.671 (A) M6X10 FLANGE	0-28050-610-0	04	1	0211-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) (B) M6X25 FLANGE	0-28650-625-0	01	1	0211-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) (C) M6X40 FLANGE	0-28650-640-0	01	1	0211-	●
15	00.685 BOLT; UNDER COVER TO TRANS 03.671 (D) M6X10 FLANGE	0-28050-610-0	08	1	0211-				●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 (E) M6X16 FLANGE	0-28650-616-0	04	1	0211-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0211-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JH1-TC ENG(RDM) (O) M10X60 FLANGE	0-28051-060-0	02	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JH1-TC ENG(RDM) (P) M12X40 FLANGE	0-28051-240-0	01	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (J) M12X80 FLANGE	0-28051-280-0	01	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (F) M12X45 FLANGE	0-28151-245-0	02	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (F) M12X45 FLANGE	0-28151-245-0	02	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG (F) M12X45 FLANGE	0-28151-245-0	02	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (K) M12X50 FLANGE	0-28151-250-0	02	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG (L) M12X45 FLANGE	0-28151-245-0	05	1	0211-			●
22	00.685 BOLT; TRANS CASE TO ENG (M) M12X60 FLANGE	0-28151-260-0	01	1	0211-			●
22	00.685 BOLT; TRANS CASE TO ENG (N) M8X40 FLANGE	0-28650-840-0	02	1	0211-			●
22	00.685 BOLT; TRANS CASE TO ENG (A) M12X70 FLANGE	0-28051-270-0	01	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG (B) M12X40 FLANGE	0-28151-240-0	01	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG (C) M12X50 FLANGE	0-28151-250-0	01	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG 00.029 (D) M10X40 FLANGE	0-28751-040-0	02	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28051-245-0	04	1	0211-		●
27	00.685 NUT; CLU HSG TO TRANS 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0211-	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0211-		●
27	00.685 NUT; CLU HSG TO TRANS 4JH1-TC ENG(RDM) 02.042 M12 FLANGE	0-91180-112-0	02	1	0211-	●
27	00.685 NUT; CLU HSG TO TRANS 6VE1 ENG(RJQ) 02.042 M12 FLANGE	0-91180-112-0	01	1	0211-	●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	01	1	0211-				●
46	00.685 BOLT; TRANS CASE 6VE1 ENG(RJQ) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0211-	●

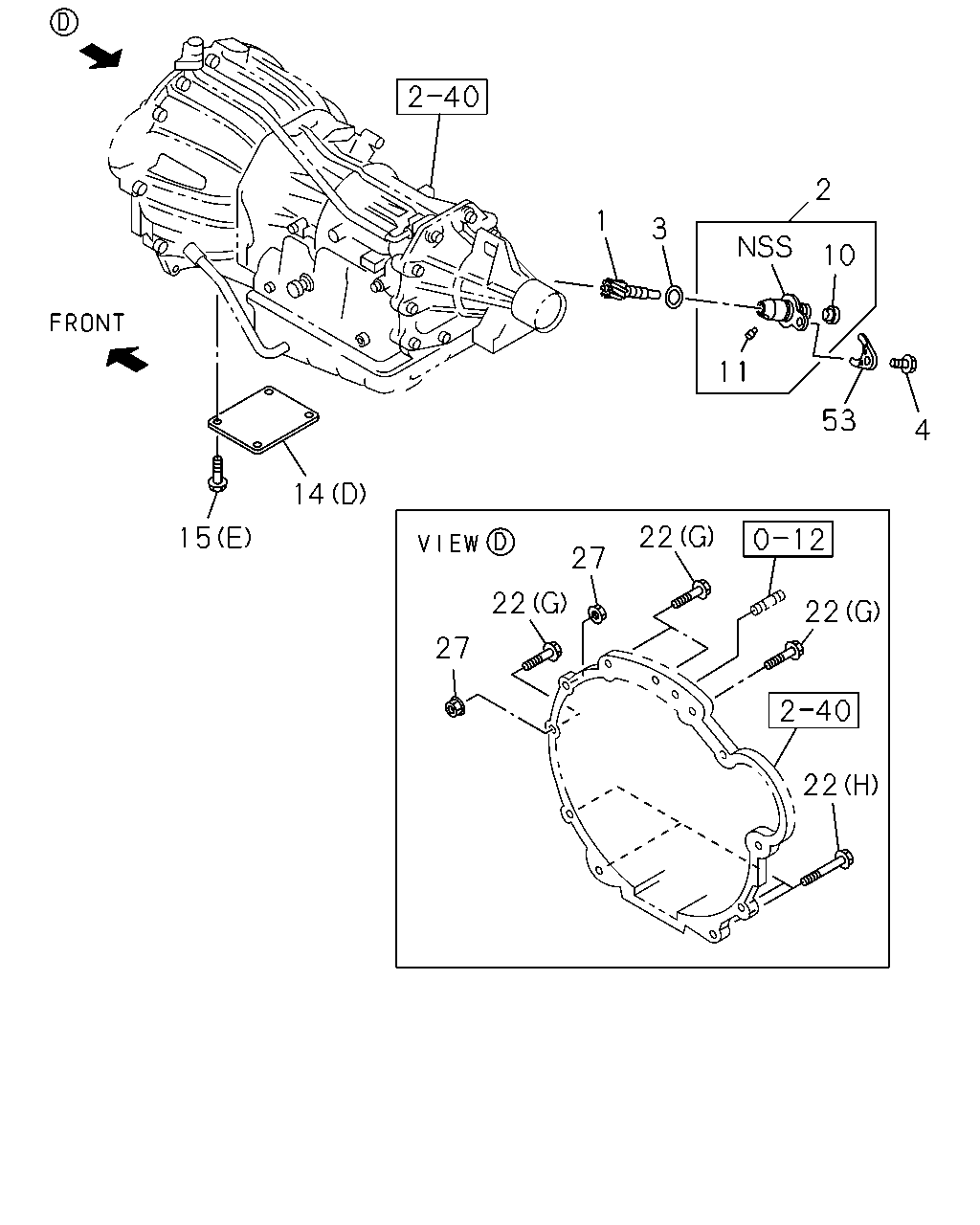

2 1 3 10 11 53 4 14 22 15 27 22 22 27 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FRT&RR 215/70R15C(BSU) Z=19	8-94473-303-2	01	1	0211-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD) Z=18	8-97012-086-2	01	1	0211-	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) Z=18	8-97238-584-2	01	1	0211-	●	●
1	04.337 GEAR; DRIVEN,SPD Z=18	8-94473-306-2	01	1	0211-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) Z=20	8-97181-542-0	01	1	0211-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) Z=20	8-97238-586-1	01	1	0211-				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0211-	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0211-	●	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97181-543-0	01	1	0211-				●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	9-09921-100-0	01	1	0211-	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0211-			●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0211-		●		●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=19	8-97181-545-0	01	1	0211-				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0211-	●
4	04.338 BOLT; RET,DRIVEN GEAR 4X2(TFB***) M8X20 FLANGE	0-28050-820-0	01	1	0211-			●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0211-		●		●
4	04.338 BOLT; RET,DRIVEN GEAR 4X2(TFB***) M8X14 W/WASHER	8-94480-043-0	01	1	0211-				●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T).	8-97131-328-1	01	1	0211-	●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) NOK	8-97131-328-1	01	1	0211-			●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97131-328-1	01	1	0211-		●		●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) NOK	8-94480-040-0	01	1	0211-				●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) JTEKT	8-97181-544-0	01	1	0211-				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0211-	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X2(TFB***)	8-94446-571-1	01	1	0211-			●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0211-		●		●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ) 00.797 (E)	8-94380-259-1	01	1	0211-	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ) (F)	8-97164-174-1	01	1	0211-	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ) (G)	8-97164-175-1	01	1	0211-	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ) (H)	8-97164-176-3	01	1	0211-	●
14	00.679 COVER; UNDER,TRANS (C)	8-97164-521-1	01	1	0211-				●
14	00.679 COVER; UNDER,TRANS (B)	8-97164-547-3	01	1	0211-				●
14	00.679 COVER; UNDER,TRANS (A)	8-97194-751-0	01	1	0211-				●
14	00.679 COVER; UNDER,TRANS (D)	8-94375-252-0	01	1	0211-		●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) 03.671 (A) M6X10 FLANGE	0-28050-610-0	04	1	0211-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) (B) M6X25 FLANGE	0-28650-625-0	01	1	0211-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) (C) M6X40 FLANGE	0-28650-640-0	01	1	0211-	●
15	00.685 BOLT; UNDER COVER TO TRANS 03.671 (D) M6X10 FLANGE	0-28050-610-0	08	1	0211-				●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 (E) M6X16 FLANGE	0-28650-616-0	04	1	0211-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0211-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JH1-TC ENG(RDM) (O) M10X60 FLANGE	0-28051-060-0	02	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JH1-TC ENG(RDM) (P) M12X40 FLANGE	0-28051-240-0	01	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (J) M12X80 FLANGE	0-28051-280-0	01	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (F) M12X45 FLANGE	0-28151-245-0	02	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (F) M12X45 FLANGE	0-28151-245-0	02	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG (F) M12X45 FLANGE	0-28151-245-0	02	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (K) M12X50 FLANGE	0-28151-250-0	02	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG (L) M12X45 FLANGE	0-28151-245-0	05	1	0211-			●
22	00.685 BOLT; TRANS CASE TO ENG (M) M12X60 FLANGE	0-28151-260-0	01	1	0211-			●
22	00.685 BOLT; TRANS CASE TO ENG (N) M8X40 FLANGE	0-28650-840-0	02	1	0211-			●
22	00.685 BOLT; TRANS CASE TO ENG (A) M12X70 FLANGE	0-28051-270-0	01	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG (B) M12X40 FLANGE	0-28151-240-0	01	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG (C) M12X50 FLANGE	0-28151-250-0	01	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG 00.029 (D) M10X40 FLANGE	0-28751-040-0	02	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28051-245-0	04	1	0211-		●
27	00.685 NUT; CLU HSG TO TRANS 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0211-	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0211-		●
27	00.685 NUT; CLU HSG TO TRANS 4JH1-TC ENG(RDM) 02.042 M12 FLANGE	0-91180-112-0	02	1	0211-	●
27	00.685 NUT; CLU HSG TO TRANS 6VE1 ENG(RJQ) 02.042 M12 FLANGE	0-91180-112-0	01	1	0211-	●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	01	1	0211-				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0211-	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X2(TFB***)	8-97021-019-0	01	1	0211-			●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0211-		●		●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X2(TFB***) 04.265	8-94479-720-0	01	1	0211-				●

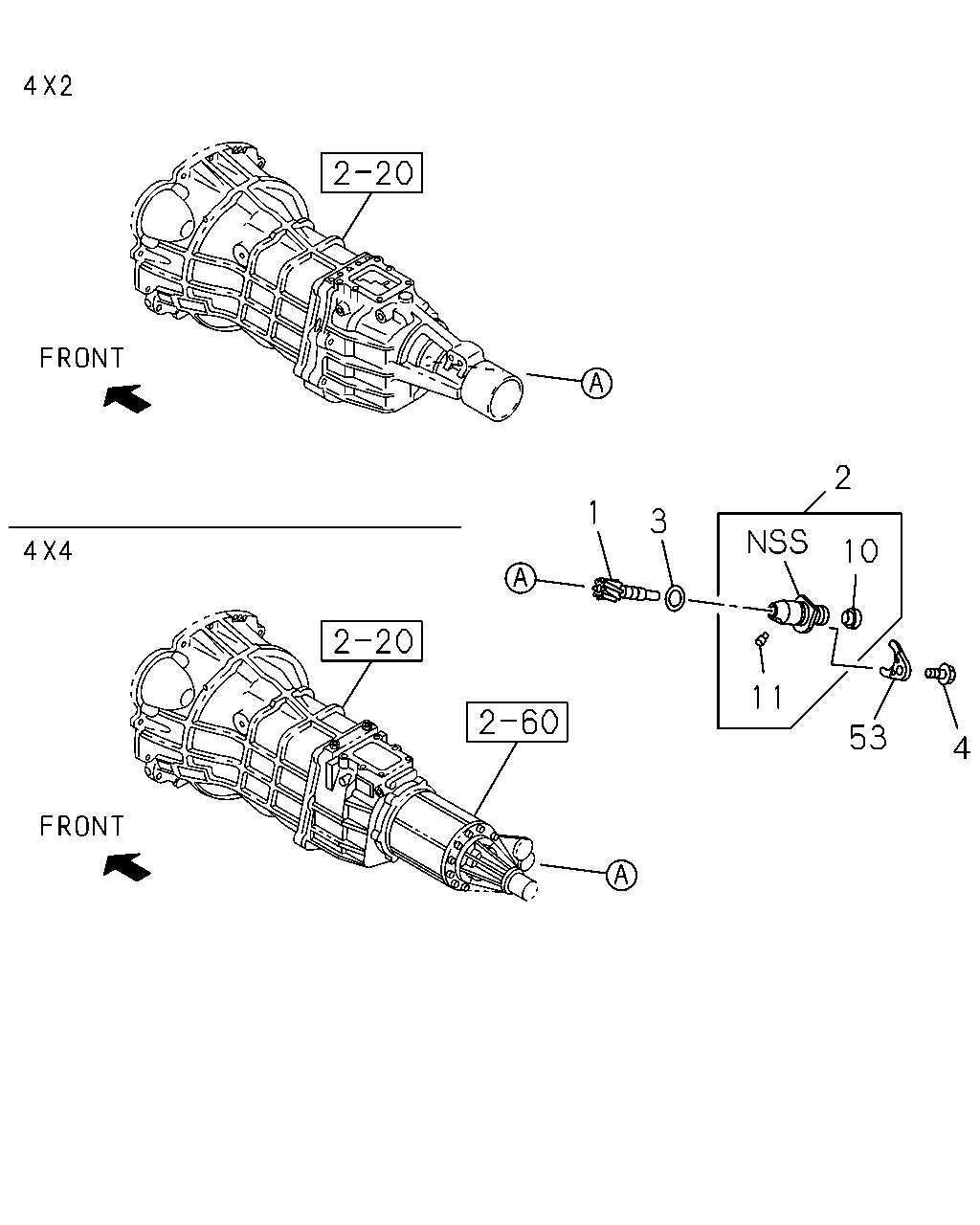

2 1 3 10 11 4 53 22 22 22 22 22 27 22 14 22 15 15 14 14 15 15 15 15 15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FRT&RR 215/70R15C(BSU) Z=19	8-94473-303-2	01	1	0211-	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD) Z=18	8-97012-086-2	01	1	0211-	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) Z=18	8-97238-584-2	01	1	0211-	●	●
1	04.337 GEAR; DRIVEN,SPD Z=18	8-94473-306-2	01	1	0211-			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) Z=20	8-97181-542-0	01	1	0211-				●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) Z=20	8-97238-586-1	01	1	0211-				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0211-	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0211-	●	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97181-543-0	01	1	0211-				●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	9-09921-100-0	01	1	0211-	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0211-			●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0211-		●		●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=19	8-97181-545-0	01	1	0211-				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0211-	●
4	04.338 BOLT; RET,DRIVEN GEAR 4X2(TFB***) M8X20 FLANGE	0-28050-820-0	01	1	0211-			●
4	04.338 BOLT; RET,DRIVEN GEAR 4X4(TFS***) M8X20 FLANGE	0-28050-820-0	01	1	0211-		●		●
4	04.338 BOLT; RET,DRIVEN GEAR 4X2(TFB***) M8X14 W/WASHER	8-94480-043-0	01	1	0211-				●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T).	8-97131-328-1	01	1	0211-	●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) NOK	8-97131-328-1	01	1	0211-			●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97131-328-1	01	1	0211-		●		●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) NOK	8-94480-040-0	01	1	0211-				●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) JTEKT	8-97181-544-0	01	1	0211-				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0211-	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X2(TFB***)	8-94446-571-1	01	1	0211-			●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV 4X4(TFS***)	8-94446-571-1	01	1	0211-		●		●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ) 00.797 (E)	8-94380-259-1	01	1	0211-	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ) (F)	8-97164-174-1	01	1	0211-	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ) (G)	8-97164-175-1	01	1	0211-	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ) (H)	8-97164-176-3	01	1	0211-	●
14	00.679 COVER; UNDER,TRANS (C)	8-97164-521-1	01	1	0211-				●
14	00.679 COVER; UNDER,TRANS (B)	8-97164-547-3	01	1	0211-				●
14	00.679 COVER; UNDER,TRANS (A)	8-97194-751-0	01	1	0211-				●
14	00.679 COVER; UNDER,TRANS (D)	8-94375-252-0	01	1	0211-		●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) 03.671 (A) M6X10 FLANGE	0-28050-610-0	04	1	0211-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) (B) M6X25 FLANGE	0-28650-625-0	01	1	0211-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) (C) M6X40 FLANGE	0-28650-640-0	01	1	0211-	●
15	00.685 BOLT; UNDER COVER TO TRANS 03.671 (D) M6X10 FLANGE	0-28050-610-0	08	1	0211-				●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 (E) M6X16 FLANGE	0-28650-616-0	04	1	0211-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JH1-TC ENG(RDM) (G) M10X40 FLANGE	0-28051-040-0	04	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG (G) M10X40 FLANGE	0-28051-040-0	04	1	0211-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JH1-TC ENG(RDM) (O) M10X60 FLANGE	0-28051-060-0	02	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JH1-TC ENG(RDM) (P) M12X40 FLANGE	0-28051-240-0	01	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (J) M12X80 FLANGE	0-28051-280-0	01	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (F) M12X45 FLANGE	0-28151-245-0	02	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (F) M12X45 FLANGE	0-28151-245-0	02	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG (F) M12X45 FLANGE	0-28151-245-0	02	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (K) M12X50 FLANGE	0-28151-250-0	02	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ) (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0211-	●
22	00.685 BOLT; TRANS CASE TO ENG (E) M12X20,M12X45 L=76	8-97328-823-0	01	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG (L) M12X45 FLANGE	0-28151-245-0	05	1	0211-			●
22	00.685 BOLT; TRANS CASE TO ENG (M) M12X60 FLANGE	0-28151-260-0	01	1	0211-			●
22	00.685 BOLT; TRANS CASE TO ENG (N) M8X40 FLANGE	0-28650-840-0	02	1	0211-			●
22	00.685 BOLT; TRANS CASE TO ENG (A) M12X70 FLANGE	0-28051-270-0	01	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG (B) M12X40 FLANGE	0-28151-240-0	01	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG (C) M12X50 FLANGE	0-28151-250-0	01	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG 00.029 (D) M10X40 FLANGE	0-28751-040-0	02	1	0211-				●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28051-245-0	04	1	0211-		●
27	00.685 NUT; CLU HSG TO TRANS 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0211-	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0211-		●
27	00.685 NUT; CLU HSG TO TRANS 4JH1-TC ENG(RDM) 02.042 M12 FLANGE	0-91180-112-0	02	1	0211-	●
27	00.685 NUT; CLU HSG TO TRANS 6VE1 ENG(RJQ) 02.042 M12 FLANGE	0-91180-112-0	01	1	0211-	●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	01	1	0211-				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0211-	●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X2(TFB***)	8-97021-019-0	01	1	0211-			●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X4(TFS***)	8-97021-019-0	01	1	0211-		●		●
53	04.338 PLATE; LOCK,DRIVEN GEAR 4X2(TFB***) 04.265	8-94479-720-0	01	1	0211-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
