Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#48611) — 216 parça

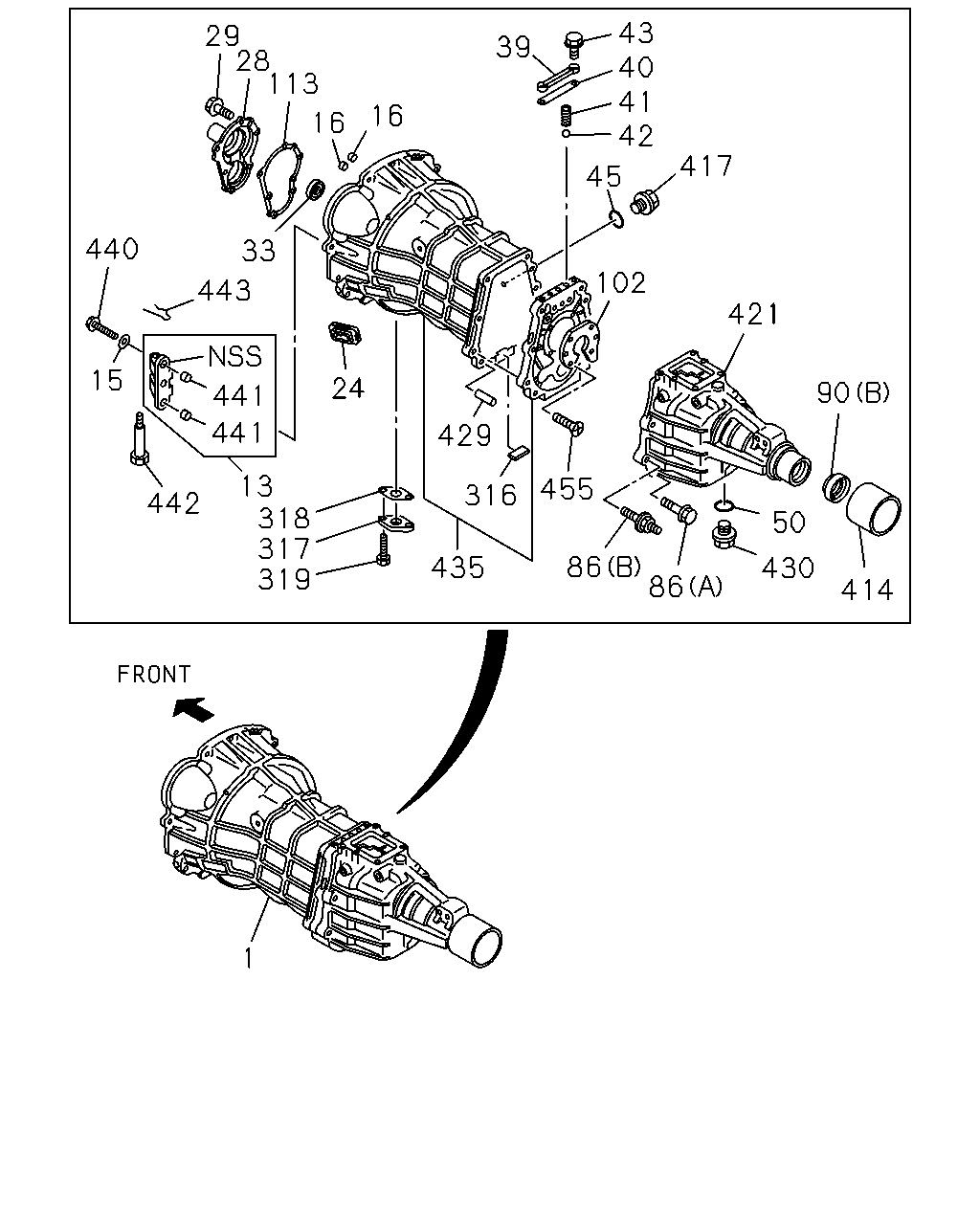

43 40 41 42 29 28 113 39 16 16 417 45 440 33 102 443 421 15 24 90 441 441 429 13 318 317 319 455 316 442 50 86 86 435 430 414 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97315-296-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 6VE1 ENG(RJQ)	8-97315-294-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JH1-TC ENG(RDM)	8-97315-305-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 6VE1 ENG(RJQ)	8-97315-301-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97315-300-0	01	1	0211-		●
13	04.302 SUPPORT; SHIFT FORK 6VE1 ENG(RJQ)	8-97218-275-0	01	1	0211-	●
13	04.302 SUPPORT; SHIFT FORK 4JH1-TC ENG(RDM) L=47.5	8-97072-827-0	01	1	0211-	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0211-		●
15	04.302 WASHER; PL 6VE1 ENG(RJQ) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0211-	●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	0211-	●	●
24	00.797 COVER; CHECK HOLE,DUST 4JH1-TC ENG(RDM) 06.868	8-94156-700-0	01	1	0211-	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0211-		●
28	04.356 COVER; FRT,TRANS CASE 4JH1-TC ENG(RDM)	8-97104-676-0	01	1	0211-	●
28	04.356 COVER; FRT,TRANS CASE 6VE1 ENG(RJQ)	8-97104-678-0	01	1	0211-	●
28	04.356 COVER; FRT,TRANS CASE	8-97108-066-1	01	1	0211-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0211-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0211-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	0211-	●	●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	0211-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0211-	●	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0211-	●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0211-	●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	0211-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0211-	●		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0211-	●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0211-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0211-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0211-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-705-2	01	1	0211-	●	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0211-	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0211-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0211-	●	●
317	04.109 COVER; CASE 6VE1 ENG(RJQ)	8-97034-422-1	01	1	0211-	●
318	04.109 GASKET; COVER 6VE1 ENG(RJQ)	8-97035-567-0	01	1	0211-	●
319	04.109 BOLT; COVER 6VE1 ENG(RJQ) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-94310-493-0	01	1	0211-	●
414	04.317 COVER; DUST,RR COVER	8-94310-493-0	01	1	0211-		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0211-	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	0211-	●
421	04.317 COVER; RR,TRANS	8-97039-528-2	01	1	0211-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97301-224-2	01	1	0211-	●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0211-	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0211-	●	●
435	04.103 CASE; TRANS 4JH1-TC ENG(RDM)	8-97301-098-0	01	1	0211-	●
435	04.103 CASE; TRANS 6VE1 ENG(RJQ)	8-97184-472-0	01	1	0211-	●
435	04.103 CASE; TRANS	8-97146-668-0	01	1	0211-		●
440	04.302 BOLT; SUPPORT 6VE1 ENG(RJQ) 04.525 M10X25 FLANGE	0-28181-025-0	03	1	0211-	●
441	04.302 DOWEL; SUPPORT 6VE1 ENG(RJQ)	8-97218-289-0	02	1	0211-	●
442	04.302 PIN; SHIFT FORK 6VE1 ENG(RJQ)	8-94377-424-1	01	1	0211-	●
443	04.302 PIN; SNAP,SHIFT FORK 6VE1 ENG(RJQ) 04.662 L=27.7	1-09747-005-0	01	1	0211-	●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	0211-	●	●

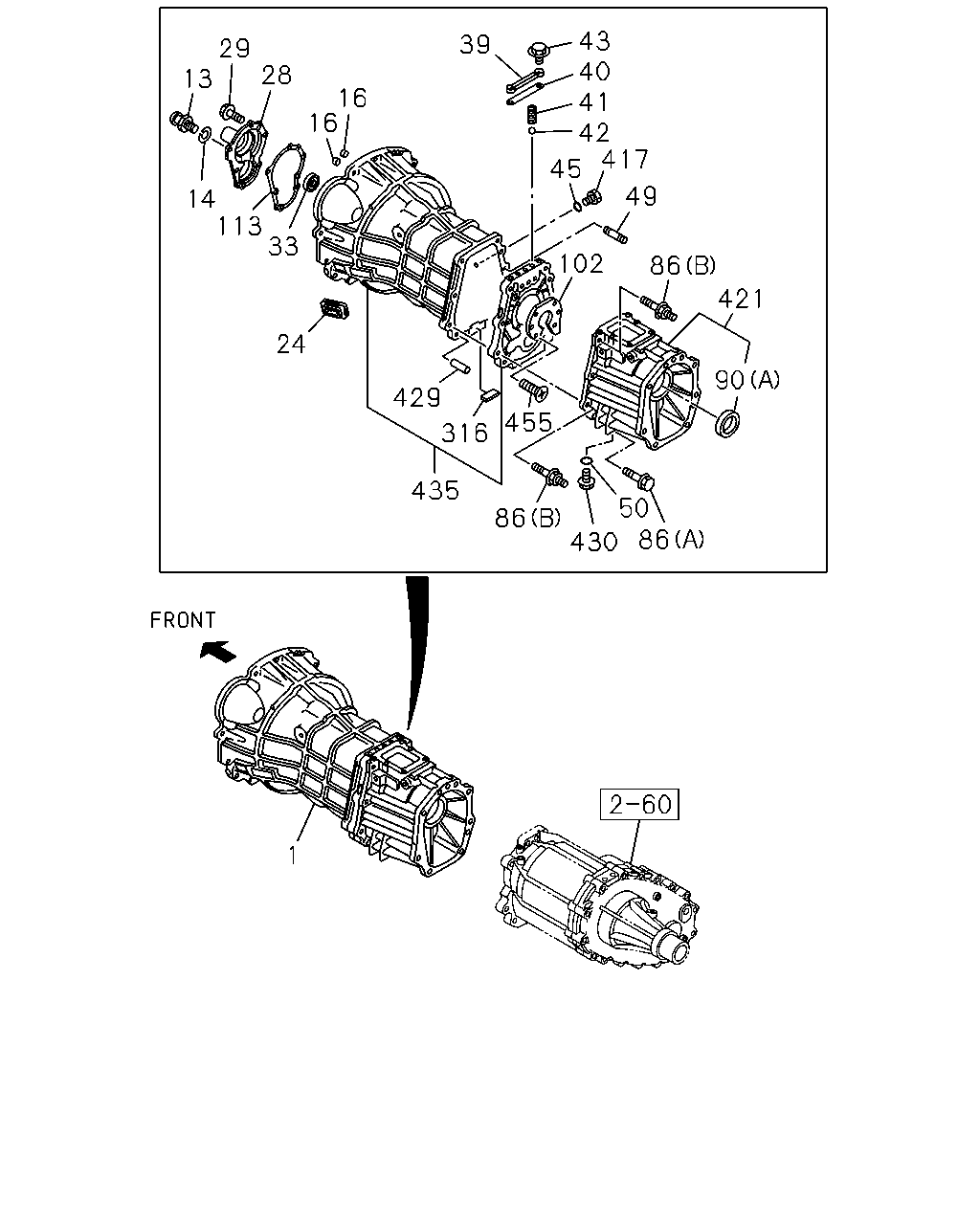

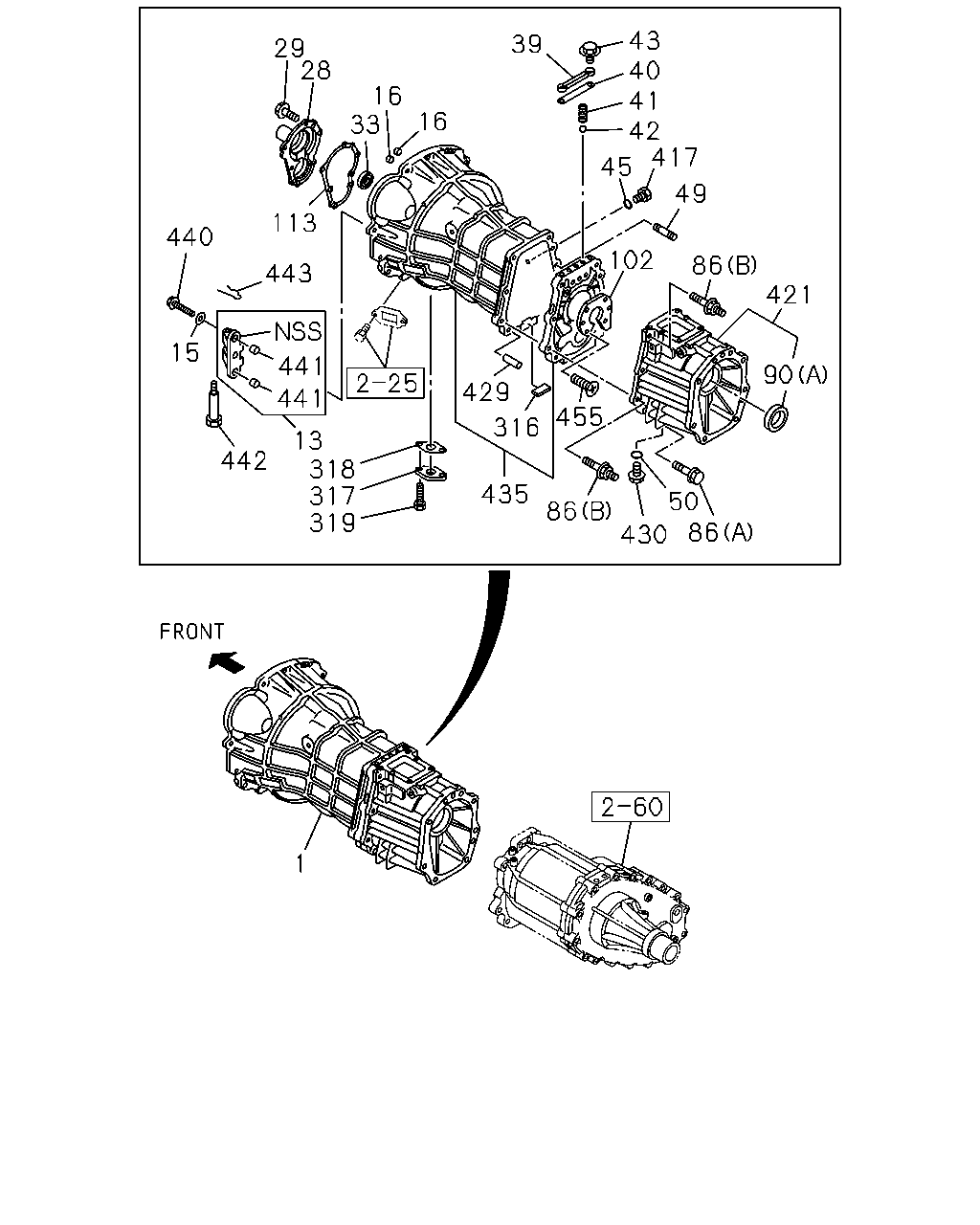

43 40 41 42 417 39 29 28 16 33 16 45 49 113 440 102 86 421 443 15 441 90 429 441 455 316 13 318 317 319 442 435 50 86 86 430 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97315-296-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 6VE1 ENG(RJQ)	8-97315-294-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JH1-TC ENG(RDM)	8-97315-305-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 6VE1 ENG(RJQ)	8-97315-301-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97315-300-0	01	1	0211-		●
13	04.302 SUPPORT; SHIFT FORK 6VE1 ENG(RJQ)	8-97218-275-0	01	1	0211-	●
13	04.302 SUPPORT; SHIFT FORK 4JH1-TC ENG(RDM) L=47.5	8-97072-827-0	01	1	0211-	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0211-		●
15	04.302 WASHER; PL 6VE1 ENG(RJQ) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0211-	●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	0211-	●	●
28	04.356 COVER; FRT,TRANS CASE 4JH1-TC ENG(RDM)	8-97104-676-0	01	1	0211-	●
28	04.356 COVER; FRT,TRANS CASE 6VE1 ENG(RJQ)	8-97104-678-0	01	1	0211-	●
28	04.356 COVER; FRT,TRANS CASE	8-97108-066-1	01	1	0211-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0211-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0211-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	0211-	●	●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	0211-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0211-	●	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0211-	●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0211-	●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	0211-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●
49	04.510 STUD; TRANSFER CASE 4X4 SPACE CAB LONG(TFS5CF) 4X4 SINGLE CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ)	8-97304-116-1	01	1	0211-	●	●	●	●
49	04.510 STUD; TRANSFER CASE 4X4 SPACE CAB EXTRA LONG(TFS5CK)	8-97304-116-1	01	1	0211-	●	●	●	●
49	04.510 STUD; TRANSFER CASE 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) FLOOR REMOTE SHIFT<M11>	8-97304-116-1	01	1	0211-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0211-	●		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0211-	●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0211-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0211-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0211-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-705-2	01	1	0211-	●	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0211-	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0211-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0211-	●	●
317	04.109 COVER; CASE 6VE1 ENG(RJQ)	8-97034-422-1	01	1	0211-	●
318	04.109 GASKET; COVER 6VE1 ENG(RJQ)	8-97035-567-0	01	1	0211-	●
319	04.109 BOLT; COVER 6VE1 ENG(RJQ) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0211-	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	0211-	●
421	04.317 COVER; RR,TRANS	8-97039-528-2	01	1	0211-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97301-224-2	01	1	0211-	●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0211-	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0211-	●	●
435	04.103 CASE; TRANS 4JH1-TC ENG(RDM)	8-97301-098-0	01	1	0211-	●
435	04.103 CASE; TRANS 6VE1 ENG(RJQ)	8-97184-472-0	01	1	0211-	●
435	04.103 CASE; TRANS	8-97146-668-0	01	1	0211-		●
440	04.302 BOLT; SUPPORT 6VE1 ENG(RJQ) 04.525 M10X25 FLANGE	0-28181-025-0	03	1	0211-	●
441	04.302 DOWEL; SUPPORT 6VE1 ENG(RJQ)	8-97218-289-0	02	1	0211-	●
442	04.302 PIN; SHIFT FORK 6VE1 ENG(RJQ)	8-94377-424-1	01	1	0211-	●
443	04.302 PIN; SNAP,SHIFT FORK 6VE1 ENG(RJQ) 04.662 L=27.7	1-09747-005-0	01	1	0211-	●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	0211-	●	●

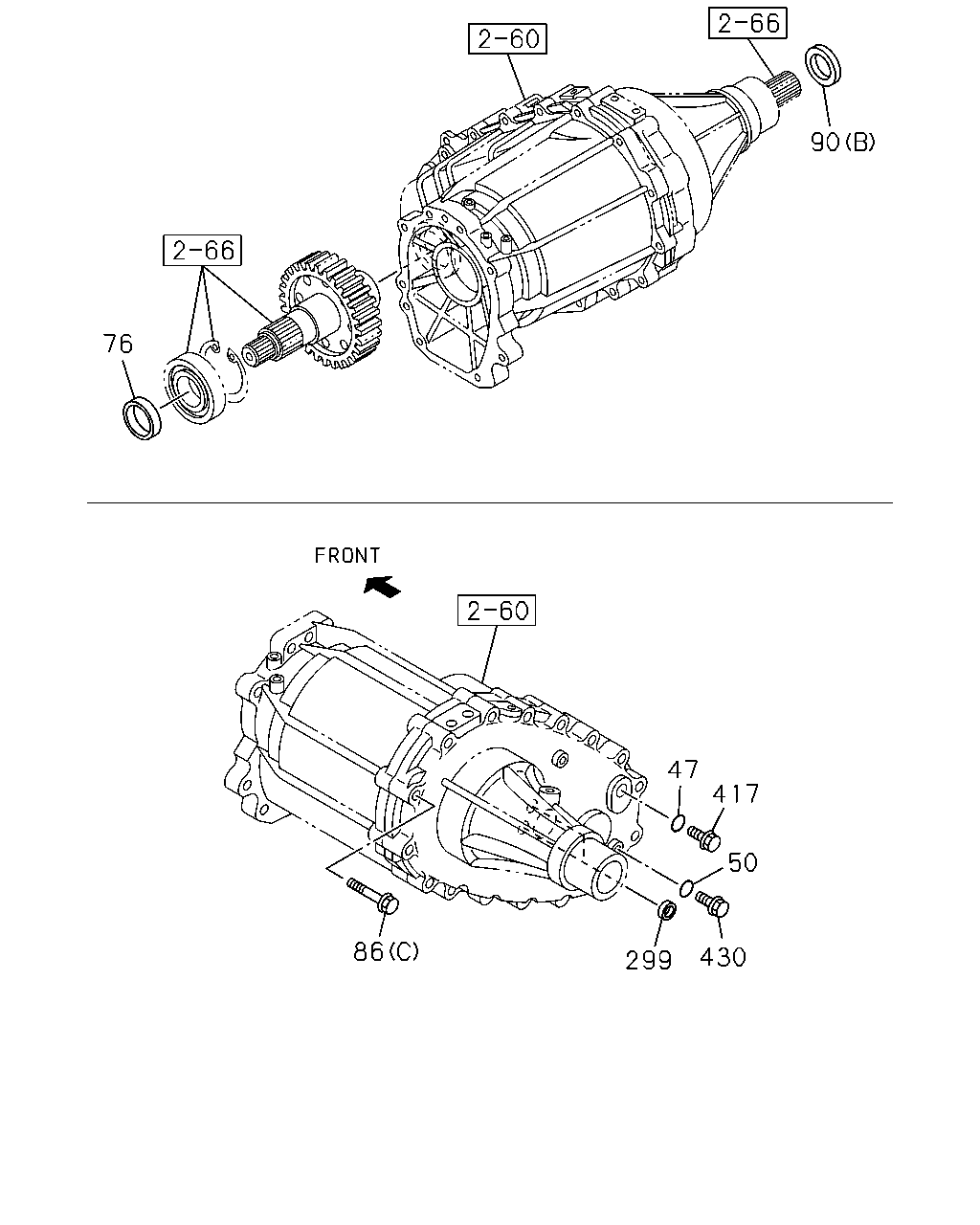

90 76 47 417 86 430 299 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	0211-	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	0211-	●		●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0211-	●		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0211-	●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0211-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0211-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0211-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-705-2	01	1	0211-	●	●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 04.309 OD=14	5-09609-004-0	02	1	0211-	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0211-	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0211-	●	●

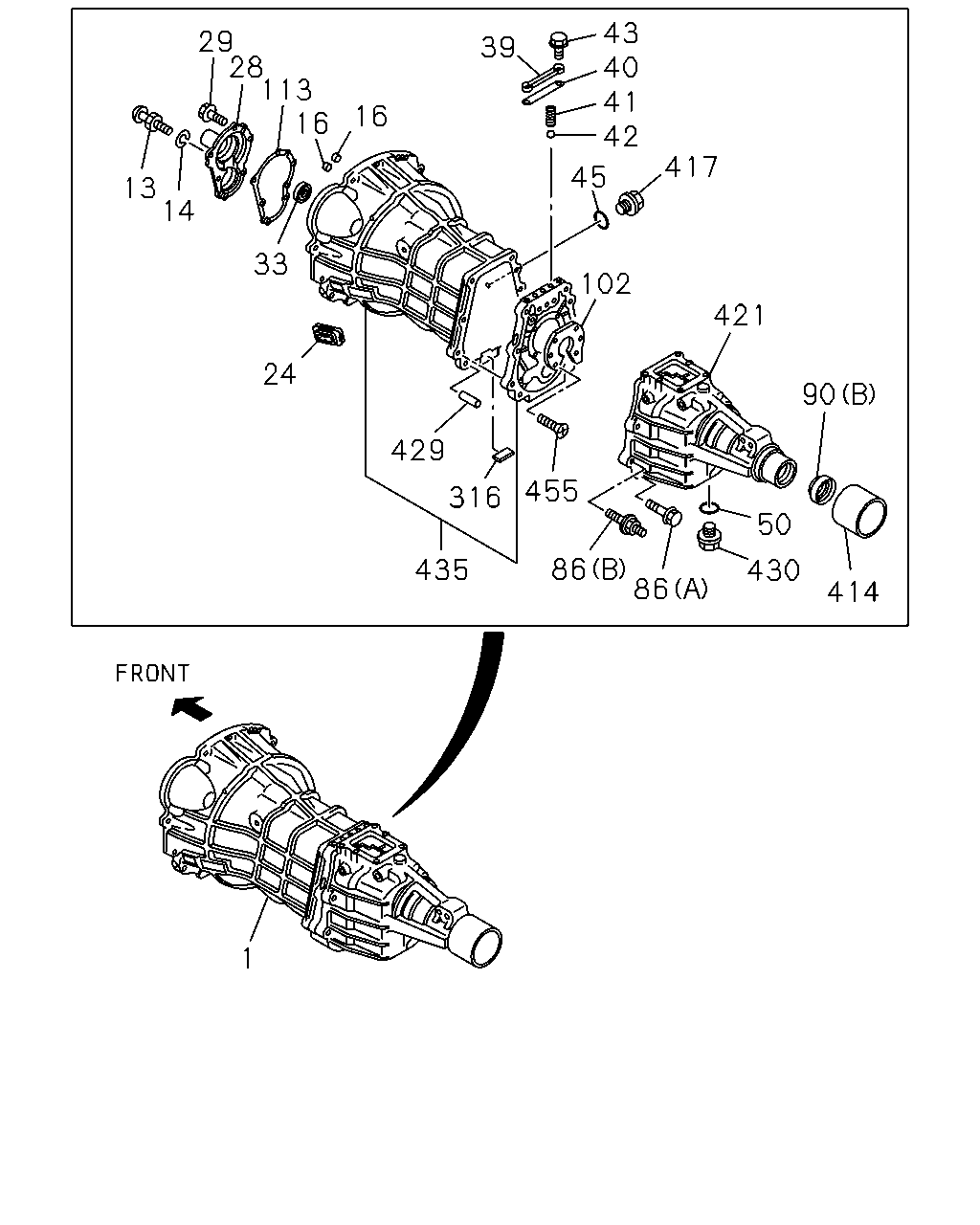

43 40 41 42 29 28 113 16 39 16 417 45 13 14 33 102 421 24 90 49 455 316 50 86 86 435 430 414 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97315-296-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 6VE1 ENG(RJQ)	8-97315-294-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JH1-TC ENG(RDM)	8-97315-305-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 6VE1 ENG(RJQ)	8-97315-301-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97315-300-0	01	1	0211-		●
13	04.302 SUPPORT; SHIFT FORK 6VE1 ENG(RJQ)	8-97218-275-0	01	1	0211-	●
13	04.302 SUPPORT; SHIFT FORK 4JH1-TC ENG(RDM) L=47.5	8-97072-827-0	01	1	0211-	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0211-		●
14	04.302 WASHER; LK,SUPPORT 4JH1-TC ENG(RDM) 04.634 ID=12.2	9-09150-512-0	01	1	0211-	●
14	04.302 WASHER; LK,SUPPORT 04.634 ID=12.2	9-09150-512-0	01	1	0211-		●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	0211-	●	●
24	00.797 COVER; CHECK HOLE,DUST 4JH1-TC ENG(RDM) 06.868	8-94156-700-0	01	1	0211-	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0211-		●
28	04.356 COVER; FRT,TRANS CASE 4JH1-TC ENG(RDM)	8-97104-676-0	01	1	0211-	●
28	04.356 COVER; FRT,TRANS CASE 6VE1 ENG(RJQ)	8-97104-678-0	01	1	0211-	●
28	04.356 COVER; FRT,TRANS CASE	8-97108-066-1	01	1	0211-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0211-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0211-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	0211-	●	●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	0211-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0211-	●	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0211-	●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0211-	●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	0211-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●
49	04.510 STUD; TRANSFER CASE 4X4 SPACE CAB LONG(TFS5CF) 4X4 SINGLE CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ)	8-97304-116-1	01	1	0211-	●	●	●	●
49	04.510 STUD; TRANSFER CASE 4X4 SPACE CAB EXTRA LONG(TFS5CK)	8-97304-116-1	01	1	0211-	●	●	●	●
49	04.510 STUD; TRANSFER CASE 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) FLOOR REMOTE SHIFT<M11>	8-97304-116-1	01	1	0211-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0211-	●		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0211-	●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0211-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0211-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0211-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-705-2	01	1	0211-	●	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0211-	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0211-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0211-	●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-94310-493-0	01	1	0211-	●
414	04.317 COVER; DUST,RR COVER	8-94310-493-0	01	1	0211-		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0211-	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	0211-	●
421	04.317 COVER; RR,TRANS	8-97039-528-2	01	1	0211-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97301-224-2	01	1	0211-	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0211-	●	●
435	04.103 CASE; TRANS 4JH1-TC ENG(RDM)	8-97301-098-0	01	1	0211-	●
435	04.103 CASE; TRANS 6VE1 ENG(RJQ)	8-97184-472-0	01	1	0211-	●
435	04.103 CASE; TRANS	8-97146-668-0	01	1	0211-		●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	0211-	●	●

43 40 41 42 417 39 29 13 28 16 16 45 49 14 113 33 102 86 421 24 90 429 455 316 435 50 86 86 430 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JH1-TC ENG(RDM)	8-97315-296-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 6VE1 ENG(RJQ)	8-97315-294-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JH1-TC ENG(RDM)	8-97315-305-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 6VE1 ENG(RJQ)	8-97315-301-0	01	1	0211-	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97315-300-0	01	1	0211-		●
13	04.302 SUPPORT; SHIFT FORK 6VE1 ENG(RJQ)	8-97218-275-0	01	1	0211-	●
13	04.302 SUPPORT; SHIFT FORK 4JH1-TC ENG(RDM) L=47.5	8-97072-827-0	01	1	0211-	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0211-		●
14	04.302 WASHER; LK,SUPPORT 4JH1-TC ENG(RDM) 04.634 ID=12.2	9-09150-512-0	01	1	0211-	●
14	04.302 WASHER; LK,SUPPORT 04.634 ID=12.2	9-09150-512-0	01	1	0211-		●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	0211-	●	●
24	00.797 COVER; CHECK HOLE,DUST 4JH1-TC ENG(RDM) 06.868	8-94156-700-0	01	1	0211-	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0211-		●
28	04.356 COVER; FRT,TRANS CASE 4JH1-TC ENG(RDM)	8-97104-676-0	01	1	0211-	●
28	04.356 COVER; FRT,TRANS CASE 6VE1 ENG(RJQ)	8-97104-678-0	01	1	0211-	●
28	04.356 COVER; FRT,TRANS CASE	8-97108-066-1	01	1	0211-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0211-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0211-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	0211-	●	●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	0211-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0211-	●	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0211-	●	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0211-	●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	0211-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●
49	04.510 STUD; TRANSFER CASE 4X4 SPACE CAB LONG(TFS5CF) 4X4 SINGLE CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ)	8-97304-116-1	01	1	0211-	●	●	●	●
49	04.510 STUD; TRANSFER CASE 4X4 SPACE CAB EXTRA LONG(TFS5CK)	8-97304-116-1	01	1	0211-	●	●	●	●
49	04.510 STUD; TRANSFER CASE 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) FLOOR REMOTE SHIFT<M11>	8-97304-116-1	01	1	0211-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0211-	●		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0211-	●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0211-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0211-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0211-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-705-2	01	1	0211-	●	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0211-	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0211-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0211-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0211-	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	0211-	●
421	04.317 COVER; RR,TRANS	8-97039-528-2	01	1	0211-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97301-224-2	01	1	0211-	●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0211-	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0211-	●	●
435	04.103 CASE; TRANS 4JH1-TC ENG(RDM)	8-97301-098-0	01	1	0211-	●
435	04.103 CASE; TRANS 6VE1 ENG(RJQ)	8-97184-472-0	01	1	0211-	●
435	04.103 CASE; TRANS	8-97146-668-0	01	1	0211-		●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	0211-	●	●

17 123 123

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	17	04.105 STUD; STARTER SETTING 01.428 M6X12 L=21	9-04110-612-0	02	1	0211-		●
	123	00.206 DOWEL; TRANS CASE 6VE1 ENG(RJQ)	8-94325-506-1	02	1	0211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
