◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#4861) — 48 parça

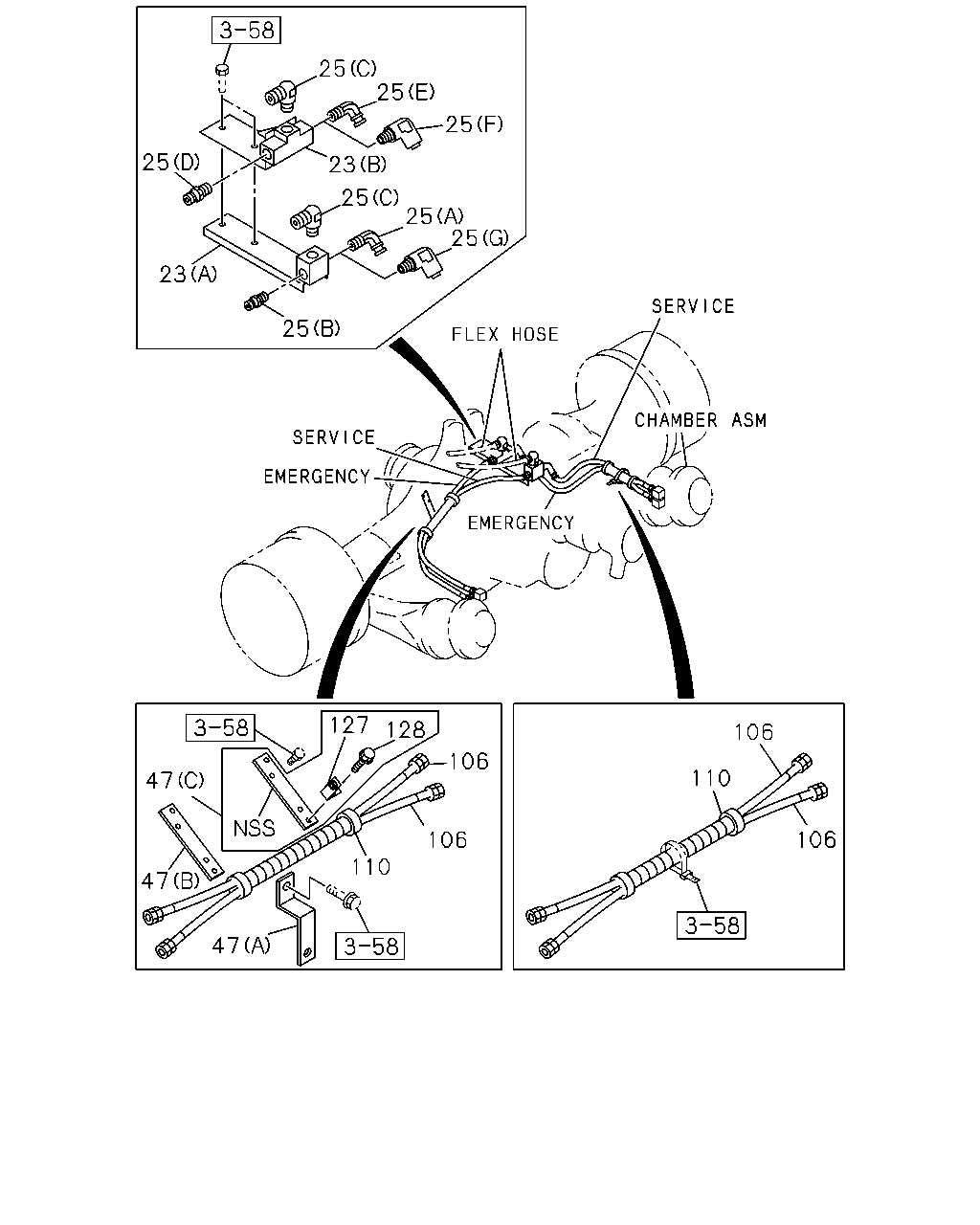

çizim 41537
25 25 25 25 23 25 25 25 23 25 127 128 106 106 110 47 106 106 47 110 47
BalonParca AdiParca NoAdetTipApplied Date
23 NIPPLE; W/BRKT
BRAKE POWER CHAMBER FORWARD<BCQ> (A) 		1-47470-380-0 01 1 9601-9904
23 NIPPLE; W/BRKT
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONGKONG<TCZ> (B) 		1-47475-537-0 01 1 9601-9610
23 NIPPLE; W/BRKT
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ> (B) 		1-47475-537-0 01 1 9611-9904
23 NIPPLE; W/BRKT
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-47475-537-1 01 1 9905-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (C) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 9601-9610
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONGKONG<TCZ> (C) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 9601-9610
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9601-9904
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (B) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9601-9904
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (C) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 9611-9904
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ> (C) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 9611-9904
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM RETARDER<RE2> (G) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9905-9907
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (G) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9908-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> (A) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9905-9907
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> (B) M20 & PT3/8 		1-09660-731-0 01 1 9905-9907
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 9905-9907
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 9908-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONGKONG<TCZ> (D) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9601-9610
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ> (D) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9611-9904
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONGKONG<TCZ> (E) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9601-9610
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),BRAKE REGULATION HONG KONG<TCZ> (E) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9611-9904
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (F) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9905-
47 BRACKET
BRAKE POWER CHAMBER FORWARD<BCQ> (B) 		1-42119-065-0 01 1 9601-9904
47 BRACKET
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-42119-065-0 01 1 9905-9907
47 BRACKET
BRAKE POWER CHAMBER FORWARD<BCQ> (B) 		1-42119-065-0 01 1 9908-
47 BRACKET
BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> (C) 		1-42119-151-0 01 1 9905-9907
47 BRACKET
BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> (A) 		1-47477-908-1 01 1 9905-9907
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9601-9601
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9602-9610
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9611-9904
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9601-9601
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9602-9610
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9611-9904
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9611-9904
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9905-9907
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9905-9907
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9908-
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9908-
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 9611-9904
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9907
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9907
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9908-
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9908-
110 TUBE; CORRUGATE
BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=2000 ID=19 		1-87410-094-0 01 1 9601-9904
110 TUBE; CORRUGATE
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=19 		1-87410-094-0 01 1 9905-9907
110 TUBE; CORRUGATE
BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=2000 ID=19 		1-87410-094-0 01 1 9908-
127 BRACKET; HARNESS
BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> 		1-42119-152-0 01 1 9905-9907
128 BOLT; BRKT
BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28680-820-0 01 1 9905-9907
