◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#48608) — 39 parça

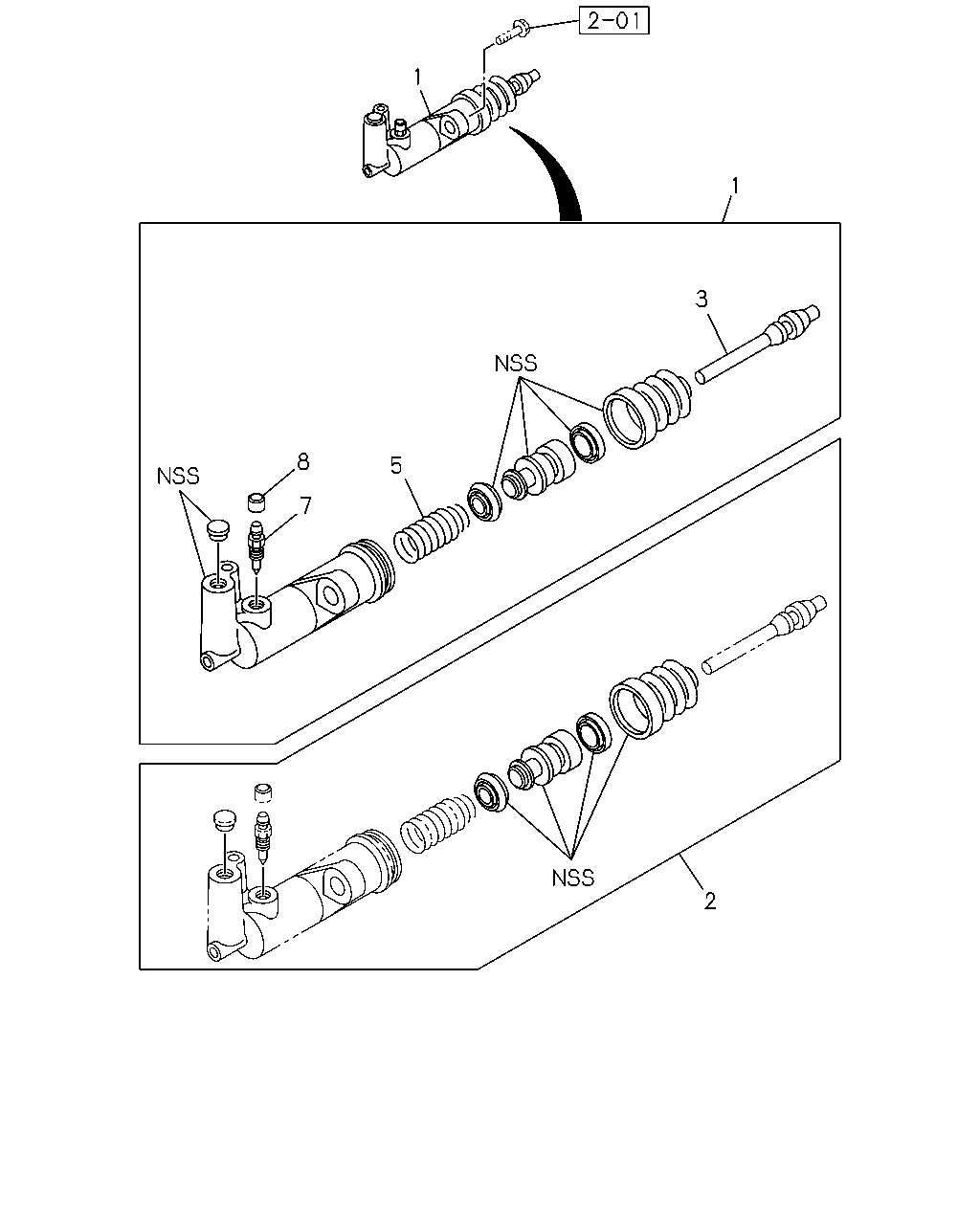

çizim 49584
1 1 3 8 5 7 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.780 CYLINDER; SLAVE,CLU
4JH1-TC ENG(RDM) 		8-97941-515-0 01 1 0211- ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(RJQ) 		8-97941-519-0 01 1 0211- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-322-0 01 1 0211- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0211- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(RJQ) 		5-87832-067-0 01 1 0211- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-049-0 01 1 0211- ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(RJQ) 		8-97062-923-0 01 1 0211- ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JH1-TC ENG(RDM) 		8-97942-803-0 01 1 0211- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0211- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(RJQ) 		8-97028-736-0 01 1 0211- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-802-0 01 1 0211- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0211- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0211- ● ●

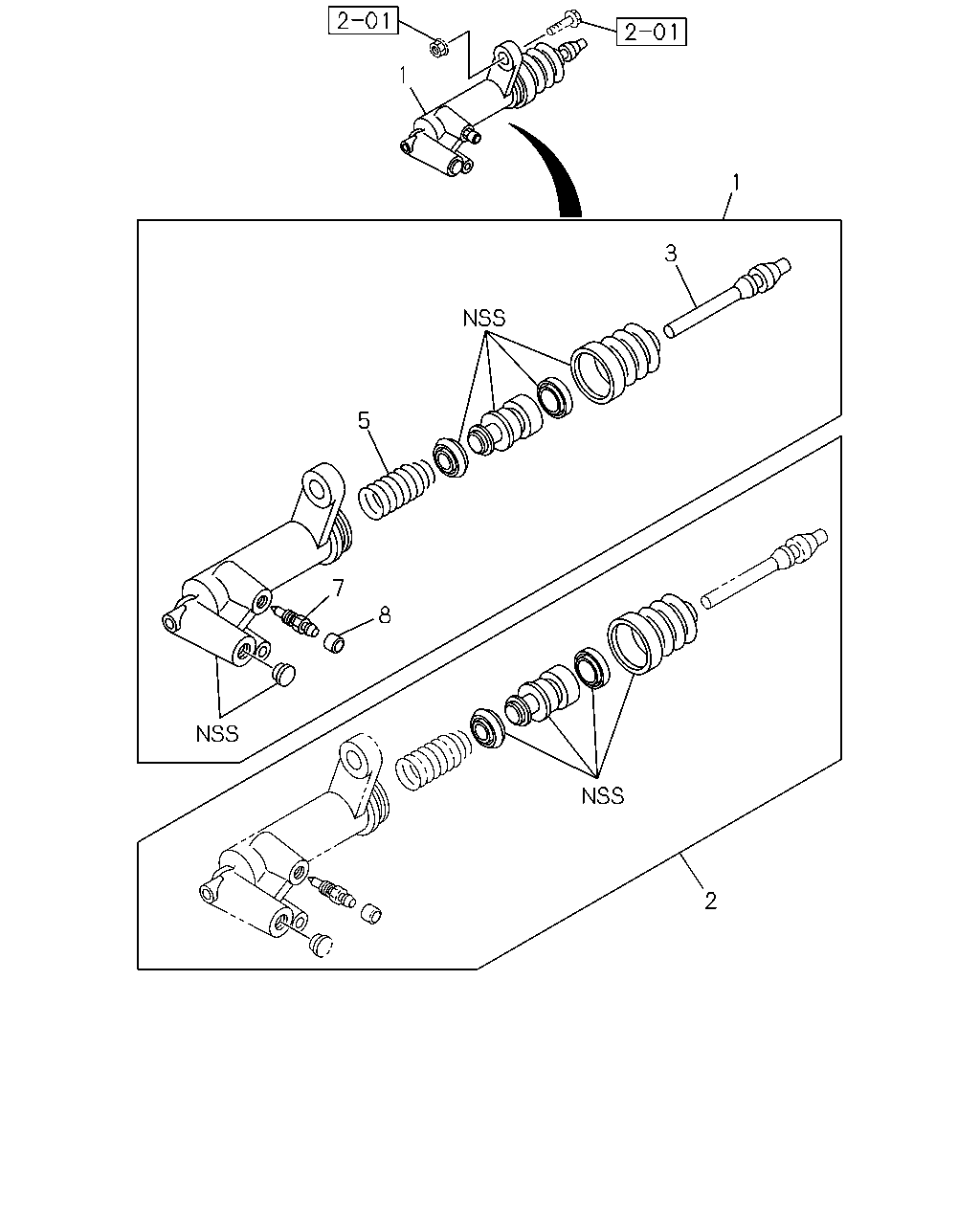

çizim 51033
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.780 CYLINDER; SLAVE,CLU
4JH1-TC ENG(RDM) 		8-97941-515-0 01 1 0211- ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(RJQ) 		8-97941-519-0 01 1 0211- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-322-0 01 1 0211- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0211- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(RJQ) 		5-87832-067-0 01 1 0211- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-049-0 01 1 0211- ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(RJQ) 		8-97062-923-0 01 1 0211- ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JH1-TC ENG(RDM) 		8-97942-803-0 01 1 0211- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0211- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(RJQ) 		8-97028-736-0 01 1 0211- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-802-0 01 1 0211- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0211- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0211- ● ●

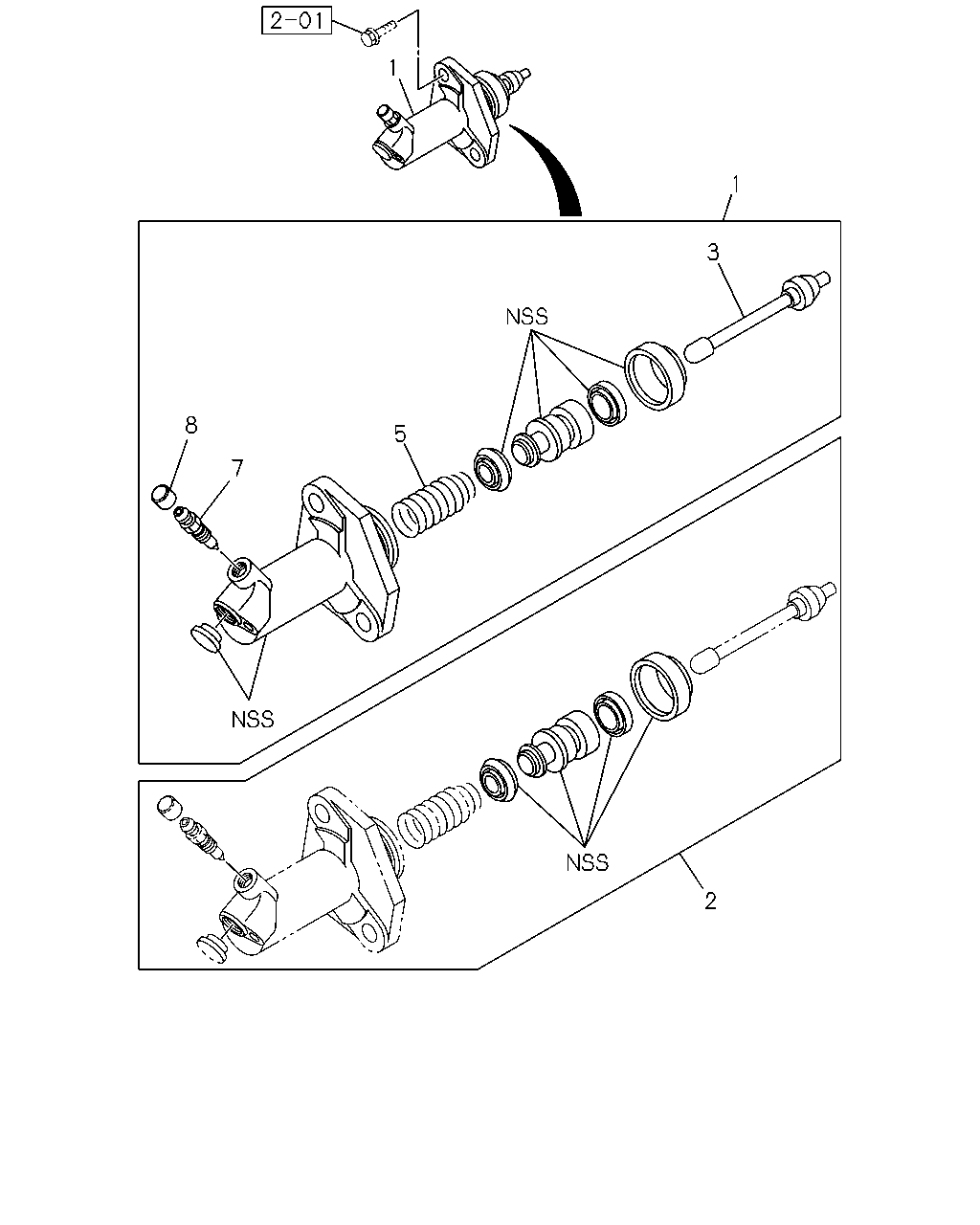

çizim 52154
1 1 3 8 5 7 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.780 CYLINDER; SLAVE,CLU
4JH1-TC ENG(RDM) 		8-97941-515-0 01 1 0211- ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(RJQ) 		8-97941-519-0 01 1 0211- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-322-0 01 1 0211- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0211- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(RJQ) 		5-87832-067-0 01 1 0211- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-049-0 01 1 0211- ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(RJQ) 		8-97062-923-0 01 1 0211- ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JH1-TC ENG(RDM) 		8-97942-803-0 01 1 0211- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0211- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(RJQ) 		8-97028-736-0 01 1 0211- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-802-0 01 1 0211- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0211- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
