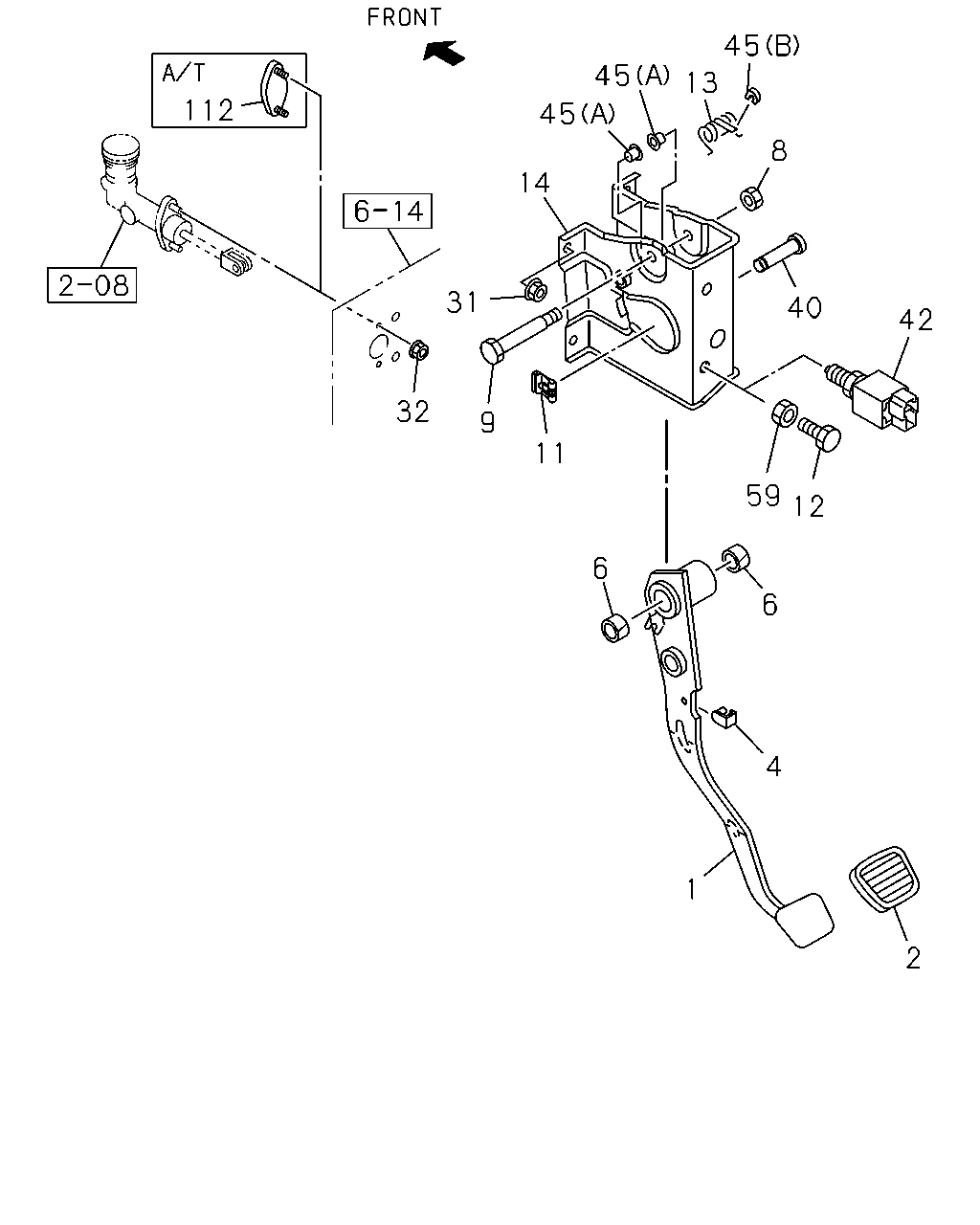

2-03 — CLUTCH PEDAL AND CONTROL (#48606) — 39 parça

45 45 13 112 45 8 14 31 40 42 32 9 11 59 12 6 6 4 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.830 PEDAL; CLU C24SE ENG(LG1),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-311-0	01	1	0211-	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU	8-97942-311-0	01	1	0211-								●
1	00.830 PEDAL; CLU 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-742-0	01	1	0211-	●	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97318-799-0	01	1	0211-	●	●	●	●			●
2	04.630 COVER; CLU PEDAL	8-97318-799-0	01	1	0211-					●	●		●
4	00.829 STOPPER; CLU PEDAL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.785	8-94463-258-0	01	1	0211-	●	●	●	●			●
4	00.829 STOPPER; CLU PEDAL 00.785	8-94463-258-0	01	1	0211-					●	●		●
6	00.831 BUSHING; CLU PEDAL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 04.634	8-97301-688-0	02	1	0211-	●	●	●	●			●
6	00.831 BUSHING; CLU PEDAL 04.634	8-97301-688-0	02	1	0211-					●	●		●
8	00.833 NUT; PIN TO PEDAL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0211-	●	●	●	●			●
8	00.833 NUT; PIN TO PEDAL M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0211-					●	●		●
9	00.833 PIN; CLU PEDAL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-315-0	01	1	0211-	●	●	●	●			●
9	00.833 PIN; CLU PEDAL	8-97942-315-0	01	1	0211-					●	●		●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 04.634	8-97311-594-0	01	1	0211-	●	●	●	●			●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL 04.634	8-97311-594-0	01	1	0211-					●	●		●
12	00.841 BOLT; CLU PEDAL ADJ 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) EXC. AUTO CRUISE CONT<K30> M10X35	0-20851-035-0	01	1	0211-	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ C24SE ENG(LG1) M10X35	0-20851-035-0	01	1	0211-			●	●
13	00.844 SPRING; ASSIST,CLU PEDAL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-312-0	01	1	0211-	●	●	●	●			●
13	00.844 SPRING; ASSIST,CLU PEDAL	8-97942-312-0	01	1	0211-					●	●		●
14	00.829 BRACKET ASM; CLU PEDAL MTG M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97942-310-0	01	1	0211-	●	●	●	●			●
14	00.829 BRACKET ASM; CLU PEDAL MTG	8-97942-310-0	01	1	0211-					●	●		●
31	01.153 NUT; MTG BRKT TO BODY M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0211-	●	●	●	●			●
31	01.153 NUT; MTG BRKT TO BODY 01.062 M8 FLANGE	0-91180-108-0	04	1	0211-					●	●		●
32	00.777 NUT; BRKT TO CLU M/CYL 01.062 M8 FLANGE	0-91180-108-0	02	1	0211-	●	●	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) OD=7.9 L=27.5	8-97312-338-0	01	1	0211-	●	●	●	●			●
40	00.833 PIN; JOINT,CLU DAMPER OD=7.9 L=27.5	8-97312-338-0	01	1	0211-					●	●		●
42	04.054 SWITCH; CLU 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-94368-343-0	01	1	0211-0301	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) AUTO CRUISE CONT<K30>	8-94368-343-0	01	1	0211-0301				●	●		●
42	04.054 SWITCH; CLU	8-94368-343-0	01	1	0211-0301								●
42	04.054 SWITCH; CLU 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 03.636	8-97358-315-0	01	1	0302-	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0302-				●	●		●
42	04.054 SWITCH; CLU 03.636	8-97358-315-0	01	1	0302-								●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97942-313-0	02	1	0211-	●	●	●	●			●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL (A)	8-97942-313-0	02	1	0211-					●	●		●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97942-314-0	01	1	0211-	●	●	●	●			●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL (B)	8-97942-314-0	01	1	0211-					●	●		●
59	00.833 NUT; CLU PEDAL ADJ 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) EXC. AUTO CRUISE CONT<K30> M10	0-91110-510-0	01	1	0211-	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ C24SE ENG(LG1) M10	0-91110-510-0	01	1	0211-			●	●
112	00.785 PLUG; METAL,M/CYL A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-97911-271-1	01	1	0211-	●	●	●	●			●
