2-01 — CLUTCH (#48605) — 57 parça

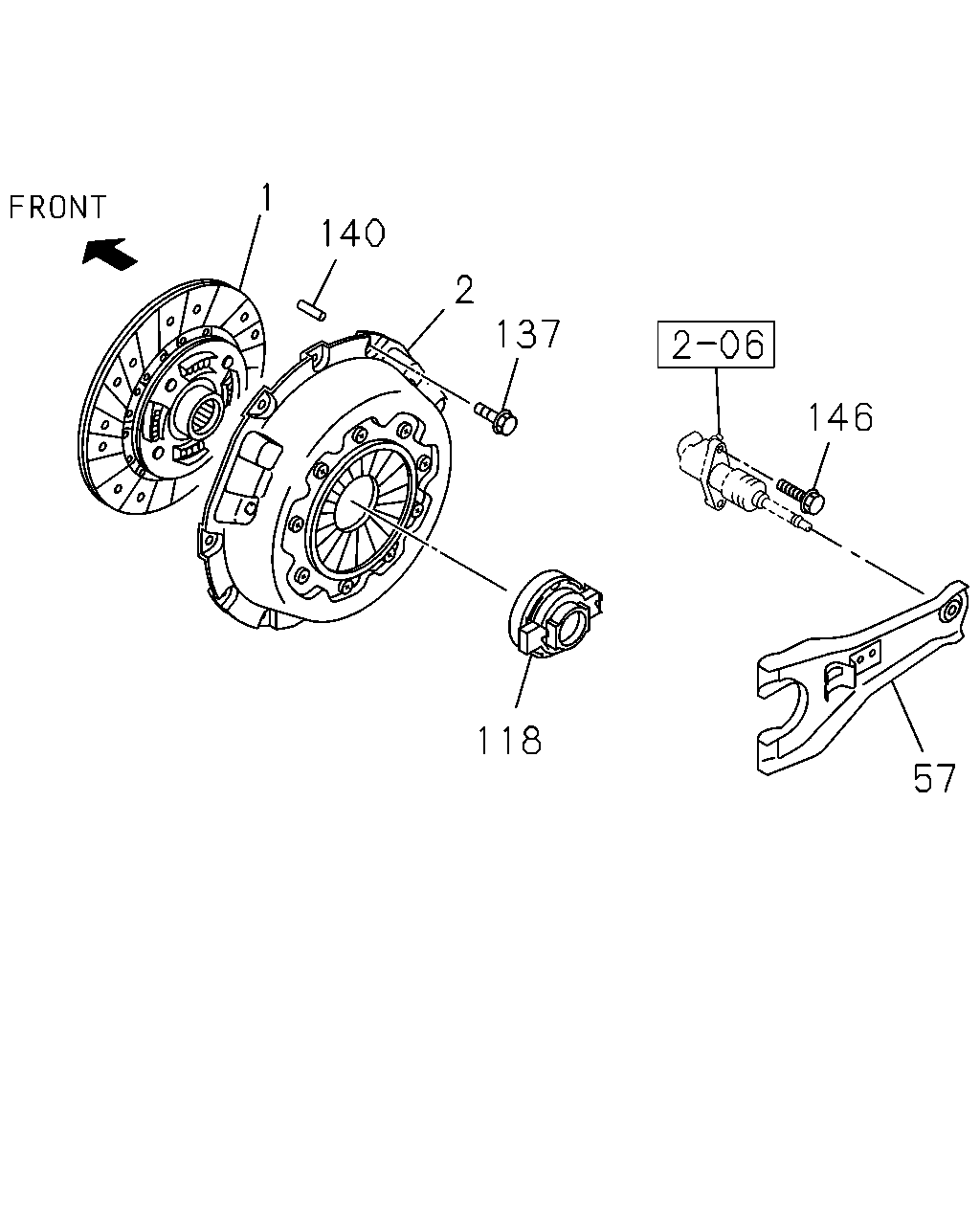

1 140 2 137 146 118 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.886 DISC; CLUTCH 4JH1-TC ENG(RDM)	8-97941-523-0	01	1	0211-	●
1	00.886 DISC; CLUTCH 6VE1 ENG(RJQ)	8-97941-529-0	01	1	0211-	●
1	00.886 DISC; CLUTCH	8-97941-527-0	01	1	0211-		●
2	00.859 PLATE ASM; PRESSURE,CLU 4JH1-TC ENG(RDM)	8-97941-522-0	01	1	0211-	●
2	00.859 PLATE ASM; PRESSURE,CLU 6VE1 ENG(RJQ)	8-97941-528-0	01	1	0211-	●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97941-526-1	01	1	0211-		●
57	00.795 FORK; SHIFT,CLU 4JH1-TC ENG(RDM)	8-97039-266-0	01	1	0211-0305	●
57	00.795 FORK; SHIFT,CLU 4JH1-TC ENG(RDM)	8-97365-654-0	01	1	0306-	●
57	00.795 FORK; SHIFT,CLU 6VE1 ENG(RJQ)	8-94370-379-3	01	1	0211-	●
57	00.795 FORK; SHIFT,CLU	8-94457-209-1	01	1	0211-		●
118	00.799 BEARING; CLU RELEASE 4JH1-TC ENG(RDM) NSK	8-97316-591-0	01	1	0211-	●
118	00.799 BEARING; CLU RELEASE NSK	8-97316-591-0	01	1	0211-		●
137	00.862 BOLT; CLU COVER 6VE1 ENG(RJQ) 02.343 M8X16 FLANGE	0-28050-816-0	09	1	0211-	●
137	00.862 BOLT; CLU COVER 4JH1-TC ENG(RDM) 02.343 M8X16 FLANGE	0-28050-816-0	06	1	0211-	●
137	00.862 BOLT; CLU COVER 02.343 M8X16 FLANGE	0-28050-816-0	06	1	0211-		●
140	00.862 PIN; STRAIGHT OD=6 L=24	9-09878-532-0	03	1	0211-	●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JH1-TC ENG(RDM) M12X90 FLANGE	0-28051-290-0	02	1	0211-	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 6VE1 ENG(RJQ) M10X30 FLANGE	0-28751-030-0	02	1	0211-	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 00.029 M10X40 FLANGE	0-28751-040-0	02	1	0211-		●

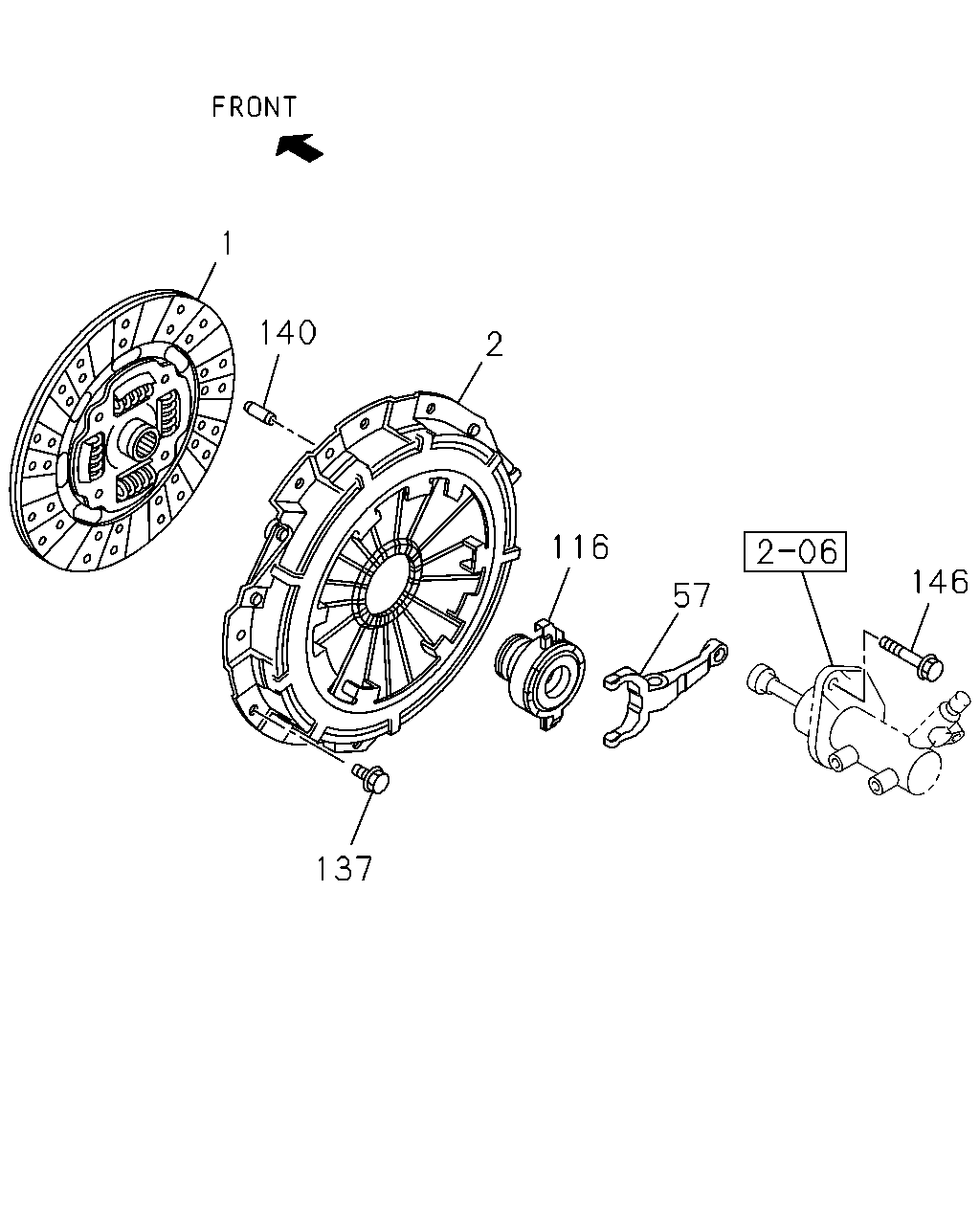

1 140 2 116 146 57 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.886 DISC; CLUTCH 4JH1-TC ENG(RDM)	8-97941-523-0	01	1	0211-	●
1	00.886 DISC; CLUTCH 6VE1 ENG(RJQ)	8-97941-529-0	01	1	0211-	●
1	00.886 DISC; CLUTCH	8-97941-527-0	01	1	0211-		●
2	00.859 PLATE ASM; PRESSURE,CLU 4JH1-TC ENG(RDM)	8-97941-522-0	01	1	0211-	●
2	00.859 PLATE ASM; PRESSURE,CLU 6VE1 ENG(RJQ)	8-97941-528-0	01	1	0211-	●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97941-526-1	01	1	0211-		●
57	00.795 FORK; SHIFT,CLU 4JH1-TC ENG(RDM)	8-97039-266-0	01	1	0211-0305	●
57	00.795 FORK; SHIFT,CLU 4JH1-TC ENG(RDM)	8-97365-654-0	01	1	0306-	●
57	00.795 FORK; SHIFT,CLU 6VE1 ENG(RJQ)	8-94370-379-3	01	1	0211-	●
57	00.795 FORK; SHIFT,CLU	8-94457-209-1	01	1	0211-		●
116	00.799 BLOCK; SHIFT,CLU 6VE1 ENG(RJQ)	8-94377-417-1	01	1	0211-	●
137	00.862 BOLT; CLU COVER 6VE1 ENG(RJQ) 02.343 M8X16 FLANGE	0-28050-816-0	09	1	0211-	●
137	00.862 BOLT; CLU COVER 4JH1-TC ENG(RDM) 02.343 M8X16 FLANGE	0-28050-816-0	06	1	0211-	●
137	00.862 BOLT; CLU COVER 02.343 M8X16 FLANGE	0-28050-816-0	06	1	0211-		●
140	00.862 PIN; STRAIGHT OD=6 L=24	9-09878-532-0	03	1	0211-	●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JH1-TC ENG(RDM) M12X90 FLANGE	0-28051-290-0	02	1	0211-	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 6VE1 ENG(RJQ) M10X30 FLANGE	0-28751-030-0	02	1	0211-	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 00.029 M10X40 FLANGE	0-28751-040-0	02	1	0211-		●

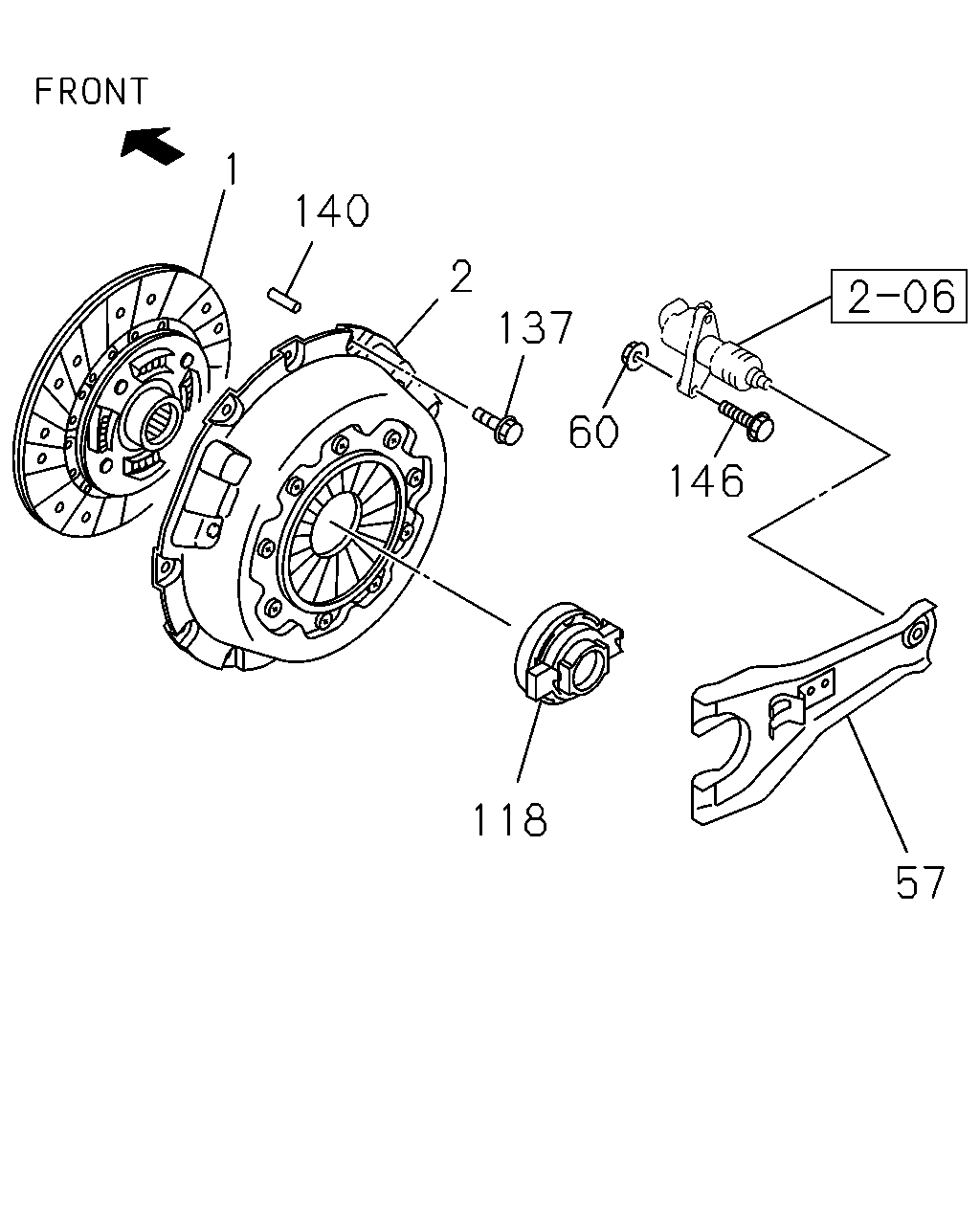

1 140 2 137 60 146 118 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.886 DISC; CLUTCH 4JH1-TC ENG(RDM)	8-97941-523-0	01	1	0211-	●
1	00.886 DISC; CLUTCH 6VE1 ENG(RJQ)	8-97941-529-0	01	1	0211-	●
1	00.886 DISC; CLUTCH	8-97941-527-0	01	1	0211-		●
2	00.859 PLATE ASM; PRESSURE,CLU 4JH1-TC ENG(RDM)	8-97941-522-0	01	1	0211-	●
2	00.859 PLATE ASM; PRESSURE,CLU 6VE1 ENG(RJQ)	8-97941-528-0	01	1	0211-	●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97941-526-1	01	1	0211-		●
57	00.795 FORK; SHIFT,CLU 4JH1-TC ENG(RDM)	8-97039-266-0	01	1	0211-0305	●
57	00.795 FORK; SHIFT,CLU 4JH1-TC ENG(RDM)	8-97365-654-0	01	1	0306-	●
57	00.795 FORK; SHIFT,CLU 6VE1 ENG(RJQ)	8-94370-379-3	01	1	0211-	●
57	00.795 FORK; SHIFT,CLU	8-94457-209-1	01	1	0211-		●
60	00.780 NUT; SLAVE CYL 4JH1-TC ENG(RDM) 02.042 M12 FLANGE	0-91180-112-0	01	1	0211-	●
118	00.799 BEARING; CLU RELEASE 4JH1-TC ENG(RDM) NSK	8-97316-591-0	01	1	0211-	●
118	00.799 BEARING; CLU RELEASE NSK	8-97316-591-0	01	1	0211-		●
137	00.862 BOLT; CLU COVER 6VE1 ENG(RJQ) 02.343 M8X16 FLANGE	0-28050-816-0	09	1	0211-	●
137	00.862 BOLT; CLU COVER 4JH1-TC ENG(RDM) 02.343 M8X16 FLANGE	0-28050-816-0	06	1	0211-	●
137	00.862 BOLT; CLU COVER 02.343 M8X16 FLANGE	0-28050-816-0	06	1	0211-		●
140	00.862 PIN; STRAIGHT OD=6 L=24	9-09878-532-0	03	1	0211-	●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JH1-TC ENG(RDM) M12X90 FLANGE	0-28051-290-0	02	1	0211-	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 6VE1 ENG(RJQ) M10X30 FLANGE	0-28751-030-0	02	1	0211-	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 00.029 M10X40 FLANGE	0-28751-040-0	02	1	0211-		●
