Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#48604) — 203 parça

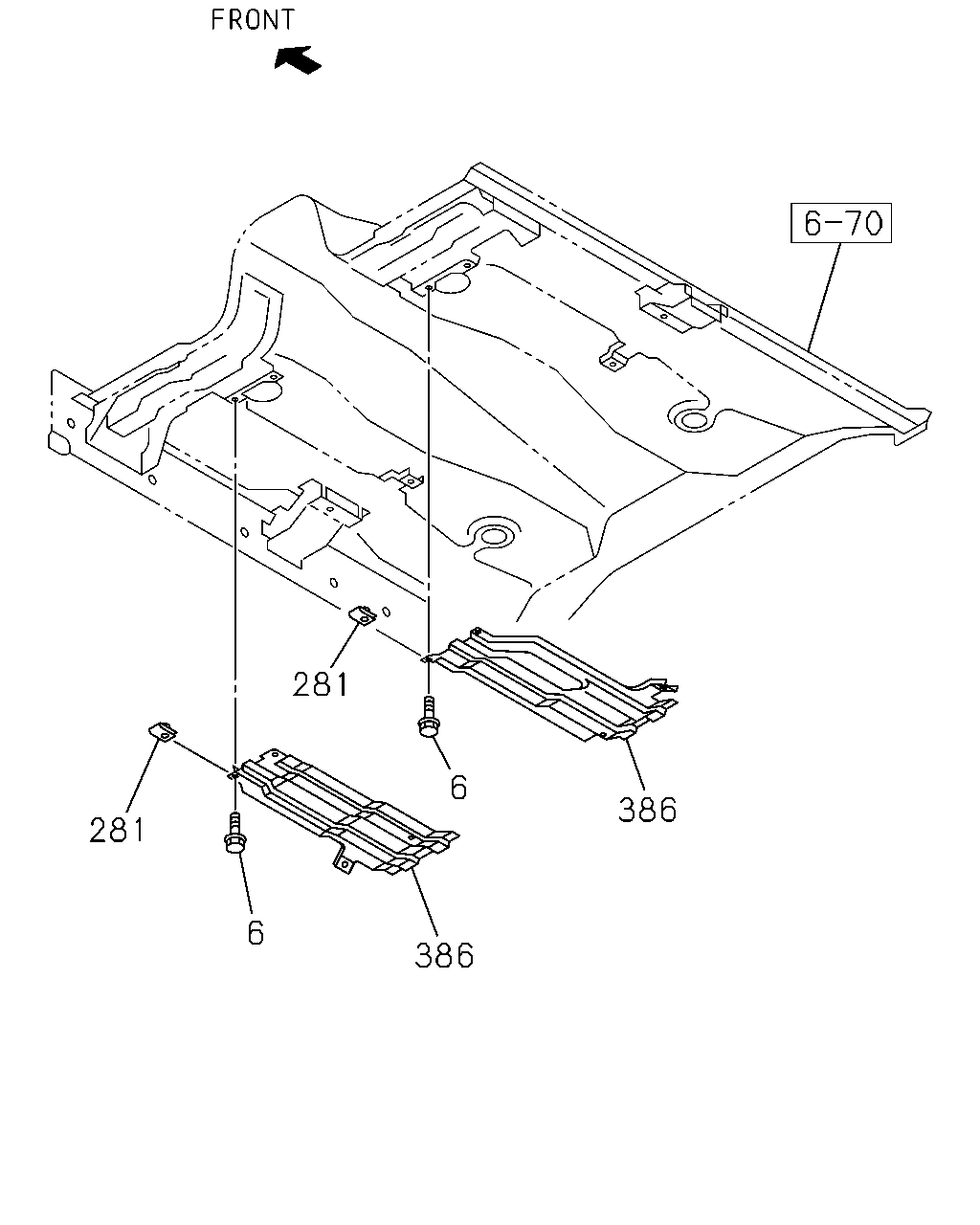

281 6 386 281 6 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
6	03.685 BOLT; HEAT PROTECTOR 04.439 M6X16 FLANGE	0-28680-616-0	08	1	0211-	●
281	03.685 NUT; HEAT PROTECTOR 08.143	8-94334-769-0	04	1	0211-	●
386	03.602 PANEL; HEAT PROTECTOR	8-97333-705-1	01	1	0211-	●
386	03.602 PANEL; HEAT PROTECTOR	8-97333-704-1	01	1	0211-	●

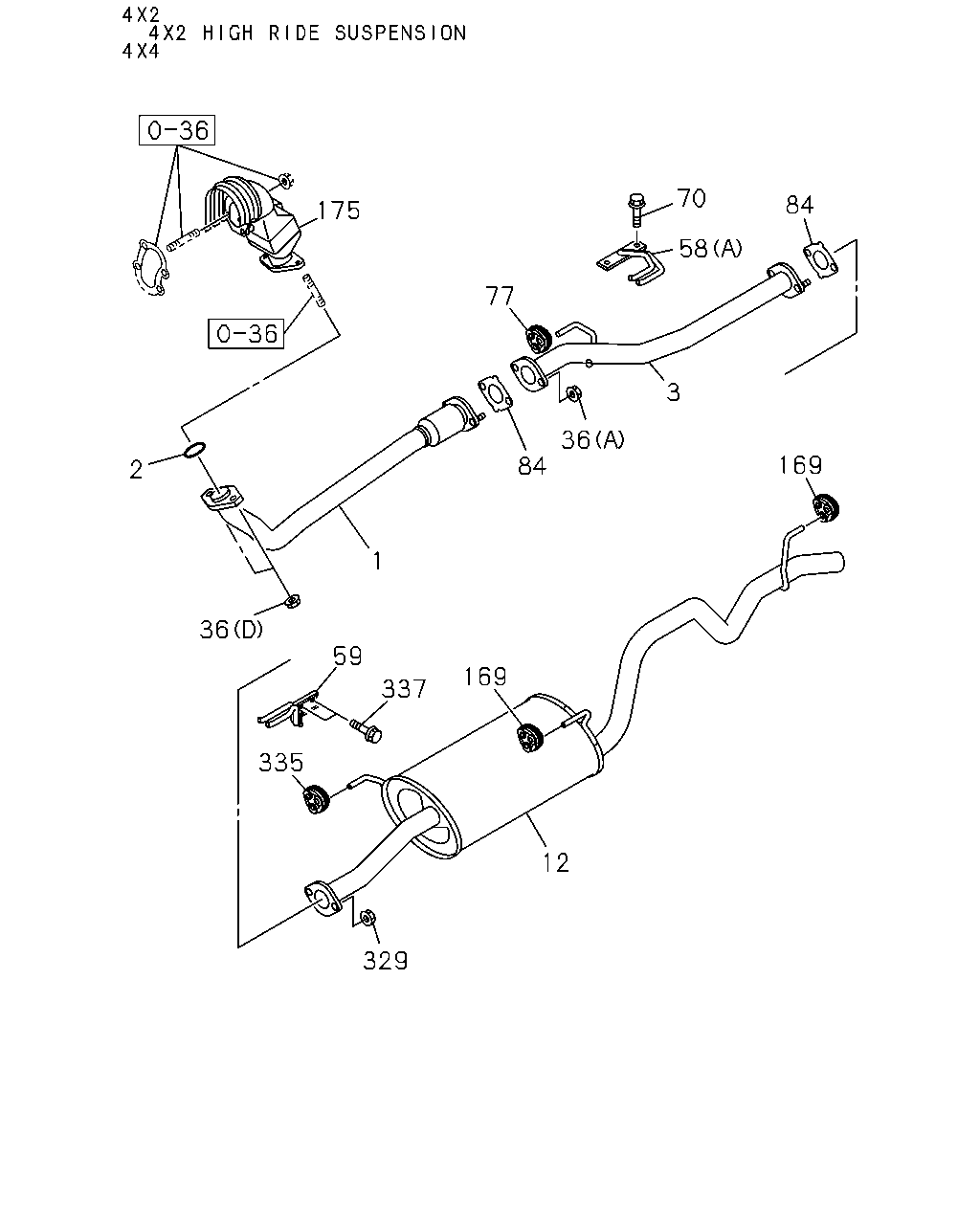

70 84 175 58 77 3 36 169 84 2 1 36 59 169 337 335 12 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-97329-645-0	01	1	0211-		●
1	03.609 PIPE; EXH 4X4(TFS***)	8-97329-645-0	01	1	0211-		●
1	03.609 PIPE; EXH 4X2 LONG(TFB**F) EXC. HIGH RIDE SUSPENSION(7YC)	8-97329-644-0	01	1	0211-		●
1	03.609 PIPE; EXH 4X2 EXTRA LONG(TFB**K) EXC. HIGH RIDE SUSPENSION(7YC)	8-97329-646-0	01	1	0211-		●
1	03.609 PIPE; EXH	8-97235-492-0	01	1	0211-	●
1	03.609 PIPE; EXH	8-97235-491-0	01	1	0211-	●
1	03.609 PIPE; EXH	8-97235-498-0	01	1	0211-			●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0211-		●
2	03.611 GASKET; PIPE TO MANIF	8-97102-031-1	02	1	0211-	●
2	03.611 GASKET; PIPE TO MANIF	8-97166-290-1	01	1	0211-			●
3	03.609 PIPE; EXH,CENTER 4X2 LONG(TFB**F) HIGH RIDE SUSPENSION(7YC)	8-97308-920-3	01	1	0211-		●
3	03.609 PIPE; EXH,CENTER 4X4 LONG(TFS**F)	8-97308-920-3	01	1	0211-		●
3	03.609 PIPE; EXH,CENTER 4X2 EXTRA LONG(TFB**K) HIGH RIDE SUSPENSION(7YC)	8-97235-525-0	01	1	0211-		●
3	03.609 PIPE; EXH,CENTER 4X4 EXTRA LONG(TFS**K)	8-97235-525-0	01	1	0211-		●
3	03.609 PIPE; EXH,CENTER LONG(TF***F)	8-97352-922-0	01	1	0211-	●
3	03.609 PIPE; EXH,CENTER EXTRA LONG(TF***K)	8-97352-923-0	01	1	0211-	●
3	03.609 PIPE; EXH,CENTER 4X2 SINGLE CAB EXTRA LONG(TFB*SK)	8-97352-925-0	01	1	0211-			●
3	03.609 PIPE; EXH,CENTER 4X2 CREW CAB(TFBW)	8-97352-924-0	01	1	0211-			●
12	03.701 SILENCER ASM; EXH	8-97308-922-2	01	1	0211-		●
12	03.701 SILENCER ASM; EXH	8-97328-991-0	01	1	0211-	●
12	03.701 SILENCER ASM; EXH	8-97235-528-0	01	1	0211-			●
36	03.613 NUT; EXH PIPE (D) M10 FLANGE	8-97096-192-1	02	1	0211-		●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0211-		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0211-		●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0211-			●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0211-	●
36	03.613 NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	0211-	●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0211-			●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97249-193-0	01	1	0211-0303	●	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0304-	●	●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97249-194-0	01	1	0211-0303	●		●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0304-	●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97249-195-0	01	1	0211-0303	●	●	●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0304-	●	●	●
70	03.706 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0211-0303		●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0304-		●	●
70	03.706 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0211-0303	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	04	1	0304-	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0211-		●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	02	1	0211-	●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0211-			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0211-	●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0211-		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0211-		●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0211-			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	02	1	0211-	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0211-	●	●	●
175	03.685 CONVERTER; CATALYST	8-97329-347-1	01	1	0211-		●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0211-	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0211-	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.343 M10X20 FLANGE	0-28651-020-0	02	1	0211-0303	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0304-	●	●	●

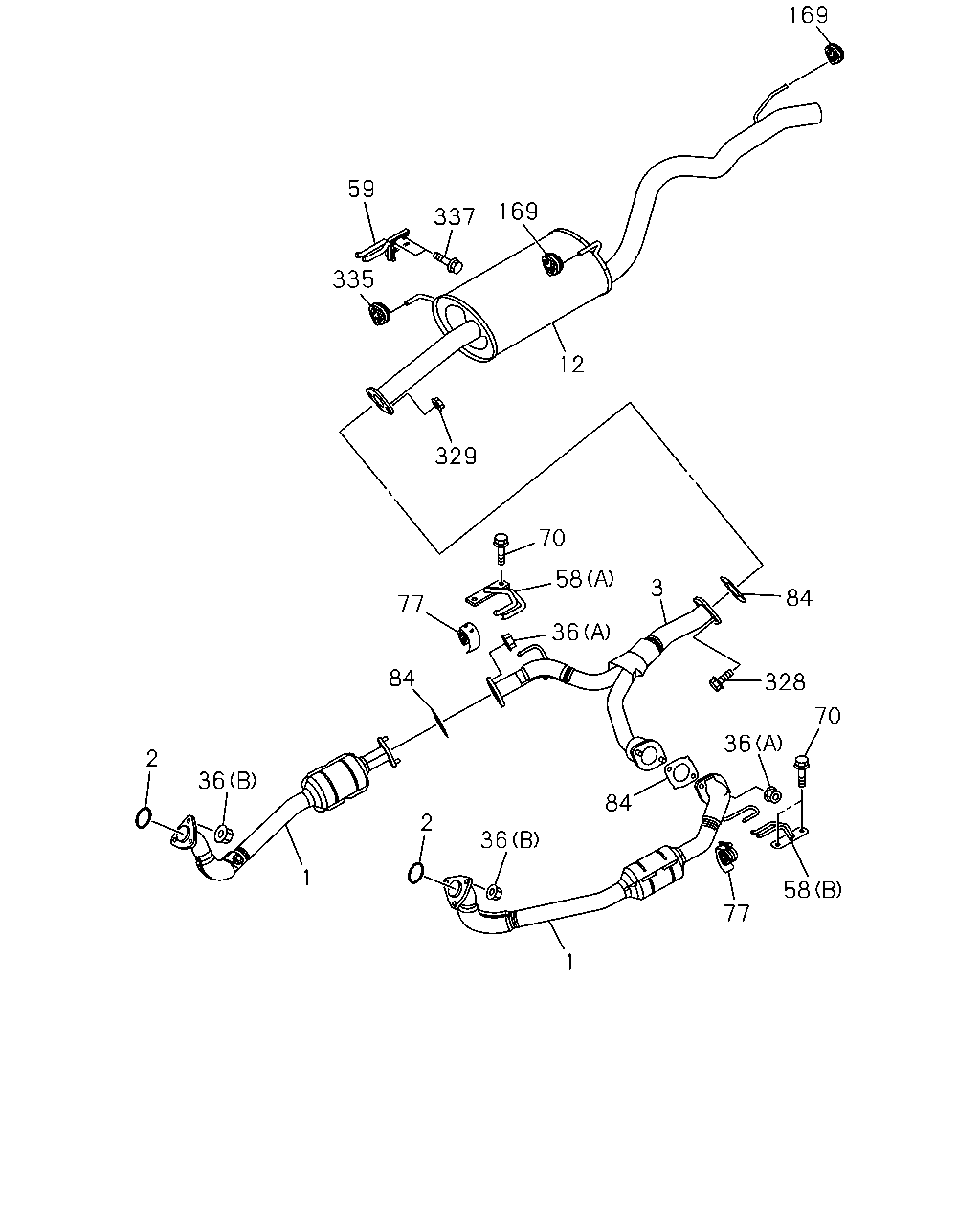

169 59 169 337 335 12 329 70 58 3 84 77 36 84 328 70 36 2 36 84 2 36 1 58 77 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-97329-645-0	01	1	0211-		●
1	03.609 PIPE; EXH 4X4(TFS***)	8-97329-645-0	01	1	0211-		●
1	03.609 PIPE; EXH 4X2 LONG(TFB**F) EXC. HIGH RIDE SUSPENSION(7YC)	8-97329-644-0	01	1	0211-		●
1	03.609 PIPE; EXH 4X2 EXTRA LONG(TFB**K) EXC. HIGH RIDE SUSPENSION(7YC)	8-97329-646-0	01	1	0211-		●
1	03.609 PIPE; EXH	8-97235-492-0	01	1	0211-	●
1	03.609 PIPE; EXH	8-97235-491-0	01	1	0211-	●
1	03.609 PIPE; EXH	8-97235-498-0	01	1	0211-			●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0211-		●
2	03.611 GASKET; PIPE TO MANIF	8-97102-031-1	02	1	0211-	●
2	03.611 GASKET; PIPE TO MANIF	8-97166-290-1	01	1	0211-			●
3	03.609 PIPE; EXH,CENTER 4X2 LONG(TFB**F) HIGH RIDE SUSPENSION(7YC)	8-97308-920-3	01	1	0211-		●
3	03.609 PIPE; EXH,CENTER 4X4 LONG(TFS**F)	8-97308-920-3	01	1	0211-		●
3	03.609 PIPE; EXH,CENTER 4X2 EXTRA LONG(TFB**K) HIGH RIDE SUSPENSION(7YC)	8-97235-525-0	01	1	0211-		●
3	03.609 PIPE; EXH,CENTER 4X4 EXTRA LONG(TFS**K)	8-97235-525-0	01	1	0211-		●
3	03.609 PIPE; EXH,CENTER LONG(TF***F)	8-97352-922-0	01	1	0211-	●
3	03.609 PIPE; EXH,CENTER EXTRA LONG(TF***K)	8-97352-923-0	01	1	0211-	●
3	03.609 PIPE; EXH,CENTER 4X2 SINGLE CAB EXTRA LONG(TFB*SK)	8-97352-925-0	01	1	0211-			●
3	03.609 PIPE; EXH,CENTER 4X2 CREW CAB(TFBW)	8-97352-924-0	01	1	0211-			●
12	03.701 SILENCER ASM; EXH	8-97308-922-2	01	1	0211-		●
12	03.701 SILENCER ASM; EXH	8-97328-991-0	01	1	0211-	●
12	03.701 SILENCER ASM; EXH	8-97235-528-0	01	1	0211-			●
36	03.613 NUT; EXH PIPE (D) M10 FLANGE	8-97096-192-1	02	1	0211-		●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0211-		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0211-		●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0211-			●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0211-	●
36	03.613 NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	0211-	●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0211-			●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97249-193-0	01	1	0211-0303	●	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0304-	●	●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97249-194-0	01	1	0211-0303	●		●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0304-	●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97249-195-0	01	1	0211-0303	●	●	●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0304-	●	●	●
70	03.706 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0211-0303		●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0304-		●	●
70	03.706 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0211-0303	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	04	1	0304-	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0211-		●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	02	1	0211-	●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0211-			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0211-	●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0211-		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0211-		●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0211-			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	02	1	0211-	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0211-	●	●	●
328	03.613 BOLT; EXH PIPE TO PIPE M10X40 FLANGE	0-28651-040-0	02	1	0211-	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0211-	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0211-	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.343 M10X20 FLANGE	0-28651-020-0	02	1	0211-0303	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0304-	●	●	●

169 59 169 337 335 12 329 84 3 84 70 2 36 1 58 77 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-97329-645-0	01	1	0211-		●
1	03.609 PIPE; EXH 4X4(TFS***)	8-97329-645-0	01	1	0211-		●
1	03.609 PIPE; EXH 4X2 LONG(TFB**F) EXC. HIGH RIDE SUSPENSION(7YC)	8-97329-644-0	01	1	0211-		●
1	03.609 PIPE; EXH 4X2 EXTRA LONG(TFB**K) EXC. HIGH RIDE SUSPENSION(7YC)	8-97329-646-0	01	1	0211-		●
1	03.609 PIPE; EXH	8-97235-492-0	01	1	0211-	●
1	03.609 PIPE; EXH	8-97235-491-0	01	1	0211-	●
1	03.609 PIPE; EXH	8-97235-498-0	01	1	0211-			●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0211-		●
2	03.611 GASKET; PIPE TO MANIF	8-97102-031-1	02	1	0211-	●
2	03.611 GASKET; PIPE TO MANIF	8-97166-290-1	01	1	0211-			●
3	03.609 PIPE; EXH,CENTER 4X2 LONG(TFB**F) HIGH RIDE SUSPENSION(7YC)	8-97308-920-3	01	1	0211-		●
3	03.609 PIPE; EXH,CENTER 4X4 LONG(TFS**F)	8-97308-920-3	01	1	0211-		●
3	03.609 PIPE; EXH,CENTER 4X2 EXTRA LONG(TFB**K) HIGH RIDE SUSPENSION(7YC)	8-97235-525-0	01	1	0211-		●
3	03.609 PIPE; EXH,CENTER 4X4 EXTRA LONG(TFS**K)	8-97235-525-0	01	1	0211-		●
3	03.609 PIPE; EXH,CENTER LONG(TF***F)	8-97352-922-0	01	1	0211-	●
3	03.609 PIPE; EXH,CENTER EXTRA LONG(TF***K)	8-97352-923-0	01	1	0211-	●
3	03.609 PIPE; EXH,CENTER 4X2 SINGLE CAB EXTRA LONG(TFB*SK)	8-97352-925-0	01	1	0211-			●
3	03.609 PIPE; EXH,CENTER 4X2 CREW CAB(TFBW)	8-97352-924-0	01	1	0211-			●
12	03.701 SILENCER ASM; EXH	8-97308-922-2	01	1	0211-		●
12	03.701 SILENCER ASM; EXH	8-97328-991-0	01	1	0211-	●
12	03.701 SILENCER ASM; EXH	8-97235-528-0	01	1	0211-			●
36	03.613 NUT; EXH PIPE (D) M10 FLANGE	8-97096-192-1	02	1	0211-		●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0211-		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0211-		●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0211-			●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0211-	●
36	03.613 NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	0211-	●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0211-			●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97249-193-0	01	1	0211-0303	●	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0304-	●	●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97249-194-0	01	1	0211-0303	●		●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0304-	●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97249-195-0	01	1	0211-0303	●	●	●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0304-	●	●	●
70	03.706 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0211-0303		●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0304-		●	●
70	03.706 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0211-0303	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	04	1	0304-	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0211-		●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	02	1	0211-	●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0211-			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0211-	●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0211-		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0211-		●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0211-			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	02	1	0211-	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0211-	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0211-	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0211-	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.343 M10X20 FLANGE	0-28651-020-0	02	1	0211-0303	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0304-	●	●	●

70 84 175 58 77 2 169 1 36 59 169 337 335 12 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-97329-645-0	01	1	0211-		●
1	03.609 PIPE; EXH 4X4(TFS***)	8-97329-645-0	01	1	0211-		●
1	03.609 PIPE; EXH 4X2 LONG(TFB**F) EXC. HIGH RIDE SUSPENSION(7YC)	8-97329-644-0	01	1	0211-		●
1	03.609 PIPE; EXH 4X2 EXTRA LONG(TFB**K) EXC. HIGH RIDE SUSPENSION(7YC)	8-97329-646-0	01	1	0211-		●
1	03.609 PIPE; EXH	8-97235-492-0	01	1	0211-	●
1	03.609 PIPE; EXH	8-97235-491-0	01	1	0211-	●
1	03.609 PIPE; EXH	8-97235-498-0	01	1	0211-			●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0211-		●
2	03.611 GASKET; PIPE TO MANIF	8-97102-031-1	02	1	0211-	●
2	03.611 GASKET; PIPE TO MANIF	8-97166-290-1	01	1	0211-			●
12	03.701 SILENCER ASM; EXH	8-97308-922-2	01	1	0211-		●
12	03.701 SILENCER ASM; EXH	8-97328-991-0	01	1	0211-	●
12	03.701 SILENCER ASM; EXH	8-97235-528-0	01	1	0211-			●
36	03.613 NUT; EXH PIPE (D) M10 FLANGE	8-97096-192-1	02	1	0211-		●
36	03.613 NUT; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0211-		●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0211-		●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0211-			●
36	03.613 NUT; EXH PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	0211-	●
36	03.613 NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	0211-	●
36	03.613 NUT; EXH PIPE (C) M8 FLANGE	8-97061-401-1	04	1	0211-			●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97249-193-0	01	1	0211-0303	●	●
58	03.613 BRACKET; EXH PIPE,RR (A)	8-97368-450-0	01	1	0304-	●	●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97249-194-0	01	1	0211-0303	●		●
58	03.613 BRACKET; EXH PIPE,RR (B)	8-97368-508-0	01	1	0304-	●		●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97249-195-0	01	1	0211-0303	●	●	●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	0304-	●	●	●
70	03.706 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0211-0303		●	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0304-		●	●
70	03.706 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0211-0303	●
70	03.706 BOLT; BRKT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	04	1	0304-	●
77	03.613 RUBBER; CUSHION,BRKT 03.706	8-97289-169-0	01	1	0211-		●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	02	1	0211-	●
77	03.613 RUBBER; CUSHION,BRKT	8-97330-412-0	01	1	0211-			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0211-	●	●	●
84	03.611 GASKET; EXH PIPE 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65	8-97263-052-0	01	1	0211-		●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=65	8-97263-052-0	01	1	0211-		●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	0211-			●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	02	1	0211-	●
169	03.706 RING; DAMPER,EXH PIPE	8-97289-169-0	02	1	0211-	●	●	●
175	03.685 CONVERTER; CATALYST	8-97329-347-1	01	1	0211-		●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0211-	●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97289-169-0	01	1	0211-	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.343 M10X20 FLANGE	0-28651-020-0	02	1	0211-0303	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	02	1	0304-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
