Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#48602) — 351 parça

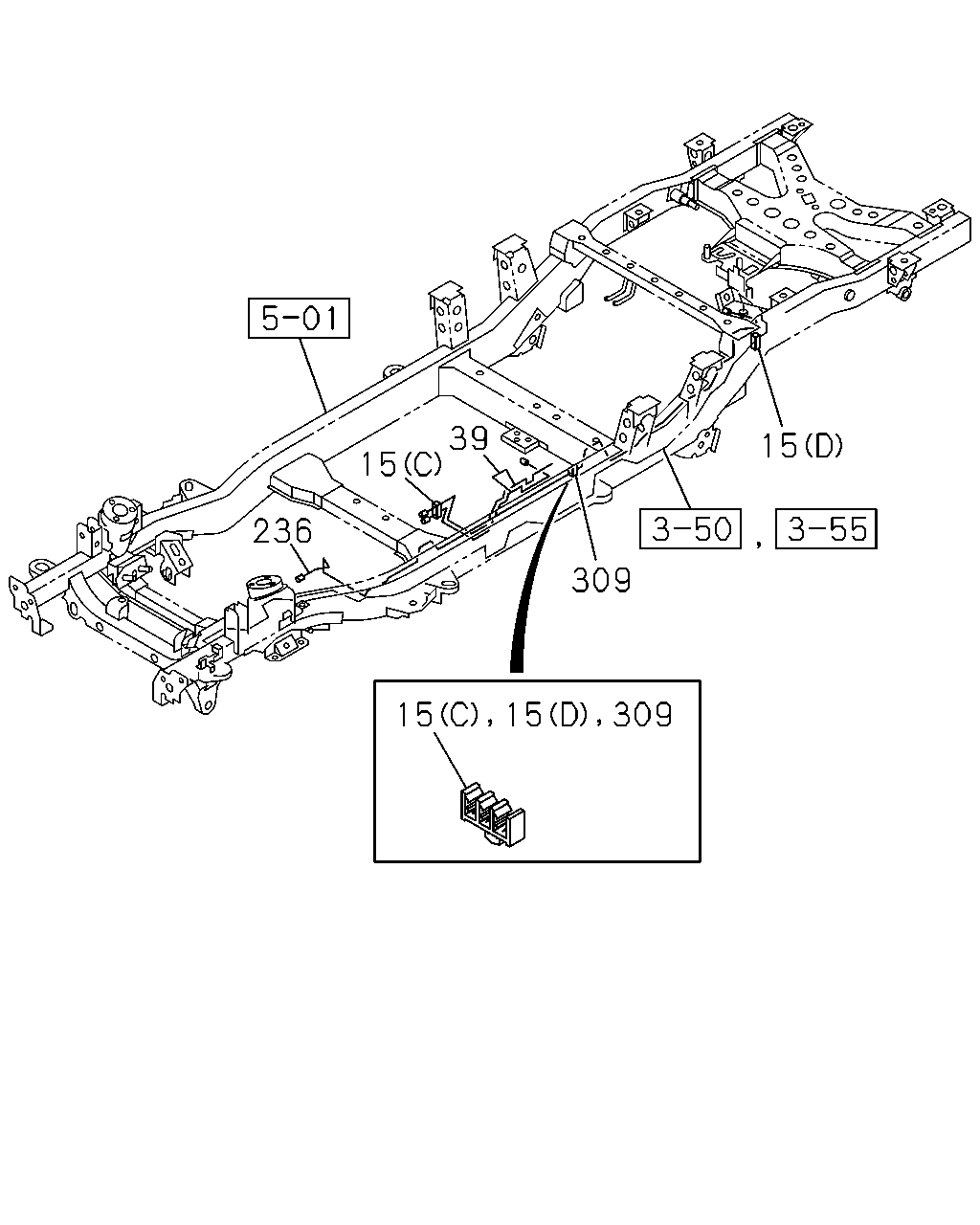

39 15 15 236 309 15 15 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0211-	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0211-	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0211-	●
15	03.162 CLIP; FUEL PIPE 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-		●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0211-		●	●
39	03.163 PIPE; FUEL LONG(TF***F)	8-97235-102-5	01	1	0211-	●
39	03.163 PIPE; FUEL EXTRA LONG(TF***K)	8-97236-148-2	01	1	0211-	●
39	03.163 PIPE; FUEL LONG(TF***F)	8-97235-091-1	01	1	0211-		●
39	03.163 PIPE; FUEL EXTRA LONG(TF***K)	8-97236-137-1	01	1	0211-		●
39	03.163 PIPE; FUEL 4X2 LONG(TFB**F)	8-97235-089-2	01	1	0211-			●
39	03.163 PIPE; FUEL 4X2 EXTRA LONG(TFB**K)	8-97236-135-2	01	1	0211-			●
236	03.163 PIPE; FUEL,CANISTER LONG(TF***F)	8-97250-533-1	01	1	0211-		●
236	03.163 PIPE; FUEL,CANISTER 4X2 SPACE CAB EXTRA LONG(TFB5CK) 4X2 SINGLE CAB EXTRA LONG(TFB5SK) 4X4 SINGLE CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB EXTRA LONG(TFS5WK)	8-97250-534-1	01	1	0211-		●
236	03.163 PIPE; FUEL,CANISTER 4X2 SINGLE CAB EXTRA LONG(TFB*SK) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97250-530-2	01	1	0211-			●
236	03.163 PIPE; FUEL,CANISTER 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97250-529-2	01	1	0211-			●
309	03.162 CLIP; PIPE ID=8.4 & 6.8X2	8-97251-127-0	01	1	0211-		●	●

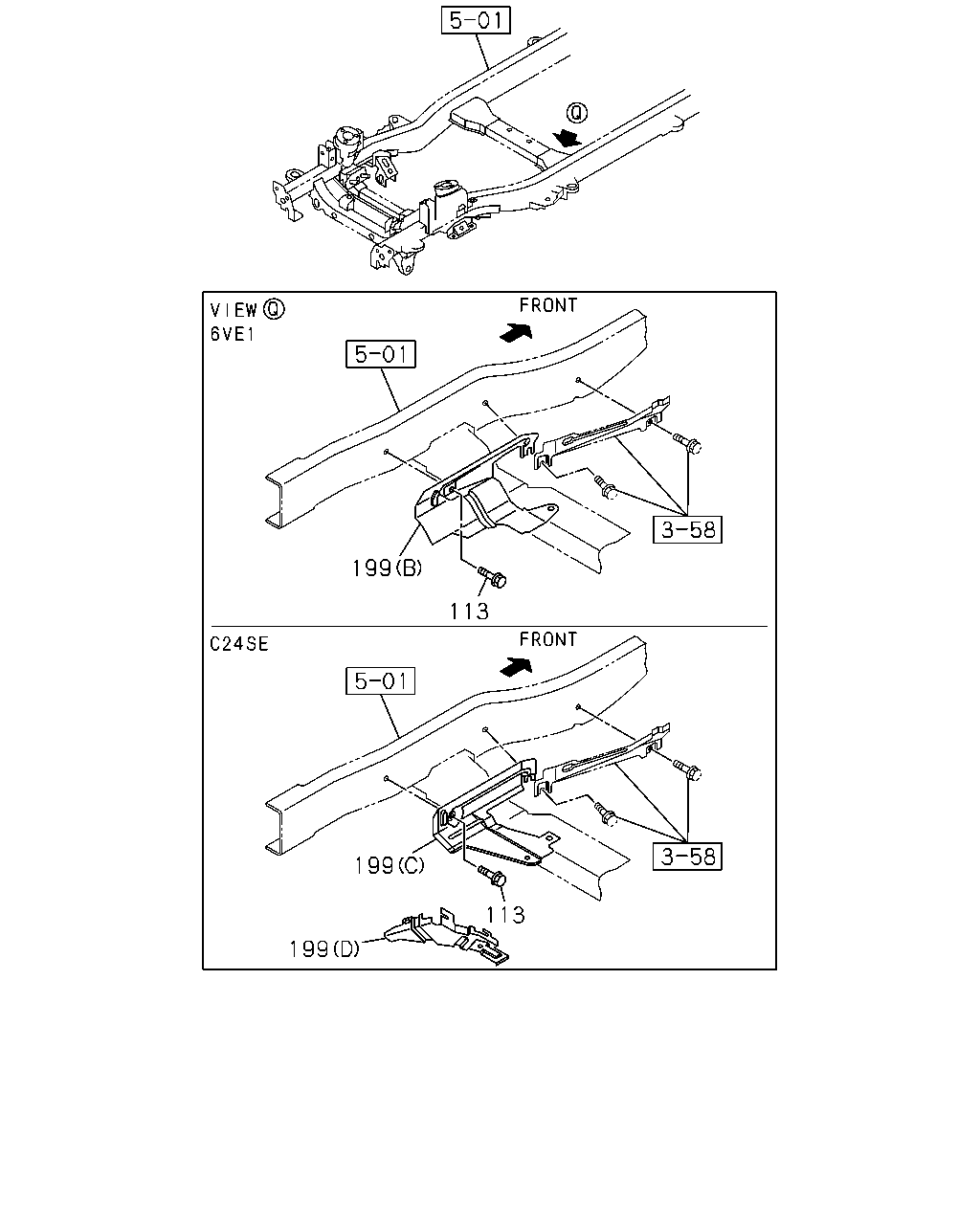

199 113 199 113 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
113	03.162 BOLT; PROTECTOR 07.874 M6X22 W/PL WASHER	8-97012-072-0	02	1	0211-		●	●
199	03.162 PROTECTOR; FUEL PIPE A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (A)	8-97331-826-0	01	1	0211-0302	●
199	03.162 PROTECTOR; FUEL PIPE A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (A)	8-97365-105-0	01	1	0303-	●
199	03.162 PROTECTOR; FUEL PIPE (B)	8-97215-320-3	01	1	0211-		●
199	03.162 PROTECTOR; FUEL PIPE (C)	8-97249-758-0	01	1	0211-			●
199	03.162 PROTECTOR; FUEL PIPE (D)	8-97250-143-0	01	1	0211-			●

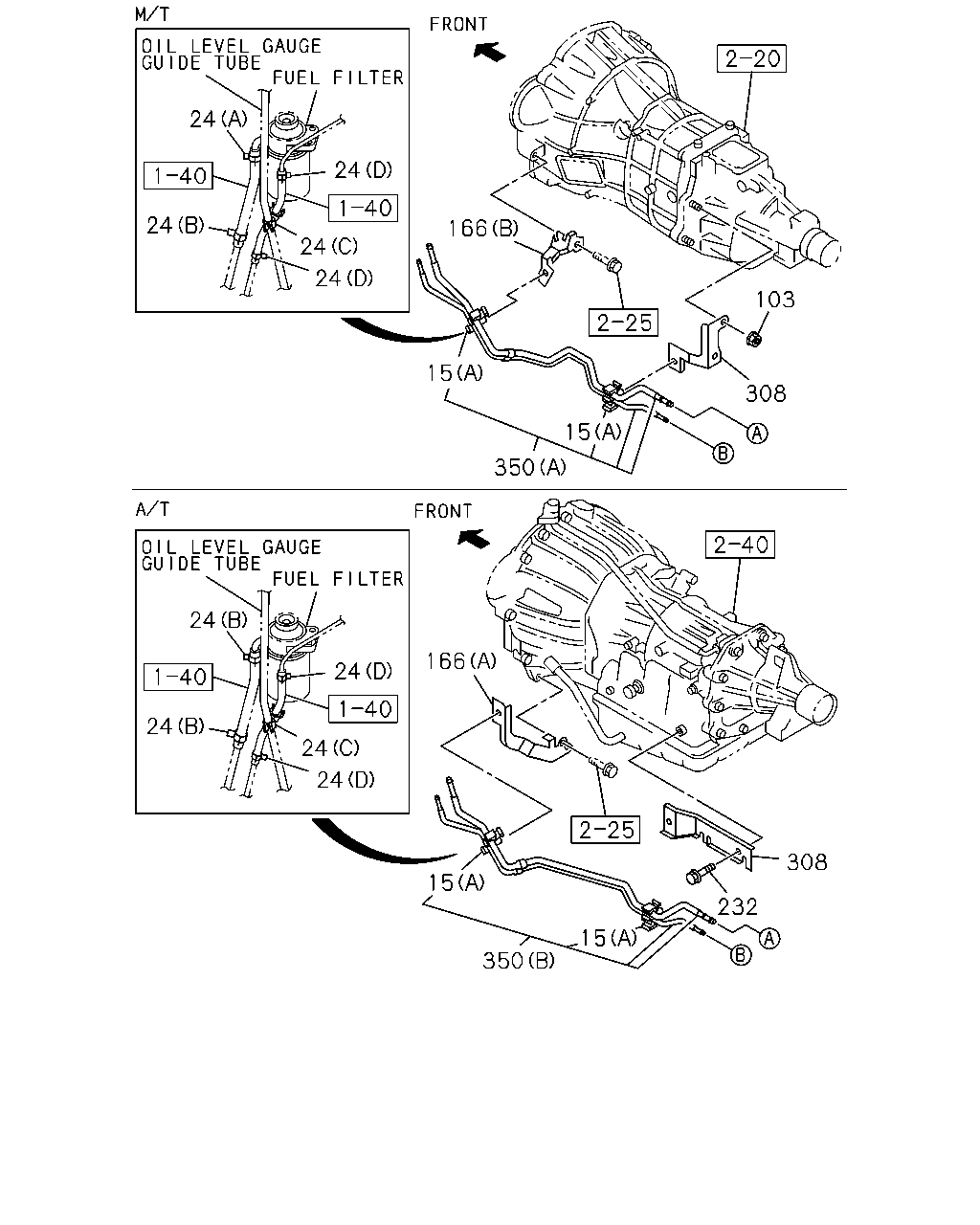

24 24 24 166 24 24 103 15 308 15 350 24 166 24 24 24 24 308 15 232 15 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0211-	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0211-	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0211-	●
15	03.162 CLIP; FUEL PIPE 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-		●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0211-		●	●
24	03.162 CLIP; FUEL HOSE (B) ID=17.8	8-97356-077-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (B) ID=17.8	8-97356-077-0	04	1	0211-	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0211-	●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0211-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	02	1	0211-			●
103	03.130 NUT; BRKT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 06.168 M10 FLANGE	8-94242-425-0	02	1	0211-	●	●
103	03.130 NUT; BRKT 06.168 M10 FLANGE	8-94242-425-0	01	1	0211-		●
103	03.130 NUT; BRKT 06.168 M10 FLANGE	8-94242-425-0	03	1	0211-			●
166	03.162 PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK) (A)	8-97215-314-2	01	1	0211-	●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97215-311-3	01	1	0211-	●
166	03.162 PROTECTOR; FUEL HOSE A/T AISIN(RMD) (C)	8-97215-306-2	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE A/T AISIN(RMD) (D)	8-97215-307-1	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE A/T AISIN(RMD) (E)	8-97309-670-0	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (F)	8-97215-304-2	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (G)	8-97309-507-1	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (H)	8-97310-176-0	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE (I)	8-97215-308-0	01	1	0211-			●
166	03.162 PROTECTOR; FUEL HOSE (J)	8-97215-406-1	01	1	0211-			●
232	03.162 BOLT; CLIP,PIPE A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE	0-28050-612-0	01	1	0211-	●
308	03.162 BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK)	8-97328-217-0	01	1	0211-	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97215-294-1	01	1	0211-	●
308	03.162 BRACKET; FUEL PIPE	8-97215-293-0	01	1	0211-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97215-362-4	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET CREW CAB LONG(TF**WF) A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97215-230-5	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET A/T AISIN(RMD) (F)	8-97215-169-0	01	1	0211-		●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (G)	8-97215-170-0	01	1	0211-		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0211-			●

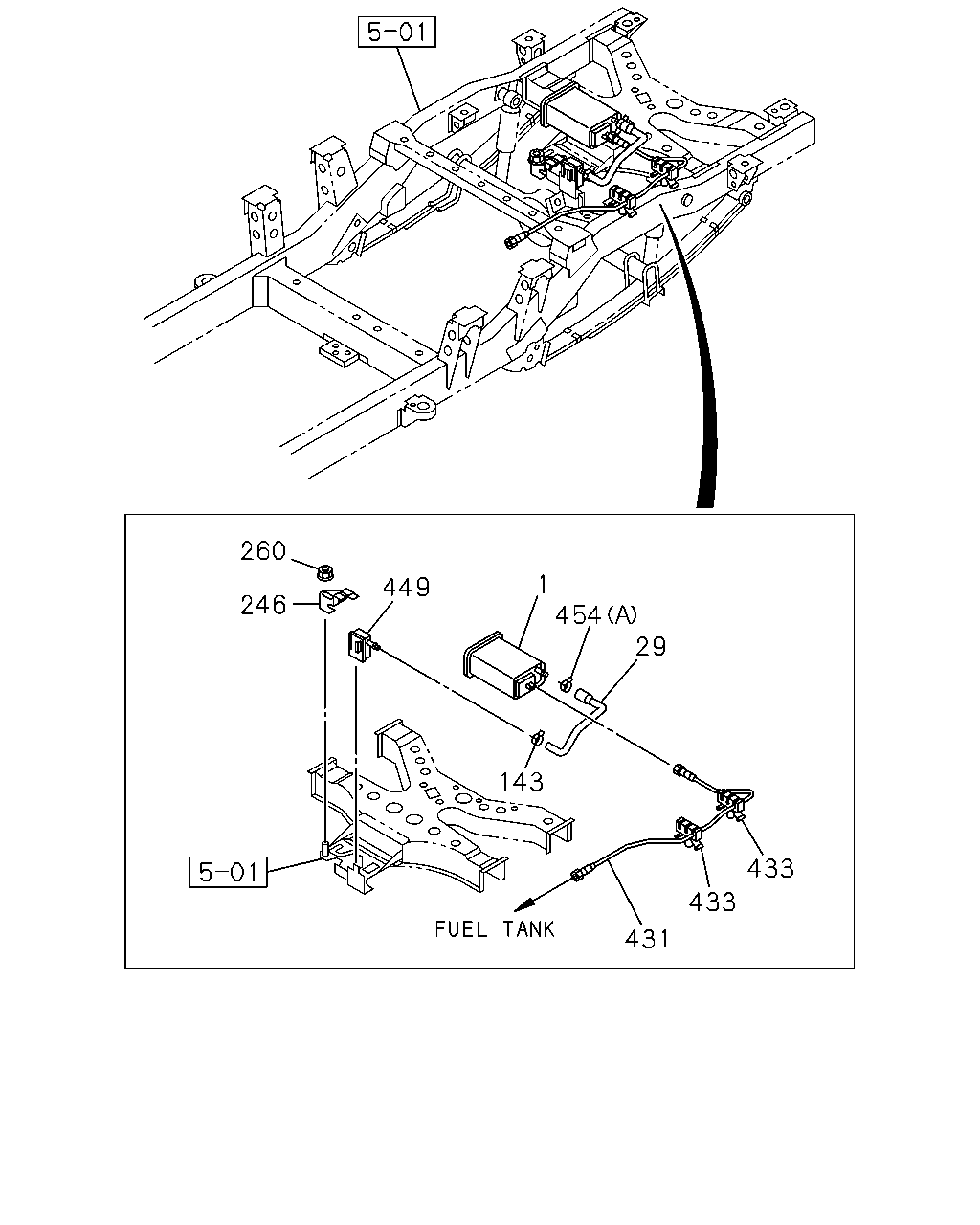

260 1 454 449 246 29 143 433 433 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
1	03.130 CANISTER; FUEL	8-17097-118-0	01	1	0211-	●	●
29	03.163 HOSE; FUEL	8-97234-517-0	01	1	0211-	●	●
143	03.162 CLAMP; FUEL FILTER 01.166 ID=14	8-94238-572-0	01	1	0211-	●	●
246	03.130 BRACKET; CANISTER	8-97234-462-1	01	1	0211-	●	●
260	03.130 NUT; CANISTER BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	0211-	●	●
431	03.163 PIPE; PURGE,ENG ROOM 03.145	8-97215-197-0	01	1	0211-	●	●
433	03.162 CLIP; PURGE PIPE 03.680 ID=7.5 & 7.5	8-97019-084-0	02	1	0211-	●	●
449	03.890 FILTER; AIR 03.162	8-17096-210-0	01	1	0211-	●	●
454	03.890 CLAMP; HOSE,CANISTER 04.930 (A) ID=16	8-94238-568-0	01	1	0211-	●	●
454	03.890 CLAMP; HOSE,CANISTER 03.163 (B) ID=11	8-94238-570-0	01	1	0211-	●	●

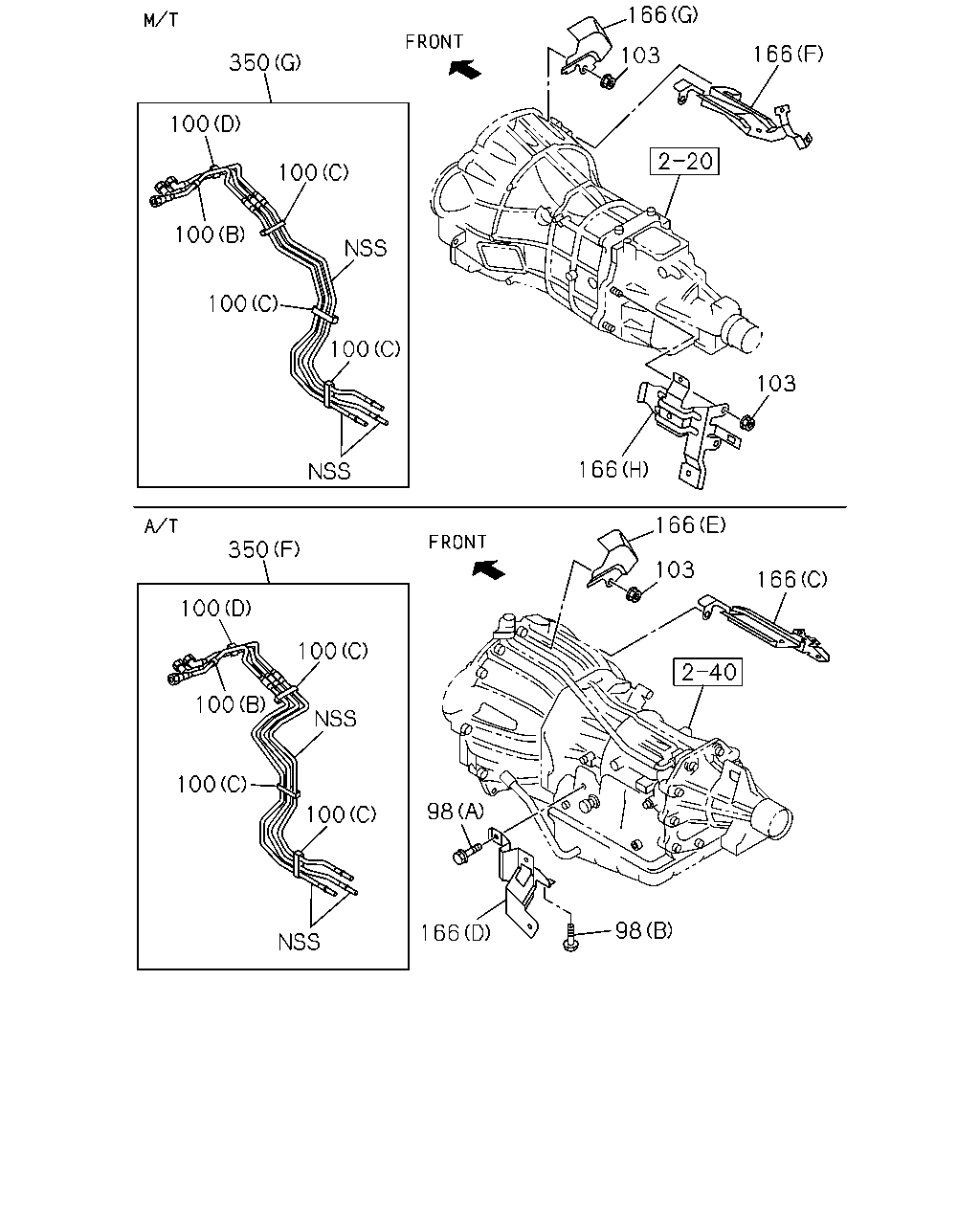

24 24 24 24 350 166 100 308 103 100 100 103 100 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE (B) ID=17.8	8-97356-077-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (B) ID=17.8	8-97356-077-0	04	1	0211-	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0211-	●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0211-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	02	1	0211-			●
100	03.162 CLIP; FUEL PIPE 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	02	1	0211-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0211-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0307-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0307-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) (D) ID=8 & 8	8-97249-908-0	01	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) (D) ID=8 & 8	8-97249-908-0	01	1	0307-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0211-			●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0211-	●
100	03.162 CLIP; FUEL PIPE (H)	8-97219-442-0	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0211-		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (D) ID=8 & 8	8-97249-908-0	01	1	0211-		●
103	03.130 NUT; BRKT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 06.168 M10 FLANGE	8-94242-425-0	02	1	0211-	●	●
103	03.130 NUT; BRKT 06.168 M10 FLANGE	8-94242-425-0	01	1	0211-		●
103	03.130 NUT; BRKT 06.168 M10 FLANGE	8-94242-425-0	03	1	0211-			●
166	03.162 PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK) (A)	8-97215-314-2	01	1	0211-	●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97215-311-3	01	1	0211-	●
166	03.162 PROTECTOR; FUEL HOSE A/T AISIN(RMD) (C)	8-97215-306-2	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE A/T AISIN(RMD) (D)	8-97215-307-1	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE A/T AISIN(RMD) (E)	8-97309-670-0	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (F)	8-97215-304-2	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (G)	8-97309-507-1	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (H)	8-97310-176-0	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE (I)	8-97215-308-0	01	1	0211-			●
166	03.162 PROTECTOR; FUEL HOSE (J)	8-97215-406-1	01	1	0211-			●
308	03.162 BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK)	8-97328-217-0	01	1	0211-	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97215-294-1	01	1	0211-	●
308	03.162 BRACKET; FUEL PIPE	8-97215-293-0	01	1	0211-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97215-362-4	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET CREW CAB LONG(TF**WF) A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97215-230-5	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET A/T AISIN(RMD) (F)	8-97215-169-0	01	1	0211-		●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (G)	8-97215-170-0	01	1	0211-		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0211-			●

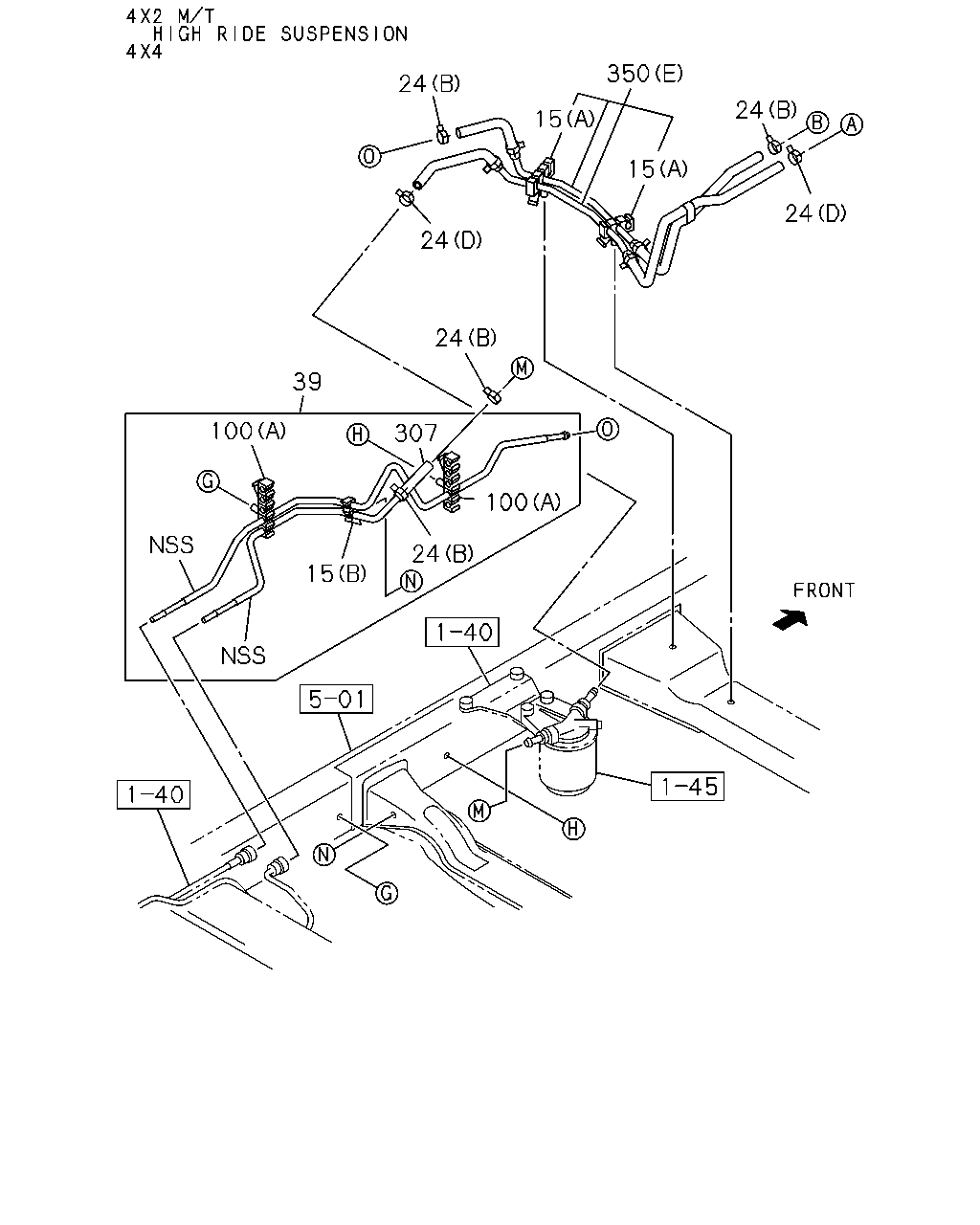

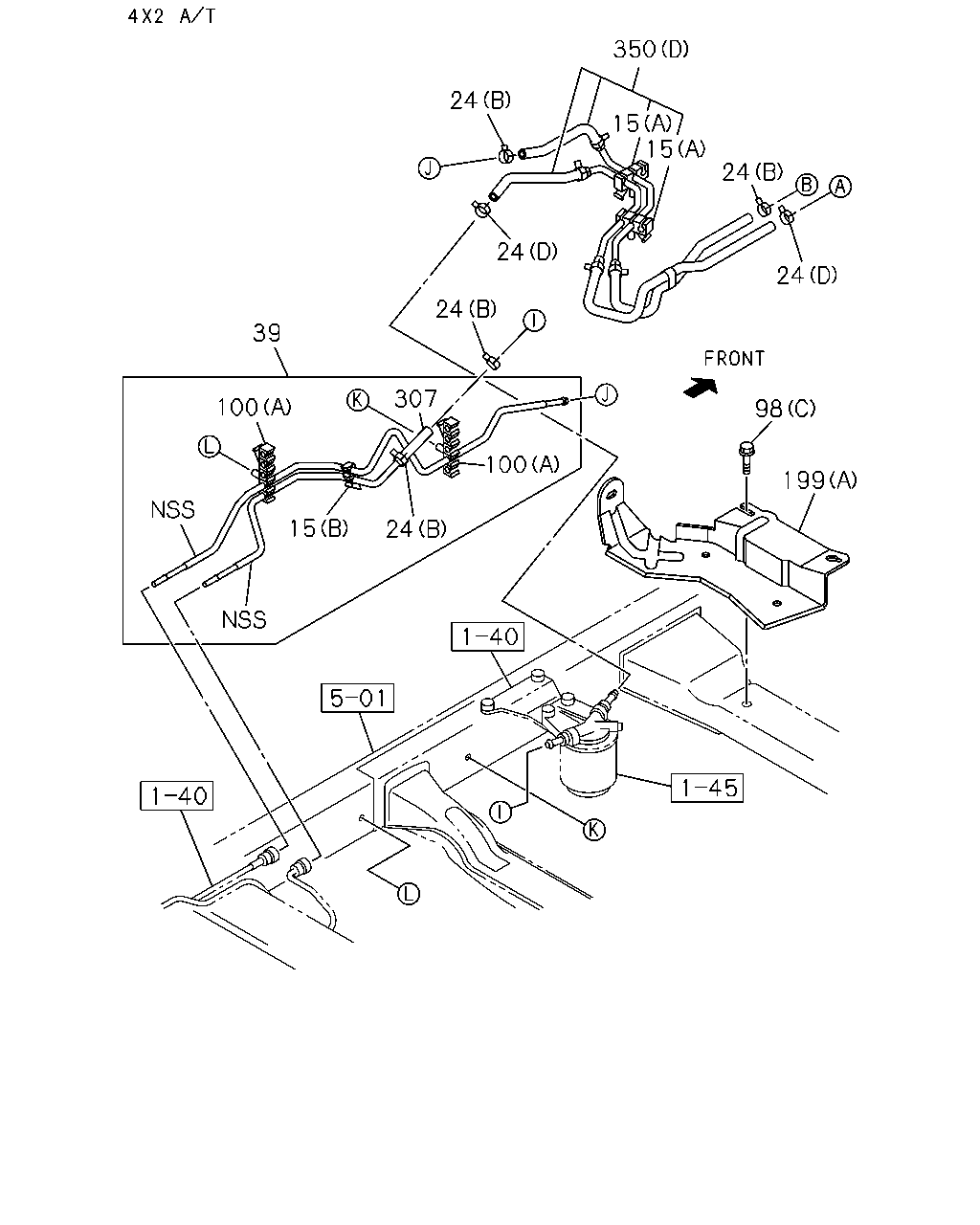

350 24 24 15 15 24 24 24 39 100 307 100 24 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0211-	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0211-	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0211-	●
15	03.162 CLIP; FUEL PIPE 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-		●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0211-		●	●
24	03.162 CLIP; FUEL HOSE (B) ID=17.8	8-97356-077-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (B) ID=17.8	8-97356-077-0	04	1	0211-	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0211-	●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0211-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	02	1	0211-			●
39	03.163 PIPE; FUEL LONG(TF***F)	8-97235-102-5	01	1	0211-	●
39	03.163 PIPE; FUEL EXTRA LONG(TF***K)	8-97236-148-2	01	1	0211-	●
39	03.163 PIPE; FUEL LONG(TF***F)	8-97235-091-1	01	1	0211-		●
39	03.163 PIPE; FUEL EXTRA LONG(TF***K)	8-97236-137-1	01	1	0211-		●
39	03.163 PIPE; FUEL 4X2 LONG(TFB**F)	8-97235-089-2	01	1	0211-			●
39	03.163 PIPE; FUEL 4X2 EXTRA LONG(TFB**K)	8-97236-135-2	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	02	1	0211-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0211-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0307-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0307-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) (D) ID=8 & 8	8-97249-908-0	01	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) (D) ID=8 & 8	8-97249-908-0	01	1	0307-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0211-			●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0211-	●
100	03.162 CLIP; FUEL PIPE (H)	8-97219-442-0	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0211-		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (D) ID=8 & 8	8-97249-908-0	01	1	0211-		●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97215-362-4	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET CREW CAB LONG(TF**WF) A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97215-230-5	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET A/T AISIN(RMD) (F)	8-97215-169-0	01	1	0211-		●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (G)	8-97215-170-0	01	1	0211-		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0211-			●

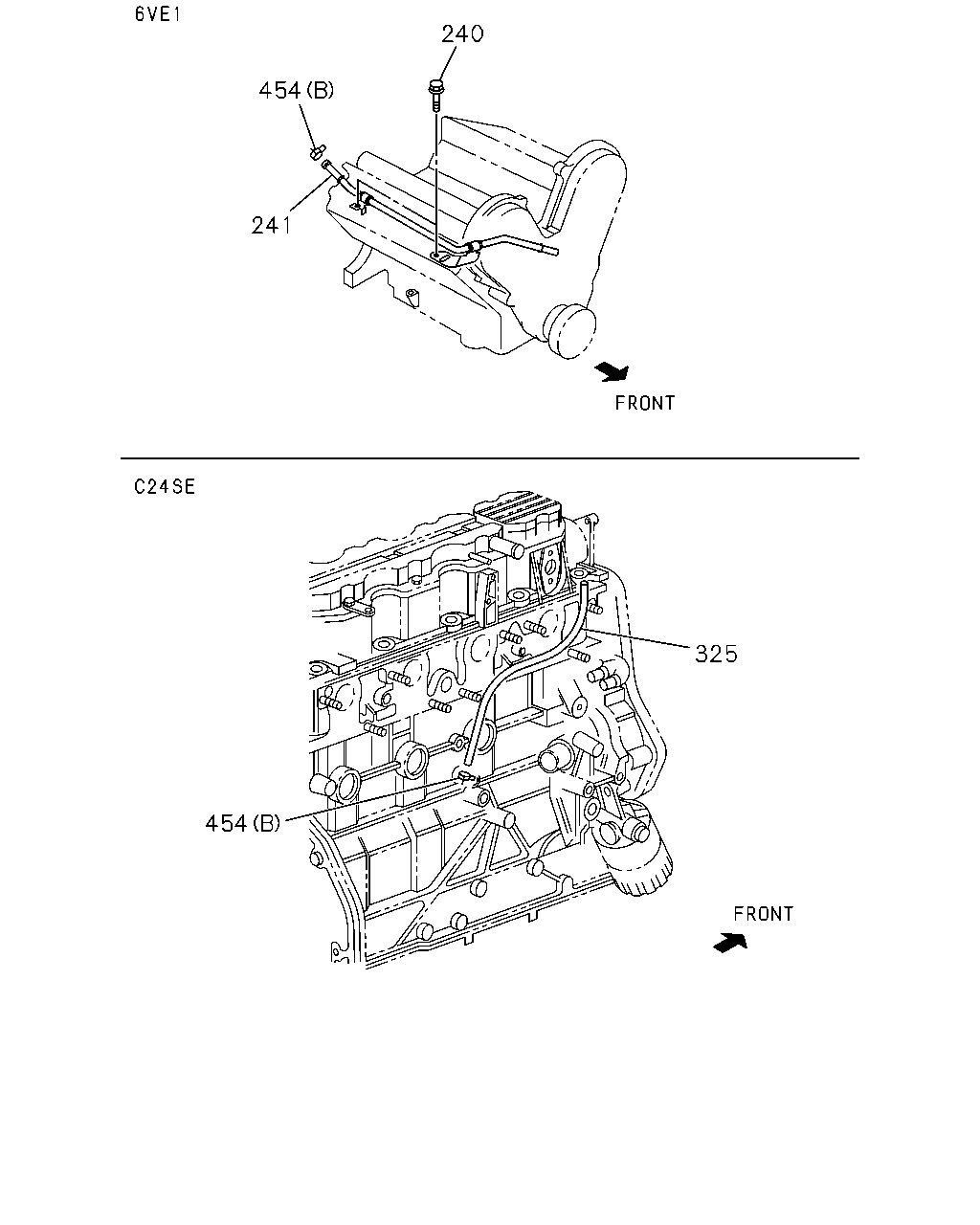

240 454 241 325 454

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
240	03.145 BOLT; EVAP PIPE CLIP 03.671 M6X10 FLANGE	0-28050-610-0	02	1	0211-	●
241	03.163 PIPE; EVAP	8-97307-237-1	01	1	0211-	●
325	03.163 HOSE; EVAPO	8-97254-309-2	01	1	0211-		●
454	03.890 CLAMP; HOSE,CANISTER 04.930 (A) ID=16	8-94238-568-0	01	1	0211-	●	●
454	03.890 CLAMP; HOSE,CANISTER 03.163 (B) ID=11	8-94238-570-0	01	1	0211-	●	●

350 15 24 15 24 24 24 24 39 307 100 100 24 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0211-	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0211-	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0211-	●
15	03.162 CLIP; FUEL PIPE 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-		●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0211-		●	●
24	03.162 CLIP; FUEL HOSE (B) ID=17.8	8-97356-077-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (B) ID=17.8	8-97356-077-0	04	1	0211-	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0211-	●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0211-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	02	1	0211-			●
39	03.163 PIPE; FUEL LONG(TF***F)	8-97235-102-5	01	1	0211-	●
39	03.163 PIPE; FUEL EXTRA LONG(TF***K)	8-97236-148-2	01	1	0211-	●
39	03.163 PIPE; FUEL LONG(TF***F)	8-97235-091-1	01	1	0211-		●
39	03.163 PIPE; FUEL EXTRA LONG(TF***K)	8-97236-137-1	01	1	0211-		●
39	03.163 PIPE; FUEL 4X2 LONG(TFB**F)	8-97235-089-2	01	1	0211-			●
39	03.163 PIPE; FUEL 4X2 EXTRA LONG(TFB**K)	8-97236-135-2	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	02	1	0211-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0211-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0307-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0307-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) (D) ID=8 & 8	8-97249-908-0	01	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) (D) ID=8 & 8	8-97249-908-0	01	1	0307-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0211-			●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0211-	●
100	03.162 CLIP; FUEL PIPE (H)	8-97219-442-0	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0211-		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (D) ID=8 & 8	8-97249-908-0	01	1	0211-		●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97215-362-4	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET CREW CAB LONG(TF**WF) A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97215-230-5	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET A/T AISIN(RMD) (F)	8-97215-169-0	01	1	0211-		●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (G)	8-97215-170-0	01	1	0211-		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0211-			●

350 24 15 15 24 24 24 24 39 307 100 98 100 199 15 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0211-	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0211-	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0211-	●
15	03.162 CLIP; FUEL PIPE 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-		●
15	03.162 CLIP; FUEL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (D) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0211-		●	●
24	03.162 CLIP; FUEL HOSE (B) ID=17.8	8-97356-077-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (B) ID=17.8	8-97356-077-0	04	1	0211-	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0211-	●
24	03.162 CLIP; FUEL HOSE (C) ID=13.2 & 11.5	8-97230-081-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (F) ID=11.5	8-97138-011-0	02	1	0211-			●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	02	1	0211-			●
39	03.163 PIPE; FUEL LONG(TF***F)	8-97235-102-5	01	1	0211-	●
39	03.163 PIPE; FUEL EXTRA LONG(TF***K)	8-97236-148-2	01	1	0211-	●
39	03.163 PIPE; FUEL LONG(TF***F)	8-97235-091-1	01	1	0211-		●
39	03.163 PIPE; FUEL EXTRA LONG(TF***K)	8-97236-137-1	01	1	0211-		●
39	03.163 PIPE; FUEL 4X2 LONG(TFB**F)	8-97235-089-2	01	1	0211-			●
39	03.163 PIPE; FUEL 4X2 EXTRA LONG(TFB**K)	8-97236-135-2	01	1	0211-			●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE	0-28650-620-0	03	1	0211-	●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2 SINGLE CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) (C) M6X20 FLANGE	0-28650-620-0	03	1	0211-			●
98	03.162 BOLT; BRKT,FUEL PIPE A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0211-		●
98	03.162 BOLT; BRKT,FUEL PIPE A/T AISIN(RMD) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0211-		●
100	03.162 CLIP; FUEL PIPE 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	02	1	0211-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0211-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0307-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0307-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) (D) ID=8 & 8	8-97249-908-0	01	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) (D) ID=8 & 8	8-97249-908-0	01	1	0307-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0211-			●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0211-	●
100	03.162 CLIP; FUEL PIPE (H)	8-97219-442-0	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0211-		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (D) ID=8 & 8	8-97249-908-0	01	1	0211-		●
199	03.162 PROTECTOR; FUEL PIPE A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (A)	8-97331-826-0	01	1	0211-0302	●
199	03.162 PROTECTOR; FUEL PIPE A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (A)	8-97365-105-0	01	1	0303-	●
199	03.162 PROTECTOR; FUEL PIPE (B)	8-97215-320-3	01	1	0211-		●
199	03.162 PROTECTOR; FUEL PIPE (C)	8-97249-758-0	01	1	0211-			●
199	03.162 PROTECTOR; FUEL PIPE (D)	8-97250-143-0	01	1	0211-			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN L=90 SERVICED BY L=3000	0-01662-300-0	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97215-362-4	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET CREW CAB LONG(TF**WF) A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97215-230-5	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET A/T AISIN(RMD) (F)	8-97215-169-0	01	1	0211-		●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (G)	8-97215-170-0	01	1	0211-		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0211-			●

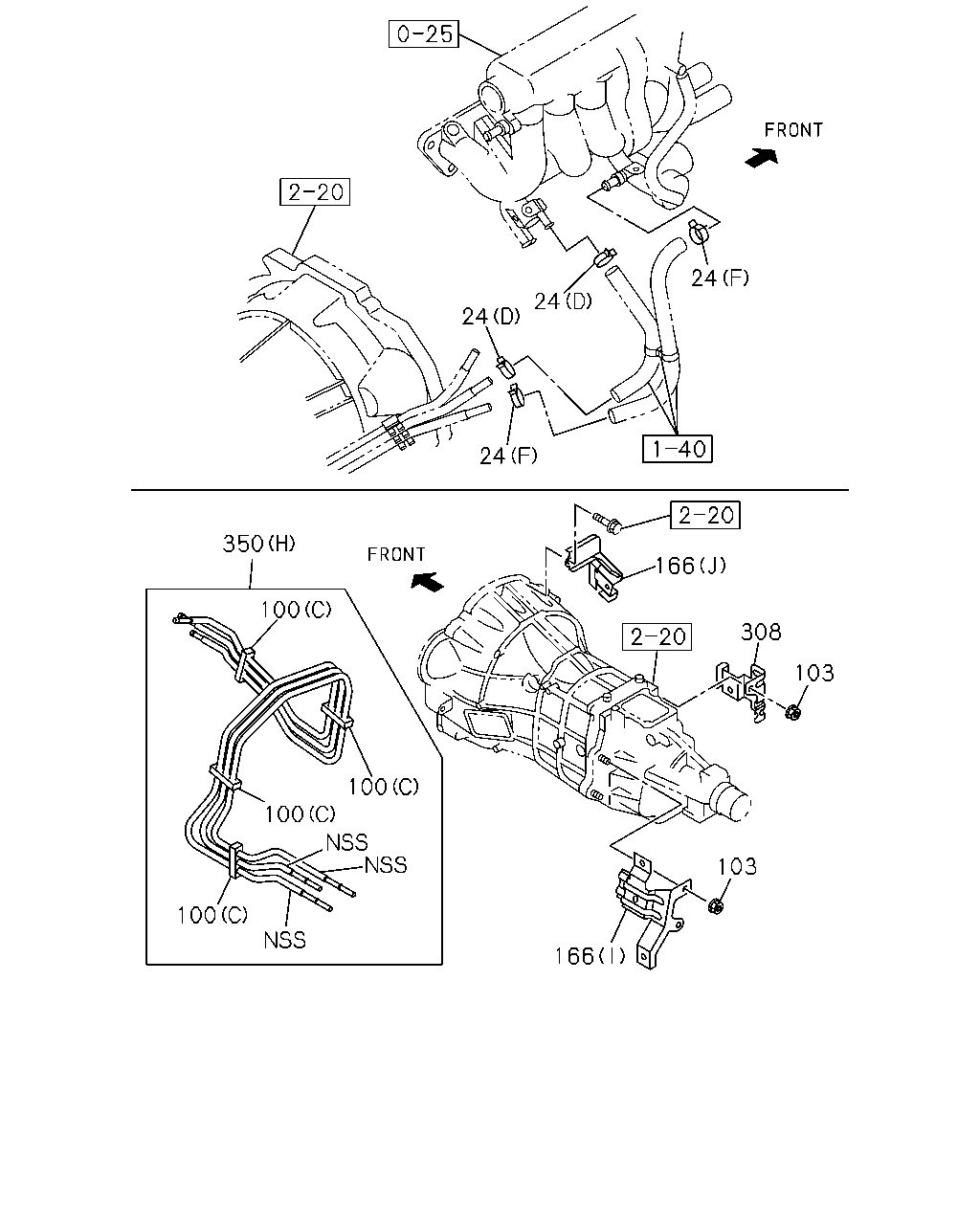

166 166 103 350 100 100 100 100 100 103 166 166 350 103 166 100 100 100 100 98 100 98 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
98	03.162 BOLT; BRKT,FUEL PIPE 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (C) M6X20 FLANGE	0-28650-620-0	03	1	0211-	●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2 SINGLE CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) (C) M6X20 FLANGE	0-28650-620-0	03	1	0211-			●
98	03.162 BOLT; BRKT,FUEL PIPE A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0211-		●
98	03.162 BOLT; BRKT,FUEL PIPE A/T AISIN(RMD) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0211-		●
100	03.162 CLIP; FUEL PIPE 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	02	1	0211-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0211-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0307-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0307-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) (D) ID=8 & 8	8-97249-908-0	01	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) (D) ID=8 & 8	8-97249-908-0	01	1	0307-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0211-			●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0211-	●
100	03.162 CLIP; FUEL PIPE (H)	8-97219-442-0	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0211-		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (D) ID=8 & 8	8-97249-908-0	01	1	0211-		●
103	03.130 NUT; BRKT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 06.168 M10 FLANGE	8-94242-425-0	02	1	0211-	●	●
103	03.130 NUT; BRKT 06.168 M10 FLANGE	8-94242-425-0	01	1	0211-		●
103	03.130 NUT; BRKT 06.168 M10 FLANGE	8-94242-425-0	03	1	0211-			●
166	03.162 PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK) (A)	8-97215-314-2	01	1	0211-	●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97215-311-3	01	1	0211-	●
166	03.162 PROTECTOR; FUEL HOSE A/T AISIN(RMD) (C)	8-97215-306-2	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE A/T AISIN(RMD) (D)	8-97215-307-1	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE A/T AISIN(RMD) (E)	8-97309-670-0	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (F)	8-97215-304-2	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (G)	8-97309-507-1	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (H)	8-97310-176-0	01	1	0211-		●
166	03.162 PROTECTOR; FUEL HOSE (I)	8-97215-308-0	01	1	0211-			●
166	03.162 PROTECTOR; FUEL HOSE (J)	8-97215-406-1	01	1	0211-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97215-229-5	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97215-362-4	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET CREW CAB LONG(TF**WF) A/T 4 SPEED-JATCO(RMK) (B)	8-97309-212-3	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) (E)	8-97250-528-6	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97250-528-6	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) (D)	8-97250-527-3	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97215-230-5	01	1	0211-	●
350	03.163 PIPE; FUEL,DEL & RET A/T AISIN(RMD) (F)	8-97215-169-0	01	1	0211-		●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (G)	8-97215-170-0	01	1	0211-		●
350	03.163 PIPE; FUEL,DEL & RET (H)	8-97215-167-0	01	1	0211-			●

39 100 100 100 100 100 100 100 100 39 100 100 100 100 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	03.163 PIPE; FUEL LONG(TF***F)	8-97235-102-5	01	1	0211-	●
39	03.163 PIPE; FUEL EXTRA LONG(TF***K)	8-97236-148-2	01	1	0211-	●
39	03.163 PIPE; FUEL LONG(TF***F)	8-97235-091-1	01	1	0211-		●
39	03.163 PIPE; FUEL EXTRA LONG(TF***K)	8-97236-137-1	01	1	0211-		●
39	03.163 PIPE; FUEL 4X2 LONG(TFB**F)	8-97235-089-2	01	1	0211-			●
39	03.163 PIPE; FUEL 4X2 EXTRA LONG(TFB**K)	8-97236-135-2	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	02	1	0211-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0211-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0307-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0307-		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD) (D) ID=8 & 8	8-97249-908-0	01	1	0211-0306		●
100	03.162 CLIP; FUEL PIPE A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP), M/T MUA 5 SPEED 5S(RSQ) (D) ID=8 & 8	8-97249-908-0	01	1	0307-		●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	04	1	0211-			●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0211-	●
100	03.162 CLIP; FUEL PIPE (H)	8-97219-442-0	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	0211-			●
100	03.162 CLIP; FUEL PIPE (F)	8-97251-123-0	01	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE (G)	8-97251-125-0	01	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE (E)	8-97251-128-0	02	1	0211-		●	●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.680 (B) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (C) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	03	1	0211-		●
100	03.162 CLIP; FUEL PIPE M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (D) ID=8 & 8	8-97249-908-0	01	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
