Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#48601) — 178 parça

95 25 78 78 93 623 578 624 83 571 80 81 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	03.028 CAP; FILLER,FUEL TANK RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-22660-003-0	01	1	0211-	●	●	●
78	03.003 CLIP; BREATHER HOSE SPACE CAB LONG(TF**CF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-305-1	01	1	0211-		●	●
78	03.003 CLIP; BREATHER HOSE SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK (S7S) (A)	8-97942-305-1	01	1	0211-		●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB LONG(TF**WF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-839-0	01	1	0211-		●	●
78	03.003 CLIP; BREATHER HOSE 4X2 CREW CAB(TFBW) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-839-0	01	1	0211-	●
78	03.003 CLIP; BREATHER HOSE 01.166 (B) ID=28	9-09915-421-1	01	1	0211-	●	●	●
78	03.003 CLIP; BREATHER HOSE EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.166 (B) ID=28	9-09915-421-1	01	1	0211-	●	●	●
80	03.008 CLIP; FILLER HOSE RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97942-304-1	01	1	0211-	●	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0211-	●	●	●
81	03.003 HOSE; FUEL FILLER SPACE CAB LONG(TF**CF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-300-0	01	1	0211-		●	●
81	03.003 HOSE; FUEL FILLER SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK (S7S) (A)	8-97942-300-0	01	1	0211-		●	●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-301-0	01	1	0211-		●	●
81	03.003 HOSE; FUEL FILLER 4X2 CREW CAB(TFBW) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-301-0	01	1	0211-	●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)	8-97943-445-0	01	1	0303-	●	●	●
81	03.003 HOSE; FUEL FILLER EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97941-897-3	01	1	0211-0302	●	●	●
81	03.003 HOSE; FUEL FILLER SPACE CAB LONG(TF**CF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)	8-97941-897-3	01	1	0303-	●	●	●
81	03.003 HOSE; FUEL FILLER EXTRA LONG(TF***K) (B)	8-97941-897-3	01	1	0303-	●	●	●
81	03.003 HOSE; FUEL FILLER SINGLE CAB LONG(TF**SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97941-897-3	01	1	0303-	●	●	●
83	03.003 NECK; FUEL FILLER SPACE CAB LONG(TF**CF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97943-301-0	01	1	0211-		●
83	03.003 NECK; FUEL FILLER SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK (S7S) (A)	8-97943-301-0	01	1	0211-		●
83	03.003 NECK; FUEL FILLER SPACE CAB LONG(TF**CF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97943-302-0	01	1	0211-			●
83	03.003 NECK; FUEL FILLER SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK (S7S) (A)	8-97943-302-0	01	1	0211-			●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97943-305-0	01	1	0211-			●
83	03.003 NECK; FUEL FILLER 4X2 CREW CAB(TFBW) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97943-305-0	01	1	0211-	●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97943-304-0	01	1	0211-		●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)	8-97365-618-0	01	1	0303-		●
83	03.003 NECK; FUEL FILLER EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97305-635-1	01	1	0211-0302		●
83	03.003 NECK; FUEL FILLER SPACE CAB LONG(TF**CF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)	8-97305-635-1	01	1	0303-		●
83	03.003 NECK; FUEL FILLER EXTRA LONG(TF***K) (B)	8-97305-635-1	01	1	0303-		●
83	03.003 NECK; FUEL FILLER SINGLE CAB LONG(TF**SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97305-635-1	01	1	0303-		●
83	03.003 NECK; FUEL FILLER 4X4 SPACE CAB EXTRA LONG(TFS5CK) (B)	8-97305-635-1	01	1	0303-	●		●
83	03.003 NECK; FUEL FILLER EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97942-662-0	01	1	0211-	●		●
93	03.003 HOSE; BREATHER,FUEL TANK SPACE CAB LONG(TF**CF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-302-0	01	1	0211-		●	●
93	03.003 HOSE; BREATHER,FUEL TANK SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK (S7S) (A)	8-97942-302-0	01	1	0211-		●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-303-0	01	1	0211-		●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 CREW CAB(TFBW) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-303-0	01	1	0211-	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)	8-97943-446-0	01	1	0303-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97305-696-1	01	1	0211-0302	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK SPACE CAB LONG(TF**CF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)	8-97305-696-1	01	1	0303-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTRA LONG(TF***K) (B)	8-97305-696-1	01	1	0303-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK SINGLE CAB LONG(TF**SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97305-696-1	01	1	0303-	●	●	●
95	03.028 SCREW; FILLER NECK RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A)	8-97301-166-0	01	1	0211-	●	●	●
95	03.028 SCREW; FILLER NECK EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 12.182 (B) M6X16	8-94381-646-0	02	1	0211-	●	●	●
571	03.001 GROMMET 07.068	8-97313-474-0	01	1	0211-		●
571	03.001 GROMMET 4X4 SPACE CAB EXTRA LONG(TFS5CK) 07.068	8-97313-474-0	01	1	0211-	●		●
578	03.001 TUBE; FUEL,EVAPO	8-97943-142-0	01	1	0211-	●		●

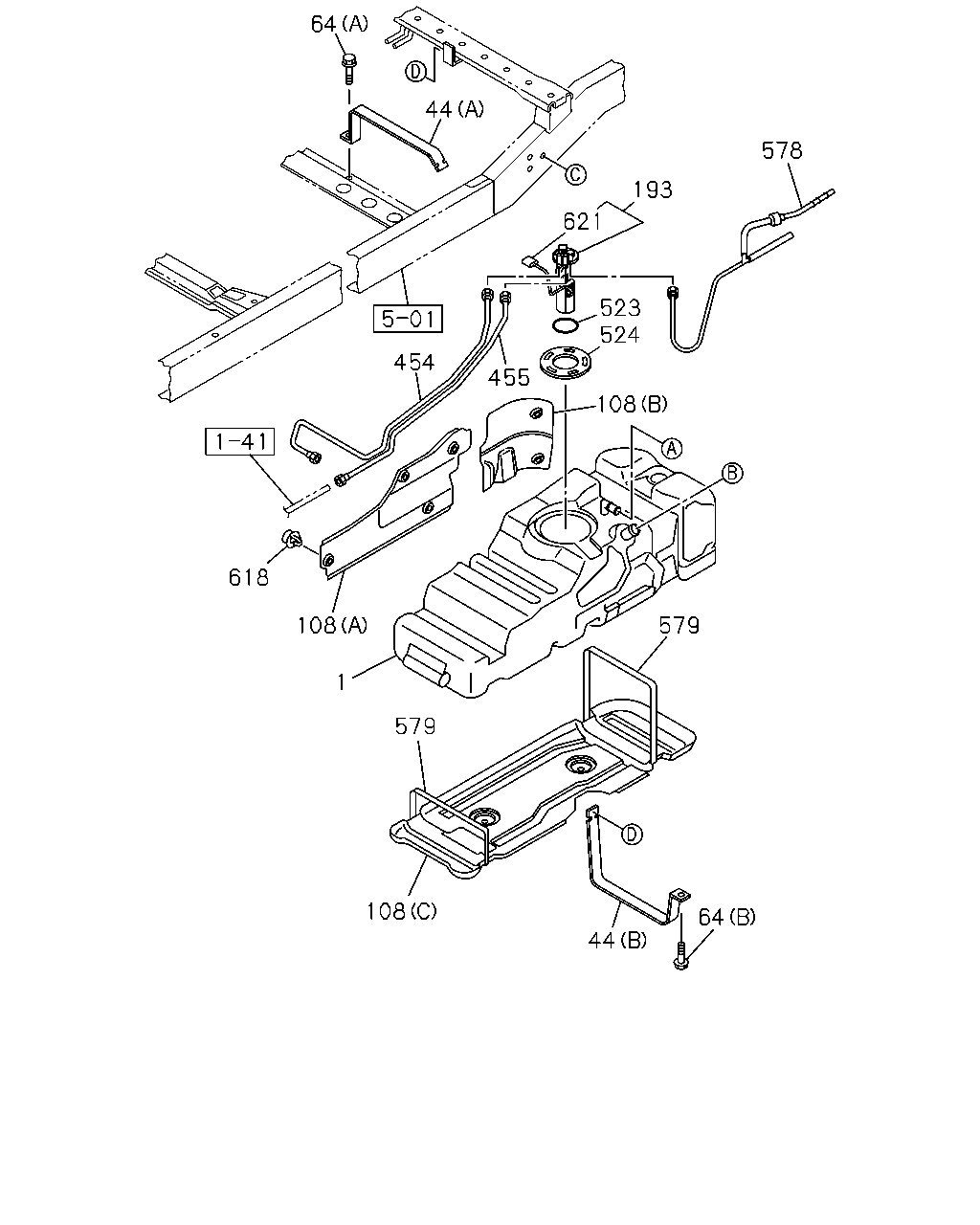

64 44 578 193 621 523 524 454 455 108 618 108 579 1 579 108 64 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL	8-97943-134-0	01	1	0211-0304		●
1	03.001 TANK; FUEL	8-97943-741-0	01	1	0305-		●
1	03.001 TANK; FUEL	8-97943-133-0	01	1	0211-	●		●
44	03.023 BAND; FUEL TANK (A)	8-97942-717-0	01	1	0211-	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97942-718-0	01	1	0211-	●	●	●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0211-	●	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0211-	●	●	●
108	03.015 PROTECTOR; FUEL TANK (A)	8-97943-299-0	01	1	0211-	●		●
108	03.015 PROTECTOR; FUEL TANK (C)	8-97943-300-0	01	1	0211-		●	●
108	03.015 PROTECTOR; FUEL TANK (B)	8-97329-243-2	01	1	0211-	●		●
193	03.107 PUMP; FUEL	8-97943-087-0	01	1	0211-		●
193	03.107 PUMP; FUEL	8-97943-075-0	01	1	0211-	●		●
454	03.163 PIPE; FUEL,DELIVERY	8-97329-239-0	01	1	0211-	●		●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0211-		●
455	03.163 PIPE; FUEL,RETURN	8-97942-272-0	01	1	0211-0302	●	●	●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0303-	●	●	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0211-		●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	0211-	●		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0211-	●	●	●
578	03.001 TUBE; FUEL,EVAPO	8-97943-142-0	01	1	0211-	●		●
579	03.022 BAND; FUEL TANK TO PROTECTOR	8-97329-245-0	02	1	0211-		●	●
618	03.107 RETAINER; FUEL TANK	8-97329-244-1	04	1	0211-	●		●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131	8-97943-180-0	01	1	0211-		●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131	8-97943-178-0	01	1	0211-	●		●

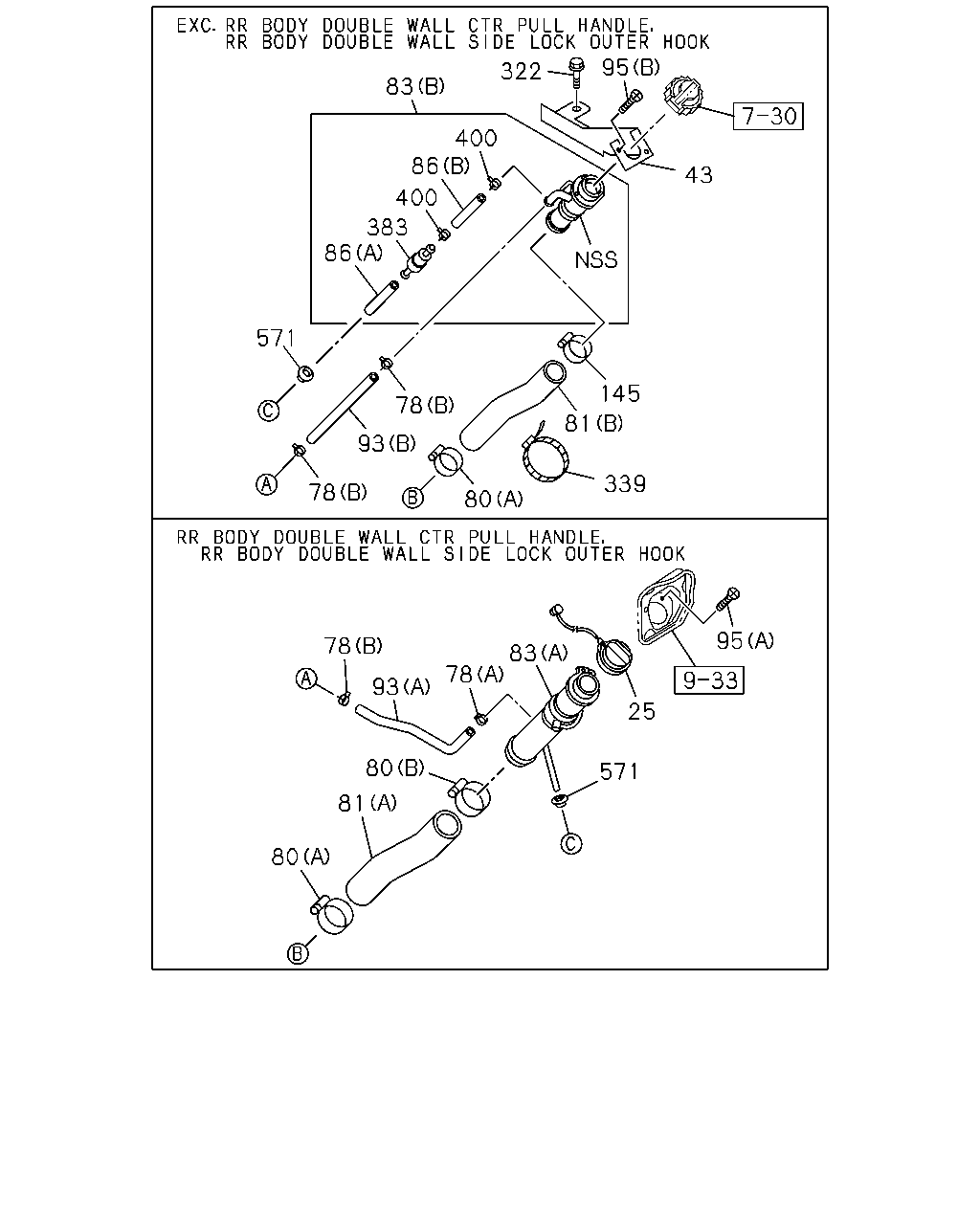

95 322 83 400 86 43 400 383 86 571 145 78 81 93 339 78 80 95 78 83 78 93 25 80 571 81 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	03.028 CAP; FILLER,FUEL TANK RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-22660-003-0	01	1	0211-	●	●	●
43	03.015 BRACKET; FUEL TANK CREW CAB LONG(TF**WF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R)	8-97943-444-0	01	1	0303-	●	●	●
43	03.015 BRACKET; FUEL TANK EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97941-908-1	01	1	0211-0302	●	●	●
43	03.015 BRACKET; FUEL TANK SPACE CAB LONG(TF**CF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R)	8-97941-908-1	01	1	0303-	●	●	●
43	03.015 BRACKET; FUEL TANK EXTRA LONG(TF***K)	8-97941-908-1	01	1	0303-	●	●	●
43	03.015 BRACKET; FUEL TANK SINGLE CAB LONG(TF**SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97941-908-1	01	1	0303-	●	●	●
78	03.003 CLIP; BREATHER HOSE SPACE CAB LONG(TF**CF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-305-1	01	1	0211-		●	●
78	03.003 CLIP; BREATHER HOSE SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK (S7S) (A)	8-97942-305-1	01	1	0211-		●	●
78	03.003 CLIP; BREATHER HOSE CREW CAB LONG(TF**WF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-839-0	01	1	0211-		●	●
78	03.003 CLIP; BREATHER HOSE 4X2 CREW CAB(TFBW) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-839-0	01	1	0211-	●
78	03.003 CLIP; BREATHER HOSE 01.166 (B) ID=28	9-09915-421-1	01	1	0211-	●	●	●
78	03.003 CLIP; BREATHER HOSE EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.166 (B) ID=28	9-09915-421-1	01	1	0211-	●	●	●
80	03.008 CLIP; FILLER HOSE RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97942-304-1	01	1	0211-	●	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=54	9-09915-412-1	01	1	0211-	●	●	●
81	03.003 HOSE; FUEL FILLER SPACE CAB LONG(TF**CF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-300-0	01	1	0211-		●	●
81	03.003 HOSE; FUEL FILLER SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK (S7S) (A)	8-97942-300-0	01	1	0211-		●	●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-301-0	01	1	0211-		●	●
81	03.003 HOSE; FUEL FILLER 4X2 CREW CAB(TFBW) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-301-0	01	1	0211-	●
81	03.003 HOSE; FUEL FILLER CREW CAB LONG(TF**WF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)	8-97943-445-0	01	1	0303-	●	●	●
81	03.003 HOSE; FUEL FILLER EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97941-897-3	01	1	0211-0302	●	●	●
81	03.003 HOSE; FUEL FILLER SPACE CAB LONG(TF**CF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)	8-97941-897-3	01	1	0303-	●	●	●
81	03.003 HOSE; FUEL FILLER EXTRA LONG(TF***K) (B)	8-97941-897-3	01	1	0303-	●	●	●
81	03.003 HOSE; FUEL FILLER SINGLE CAB LONG(TF**SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97941-897-3	01	1	0303-	●	●	●
83	03.003 NECK; FUEL FILLER SPACE CAB LONG(TF**CF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97943-301-0	01	1	0211-		●
83	03.003 NECK; FUEL FILLER SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK (S7S) (A)	8-97943-301-0	01	1	0211-		●
83	03.003 NECK; FUEL FILLER SPACE CAB LONG(TF**CF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97943-302-0	01	1	0211-			●
83	03.003 NECK; FUEL FILLER SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK (S7S) (A)	8-97943-302-0	01	1	0211-			●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97943-305-0	01	1	0211-			●
83	03.003 NECK; FUEL FILLER 4X2 CREW CAB(TFBW) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97943-305-0	01	1	0211-	●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97943-304-0	01	1	0211-		●
83	03.003 NECK; FUEL FILLER CREW CAB LONG(TF**WF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)	8-97365-618-0	01	1	0303-		●
83	03.003 NECK; FUEL FILLER EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97305-635-1	01	1	0211-0302		●
83	03.003 NECK; FUEL FILLER SPACE CAB LONG(TF**CF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)	8-97305-635-1	01	1	0303-		●
83	03.003 NECK; FUEL FILLER EXTRA LONG(TF***K) (B)	8-97305-635-1	01	1	0303-		●
83	03.003 NECK; FUEL FILLER SINGLE CAB LONG(TF**SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97305-635-1	01	1	0303-		●
83	03.003 NECK; FUEL FILLER 4X4 SPACE CAB EXTRA LONG(TFS5CK) (B)	8-97305-635-1	01	1	0303-	●		●
83	03.003 NECK; FUEL FILLER EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97942-662-0	01	1	0211-	●		●
86	03.163 HOSE; EVAP CREW CAB LONG(TF**WF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) L=360 SERVICED BY L=3000	8-94128-826-0	01	1	0303-		●
86	03.163 HOSE; EVAP EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0211-0302		●
86	03.163 HOSE; EVAP SPACE CAB LONG(TF**CF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0303-		●
86	03.163 HOSE; EVAP EXTRA LONG(TF***K) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0303-		●
86	03.163 HOSE; EVAP SINGLE CAB LONG(TF**SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0303-		●
86	03.163 HOSE; EVAP 4X4 SPACE CAB EXTRA LONG(TFS5CK) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0303-	●		●
86	03.163 HOSE; EVAP EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) L=80 SERVICED BY L=3000	8-94128-826-0	01	1	0211-		●
93	03.003 HOSE; BREATHER,FUEL TANK SPACE CAB LONG(TF**CF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-302-0	01	1	0211-		●	●
93	03.003 HOSE; BREATHER,FUEL TANK SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK (S7S) (A)	8-97942-302-0	01	1	0211-		●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-303-0	01	1	0211-		●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 CREW CAB(TFBW) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) (A)	8-97942-303-0	01	1	0211-	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB LONG(TF**WF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)	8-97943-446-0	01	1	0303-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97305-696-1	01	1	0211-0302	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK SPACE CAB LONG(TF**CF) EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)	8-97305-696-1	01	1	0303-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXTRA LONG(TF***K) (B)	8-97305-696-1	01	1	0303-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK SINGLE CAB LONG(TF**SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97305-696-1	01	1	0303-	●	●	●
95	03.028 SCREW; FILLER NECK RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) ,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A)	8-97301-166-0	01	1	0211-	●	●	●
95	03.028 SCREW; FILLER NECK EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 12.182 (B) M6X16	8-94381-646-0	02	1	0211-	●	●	●
145	03.162 CLIP; HOSE,FILLER NECK EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 03.609 ID=57	9-09915-036-1	01	1	0211-	●	●	●
322	03.895 BOLT; BRKT FIX EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) M12X25 FLANGE	0-28651-225-0	01	1	0211-	●	●	●
339	03.162 CLIP; BAND,FUEL HOSE EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 03.008 L=330	5-09709-118-0	02	1	0211-	●	●	●
383	03.162 VALVE; 2 WAY EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97178-373-0	01	1	0211-		●
400	03.162 CLIP; HOSE,EVAP EXC. RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) ID=8.5	8-94166-071-0	02	1	0211-		●
571	03.001 GROMMET 07.068	8-97313-474-0	01	1	0211-		●
571	03.001 GROMMET 4X4 SPACE CAB EXTRA LONG(TFS5CK) 07.068	8-97313-474-0	01	1	0211-	●		●

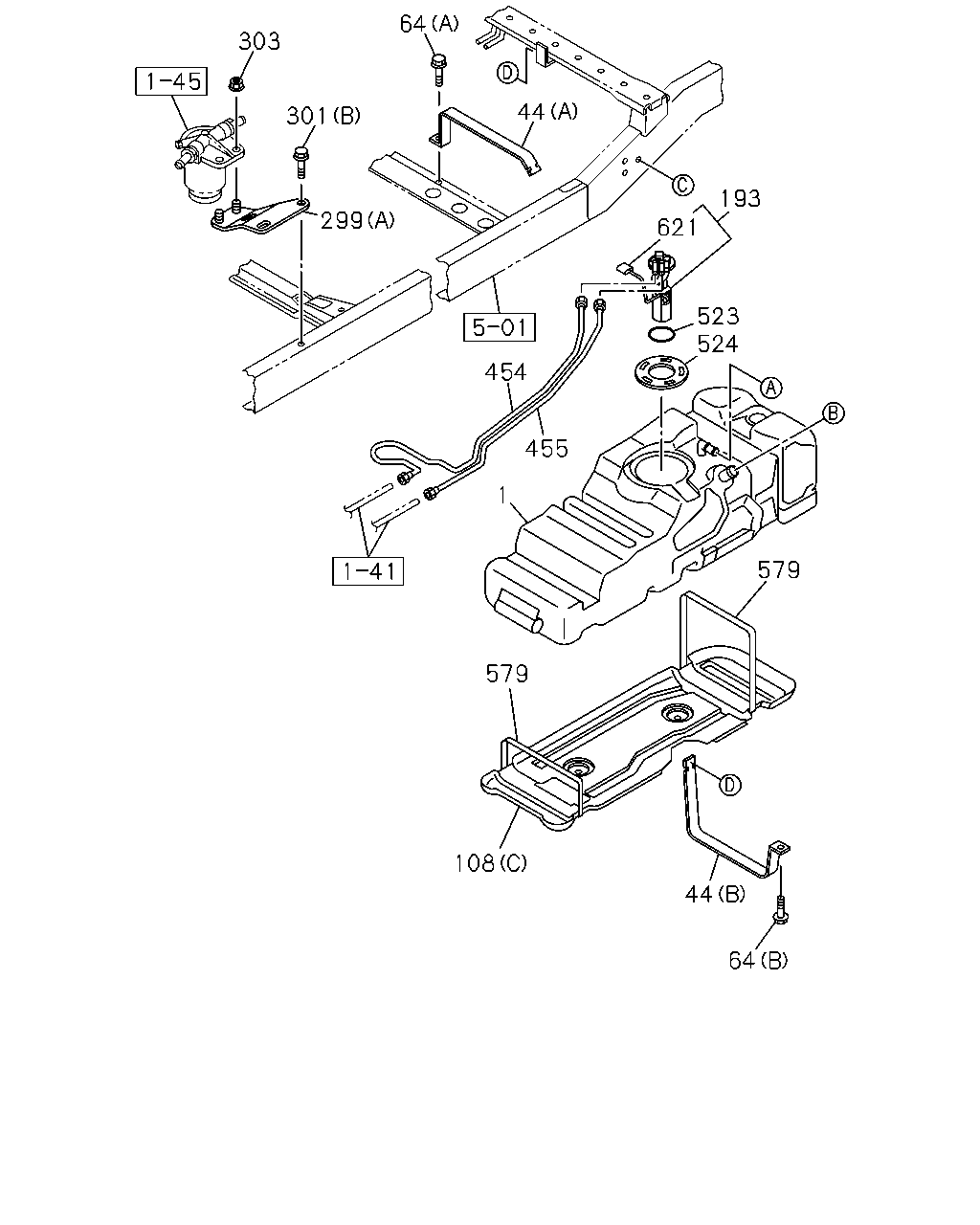

64 303 44 301 193 299 621 523 524 454 455 1 579 579 108 44 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL	8-97943-134-0	01	1	0211-0304		●
1	03.001 TANK; FUEL	8-97943-741-0	01	1	0305-		●
1	03.001 TANK; FUEL	8-97943-133-0	01	1	0211-	●		●
44	03.023 BAND; FUEL TANK (A)	8-97942-717-0	01	1	0211-	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97942-718-0	01	1	0211-	●	●	●
64	03.023 BOLT; FUEL TANK (A) M10X35 FLANGE	0-28661-035-0	01	1	0211-	●	●	●
64	03.023 BOLT; FUEL TANK (B) M10X50 FLANGE	8-97301-165-0	01	1	0211-	●	●	●
108	03.015 PROTECTOR; FUEL TANK (A)	8-97943-299-0	01	1	0211-	●		●
108	03.015 PROTECTOR; FUEL TANK (C)	8-97943-300-0	01	1	0211-		●	●
108	03.015 PROTECTOR; FUEL TANK (B)	8-97329-243-2	01	1	0211-	●		●
193	03.107 PUMP; FUEL	8-97943-087-0	01	1	0211-		●
193	03.107 PUMP; FUEL	8-97943-075-0	01	1	0211-	●		●
299	03.162 BRACKET; FUEL FILTER (A)	8-97263-630-1	01	1	0211-		●
299	03.162 BRACKET; FUEL FILTER (B)	8-97324-374-1	01	1	0211-		●
299	03.162 BRACKET; FUEL FILTER (C)	8-97324-375-2	01	1	0211-		●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (C) M8X25 FLANGE	0-28080-825-0	03	1	0303-		●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-		●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0211-0302		●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.559 (C) M8X25 FLANGE	0-28680-825-0	01	1	0303-		●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0211-		●
303	03.162 NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	0211-		●
454	03.163 PIPE; FUEL,DELIVERY	8-97329-239-0	01	1	0211-	●		●
454	03.163 PIPE; FUEL,DELIVERY	8-97942-271-1	01	1	0211-		●
455	03.163 PIPE; FUEL,RETURN	8-97942-272-0	01	1	0211-0302	●	●	●
455	03.163 PIPE; FUEL,RETURN	8-97943-512-0	01	1	0303-	●	●	●
523	03.008 SEAL; FUEL SENSOR	8-97943-141-0	01	1	0211-		●
523	03.008 SEAL; FUEL SENSOR	8-97942-307-0	01	1	0211-	●		●
524	03.028 RING; RETAINER	8-97942-306-0	01	1	0211-	●	●	●
579	03.022 BAND; FUEL TANK TO PROTECTOR	8-97329-245-0	02	1	0211-		●	●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131	8-97943-180-0	01	1	0211-		●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131	8-97943-178-0	01	1	0211-	●		●

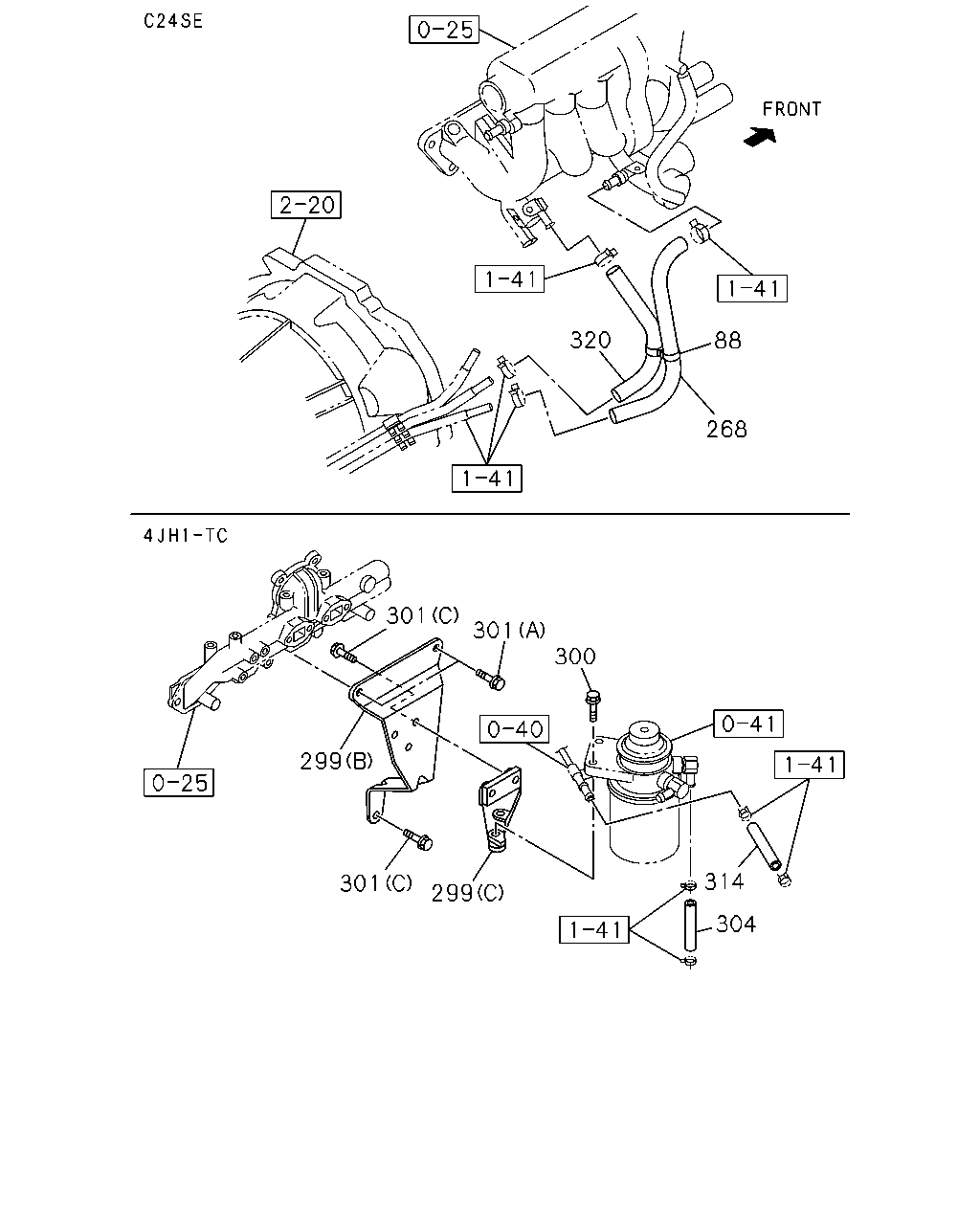

320 88 268 301 301 300 299 314 301 299 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	03.162 CLIP; FUEL HOSE ID=13.2 & 11.5	8-97230-081-0	01	1	0211-	●
268	03.163 HOSE; FUEL,DELIVERY	8-97351-788-0	01	1	0211-	●
299	03.162 BRACKET; FUEL FILTER (A)	8-97263-630-1	01	1	0211-		●
299	03.162 BRACKET; FUEL FILTER (B)	8-97324-374-1	01	1	0211-		●
299	03.162 BRACKET; FUEL FILTER (C)	8-97324-375-2	01	1	0211-		●
300	03.162 BOLT; BRKT TO BODY 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0211-0302		●
300	03.162 BOLT; BRKT TO BODY 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0303-		●
301	03.162 BOLT; BRKT TO SEDIMENTER 01.531 (C) M8X25 FLANGE	0-28080-825-0	03	1	0303-		●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-		●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0211-0302		●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.559 (C) M8X25 FLANGE	0-28680-825-0	01	1	0303-		●
301	03.162 BOLT; BRKT TO SEDIMENTER 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0211-		●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97321-644-0	01	1	0211-		●
314	03.163 HOSE; RUBBER,FUEL RETURN	8-97330-408-0	01	1	0211-		●
320	03.163 HOSE ASM; FUEL,RETURN	8-97351-789-0	01	1	0211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
