1-35 — CHARGE AIR COOLER
(#48600) — 15 parça
◀

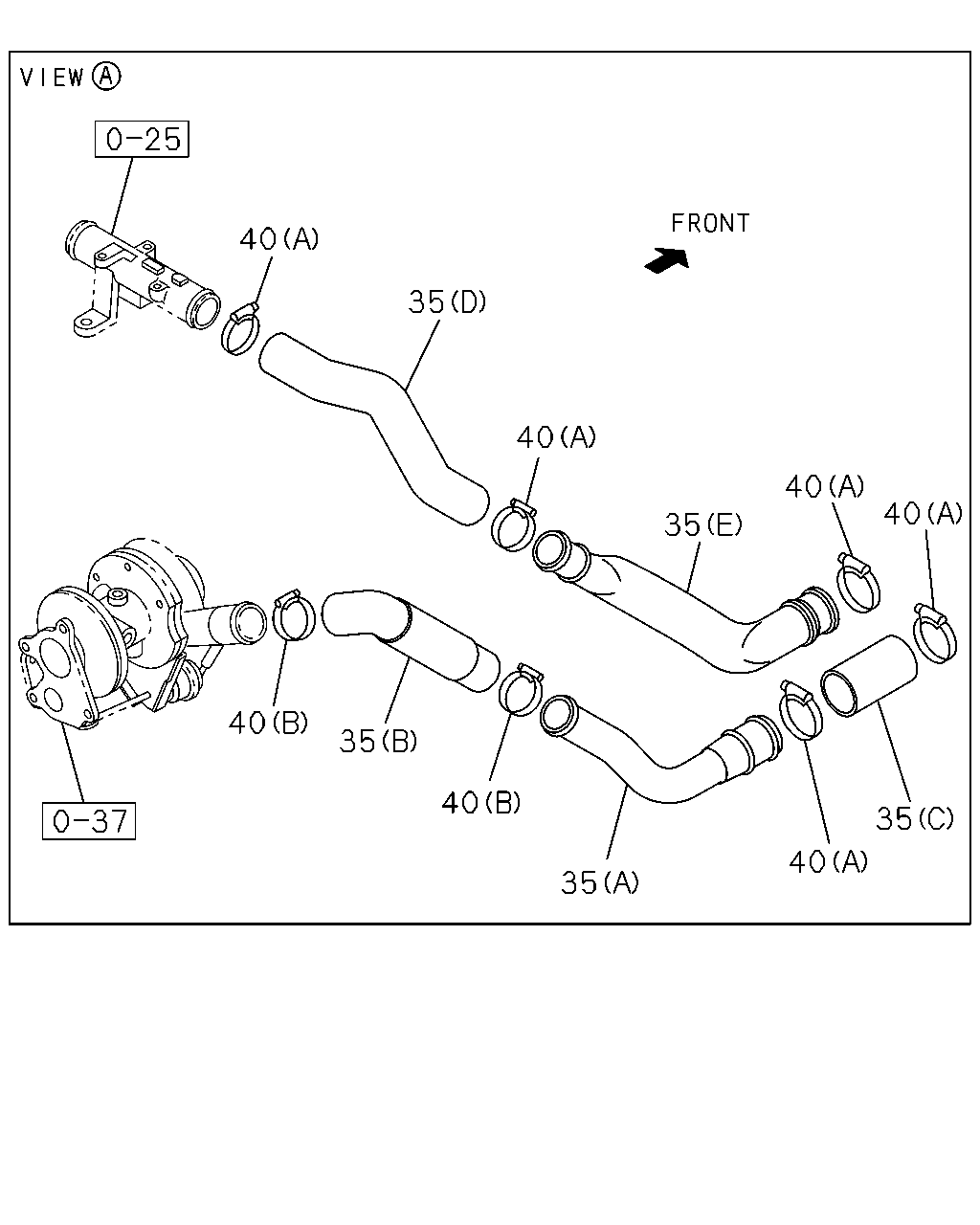

[135A] HOSE (8 parça)

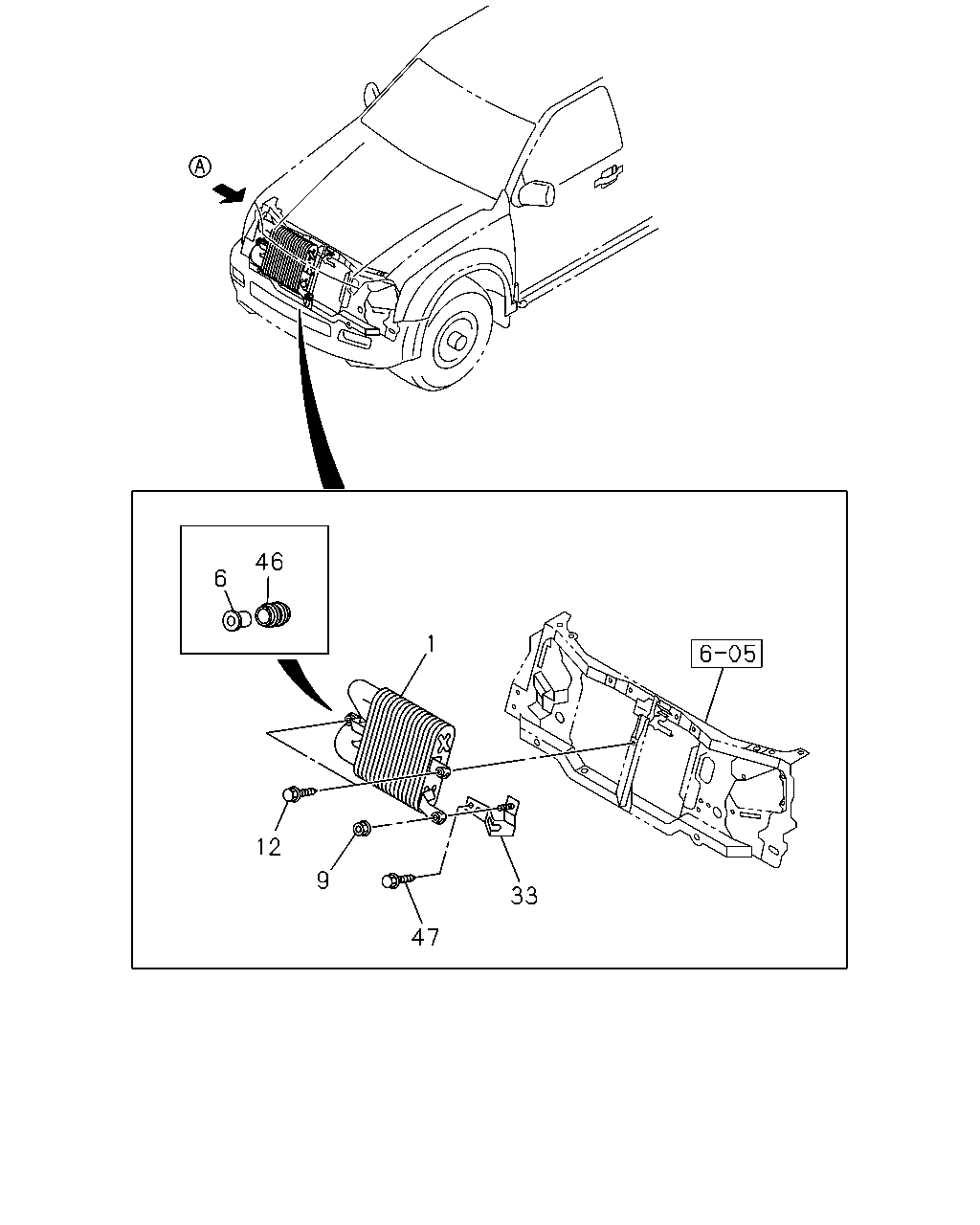

[135A] CHARGE AIR COOLER (7 parça)
▶
40
35
40
40
40
35
40
35
40
35
40
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
35
01.540 HOSE; CONNECTING
(A)
8-97312-440-1
01
1
0211-
35
01.540 HOSE; CONNECTING
(B)
8-97320-880-3
01
1
0211-
35
01.540 HOSE; CONNECTING
(C)
8-97320-881-2
01
1
0211-
35
01.540 HOSE; CONNECTING
(D)
8-97320-883-3
01
1
0211-
35
01.540 HOSE; CONNECTING
(E)
8-97350-016-0
01
1
0211-0212
35
01.540 HOSE; CONNECTING
(E)
8-97363-522-0
01
1
0301-
40
03.162 CLIP; RUBBER HOSE
03.407 (A) ID=50-69
1-09707-135-0
05
1
0211-
40
03.162 CLIP; RUBBER HOSE
01.166 (B) ID=44-60
8-94175-940-0
02
1
0211-
46
6
1
12
9
33
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.374 COOLER; CHARGE AIR
8-97234-910-4
01
1
0211-
6
01.540 COLLAR; MTG,CHARGE AIR COOLER
03.405
8-97942-932-0
03
1
0211-
9
01.540 NUT; CHARGE AIR COOLER
M8 FLANGE
0-91180-208-0
01
1
0211-
12
01.540 BOLT; CHARGE AIR COOLER
8-97943-079-0
02
1
0211-
33
01.540 BRACKET; CHARGE AIR COOLER,FRT
8-97326-994-0
01
1
0211-
46
01.540 RUBBER; MTG,CHARGE AIR COOLER
03.406
8-97942-930-0
03
1
0211-
47
01.540 BOLT; CHARGE AIR COOLER BRKT
01.531 M8X20 FLANGE
0-28650-820-0
02
1
0211-
