Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

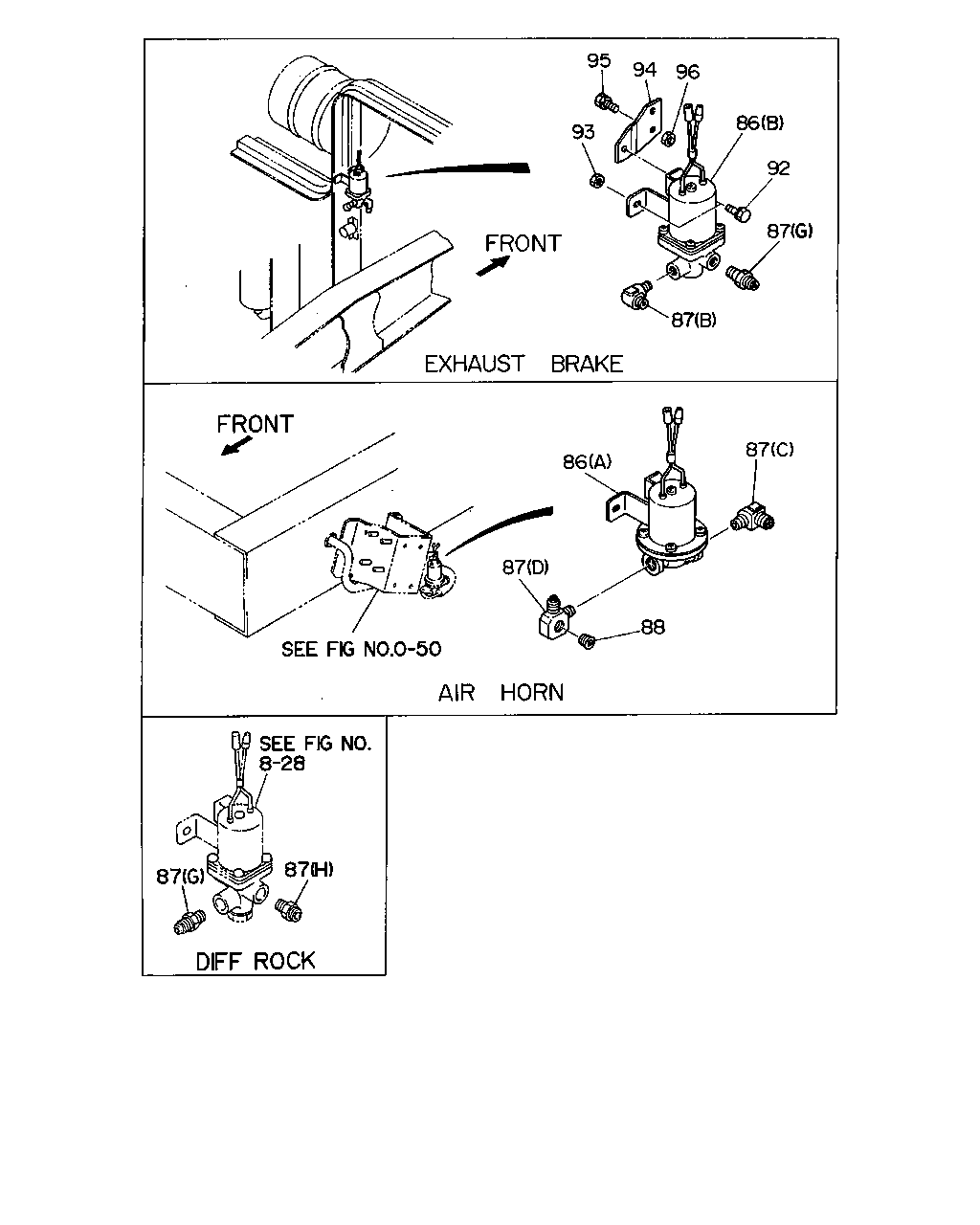

1-56B - EXHAUST BRAKE SYSTEM
▶
1-56B — EXHAUST BRAKE SYSTEM
(#486) — 34 parça
Tümü
A - 10PC1 STD ENG
B - 10PD1 STD ENG
95
94
96
93
86
92
87
87
86
87
88
87
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
86
VALVE; MAG,EXH BRK
(B)
1-82563-094-0
01
1
8712-9006
●
●
86
VALVE; MAG,EXH BRK
(B)
1-82563-172-0
01
1
9007-9012
●
86
VALVE; MAG,EXH BRK
(B)
1-82563-158-0
01
1
9101-9306
●
86
VALVE; MAG,EXH BRK
(A)
1-82563-095-0
01
1
8712-9001
●
86
VALVE; MAG,EXH BRK
(B)
1-82563-402-0
01
1
9307-
●
86
VALVE; MAG,EXH BRK
(A)
1-82563-299-1
01
1
9002-
●
87
CONNECTOR
(B) M20 & PT1/4 ELBOW
9-09903-467-0
01
1
8712-8901
●
87
CONNECTOR
(B) M20 & PT1/4 ELBOW
1-09660-137-0
01
1
8902-9302
●
●
87
CONNECTOR
(B) M20 & PT1/4 ELBOW
1-09660-681-0
01
1
9303-
●
87
CONNECTOR
(G) M12 & PT1/4 STRAIGHT
1-09650-074-0
01
1
8712-9001
●
87
CONNECTOR
(H) M20 & PT1/4
9-09902-386-0
01
1
8712-9001
●
87
CONNECTOR
(C) M14 & PT1/4 STRAIGHT
1-09650-332-1
01
1
9307-
●
87
CONNECTOR
(D)
1-09656-316-1
01
1
9307-
●
87
CONNECTOR
(C) M14
1-09650-031-0
01
1
9002-9103
●
87
CONNECTOR
(C) M14 & PT1/4 STRAIGHT
1-09650-332-1
01
1
9104-9306
●
87
CONNECTOR
(D)
1-09656-316-1
01
1
9002-9306
●
87
CONNECTOR
(G) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
9002-9306
●
87
CONNECTOR
(G) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
9002-9306
●
87
CONNECTOR
(H) M20 & PT1/4
9-09902-386-0
01
1
9002-9306
●
87
CONNECTOR
(G) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
9307-
●
88
PLUG
PT3/8
9-09204-517-0
01
1
8712-9306
●
●
88
PLUG
PT3/8
9-09204-517-0
01
1
9307-
●
92
BOLT; MAG VLV
M8X25 W/LK WASHER
9-01900-825-0
02
1
8712-9204
●
●
92
BOLT; MAG VLV
M8X25 W/LK WASHER
0-50040-825-0
02
1
9205-9302
●
92
BOLT; MAG VLV
M8X25 FLANGE
0-28080-825-0
02
1
9303-9306
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28080-820-0
02
1
9307-
●
93
NUT; MAG VLV
M8
9-09110-408-0
02
1
8712-9001
●
93
NUT; MAG VLV
M8
9-09110-408-0
01
1
9002-
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-026-2
01
1
8712-
●
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X25 W/LK WASHER
9-01900-825-0
02
1
8712-9204
●
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X25 W/LK WASHER
0-50040-825-0
02
1
9205-9302
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X25 FLANGE
0-28080-825-0
02
1
9303-9306
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
0-28080-820-0
02
1
9307-
●
96
NUT; BRKT,MAG VLV,EXH BRAKE
M8
9-09110-408-0
02
1
8712-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
