◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#48598) — 26 parça

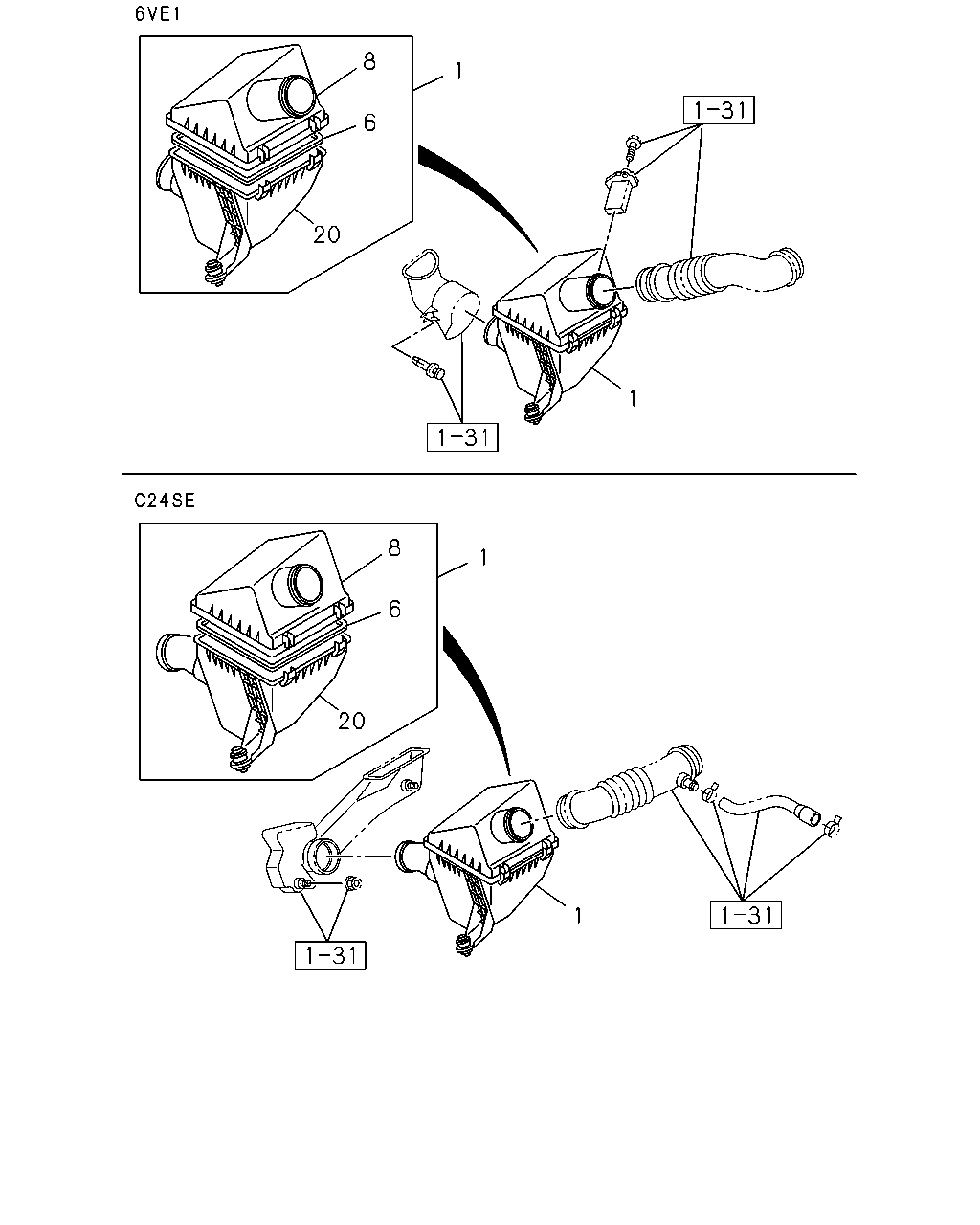

çizim 49549
8 1 6 20 1 8 1 6 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.402 CLEANER ASM; AIR 8-97307-747-1 01 1 0211- ●
1 03.402 CLEANER ASM; AIR 8-97249-067-3 01 1 0211- ●
1 03.402 CLEANER ASM; AIR 8-97234-199-2 01 1 0211- ●
6 03.410 FILTER; ACL 8-97941-655-0 01 1 0211- ●
6 03.410 FILTER; ACL 8-97251-944-0 01 1 0211- ● ●
8 03.410 COVER ASM; ACL 8-97357-103-0 01 1 0211- ●
8 03.410 COVER ASM; ACL 8-97321-552-2 01 1 0211- ●
8 03.410 COVER ASM; ACL 8-97329-271-0 01 1 0211- ●
20 03.406 CASE ASM; ACL 8-97321-551-2 01 1 0211- ●
20 03.406 CASE ASM; ACL 8-97324-499-2 01 1 0211- ●

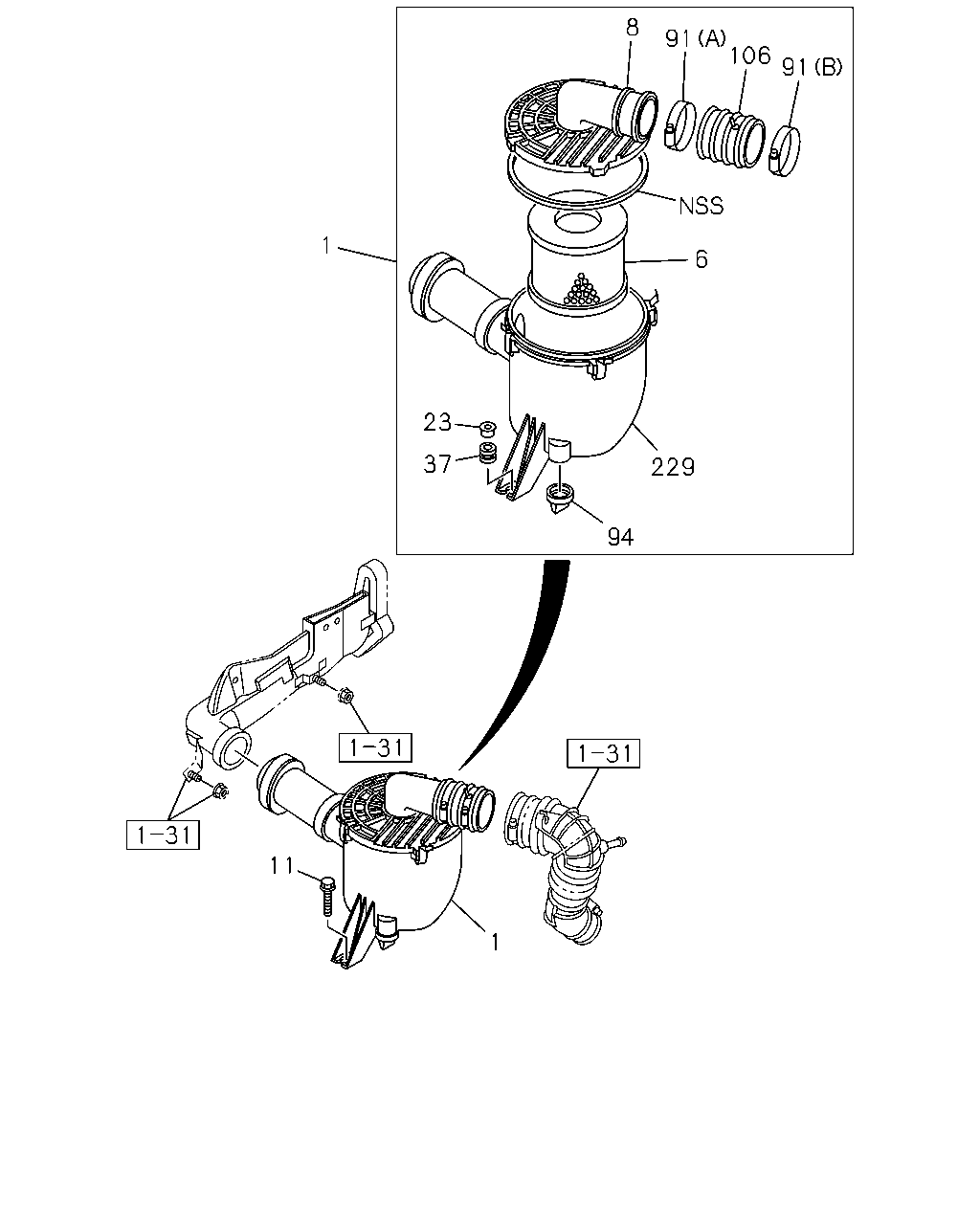

çizim 53533
8 91 106 91 1 6 23 37 229 94 11 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.402 CLEANER ASM; AIR 8-97307-747-1 01 1 0211- ●
1 03.402 CLEANER ASM; AIR 8-97249-067-3 01 1 0211- ●
1 03.402 CLEANER ASM; AIR 8-97234-199-2 01 1 0211- ●
6 03.410 FILTER; ACL 8-97941-655-0 01 1 0211- ●
6 03.410 FILTER; ACL 8-97251-944-0 01 1 0211- ● ●
8 03.410 COVER ASM; ACL 8-97357-103-0 01 1 0211- ●
8 03.410 COVER ASM; ACL 8-97321-552-2 01 1 0211- ●
8 03.410 COVER ASM; ACL 8-97329-271-0 01 1 0211- ●
11 03.403 BOLT; ACL
M8X30 FLANGE 		0-28650-830-0 03 1 0211- ●
23 03.405 COLLAR; ACL STAY 8-97942-932-0 03 1 0211- ●
37 03.406 RUBBER; MTG,ACL 8-97942-930-0 03 1 0211- ●
91 03.403 CLAMP
(A) 		8-97357-105-0 01 1 0211- ●
91 03.403 CLAMP
(B) 		8-97357-106-0 01 1 0211- ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 02 1 0211- ●
106 03.417 HOSE; CONN,ACL 8-97357-104-0 01 1 0211- ●
229 03.406 BODY ASM; ACL 8-97357-102-0 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
