1-11 — RADIATOR HOSE AND SUB TANK (#48597) — 30 parça

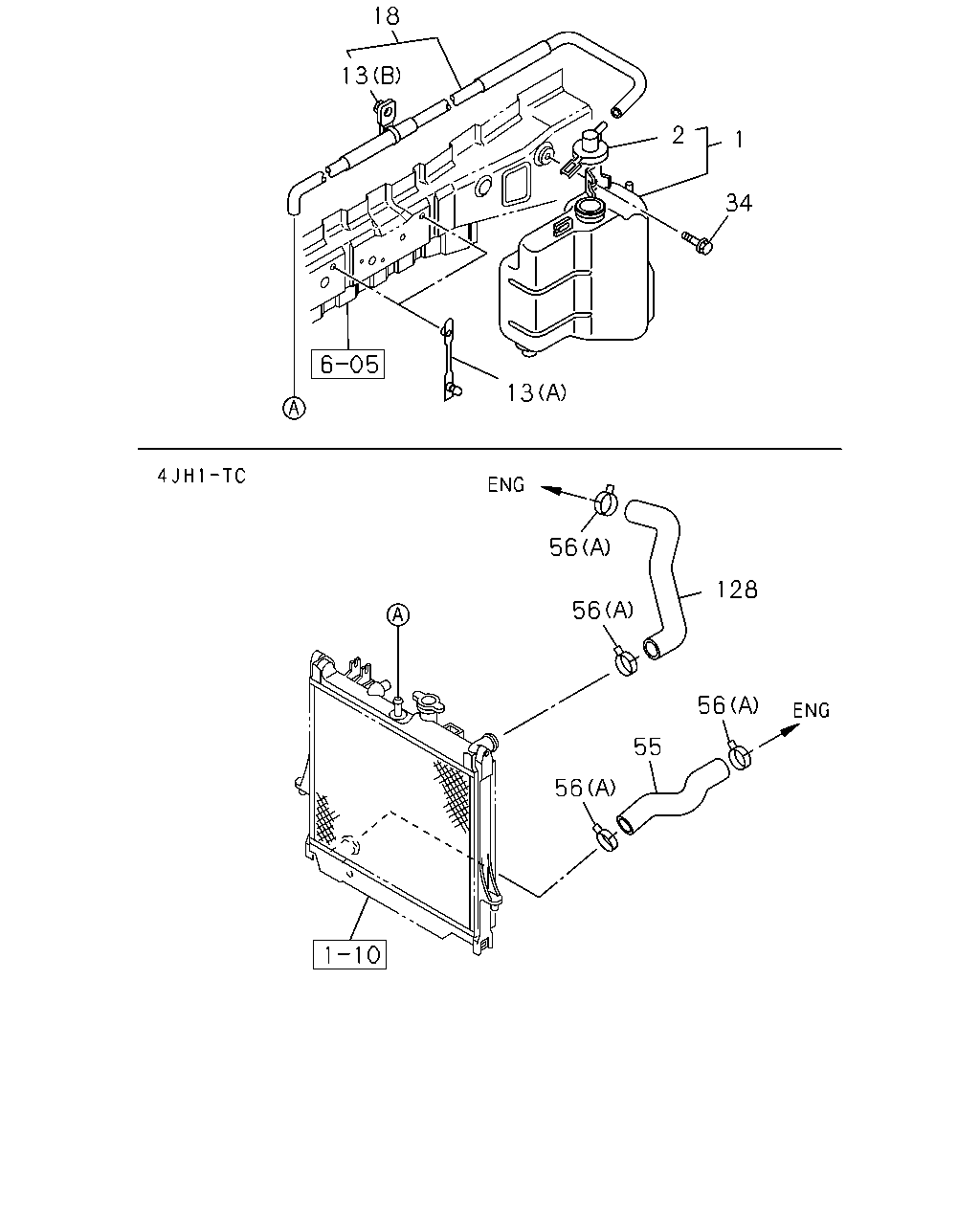

çizim 47878
18 13 2 1 34 13 56 128 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.219 TANK; SURGE,RAD 8-97941-501-3 01 1 0211- ● ● ●
2 01.203 CAP; SURGE TANK 8-97333-354-0 01 1 0211- ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 		8-94239-338-0 02 1 0211- ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) 		8-94373-241-0 01 1 0211- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97941-508-3 01 1 0211-0211 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97362-955-0 01 1 0211- ● ● ●
34 01.203 BOLT; RESERVE TANK
08.015 M6X20 W/WASHER 		8-94112-987-1 01 1 0211- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97248-432-2 01 1 0211- ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97248-430-1 01 1 0211- ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97248-431-3 01 1 0211- ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0211- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0211- ● ●
56 01.166 CLIP; WATER HOSE,RAD
(D) ID=46 		8-94362-266-0 01 1 0211- ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=36.5 		8-97135-907-1 01 1 0211- ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=36 		8-97262-976-0 01 1 0211- ●
128 01.159 HOSE; WATER,RAD INL 8-97248-429-2 01 1 0211- ●
128 01.159 HOSE; WATER,RAD INL 8-97248-427-1 01 1 0211- ●
128 01.159 HOSE; WATER,RAD INL 8-97248-428-2 01 1 0211- ●

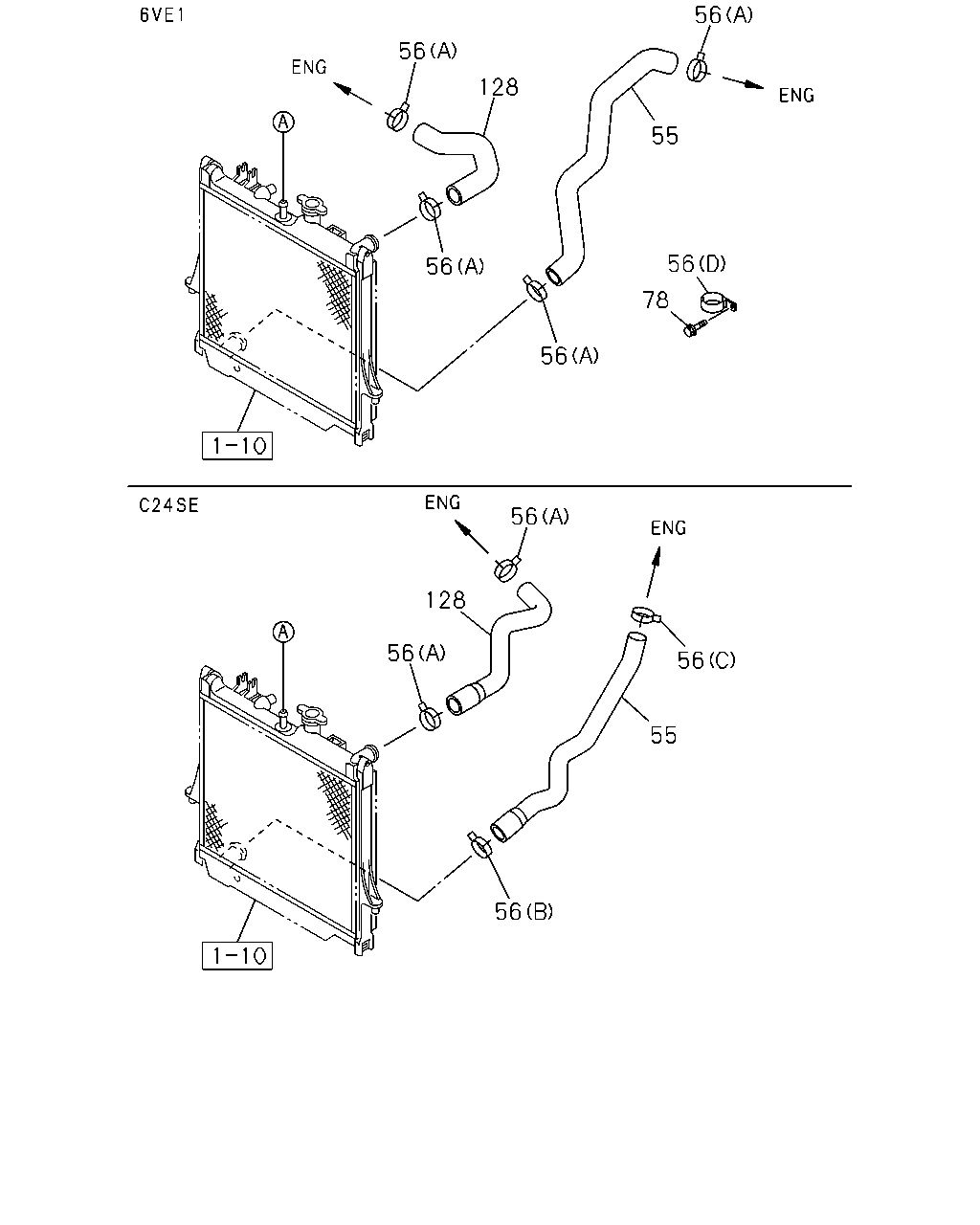

çizim 49434
56 56 128 55 56 56 78 56 56 128 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C
55 01.173 HOSE; WATER,RAD OUTLET 8-97248-432-2 01 1 0211- ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97248-430-1 01 1 0211- ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97248-431-3 01 1 0211- ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0211- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0211- ● ●
56 01.166 CLIP; WATER HOSE,RAD
(D) ID=46 		8-94362-266-0 01 1 0211- ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=36.5 		8-97135-907-1 01 1 0211- ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=36 		8-97262-976-0 01 1 0211- ●
78 01.159 BOLT; CLIP,HOSE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0211- ●
128 01.159 HOSE; WATER,RAD INL 8-97248-429-2 01 1 0211- ●
128 01.159 HOSE; WATER,RAD INL 8-97248-427-1 01 1 0211- ●
128 01.159 HOSE; WATER,RAD INL 8-97248-428-2 01 1 0211- ●
