◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#48596) — 20 parça

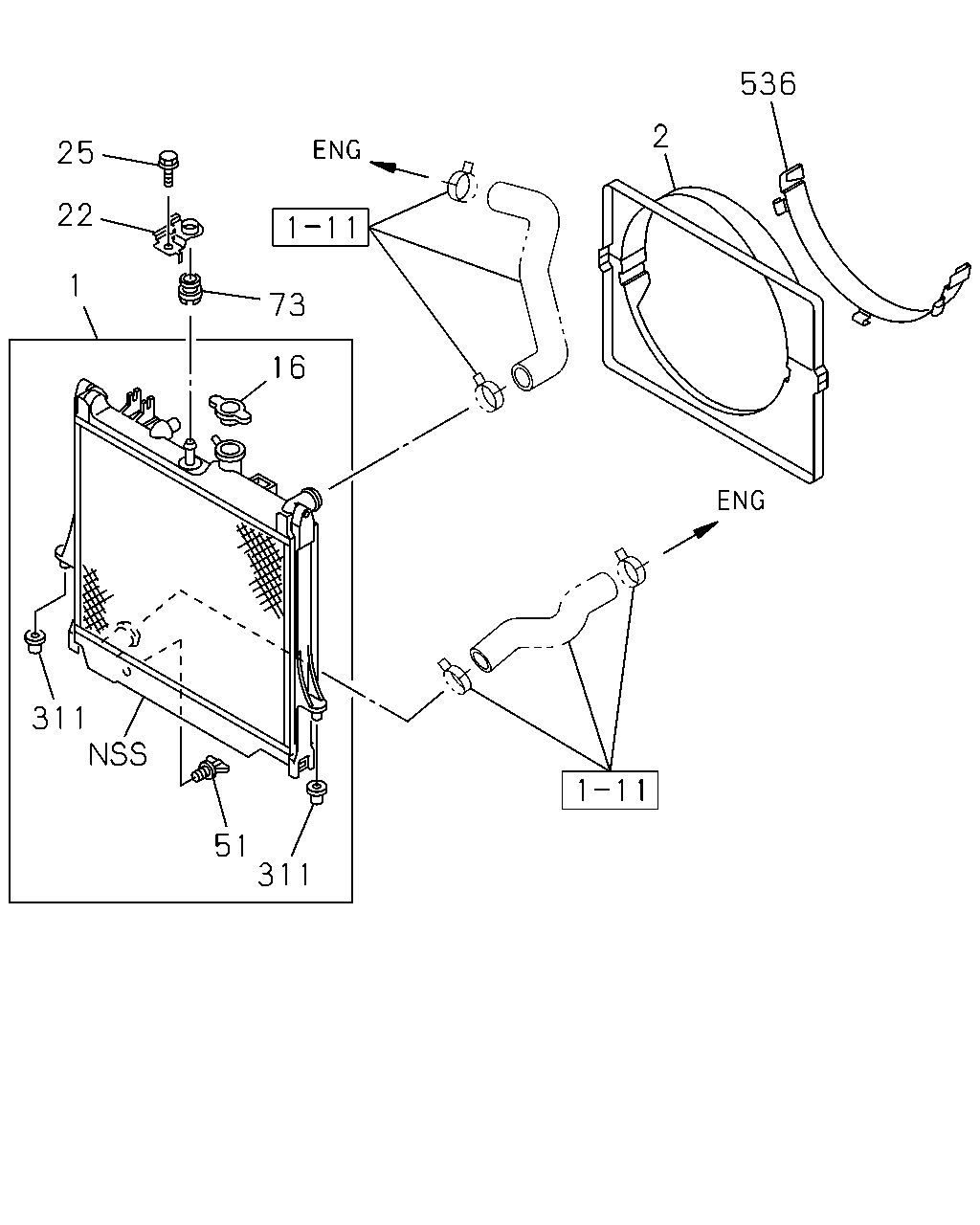

çizim 53173
536 2 25 22 1 73 16 311 51 311
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97363-064-0 01 1 0211- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5G(RSP) 		8-97363-065-0 01 1 0211- ●
1 01.219 RADIATOR ASM 8-97363-066-0 01 1 0211- ●
1 01.219 RADIATOR ASM
A/T 4 SPEED-JATCO(RMK) 		8-97333-352-2 01 1 0211- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5G(RSP) 		8-97333-353-2 01 1 0211- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5G(RSP) 		8-97333-350-3 01 1 0211- ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97357-899-0 01 1 0211- ●
1 01.219 RADIATOR ASM 8-97357-900-0 01 1 0211- ●
2 01.277 GUIDE; FAN 8-97357-908-0 01 1 0211- ●
2 01.277 GUIDE; FAN 8-97357-909-0 01 1 0211- ●
2 01.277 GUIDE; FAN 8-97333-348-0 01 1 0211- ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 0211- ● ● ●
22 01.270 BRACKET; RAD MTG 8-97941-547-0 01 1 0211- ● ● ●
25 01.271 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211- ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0211- ● ● ●
73 01.270 RUBBER; CUSHION,RAD MTG 8-97249-541-1 01 1 0211- ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 0211- ● ● ●
536 01.020 SHROUD; FAN 8-97941-533-0 01 1 0211- ●
536 01.020 SHROUD; FAN 8-97941-530-0 01 1 0211- ●
536 01.020 SHROUD; FAN 8-97941-531-0 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
