◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-05 - AUTO CRUISE ACTUATOR ▶
1-05 — AUTO CRUISE ACTUATOR (#48595) — 7 parça

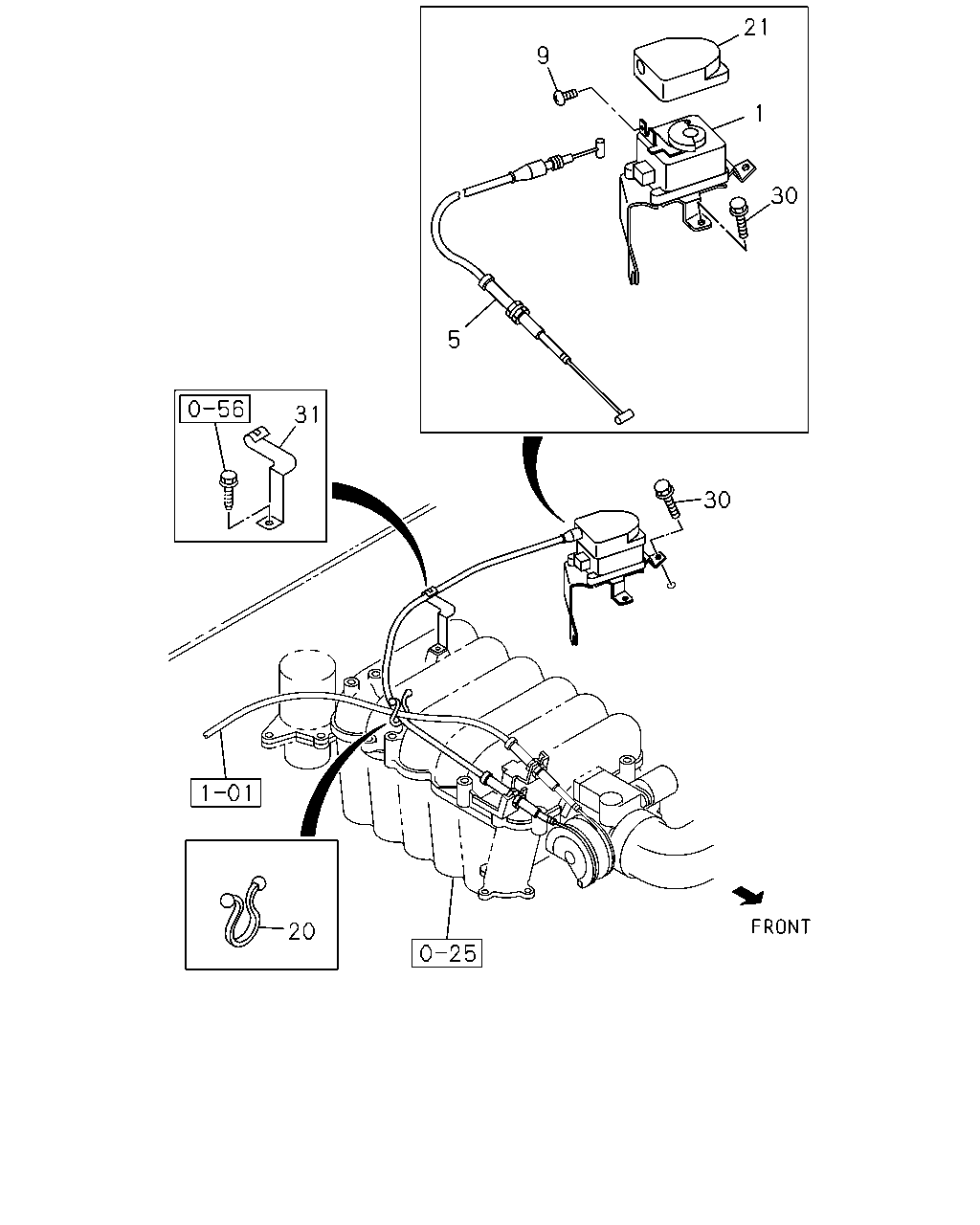

çizim 47876
21 9 1 30 5 31 30 20
BalonParca AdiParca NoAdetTipApplied Date
1 03.885 ACTUATOR UNIT; CRUISE
AUTO CRUISE CONT<K30> 		8-97324-255-0 01 1 0211-
5 03.880 CABLE; ACTUATOR
AUTO CRUISE CONT<K30> 		8-97324-254-0 01 1 0211-
9 03.885 SCREW; RR BRKT ACTUATOR
AUTO CRUISE CONT<K30> 		9-03464-508-0 01 1 0211-
20 03.440 CLIP; CRUISE CABLE
AUTO CRUISE CONT<K30> 09.663 ID=15 		1-09709-003-0 01 1 0211-
21 03.885 COVER; CRUISE CONT BOX
AUTO CRUISE CONT<K30> 		8-97162-086-0 01 1 0211-
30 03.440 BOLT; ACTUATOR
AUTO CRUISE CONT<K30> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0211-
31 03.880 BRACKET; ACTUATOR
AUTO CRUISE CONT<K30> 		8-97245-209-1 01 1 0211-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
