0-66 — GENERATOR (#48590) — 130 parça

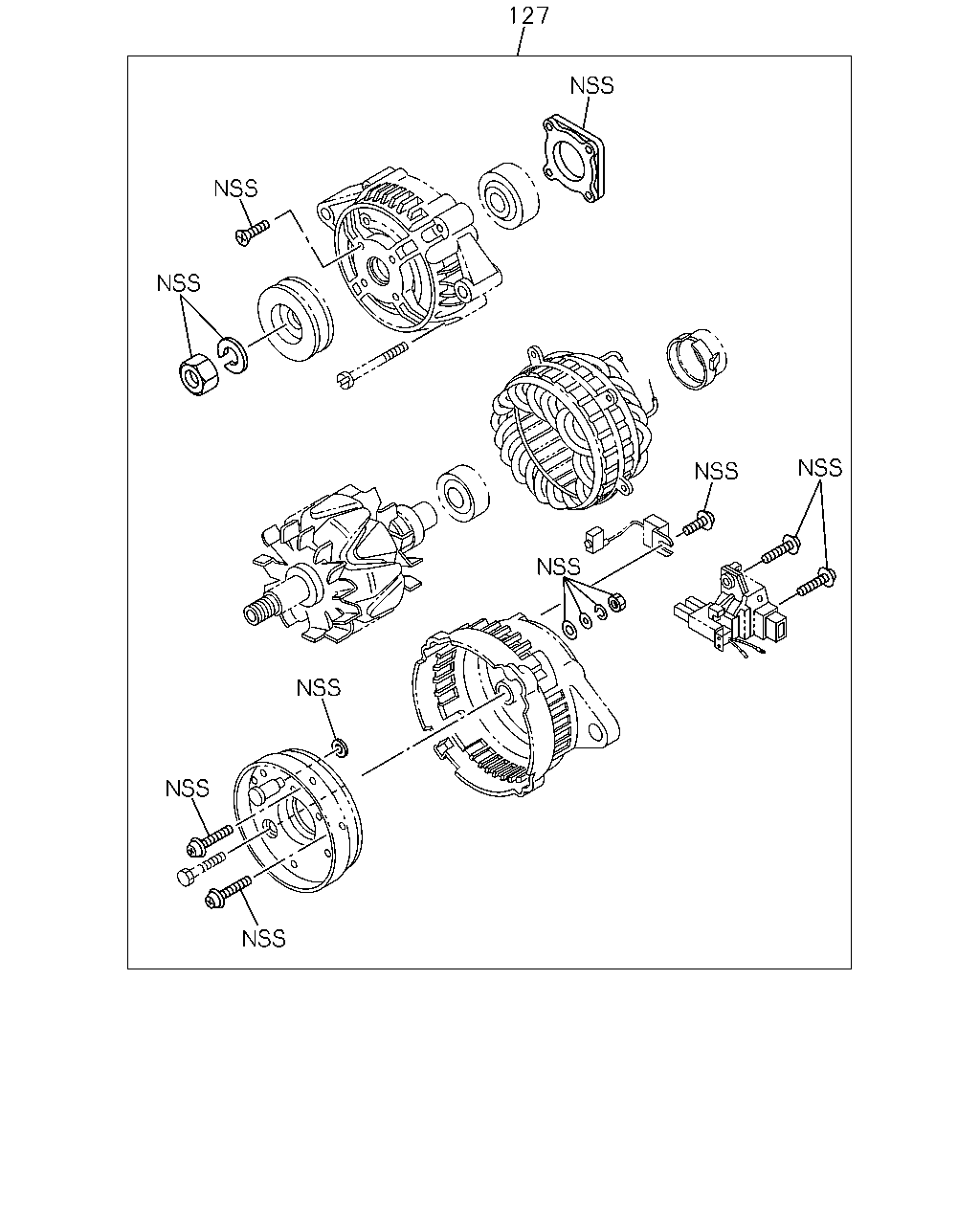

127

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	127	02.277 BOLT SET; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-801-0	01	1	-

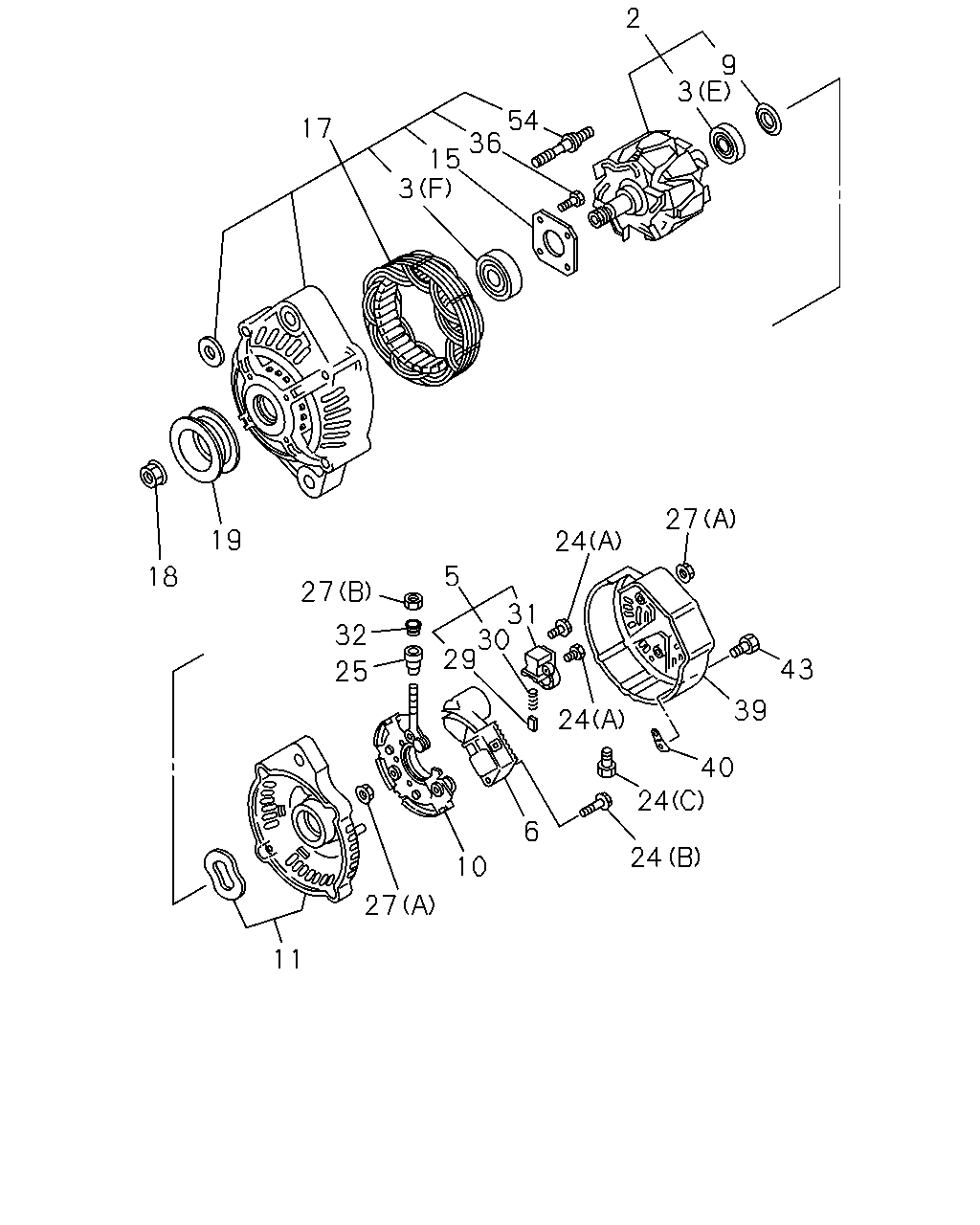

2 9 3 54 36 15 3 17 27 19 24 5 18 27 31 30 29 32 43 25 39 24 40 24 6 24 10 27 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.279 ROTOR; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97032-306-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-806-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: B = 8-97210-373-0, 97210373	1-81229-742-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: B = 8-97210-373-0, 97210373	1-81229-743-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-92064-568-0, 92064568	8-97209-785-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: A = 8-92064-568-0, 92064568	8-97209-807-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97248-128-0	01	1	-1209
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97032-308-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97183-613-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-792-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN 02.298 ASM PART: B = 8-97210-373-0, 97210373	8-94123-051-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-808-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97211-427-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97211-428-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97032-304-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-805-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97211-424-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97245-850-2, 97245850	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97327-218-1, 97327218	8-97313-447-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-97210-373-0, 97210373	8-94123-043-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97032-301-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-798-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: B = 8-97210-373-0, 97210373	8-97032-313-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: B = 8-97210-373-0, 97210373	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: B = 8-97210-373-0, 97210373	8-97070-810-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97941-562-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL ASM PART: B = 8-97210-373-0, 97210373	8-97032-312-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: B = 8-97210-373-0, 97210373	8-94123-064-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN (B) ASM PART: B = 8-97210-373-0, 97210373	8-97032-317-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97032-310-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: B = 8-97210-373-0, 97210373	8-94123-057-0	02	1	-
31	02.291 SHEET; BRUSH,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97032-309-0	01	1	-
32	02.291 TERMINAL; RECTIFIER,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97211-429-0	01	1	-
36	02.277 SCREW; FRT COVER ASM PART: B = 8-97210-373-0, 97210373	8-97032-305-0	04	1	-
39	02.297 COVER; END,RR COVER,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97211-430-0	01	1	-
40	02.291 PLATE; RR COVER ASM PART: B = 8-97210-373-0, 97210373	8-97070-812-0	01	1	-
43	02.307 SCREW; RR END COVER ASM PART: B = 8-97210-373-0, 97210373	8-97070-811-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN 02.316 ASM PART: B = 8-97210-373-0, 97210373	8-94123-048-0	04	1	-

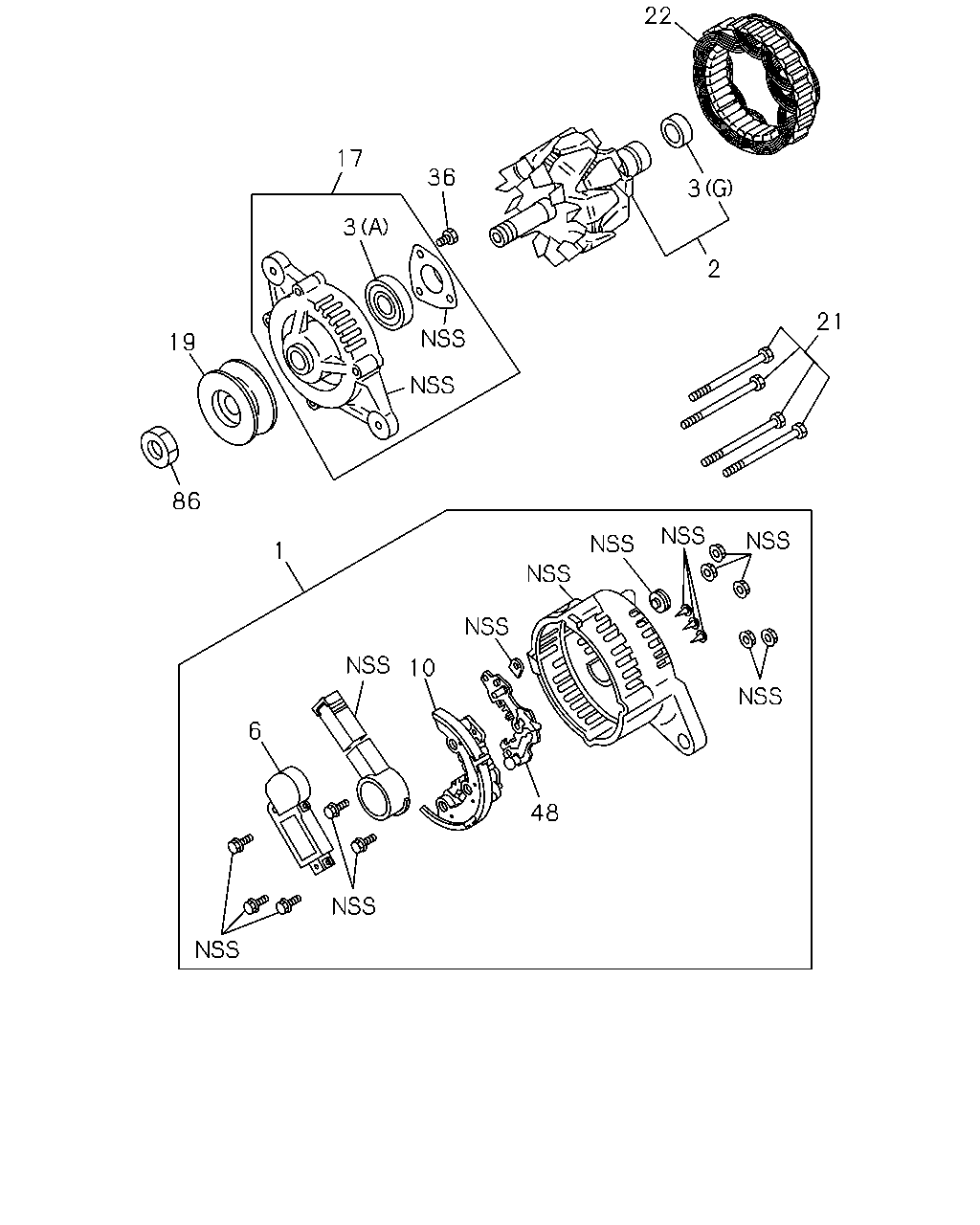

22 17 36 3 3 2 21 19 86 1 10 6 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-789-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97032-306-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-806-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: B = 8-97210-373-0, 97210373	1-81229-742-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: B = 8-97210-373-0, 97210373	1-81229-743-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-92064-568-0, 92064568	8-97209-785-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: A = 8-92064-568-0, 92064568	8-97209-807-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97248-128-0	01	1	-1209
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97183-613-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-792-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-808-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97211-427-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-805-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97211-424-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97245-850-2, 97245850	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97327-218-1, 97327218	8-97313-447-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97032-301-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-798-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-794-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-809-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97245-850-2, 97245850	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97327-218-1, 97327218	8-97313-438-0	01	1	-
36	02.277 SCREW; FRT COVER ASM PART: B = 8-97210-373-0, 97210373	8-97032-305-0	04	1	-

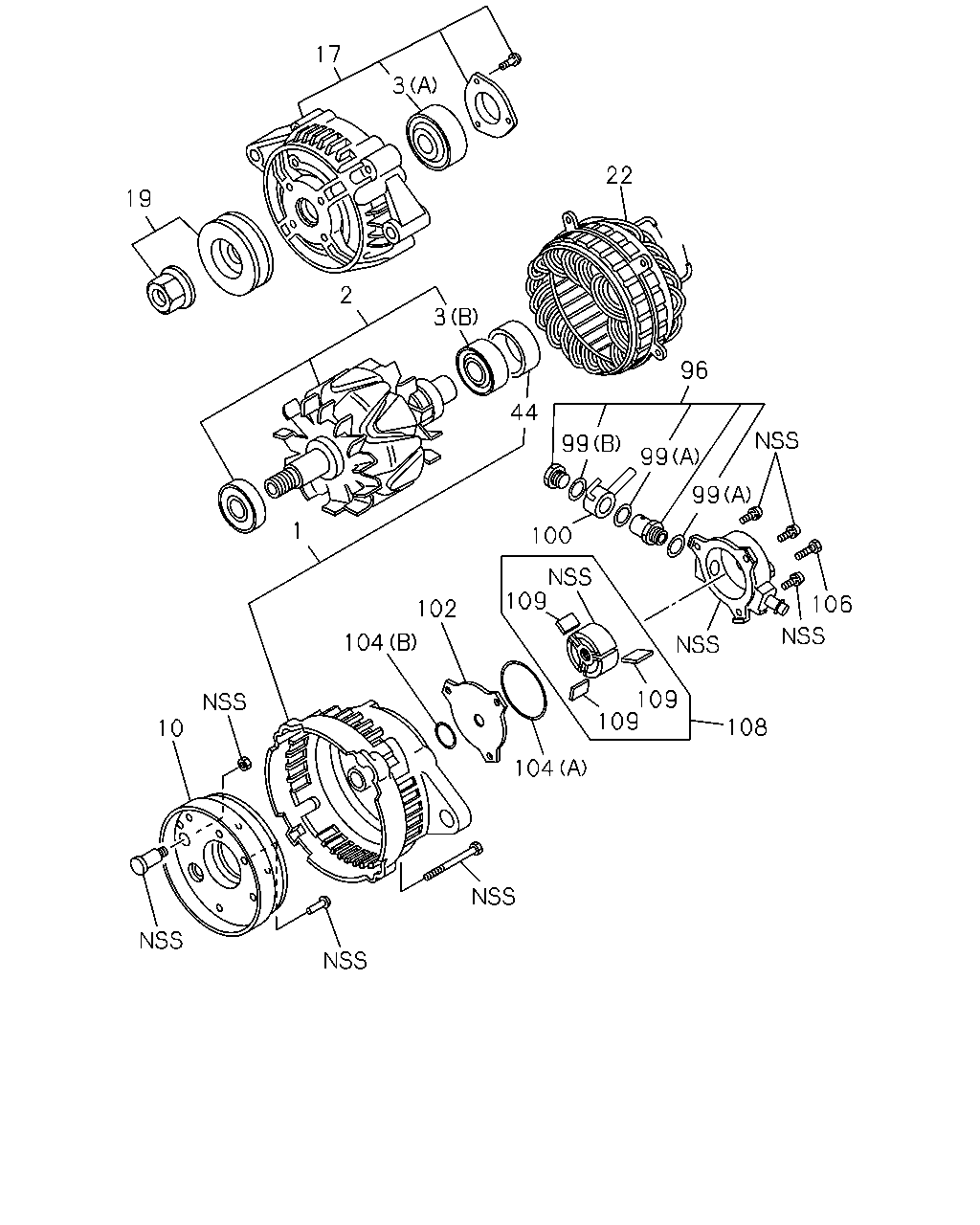

17 3 22 19 2 3 96 44 99 99 99 1 100 109 106 102 104 109 109 108 10 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-789-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97032-306-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-806-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: B = 8-97210-373-0, 97210373	1-81229-742-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: B = 8-97210-373-0, 97210373	1-81229-743-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-92064-568-0, 92064568	8-97209-785-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: A = 8-92064-568-0, 92064568	8-97209-807-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97248-128-0	01	1	-1209
10	02.319 RECTIFIER; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-808-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97211-427-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-805-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97211-424-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97245-850-2, 97245850	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97327-218-1, 97327218	8-97313-447-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97032-301-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-798-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-809-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97245-850-2, 97245850	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97327-218-1, 97327218	8-97313-438-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: D = 8-97327-218-1, 97327218	8-94156-589-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: C = 8-97245-850-2, 97245850	8-97941-674-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97330-948-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	5-19679-003-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97330-936-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97941-675-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97330-935-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-94462-883-0	03	1	-

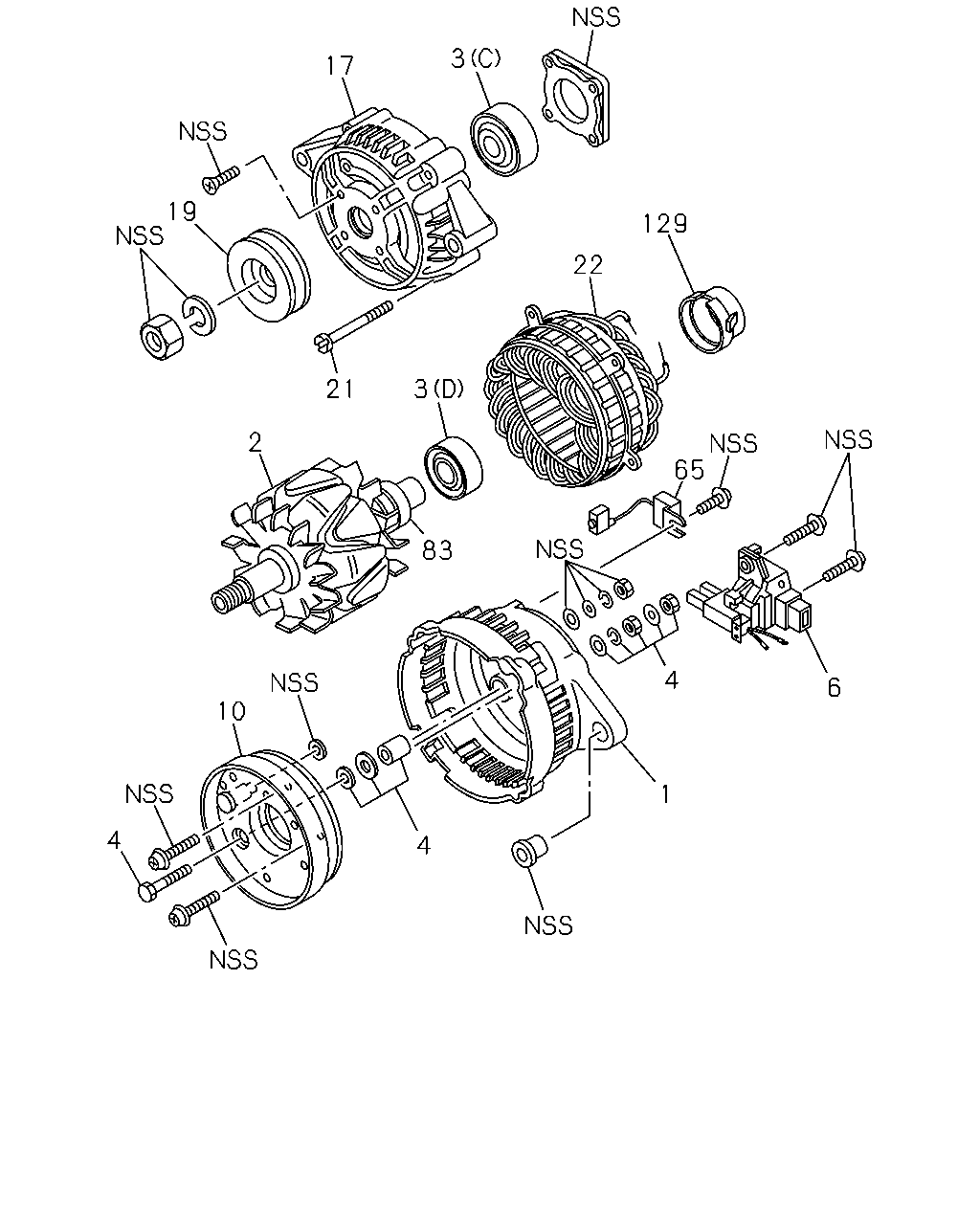

3 17 19 129 22 3 21 2 65 83 4 6 10 1 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-789-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97032-306-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-806-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: B = 8-97210-373-0, 97210373	1-81229-742-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: B = 8-97210-373-0, 97210373	1-81229-743-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-92064-568-0, 92064568	8-97209-785-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: A = 8-92064-568-0, 92064568	8-97209-807-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97248-128-0	01	1	-1209
4	02.291 TERMINAL; BRUSH,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-797-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97183-613-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-792-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-808-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97211-427-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-805-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97210-373-0, 97210373	8-97211-424-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97245-850-2, 97245850	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97327-218-1, 97327218	8-97313-447-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97210-373-0, 97210373	8-97032-301-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-798-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-794-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-809-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97245-850-2, 97245850	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97327-218-1, 97327218	8-97313-438-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-795-0	01	1	-
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-787-0	01	1	-
129	02.313 SLEEVE; BEARING,GEN ASM PART: A = 8-92064-568-0, 92064568	8-97209-791-0	01	1	-

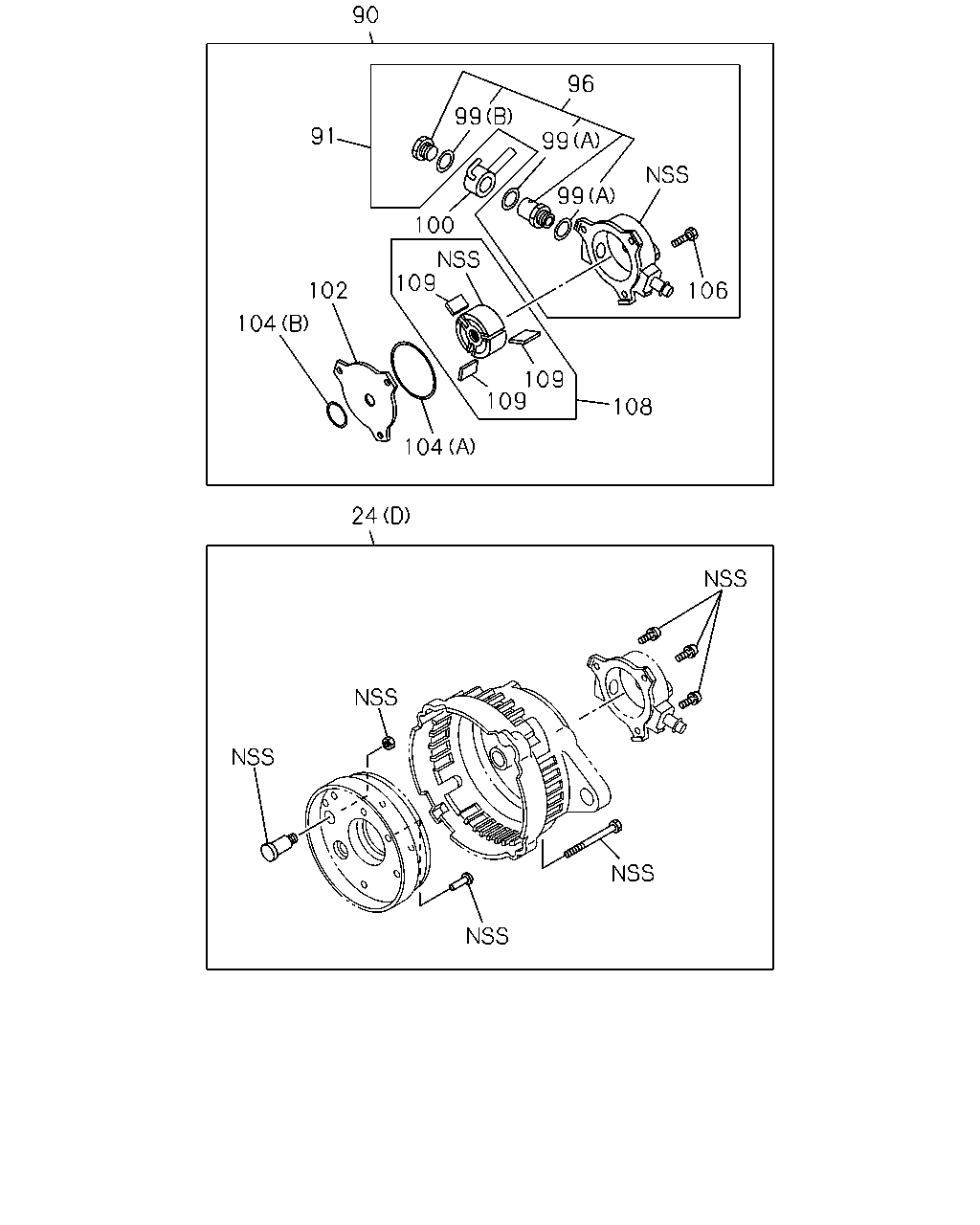

90 96 99 91 99 99 100 109 102 106 104 109 109 108 104 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: B = 8-97210-373-0, 97210373	8-97032-313-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: B = 8-97210-373-0, 97210373	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: B = 8-97210-373-0, 97210373	8-97070-810-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97941-562-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97330-937-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97330-948-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	5-19679-003-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97330-936-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97941-675-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-97330-935-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97245-850-2, 97245850, D = 8-97327-218-1, 97327218	8-94462-883-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
