Sayfa 3-45 - Isuzu EPC

3-45 — LOAD SENSING PROPORTIONING VALVE (#4859) — 293 parça

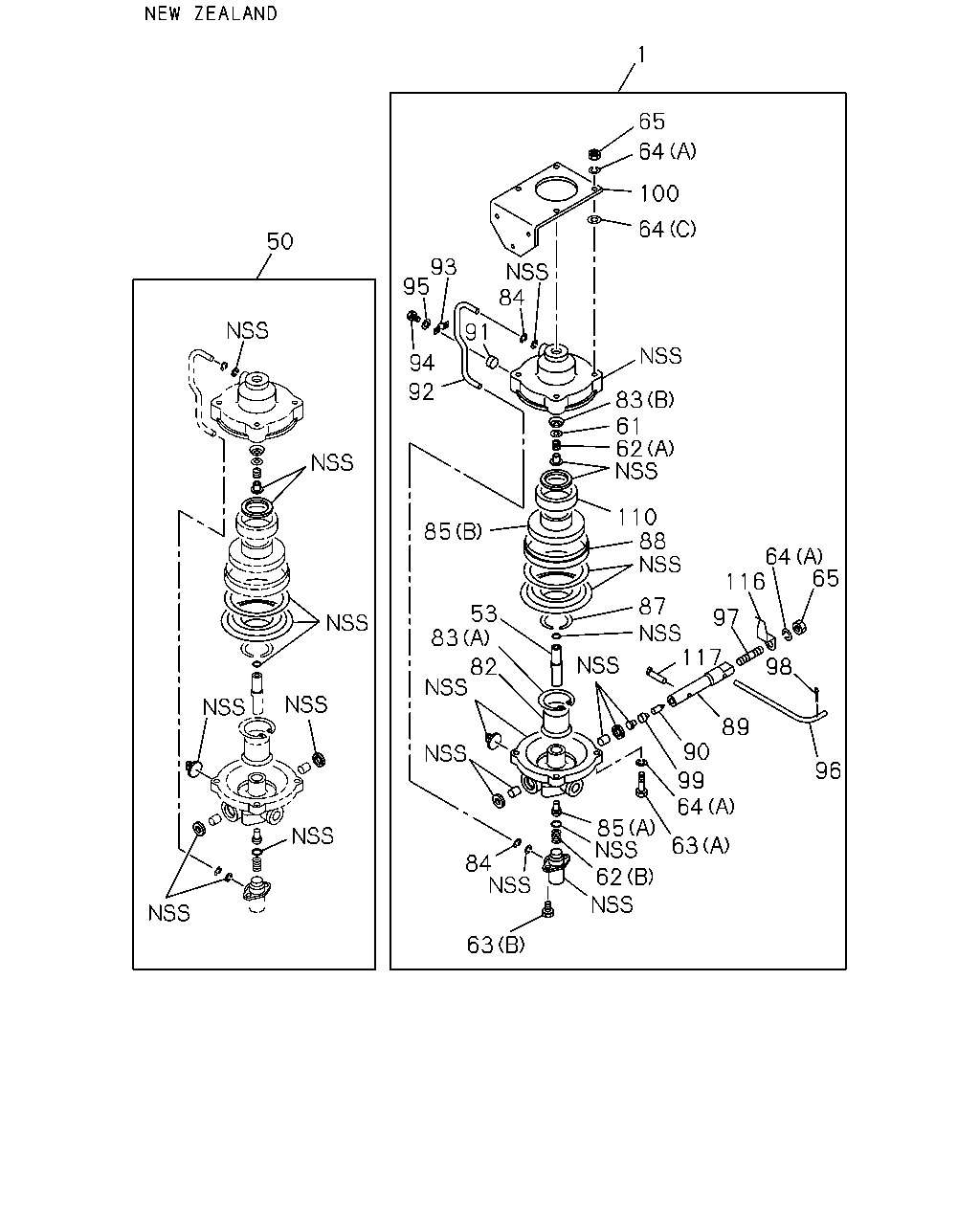

1 65 64 100 64 50 93 95 84 91 94 92 83 61 62 110 88 85 64 116 65 87 117 53 83 97 98 82 89 90 96 99 64 85 62 63 84 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING	1-47720-053-0	01	1	9601-9610
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47720-053-0	01	1	9611-9912
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. BRAKE REGULATION ECE<TDV>	1-47720-053-0	01	1	0001-
1	VALVE ASM; LOAD SENSING PROPORTIONING NEW ZEALAND EQUIPMENT(PK5)	1-47720-059-0	01	1	9611-9912
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-059-0	01	1	0001-
50	REPAIR KIT; LSPV	1-87830-263-0	01	1	9601-9610
50	REPAIR KIT; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-87830-263-0	01	1	9611-9912
50	REPAIR KIT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-87830-263-0	01	1	0001-
50	REPAIR KIT; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-142-0	01	1	9611-9912
50	REPAIR KIT; LSPV BRAKE REGULATION ECE<TDV>	1-47769-142-0	01	1	0001-
53	PLUNGER; LSPV	1-47769-033-0	01	1	9601-9610
53	PLUNGER; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-033-0	01	1	9611-9912
53	PLUNGER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	0001-
53	PLUNGER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-141-0	01	1	9611-9912
53	PLUNGER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-141-0	01	1	0001-
61	RETAINER; SPRING	1-47769-091-0	01	1	9601-9610
61	RETAINER; SPRING EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-091-0	01	1	9611-9912
61	RETAINER; SPRING EXC. BRAKE REGULATION ECE<TDV>	1-47769-091-0	01	1	0001-
61	RETAINER; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-47769-138-0	01	1	9611-9912
61	RETAINER; SPRING BRAKE REGULATION ECE<TDV>	1-47769-138-0	01	1	0001-
62	SPRING; LSPV (A)	1-47769-025-0	01	1	9601-
62	SPRING; LSPV (B)	1-47769-042-0	01	1	9601-
63	BOLT; LSPV (A)	1-47769-094-0	04	1	9601-
63	BOLT; LSPV (B)	1-47769-098-0	02	1	9601-9610
63	BOLT; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-098-0	02	1	9611-9912
63	BOLT; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-098-0	02	1	0001-
63	BOLT; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-045-0	02	1	9611-9912
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-045-0	02	1	0001-
64	WASHER; LSPV (A)	1-47769-036-0	09	1	9601-9610
64	WASHER; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-036-0	09	1	9611-9912
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-036-0	09	1	0001-
64	WASHER; LSPV (B)	1-47769-099-0	02	1	9601-9610
64	WASHER; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-099-0	02	1	9611-9912
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-099-0	02	1	0001-
64	WASHER; LSPV (C)	1-47769-107-0	04	1	9601-9610
64	WASHER; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-47769-107-0	04	1	9611-9912
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (C)	1-47769-107-0	04	1	0001-
64	WASHER; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-036-0	05	1	9611-9612
64	WASHER; LSPV NEW ZEALAND EQUIPMENT(PK5) (C)	1-47769-079-0	04	1	9611-9912
64	WASHER; LSPV BRAKE REGULATION ECE<TDV> (C)	1-47769-079-0	04	1	0001-
65	NUT; LSPV	1-47769-095-0	03	1	9601-9610
65	NUT; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-095-0	03	1	9611-9912
65	NUT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-095-0	03	1	0001-
65	NUT; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-095-0	05	1	9611-9612
65	NUT; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-48199-320-0	05	1	9701-9912
65	NUT; LSPV BRAKE REGULATION ECE<TDV>	1-48199-320-0	05	1	0001-
82	GUIDE; PISTON,LSPV	1-47769-016-0	01	1	9601-9610
82	GUIDE; PISTON,LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-016-0	01	1	9611-9912
82	GUIDE; PISTON,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	0001-
82	GUIDE; PISTON,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-131-0	01	1	9611-9912
82	GUIDE; PISTON,LSPV BRAKE REGULATION ECE<TDV>	1-47769-131-0	01	1	0001-
83	RING; SNAP,RET (A)	1-47769-089-0	01	1	9601-9610
83	RING; SNAP,RET EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-089-0	01	1	9611-9912
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-089-0	01	1	0001-
83	RING; SNAP,RET (B)	1-47769-092-0	01	1	9601-9610
83	RING; SNAP,RET EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-092-0	01	1	9611-9912
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-092-0	01	1	0001-
83	RING; SNAP,RET NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-017-0	01	1	9611-9912
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (A)	1-47769-017-0	01	1	0001-
83	RING; SNAP,RET NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-139-0	01	1	9611-9912
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (B)	1-47769-139-0	01	1	0001-
84	RETAINER; GASKET	1-47769-021-0	02	1	9601-
85	PISTON; LSPV (A)	1-47769-043-0	01	1	9601-
85	PISTON; LSPV (B)	1-47769-090-0	01	1	9601-9610
85	PISTON; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-090-0	01	1	9611-9912
85	PISTON; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-090-0	01	1	0001-
85	PISTON; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-136-0	01	1	9611-9912
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-136-0	01	1	0001-
87	RETAINER; DIAPH	1-47769-031-0	01	1	9601-9610
87	RETAINER; DIAPH EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-031-0	01	1	9611-9912
87	RETAINER; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-031-0	01	1	0001-
87	RETAINER; DIAPH NEW ZEALAND EQUIPMENT(PK5)	1-47769-086-0	01	1	9611-9912
87	RETAINER; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-086-0	01	1	0001-
88	GUIDE; DIAPH	1-47769-093-0	01	1	9601-9610
88	GUIDE; DIAPH EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-093-0	01	1	9611-9912
88	GUIDE; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-093-0	01	1	0001-
88	GUIDE; DIAPH NEW ZEALAND EQUIPMENT(PK5)	1-47769-032-0	01	1	9611-9912
88	GUIDE; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-032-0	01	1	0001-
89	ROD; CONN,LSPV	1-47769-076-0	01	1	9601-9610
89	ROD; CONN,LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-076-0	01	1	9611-9912
89	ROD; CONN,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-076-0	01	1	0001-
89	ROD; CONN,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-083-0	01	1	9611-9912
89	ROD; CONN,LSPV BRAKE REGULATION ECE<TDV>	1-47769-083-0	01	1	0001-
90	SCREW; CAM	1-47769-097-0	01	1	9601-9610
90	SCREW; CAM EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-097-0	01	1	9611-9912
90	SCREW; CAM EXC. BRAKE REGULATION ECE<TDV>	1-47769-097-0	01	1	0001-
90	SCREW; CAM NEW ZEALAND EQUIPMENT(PK5)	1-47769-039-0	01	1	9611-9912
90	SCREW; CAM BRAKE REGULATION ECE<TDV>	1-47769-039-0	01	1	0001-
91	FILTER; LSPV	1-47769-100-0	01	1	9601-9610
91	FILTER; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-100-0	01	1	9611-9912
91	FILTER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-100-0	01	1	0001-
91	FILTER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-047-0	01	1	9611-9912
91	FILTER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-047-0	01	1	0001-
92	PIPE; LSPV	1-47769-101-0	01	1	9601-9610
92	PIPE; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-101-0	01	1	9611-9912
92	PIPE; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-101-0	01	1	0001-
92	PIPE; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-048-0	01	1	9611-9912
92	PIPE; LSPV BRAKE REGULATION ECE<TDV>	1-47769-048-0	01	1	0001-
93	CLIP; PIPE	1-47769-102-0	01	1	9601-9610
93	CLIP; PIPE EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-102-0	01	1	9611-9912
93	CLIP; PIPE EXC. BRAKE REGULATION ECE<TDV>	1-47769-102-0	01	1	0001-
93	CLIP; PIPE NEW ZEALAND EQUIPMENT(PK5)	1-47769-050-0	01	1	9611-9912
93	CLIP; PIPE BRAKE REGULATION ECE<TDV>	1-47769-050-0	01	1	0001-
94	SCREW; CLIP	1-47769-051-0	02	1	9601-9612
94	SCREW; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-051-0	02	1	9701-9912
94	SCREW; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-051-0	02	1	0001-
94	SCREW; CLIP NEW ZEALAND EQUIPMENT(PK5)	1-47769-162-0	02	1	9701-9912
94	SCREW; CLIP BRAKE REGULATION ECE<TDV>	1-47769-162-0	02	1	0001-
95	WASHER; CLIP	1-47769-052-0	02	1	9601-9612
95	WASHER; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-052-0	02	1	9701-9912
95	WASHER; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-052-0	02	1	0001-
96	ARM; OPERATING	1-47769-110-0	01	1	9601-
97	BOLT; OPERATING ARM	1-47769-104-0	01	1	9601-9610
97	BOLT; OPERATING ARM EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-104-0	01	1	9611-9912
97	BOLT; OPERATING ARM EXC. BRAKE REGULATION ECE<TDV>	1-47769-104-0	01	1	0001-
97	BOLT; OPERATING ARM NEW ZEALAND EQUIPMENT(PK5)	1-47769-081-0	01	1	9611-9912
97	BOLT; OPERATING ARM BRAKE REGULATION ECE<TDV>	1-47769-081-0	01	1	0001-
98	PIN; SPLIT	1-47769-105-0	01	1	9601-9610
98	PIN; SPLIT EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-105-0	01	1	9611-9912
98	PIN; SPLIT EXC. BRAKE REGULATION ECE<TDV>	1-47769-105-0	01	1	0001-
98	PIN; SPLIT NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=15	9-08112-015-0	01	1	9611-9912
98	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=15	9-08112-015-0	01	1	0001-
99	CAP; SCREW	1-47769-055-0	01	1	9601-
100	BRACKET; LSPV	1-47769-111-0	01	1	9601-
110	BUSHING; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-134-0	01	1	9611-9912
110	BUSHING; LSPV BRAKE REGULATION ECE<TDV>	1-47769-134-0	01	1	0001-
116	INDICATOR; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-078-0	01	1	9611-9912
116	INDICATOR; LSPV BRAKE REGULATION ECE<TDV>	1-47769-078-0	01	1	0001-
117	CAM; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-038-0	01	1	9611-9912
117	CAM; LSPV BRAKE REGULATION ECE<TDV>	1-47769-038-0	01	1	0001-

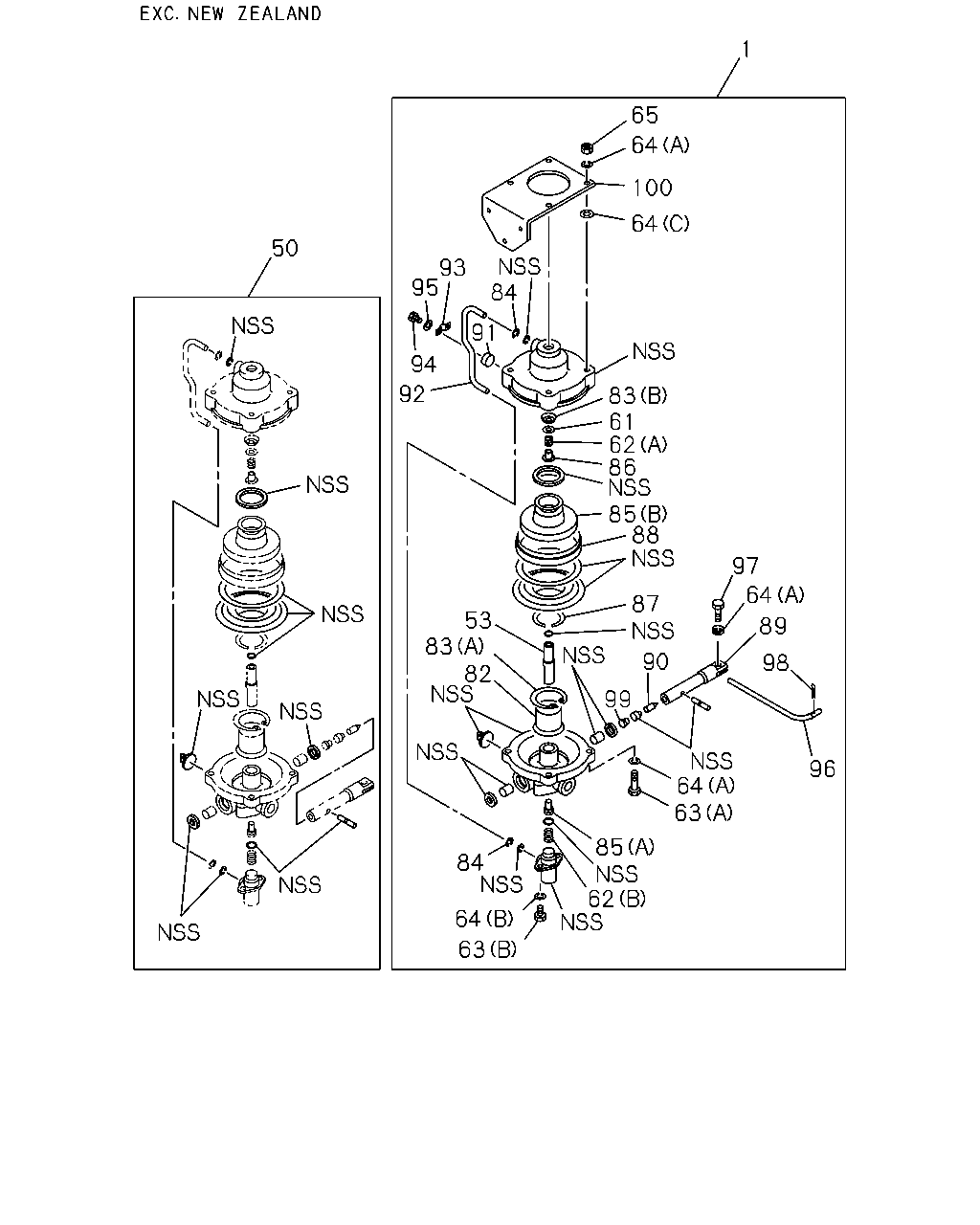

1 65 64 100 64 50 84 93 95 91 94 92 83 61 62 86 85 88 97 64 87 53 83 82 89 90 98 99 64 63 96 85 62 84 64 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING	1-47720-053-0	01	1	9601-9610
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47720-053-0	01	1	9611-9912
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. BRAKE REGULATION ECE<TDV>	1-47720-053-0	01	1	0001-
1	VALVE ASM; LOAD SENSING PROPORTIONING NEW ZEALAND EQUIPMENT(PK5)	1-47720-059-0	01	1	9611-9912
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-059-0	01	1	0001-
50	REPAIR KIT; LSPV	1-87830-263-0	01	1	9601-9610
50	REPAIR KIT; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-87830-263-0	01	1	9611-9912
50	REPAIR KIT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-87830-263-0	01	1	0001-
50	REPAIR KIT; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-142-0	01	1	9611-9912
50	REPAIR KIT; LSPV BRAKE REGULATION ECE<TDV>	1-47769-142-0	01	1	0001-
53	PLUNGER; LSPV	1-47769-033-0	01	1	9601-9610
53	PLUNGER; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-033-0	01	1	9611-9912
53	PLUNGER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	0001-
53	PLUNGER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-141-0	01	1	9611-9912
53	PLUNGER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-141-0	01	1	0001-
61	RETAINER; SPRING	1-47769-091-0	01	1	9601-9610
61	RETAINER; SPRING EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-091-0	01	1	9611-9912
61	RETAINER; SPRING EXC. BRAKE REGULATION ECE<TDV>	1-47769-091-0	01	1	0001-
61	RETAINER; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-47769-138-0	01	1	9611-9912
61	RETAINER; SPRING BRAKE REGULATION ECE<TDV>	1-47769-138-0	01	1	0001-
62	SPRING; LSPV (A)	1-47769-025-0	01	1	9601-
62	SPRING; LSPV (B)	1-47769-042-0	01	1	9601-
63	BOLT; LSPV (A)	1-47769-094-0	04	1	9601-
63	BOLT; LSPV (B)	1-47769-098-0	02	1	9601-9610
63	BOLT; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-098-0	02	1	9611-9912
63	BOLT; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-098-0	02	1	0001-
63	BOLT; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-045-0	02	1	9611-9912
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-045-0	02	1	0001-
64	WASHER; LSPV (A)	1-47769-036-0	09	1	9601-9610
64	WASHER; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-036-0	09	1	9611-9912
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-036-0	09	1	0001-
64	WASHER; LSPV (B)	1-47769-099-0	02	1	9601-9610
64	WASHER; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-099-0	02	1	9611-9912
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-099-0	02	1	0001-
64	WASHER; LSPV (C)	1-47769-107-0	04	1	9601-9610
64	WASHER; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-47769-107-0	04	1	9611-9912
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (C)	1-47769-107-0	04	1	0001-
64	WASHER; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-036-0	05	1	9611-9612
64	WASHER; LSPV NEW ZEALAND EQUIPMENT(PK5) (C)	1-47769-079-0	04	1	9611-9912
64	WASHER; LSPV BRAKE REGULATION ECE<TDV> (C)	1-47769-079-0	04	1	0001-
65	NUT; LSPV	1-47769-095-0	03	1	9601-9610
65	NUT; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-095-0	03	1	9611-9912
65	NUT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-095-0	03	1	0001-
65	NUT; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-095-0	05	1	9611-9612
65	NUT; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-48199-320-0	05	1	9701-9912
65	NUT; LSPV BRAKE REGULATION ECE<TDV>	1-48199-320-0	05	1	0001-
82	GUIDE; PISTON,LSPV	1-47769-016-0	01	1	9601-9610
82	GUIDE; PISTON,LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-016-0	01	1	9611-9912
82	GUIDE; PISTON,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	0001-
82	GUIDE; PISTON,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-131-0	01	1	9611-9912
82	GUIDE; PISTON,LSPV BRAKE REGULATION ECE<TDV>	1-47769-131-0	01	1	0001-
83	RING; SNAP,RET (A)	1-47769-089-0	01	1	9601-9610
83	RING; SNAP,RET EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-089-0	01	1	9611-9912
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-089-0	01	1	0001-
83	RING; SNAP,RET (B)	1-47769-092-0	01	1	9601-9610
83	RING; SNAP,RET EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-092-0	01	1	9611-9912
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-092-0	01	1	0001-
83	RING; SNAP,RET NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-017-0	01	1	9611-9912
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (A)	1-47769-017-0	01	1	0001-
83	RING; SNAP,RET NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-139-0	01	1	9611-9912
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (B)	1-47769-139-0	01	1	0001-
84	RETAINER; GASKET	1-47769-021-0	02	1	9601-
85	PISTON; LSPV (A)	1-47769-043-0	01	1	9601-
85	PISTON; LSPV (B)	1-47769-090-0	01	1	9601-9610
85	PISTON; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-090-0	01	1	9611-9912
85	PISTON; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-090-0	01	1	0001-
85	PISTON; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-136-0	01	1	9611-9912
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-136-0	01	1	0001-
86	VALVE; LSPV	1-47769-024-0	01	1	9601-9610
86	VALVE; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-024-0	01	1	9611-9912
86	VALVE; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-024-0	01	1	0001-
87	RETAINER; DIAPH	1-47769-031-0	01	1	9601-9610
87	RETAINER; DIAPH EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-031-0	01	1	9611-9912
87	RETAINER; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-031-0	01	1	0001-
87	RETAINER; DIAPH NEW ZEALAND EQUIPMENT(PK5)	1-47769-086-0	01	1	9611-9912
87	RETAINER; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-086-0	01	1	0001-
88	GUIDE; DIAPH	1-47769-093-0	01	1	9601-9610
88	GUIDE; DIAPH EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-093-0	01	1	9611-9912
88	GUIDE; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-093-0	01	1	0001-
88	GUIDE; DIAPH NEW ZEALAND EQUIPMENT(PK5)	1-47769-032-0	01	1	9611-9912
88	GUIDE; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-032-0	01	1	0001-
89	ROD; CONN,LSPV	1-47769-076-0	01	1	9601-9610
89	ROD; CONN,LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-076-0	01	1	9611-9912
89	ROD; CONN,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-076-0	01	1	0001-
89	ROD; CONN,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-083-0	01	1	9611-9912
89	ROD; CONN,LSPV BRAKE REGULATION ECE<TDV>	1-47769-083-0	01	1	0001-
90	SCREW; CAM	1-47769-097-0	01	1	9601-9610
90	SCREW; CAM EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-097-0	01	1	9611-9912
90	SCREW; CAM EXC. BRAKE REGULATION ECE<TDV>	1-47769-097-0	01	1	0001-
90	SCREW; CAM NEW ZEALAND EQUIPMENT(PK5)	1-47769-039-0	01	1	9611-9912
90	SCREW; CAM BRAKE REGULATION ECE<TDV>	1-47769-039-0	01	1	0001-
91	FILTER; LSPV	1-47769-100-0	01	1	9601-9610
91	FILTER; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-100-0	01	1	9611-9912
91	FILTER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-100-0	01	1	0001-
91	FILTER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-047-0	01	1	9611-9912
91	FILTER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-047-0	01	1	0001-
92	PIPE; LSPV	1-47769-101-0	01	1	9601-9610
92	PIPE; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-101-0	01	1	9611-9912
92	PIPE; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-101-0	01	1	0001-
92	PIPE; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-048-0	01	1	9611-9912
92	PIPE; LSPV BRAKE REGULATION ECE<TDV>	1-47769-048-0	01	1	0001-
93	CLIP; PIPE	1-47769-102-0	01	1	9601-9610
93	CLIP; PIPE EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-102-0	01	1	9611-9912
93	CLIP; PIPE EXC. BRAKE REGULATION ECE<TDV>	1-47769-102-0	01	1	0001-
93	CLIP; PIPE NEW ZEALAND EQUIPMENT(PK5)	1-47769-050-0	01	1	9611-9912
93	CLIP; PIPE BRAKE REGULATION ECE<TDV>	1-47769-050-0	01	1	0001-
94	SCREW; CLIP	1-47769-051-0	02	1	9601-9612
94	SCREW; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-051-0	02	1	9701-9912
94	SCREW; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-051-0	02	1	0001-
94	SCREW; CLIP NEW ZEALAND EQUIPMENT(PK5)	1-47769-162-0	02	1	9701-9912
94	SCREW; CLIP BRAKE REGULATION ECE<TDV>	1-47769-162-0	02	1	0001-
95	WASHER; CLIP	1-47769-052-0	02	1	9601-9612
95	WASHER; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-052-0	02	1	9701-9912
95	WASHER; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-052-0	02	1	0001-
96	ARM; OPERATING	1-47769-110-0	01	1	9601-
97	BOLT; OPERATING ARM	1-47769-104-0	01	1	9601-9610
97	BOLT; OPERATING ARM EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-104-0	01	1	9611-9912
97	BOLT; OPERATING ARM EXC. BRAKE REGULATION ECE<TDV>	1-47769-104-0	01	1	0001-
97	BOLT; OPERATING ARM NEW ZEALAND EQUIPMENT(PK5)	1-47769-081-0	01	1	9611-9912
97	BOLT; OPERATING ARM BRAKE REGULATION ECE<TDV>	1-47769-081-0	01	1	0001-
98	PIN; SPLIT	1-47769-105-0	01	1	9601-9610
98	PIN; SPLIT EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-105-0	01	1	9611-9912
98	PIN; SPLIT EXC. BRAKE REGULATION ECE<TDV>	1-47769-105-0	01	1	0001-
98	PIN; SPLIT NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=15	9-08112-015-0	01	1	9611-9912
98	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=15	9-08112-015-0	01	1	0001-
99	CAP; SCREW	1-47769-055-0	01	1	9601-
100	BRACKET; LSPV	1-47769-111-0	01	1	9601-

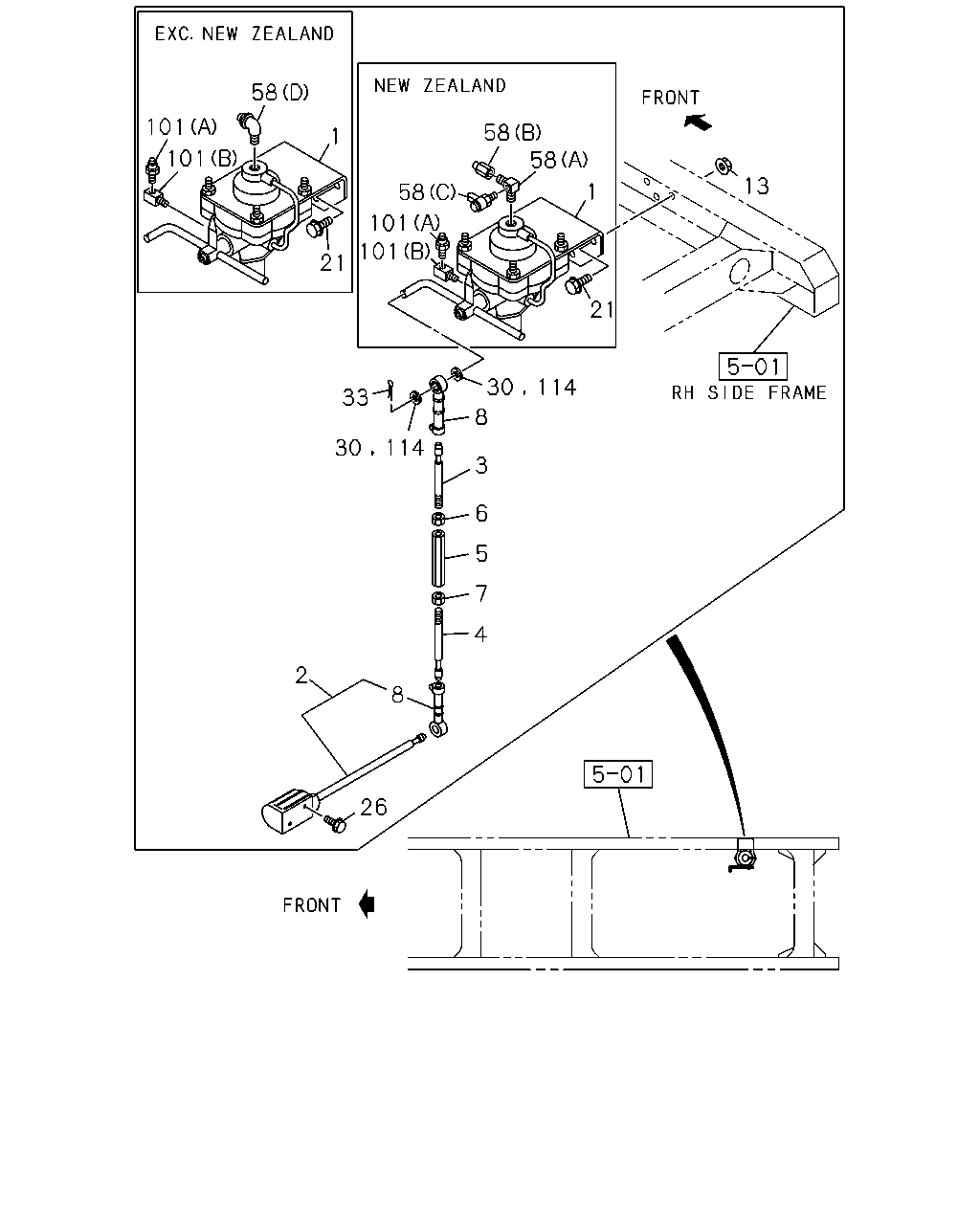

58 58 58 1 101 13 1 58 101 101 21 21 30 114 33 8 30 114 3 6 5 7 4 2 8 26 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING	1-47720-053-0	01	1	9601-9610
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47720-053-0	01	1	9611-9912
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. BRAKE REGULATION ECE<TDV>	1-47720-053-0	01	1	0001-
1	VALVE ASM; LOAD SENSING PROPORTIONING NEW ZEALAND EQUIPMENT(PK5)	1-47720-059-0	01	1	9611-9912
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-059-0	01	1	0001-
2	DAMPER	1-47725-012-0	01	1	9601-
3	ROD; UPR	1-09765-071-0	01	1	9601-
4	ROD; LWR	1-09765-212-0	01	1	9601-
5	JOINT	1-09768-004-0	01	1	9601-
6	NUT; LK,UPR M8	9-09111-408-0	01	1	9601-
7	NUT; LK,LWR LH THREAD	1-09409-002-0	01	1	9601-
8	ROD END	1-47723-001-0	02	1	9601-
13	NUT; LSPV TO BRKT M8	9-09110-408-0	03	1	9601-9606
13	NUT; LSPV TO BRKT M8 FLANGE	0-91150-108-0	03	1	9607-
21	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	03	1	9601-9606
21	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	03	1	9607-
26	BOLT; DAMPER M8X20 FLANGE	0-28080-820-0	02	1	9601-9611
26	BOLT; DAMPER M8X12 FLANGE	0-28080-812-0	02	1	9612-
30	WASHER; PL ID=8.4	9-09160-508-0	02	1	9601-9611
33	PIN; SPLIT OD=1.8 L=25	9-08112-025-0	01	1	9601-
58	CONNECTOR; LSPV (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9610
58	CONNECTOR; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9611-9904
58	CONNECTOR; LSPV EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9912
58	CONNECTOR; LSPV EXC. BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9611-9912
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0001-
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9611-9904
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-9912
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (C)	1-47459-013-0	01	1	9611-9912
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (C)	1-47459-013-0	01	1	0001-
101	CONNECTOR; LSPV (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9904
101	CONNECTOR; LSPV (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-
101	CONNECTOR; LSPV (B)	1-09660-778-1	01	1	9601-
114	WASHER; PL,JOINT RUBBER ID=8.4	9-09160-508-0	02	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
