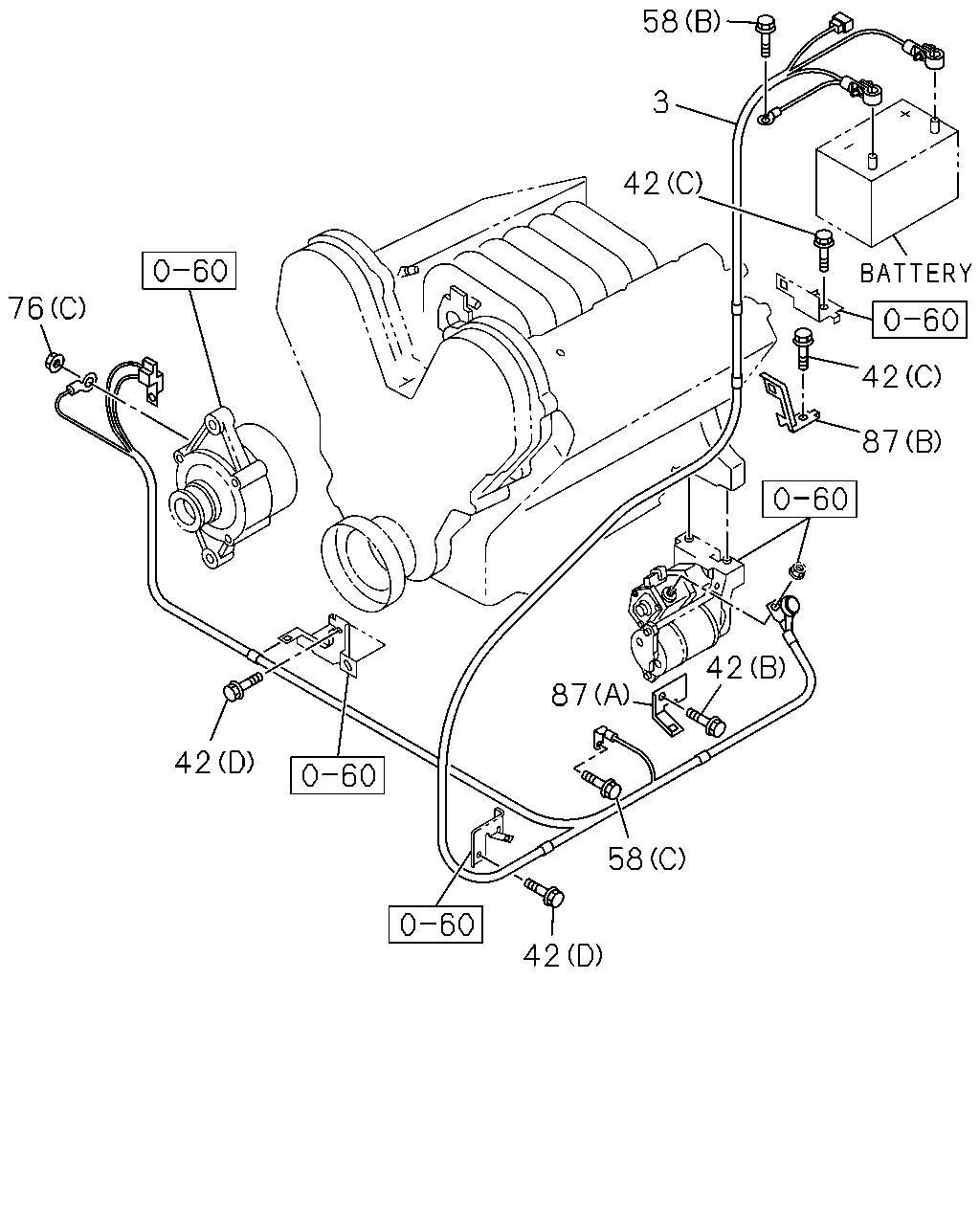

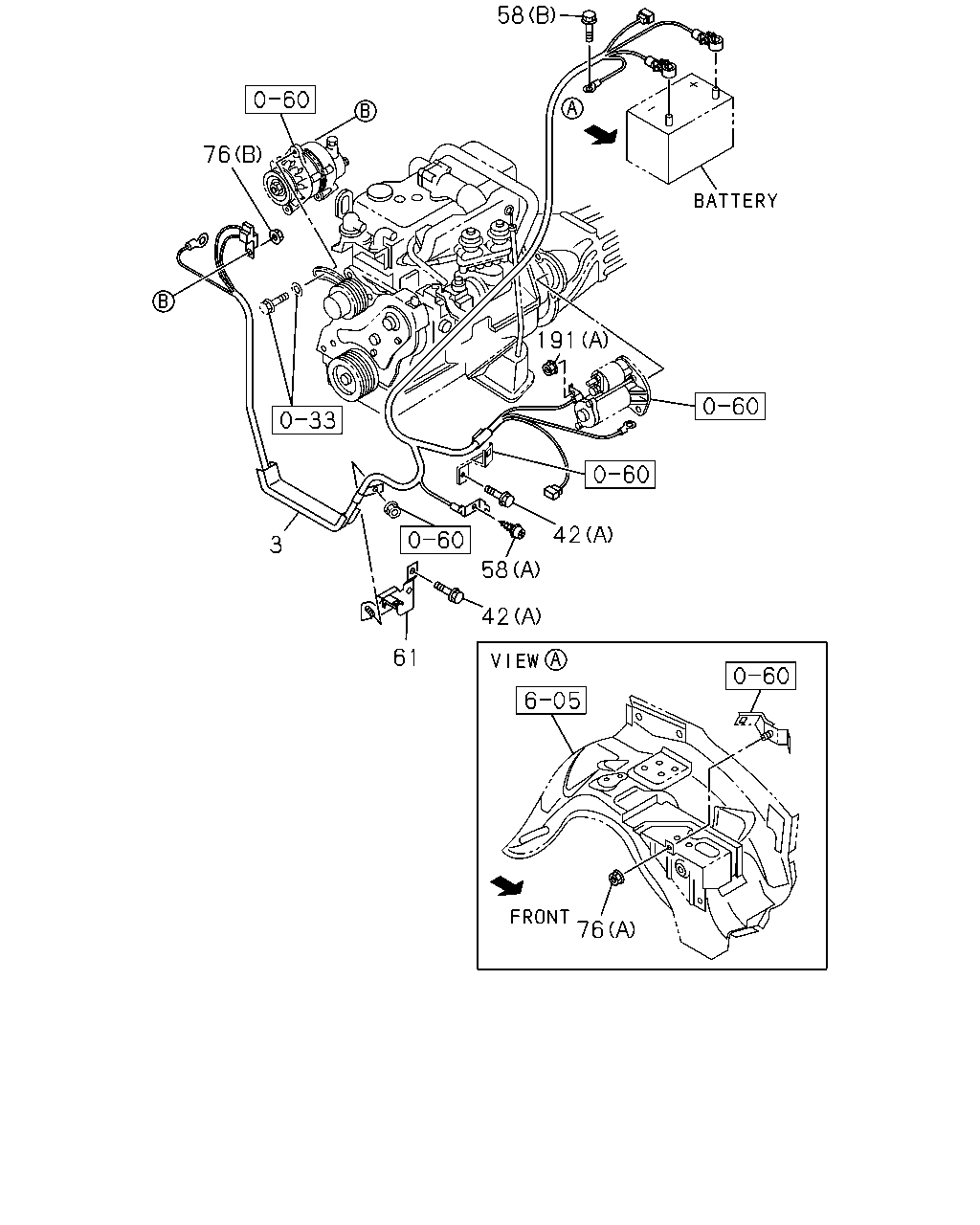

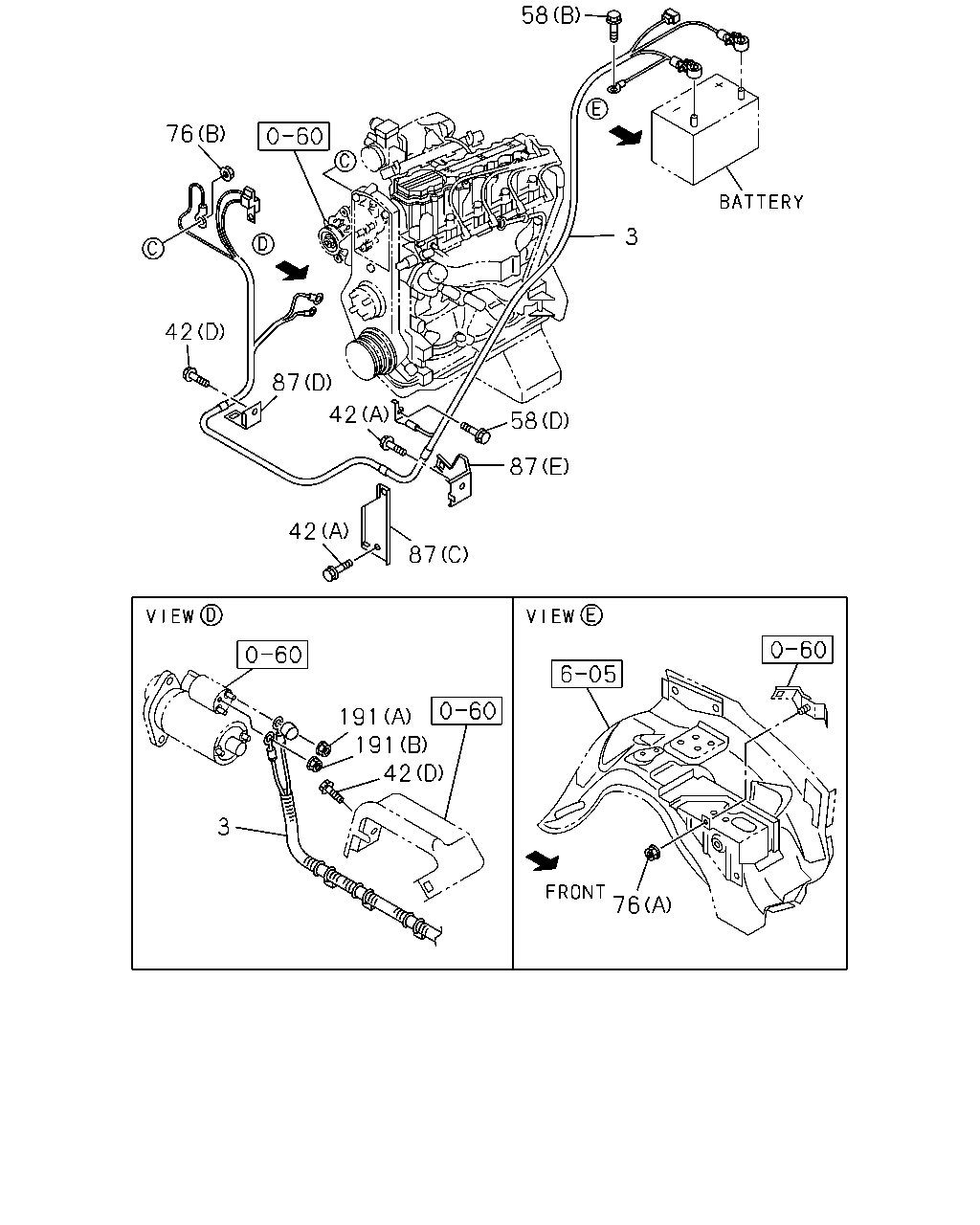

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#48588) — 72 parça

58 76 3 42 87 42 58 87 42 87 191 191 42 3 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHIFT ON THE FLY(7EX)	8-97307-438-2	01	1	0211-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY(7EX)	8-97307-437-2	01	1	0211-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHIFT ON THE FLY(7EX)	8-97357-720-0	01	1	0211-0211		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHIFT ON THE FLY(7EX)	8-97361-558-0	01	1	0212-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY(7EX)	8-97357-719-0	01	1	0211-0211		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY(7EX)	8-97361-557-0	01	1	0212-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY(7EX)	8-97237-004-4	01	1	0211-			●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	02	1	0211-	●		●
42	02.343 BOLT; BRKT,BATTERY CABLE (B) M10X12 FLANGE	0-28151-012-0	01	1	0211-		●
42	02.343 BOLT; BRKT,BATTERY CABLE (C) M6X16 FLANGE	0-28650-616-0	01	1	0211-		●
42	02.343 BOLT; BRKT,BATTERY CABLE (C) M6X16 FLANGE	0-28650-616-0	01	1	0211-		●
42	02.343 BOLT; BRKT,BATTERY CABLE (D) M8X12 FLANGE	0-28050-812-0	02	1	0211-		●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	0211-	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0211-	●	●	●
58	02.343 BOLT; CABLE,BATTERY (C) M8X16 FLANGE	0-28050-816-0	01	1	0211-		●
58	02.343 BOLT; CABLE,BATTERY (D) M10X20 FLANGE	0-28751-020-0	01	1	0211-			●
76	02.343 NUT; BATTERY CABLE 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-	●		●
76	02.343 NUT; BATTERY CABLE 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0211-	●		●
76	02.343 NUT; BATTERY CABLE (C) M6 W/LK WASHER	8-94424-179-0	01	1	0211-		●
87	02.343 BRACKET; HARNESS (A)	8-97236-160-1	01	1	0211-		●
87	02.343 BRACKET; HARNESS (B)	8-97241-142-0	01	1	0211-		●
87	02.343 BRACKET; HARNESS (C)	8-97236-166-0	01	1	0211-			●
87	02.343 BRACKET; HARNESS (D)	8-97241-141-0	01	1	0211-			●
87	02.343 BRACKET; HARNESS (E)	8-97307-629-0	01	1	0211-			●
191	08.155 NUT; STARTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0211-	●		●
191	08.155 NUT; STARTER 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0211-			●

58 76 191 42 3 58 42 61 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHIFT ON THE FLY(7EX)	8-97307-438-2	01	1	0211-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY(7EX)	8-97307-437-2	01	1	0211-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHIFT ON THE FLY(7EX)	8-97357-720-0	01	1	0211-0211		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHIFT ON THE FLY(7EX)	8-97361-558-0	01	1	0212-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY(7EX)	8-97357-719-0	01	1	0211-0211		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY(7EX)	8-97361-557-0	01	1	0212-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY(7EX)	8-97237-004-4	01	1	0211-			●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	02	1	0211-	●		●
42	02.343 BOLT; BRKT,BATTERY CABLE (B) M10X12 FLANGE	0-28151-012-0	01	1	0211-		●
42	02.343 BOLT; BRKT,BATTERY CABLE (C) M6X16 FLANGE	0-28650-616-0	01	1	0211-		●
42	02.343 BOLT; BRKT,BATTERY CABLE (C) M6X16 FLANGE	0-28650-616-0	01	1	0211-		●
42	02.343 BOLT; BRKT,BATTERY CABLE (D) M8X12 FLANGE	0-28050-812-0	02	1	0211-		●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	0211-	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0211-	●	●	●
58	02.343 BOLT; CABLE,BATTERY (C) M8X16 FLANGE	0-28050-816-0	01	1	0211-		●
58	02.343 BOLT; CABLE,BATTERY (D) M10X20 FLANGE	0-28751-020-0	01	1	0211-			●
61	02.333 BRACKET; BATTERY CABLE	8-97260-935-2	01	1	0211-	●
76	02.343 NUT; BATTERY CABLE 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-	●		●
76	02.343 NUT; BATTERY CABLE 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0211-	●		●
76	02.343 NUT; BATTERY CABLE (C) M6 W/LK WASHER	8-94424-179-0	01	1	0211-		●
191	08.155 NUT; STARTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0211-	●		●
191	08.155 NUT; STARTER 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0211-			●

58 3 42 76 42 87 42 87 42 58 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHIFT ON THE FLY(7EX)	8-97307-438-2	01	1	0211-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY(7EX)	8-97307-437-2	01	1	0211-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHIFT ON THE FLY(7EX)	8-97357-720-0	01	1	0211-0211		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE SHIFT ON THE FLY(7EX)	8-97361-558-0	01	1	0212-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY(7EX)	8-97357-719-0	01	1	0211-0211		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY(7EX)	8-97361-557-0	01	1	0212-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. SHIFT ON THE FLY(7EX)	8-97237-004-4	01	1	0211-			●
42	02.343 BOLT; BRKT,BATTERY CABLE (A) M6X16 FLANGE	0-28650-616-0	02	1	0211-	●		●
42	02.343 BOLT; BRKT,BATTERY CABLE (B) M10X12 FLANGE	0-28151-012-0	01	1	0211-		●
42	02.343 BOLT; BRKT,BATTERY CABLE (C) M6X16 FLANGE	0-28650-616-0	01	1	0211-		●
42	02.343 BOLT; BRKT,BATTERY CABLE (C) M6X16 FLANGE	0-28650-616-0	01	1	0211-		●
42	02.343 BOLT; BRKT,BATTERY CABLE (D) M8X12 FLANGE	0-28050-812-0	02	1	0211-		●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE	0-28651-020-0	01	1	0211-	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0211-	●	●	●
58	02.343 BOLT; CABLE,BATTERY (C) M8X16 FLANGE	0-28050-816-0	01	1	0211-		●
58	02.343 BOLT; CABLE,BATTERY (D) M10X20 FLANGE	0-28751-020-0	01	1	0211-			●
76	02.343 NUT; BATTERY CABLE 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-	●		●
76	02.343 NUT; BATTERY CABLE 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0211-	●		●
76	02.343 NUT; BATTERY CABLE (C) M6 W/LK WASHER	8-94424-179-0	01	1	0211-		●
87	02.343 BRACKET; HARNESS (A)	8-97236-160-1	01	1	0211-		●
87	02.343 BRACKET; HARNESS (B)	8-97241-142-0	01	1	0211-		●
87	02.343 BRACKET; HARNESS (C)	8-97236-166-0	01	1	0211-			●
87	02.343 BRACKET; HARNESS (D)	8-97241-141-0	01	1	0211-			●
87	02.343 BRACKET; HARNESS (E)	8-97307-629-0	01	1	0211-			●
