0-52 — OIL AND VACUUM PIPING; ENGINE (#48583) — 45 parça

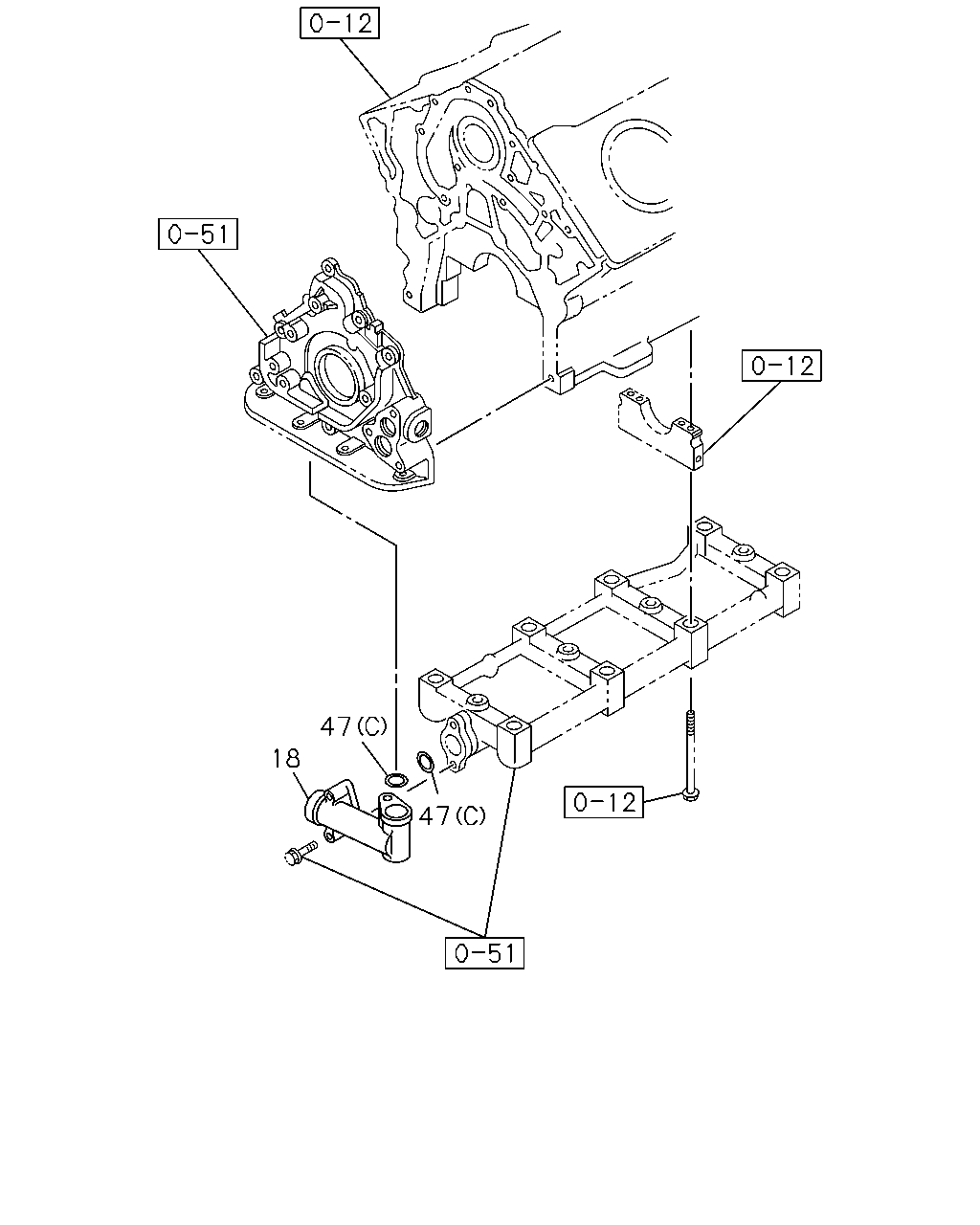

çizim 10062
47 18 47
BalonParca AdiParca NoAdetTipApplied Date A B
18 01.519 PIPE; OIL,OIL PUMP 8-97226-640-0 01 1 0211- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0211- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 0211- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0211- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) W/PLATE ID=18.2 		8-94329-964-0 02 1 0211- ●

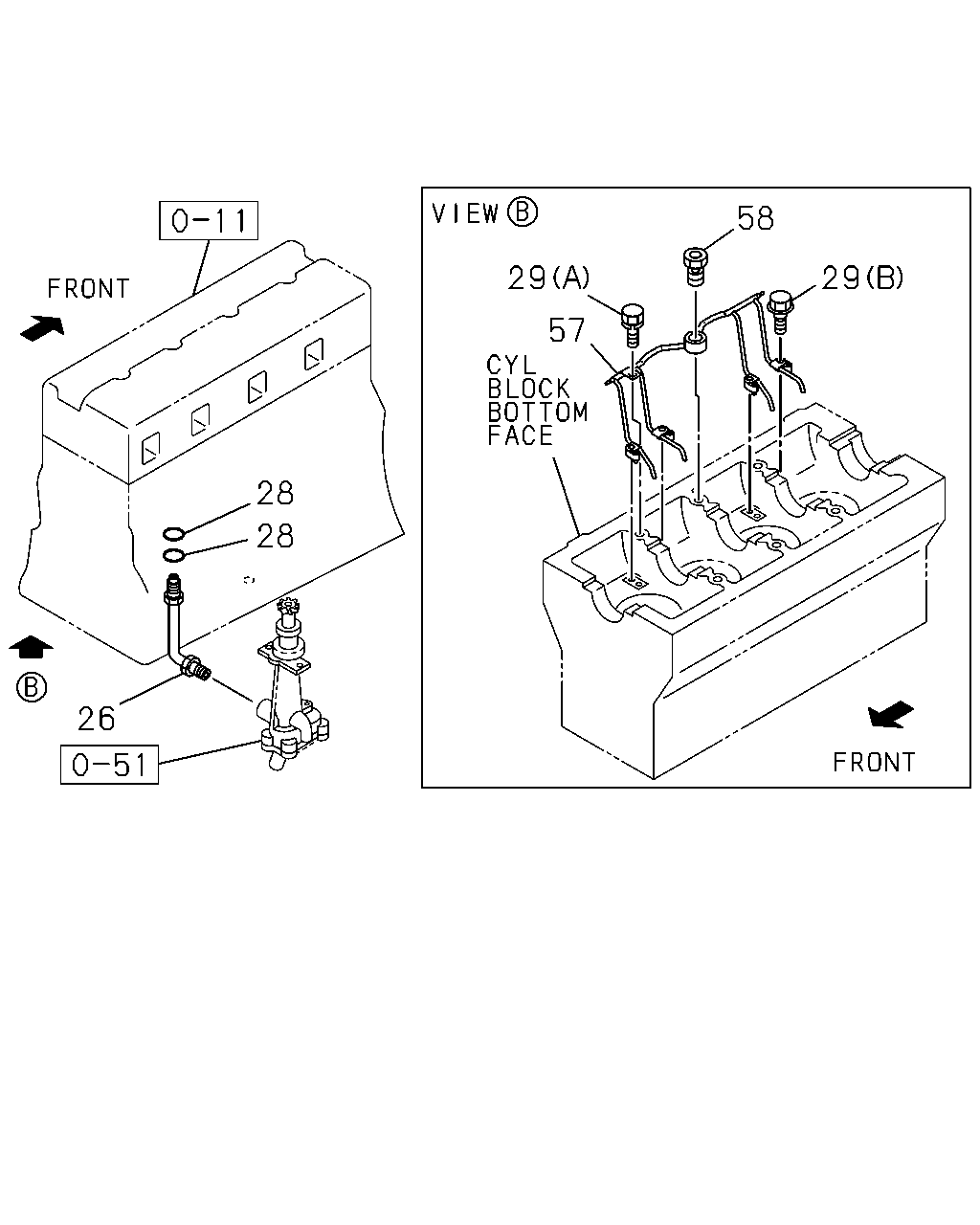

çizim 13366
58 29 29 57 28 28 26
BalonParca AdiParca NoAdetTipApplied Date A B
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 0211- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 0211- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0211- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0211- ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0211- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-0 01 1 0211- ●

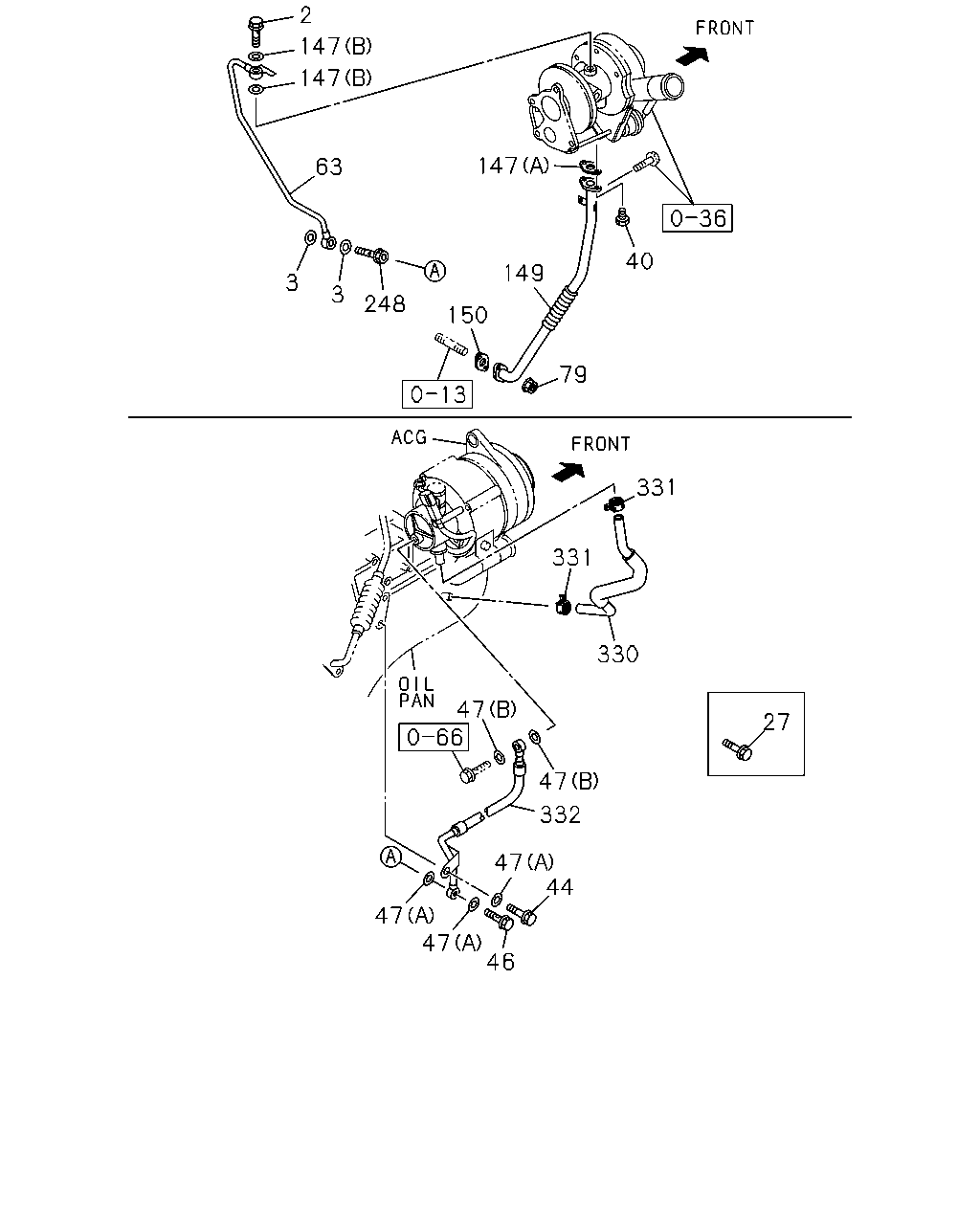

çizim 47839
2 147 147 147 63 40 149 3 3 248 150 79 331 331 330 47 27 47 332 47 44 47 47 46
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0211- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0211- ●
27 01.531 BOLT; OIL PIPE FIX
00.206 M8X10 FLANGE 		0-28080-810-0 01 1 0211- ●
40 01.531 BOLT; OIL PIPE
02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0211- ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0211- ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0211- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0211- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 0211- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0211- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) W/PLATE ID=18.2 		8-94329-964-0 02 1 0211- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97330-876-0 01 1 0211- ●
79 01.531 NUT; OIL DRAIN PIPE
00.854 M8 FLANGE 		5-09440-005-0 02 1 0211- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14 		8-97041-638-0 01 1 0211- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0211- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97245-772-2 01 1 0211- ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97045-326-1 01 1 0211- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED 8-97305-198-1 01 1 0211- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97353-830-0 01 1 0211- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 01 1 0211- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 01 1 0211- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97324-653-1 01 1 0211- ●

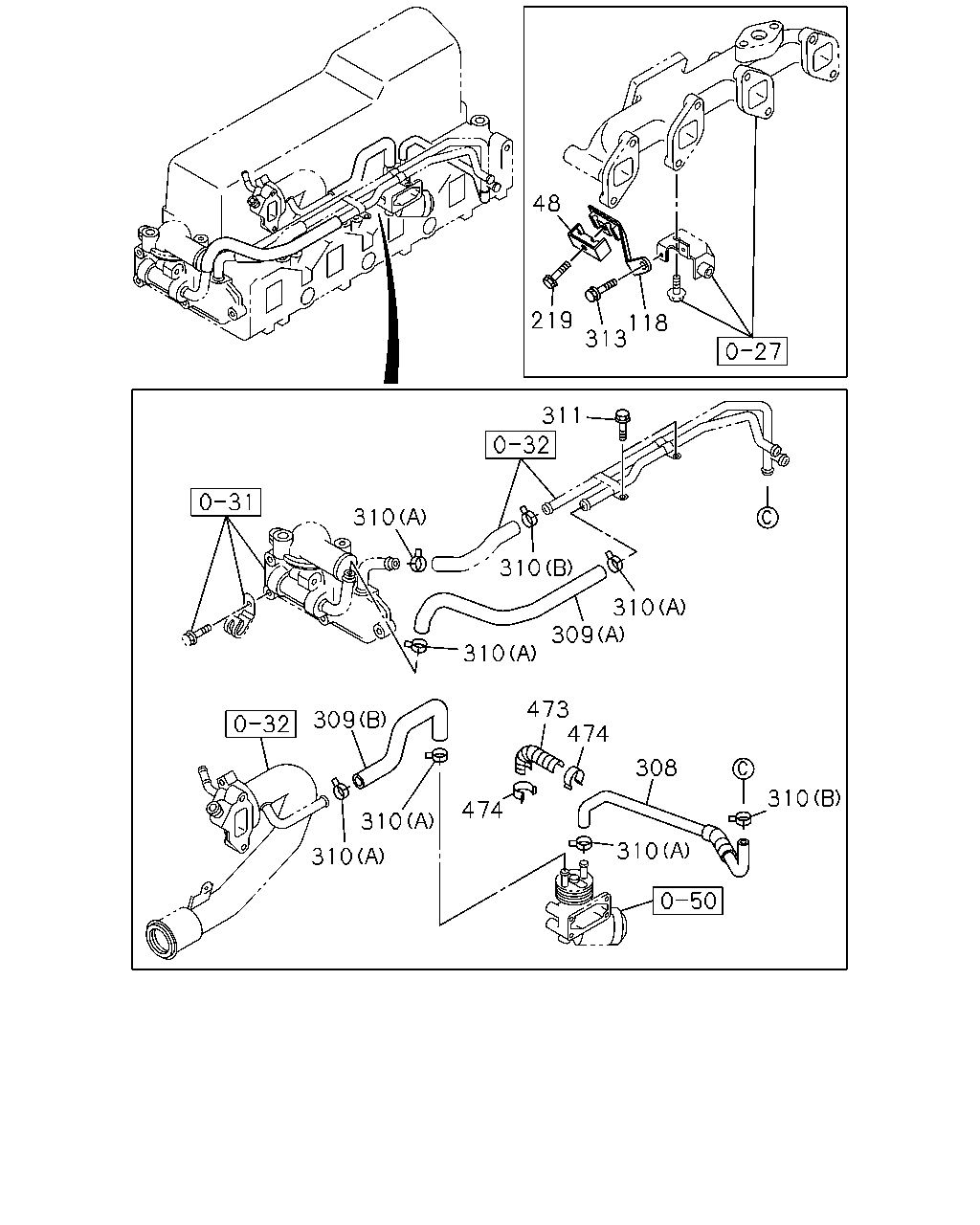

çizim 51098
48 219 118 313 311 310 310 310 309 310 473 474 309 308 310 474 310 310 310
BalonParca AdiParca NoAdetTipApplied Date A B
48 01.531 CLIP; OIL PIPE
ID=9 & 9 L=25 		1-09701-212-1 01 1 0211- ●
118 01.531 BRACKET; CLIP,OIL PIPE 8-97328-187-0 01 1 0211- ●
219 01.531 BOLT; CLIP FIX,OIL PIPE
M6X35 FLANGE 		0-28680-635-0 01 1 0211- ●
308 01.540 HOSE; OIL COOLER FEED 8-97329-649-1 01 1 0211-0301 ●
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-1 01 1 0302- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-0 01 1 0211- ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97329-648-1 01 1 0211- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0211- ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0211- ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0211- ●
313 01.540 BOLT; PIPE BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211- ●
473 01.540 INSULATOR; HOSE 8-97101-333-1 02 1 0211- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 0211- ●
