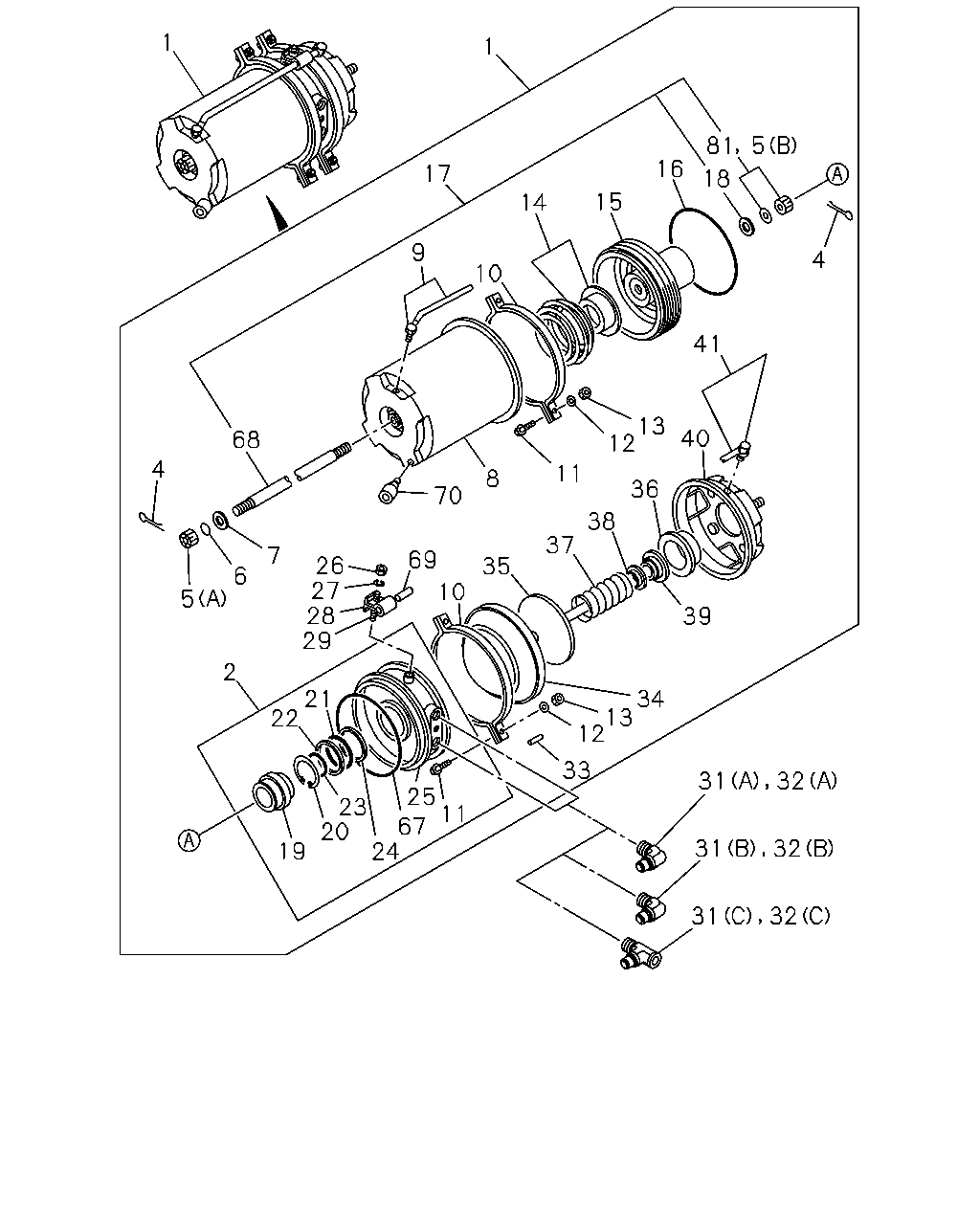

3-41 — REAR BRAKE POWER CHAMBER (#4858) — 145 parça
çizim 7699
1 1 81 5 16 17 18 15 14 9 4 10 41 13 12 40 68 4 11 8 36 70 38 37 7 69 26 27 28 29 35 6 10 5 39 2 34 13 12 21 22 33 31 32 25 11 23 20 67 24 19 31 32 32 31
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-181-2 01 1 9601-
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-180-2 01 1 9601-
1 CHAMBER ASM; SPRING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-156-1 01 1 9601-9805
1 CHAMBER ASM; SPRING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-641-1 01 1 9806-
1 CHAMBER ASM; SPRING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-157-1 01 1 9601-9805
1 CHAMBER ASM; SPRING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-640-1 01 1 9806-
2 CHAMBER; EMERGENCY
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48252-019-0 01 1 9601-
2 CHAMBER; EMERGENCY
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48252-018-0 01 1 9601-
2 CHAMBER; EMERGENCY
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48252-014-0 01 1 9601-
2 CHAMBER; EMERGENCY
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48252-015-0 01 1 9601-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9601-9610
4 PIN; STRAIGHT,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-056-0 04 1 9611-
4 PIN; STRAIGHT,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-056-0 02 1 9611-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 9601-9610
5 NUT; SHELL
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) 		1-48259-054-0 02 1 9611-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9601-9610
5 NUT; SHELL
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) 		1-48259-074-0 02 1 9611-
5 NUT; SHELL
BRAKE POWER CHAMBER FORWARD<BCQ> (A) 		1-48259-054-0 01 1 9611-
5 NUT; SHELL
BRAKE POWER CHAMBER FORWARD<BCQ> (B) 		1-48259-074-0 01 1 9611-
6 GASKET; SHELL
BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48259-055-0 01 1 9905-9907
6 GASKET; SHELL
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		9-09920-268-0 02 1 9601-
7 GASKET 1-48259-055-0 02 1 9601-9610
7 GASKET
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-055-0 02 1 9611-
7 GASKET
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-055-0 01 1 9611-
8 SHELL; CYL,SPR CHAMBER 1-48259-070-1 01 1 9601-
8 SHELL; CYL,SPR CHAMBER 1-48259-069-1 01 1 9601-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 9601-9610
9 PIPE ASM; SHELL
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-076-0 02 1 9611-
9 PIPE ASM; SHELL
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-076-0 01 1 9611-
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 9601-9610
10 RING; CLAMP,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-016-0 08 1 9611-
10 RING; CLAMP,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-016-0 04 1 9611-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 9601-9610
11 BOLT; CLAMP RING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-035-0 08 1 9611-9805
11 BOLT; CLAMP RING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-092-0 08 1 9806-
11 BOLT; CLAMP RING
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-035-0 04 1 9611-
12 WASHER; LK,CLAMP RING 1-48259-046-0 08 1 9601-9610
12 WASHER; LK,CLAMP RING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-046-0 08 1 9611-9805
12 WASHER; LK,CLAMP RING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> ID=10.2 		9-09150-510-0 08 1 9806-
12 WASHER; LK,CLAMP RING
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-046-0 04 1 9611-
13 NUT; CLAMP RING
M10 		9-09110-510-0 08 1 9601-9610
13 NUT; CLAMP RING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M10 		9-09110-510-0 08 1 9611-9805
13 NUT; CLAMP RING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		9-83315-080-0 08 1 9806-
13 NUT; CLAMP RING
BRAKE POWER CHAMBER FORWARD<BCQ> M10 		9-09110-510-0 04 1 9611-
14 SPRING & SEAT SET 1-48259-037-0 02 1 9601-9610
14 SPRING & SEAT SET
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-037-1 02 1 9611-
14 SPRING & SEAT SET
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-037-0 01 1 9611-
15 PISTON 1-48262-005-0 02 1 9601-9610
15 PISTON
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48262-005-0 02 1 9611-
15 PISTON
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48262-005-0 01 1 9611-
16 GASKET 1-48259-048-0 02 1 9601-9610
16 GASKET
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-048-0 02 1 9611-
16 GASKET
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-048-0 01 1 9611-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 9601-9610
17 BOLT ASM; EMERGENCY
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-073-0 02 1 9611-
17 BOLT ASM; EMERGENCY
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-073-0 01 1 9611-
18 WASHER; PISTON COVER,SPR CHAMBER
BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48259-098-0 01 1 9905-9907
19 COVER; PISTON 1-48269-011-0 02 1 9601-9610
19 COVER; PISTON
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48269-011-0 02 1 9611-
19 COVER; PISTON
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48269-011-0 01 1 9611-
20 RING; RET
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-060-0 02 1 9601-9610
20 RING; RET
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-48259-060-0 01 1 9611-9705
20 RING; RET
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-060-0 01 1 9706-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 9601-9610
21 GASKET; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-049-0 02 1 9611-
21 GASKET; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-049-0 01 1 9611-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9601-9610
22 RING; BACKUP,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-019-0 02 1 9611-
22 RING; BACKUP,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-019-0 01 1 9611-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 9601-9610
23 GASKET; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-047-0 02 1 9611-
23 GASKET; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-047-0 01 1 9611-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9601-9610
24 BEARING; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-020-0 02 1 9611-
24 BEARING; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-020-0 01 1 9611-
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-086-0 01 1 9601-
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-085-0 01 1 9601-
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-077-0 01 1 9601-
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-078-0 01 1 9601-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 9601-9610
26 NUT; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-058-0 04 1 9611-
26 NUT; PRESSURE PLATE
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-058-0 02 1 9611-
27 WASHER; PRESSURE PLATE 1-48259-057-0 02 1 9601-9610
27 WASHER; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-057-0 02 1 9611-9805
27 WASHER; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> ID=8.2 		9-09150-508-0 02 1 9806-
27 WASHER; PRESSURE PLATE
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-057-0 01 1 9611-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 9601-9610
28 BRACKET; PRESSURE PLATE,HOSE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-059-0 02 1 9611-
28 BRACKET; PRESSURE PLATE,HOSE
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-059-0 01 1 9611-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 9601-9610
29 STUD; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-050-0 02 1 9611-
29 STUD; PRESSURE PLATE
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-050-0 01 1 9611-
31 CONNECTOR
BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) SERVICE 		1-09660-838-0 01 1 9905-9906
31 CONNECTOR
BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) SERVICE 		1-47815-034-0 01 1 9907-9907
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (A) EMERGENCY DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9601-9904
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (A) EMERGENCY DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9905-9907
31 CONNECTOR
BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) EMERGENCY DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9905-9907
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (A) EMERGENCY DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9908-
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (B) SERVICE DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9601-9610
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) SERVICE DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9611-
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 9611-
31 CONNECTOR
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) M20 & PT3/8 ELBOW 		1-09660-686-0 01 1 9601-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) EMERGENCY DIN8 & R3/8 ELBOW 		1-09660-652-1 02 1 9611-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) SERVICE DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9611-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (C) SERVICE DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 9611-
33 RETAINER; DIAPH 1-48259-044-0 04 1 9601-9610
33 RETAINER; DIAPH
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-044-0 04 1 9611-
33 RETAINER; DIAPH
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-044-0 02 1 9611-
34 DIAPHRAGM 1-48252-010-0 02 1 9601-9610
34 DIAPHRAGM
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48252-010-0 02 1 9611-9805
34 DIAPHRAGM
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48252-056-0 02 1 9806-
34 DIAPHRAGM
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48252-010-0 01 1 9611-
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 9601-9610
35 PLATE; ROD END,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48253-010-0 02 1 9611-
35 PLATE; ROD END,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48253-010-0 01 1 9611-
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 9601-9610
36 RETAINER; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-043-0 02 1 9611-
36 RETAINER; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-043-0 01 1 9611-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 9601-9610
37 SPRING; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48255-003-0 02 1 9611-9805
37 SPRING; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48255-016-0 02 1 9806-
37 SPRING; LWR,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48255-003-0 01 1 9611-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 9601-9610
38 COVER; ROD & PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-066-0 02 1 9611-
38 COVER; ROD & PLATE
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-066-0 01 1 9611-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 9601-9610
39 COVER; ROD & PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-065-0 02 1 9611-
39 COVER; ROD & PLATE
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-065-0 01 1 9611-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 9601-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-067-1 01 1 9601-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48250-067-1 01 1 9905-9907
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 9601-9610
41 PIPE ASM; LWR COVER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-075-0 02 1 9611-
41 PIPE ASM; LWR COVER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-075-0 01 1 9611-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 9601-9610
67 GASKET; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-053-0 02 1 9611-
67 GASKET; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-053-0 01 1 9611-
68 BOLT; PISTON COVER
BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48259-026-0 01 1 9905-9907
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 9601-9610
69 HOSE; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-051-0 02 1 9611-
69 HOSE; PRESSURE PLATE
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-051-0 01 1 9611-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 9601-9610
70 COVER; EXH,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-052-0 02 1 9611-
70 COVER; EXH,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-052-0 01 1 9611-
81 NUT ASM; EMERGENCY
BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48259-074-0 01 1 9905-9907
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
