Isuzu WW
▶
PICKUP
▶
TFR
▶
50936 - TFR/TFS(AUSTRALIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

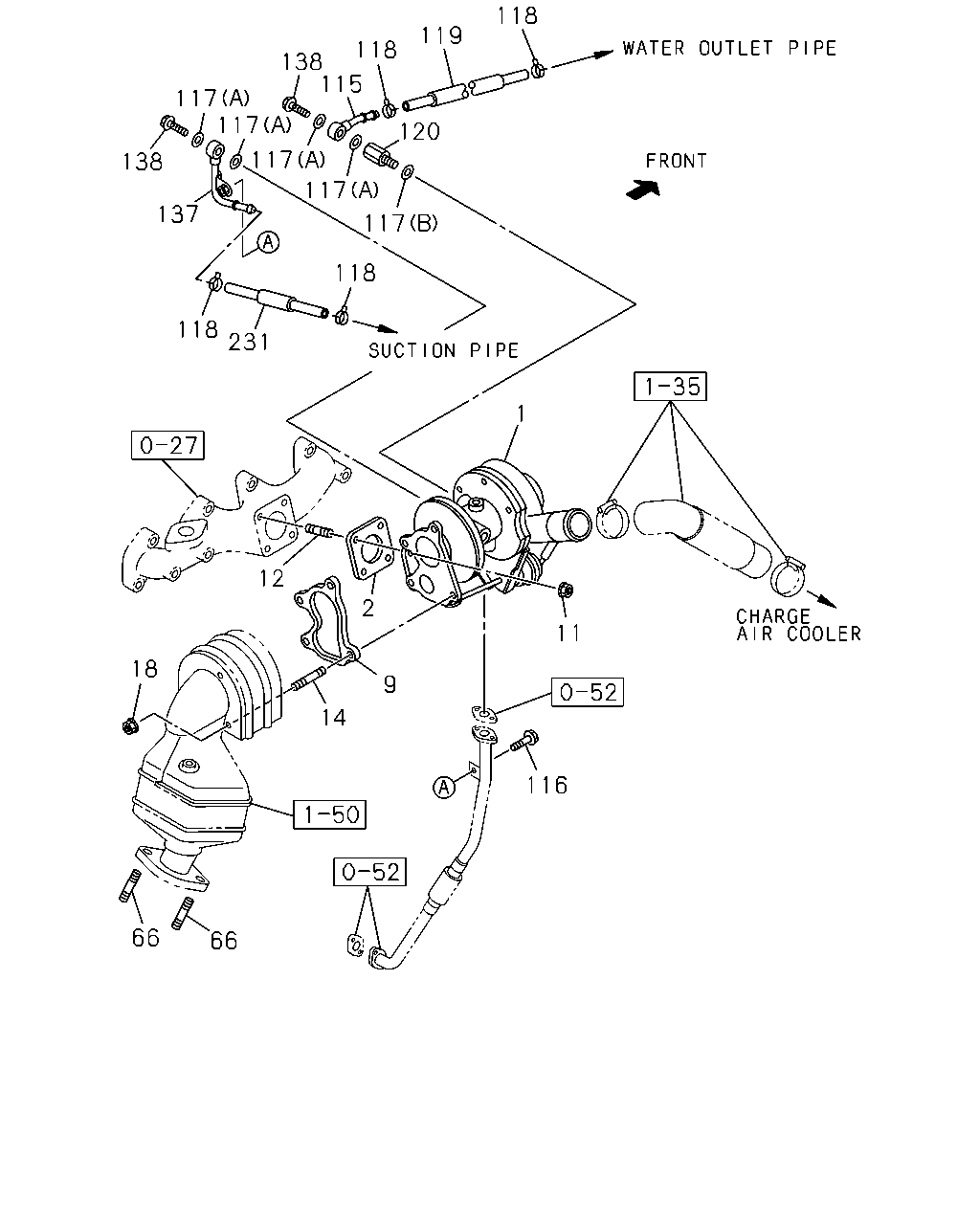

0-36 — TURBOCHARGER SYSTEM
(#48576) — 18 parça
118
119
118
138
115
117
117
120
117
138
117
137
117
118
118
231
1
12
2
11
18
9
14
116
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97310-948-3
01
1
0211-
2
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94433-605-0
01
1
0211-
9
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94433-604-0
01
1
0211-
11
03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE
8-97161-607-0
04
1
0211-
12
03.342 STUD; TURBOCHARGER
M8X20 L=31
8-97104-508-1
04
1
0211-
14
03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52
8-97188-452-0
04
1
0211-
18
03.613 NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
04
1
0211-
66
03.342 STUD; EXH PIPE
03.613 M10X38 L=53
5-09302-007-0
02
1
0211-
115
03.342 PIPE; WATER,TURBOCHARGER OUT
01.097
8-97063-234-0
01
1
0211-
116
03.342 BOLT; WATER PIPE
00.685 M6X12 W/LK WASHER
0-50040-612-0
01
1
0211-
117
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) T=2.5
8-94472-584-1
01
1
0211-
117
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2
9-09571-412-0
04
1
0211-
118
03.342 CLIP; WATER HOSE
01.153 ID=12.8
8-94367-943-0
04
1
0211-
119
03.342 HOSE; WATER,TURBOCHARGER
L=250 W/INSULATOR
8-94340-669-1
01
1
0211-
120
01.097 ADAPTER; WATER
8-94472-583-0
01
1
0211-
137
01.097 PIPE; WATER,TURBOCHARGER IN
8-97086-342-0
01
1
0211-
138
03.342 BOLT; EYE,WATER PIPE
01.531 M12X24 EYE-BOLT
1-09675-081-0
02
1
0211-
231
03.342 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR
8-94325-255-0
01
1
0211-
