◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#48575) — 22 parça

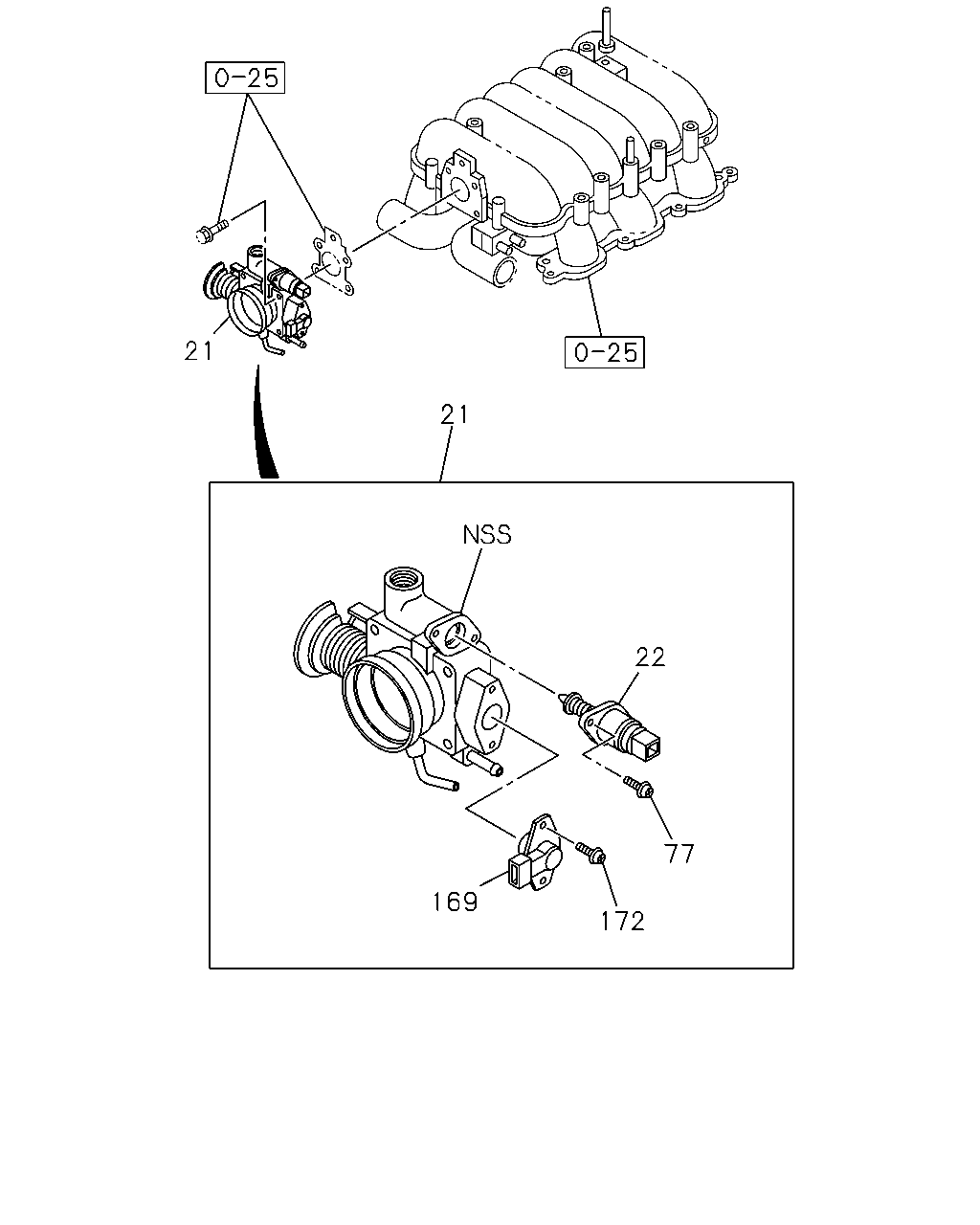

çizim 10063
21 21 22 77 169 172
BalonParca AdiParca NoAdetTipApplied Date A B C
21 03.440 VALVE ASM; THROTTLE 8-97315-138-0 01 1 0211- ●
21 03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD) 		8-97232-747-0 01 1 0211- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97232-746-0 01 1 0211- ●
21 03.440 VALVE ASM; THROTTLE 8-92064-772-0 01 1 0211- ●
22 03.440 VALVE ASM; CONT,TB 8-97181-718-0 01 1 0211- ●
77 03.440 SCREW; TB 8-97181-716-0 02 1 0211- ●
169 03.440 SENSOR
03.425 		8-97163-164-0 01 1 0211- ●
169 03.440 SENSOR 8-97181-717-0 01 1 0211- ●
172 03.440 SCREW; SENSOR 8-97288-945-0 02 1 0211- ●
172 03.440 SCREW; SENSOR 8-97181-715-0 02 1 0211- ●
çizim 12617
21
BalonParca AdiParca NoAdetTipApplied Date A B C
21 03.440 VALVE ASM; THROTTLE 8-97315-138-0 01 1 0211- ●
21 03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD) 		8-97232-747-0 01 1 0211- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97232-746-0 01 1 0211- ●
21 03.440 VALVE ASM; THROTTLE 8-92064-772-0 01 1 0211- ●

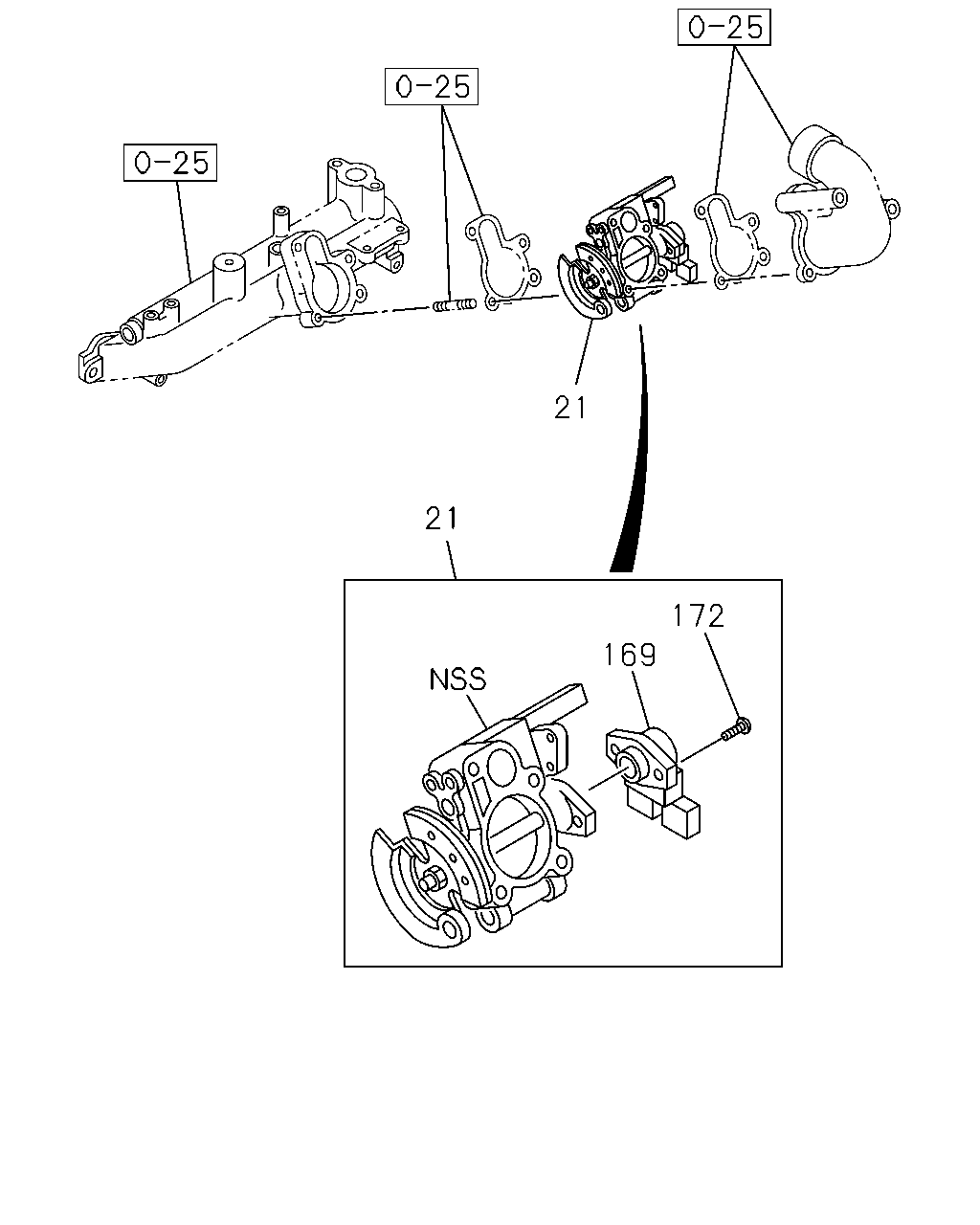

çizim 49472
21 21 172 169
BalonParca AdiParca NoAdetTipApplied Date A B C
21 03.440 VALVE ASM; THROTTLE 8-97315-138-0 01 1 0211- ●
21 03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD) 		8-97232-747-0 01 1 0211- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97232-746-0 01 1 0211- ●
21 03.440 VALVE ASM; THROTTLE 8-92064-772-0 01 1 0211- ●
169 03.440 SENSOR
03.425 		8-97163-164-0 01 1 0211- ●
169 03.440 SENSOR 8-97181-717-0 01 1 0211- ●
172 03.440 SCREW; SENSOR 8-97288-945-0 02 1 0211- ●
172 03.440 SCREW; SENSOR 8-97181-715-0 02 1 0211- ●
