◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#48574) — 45 parça

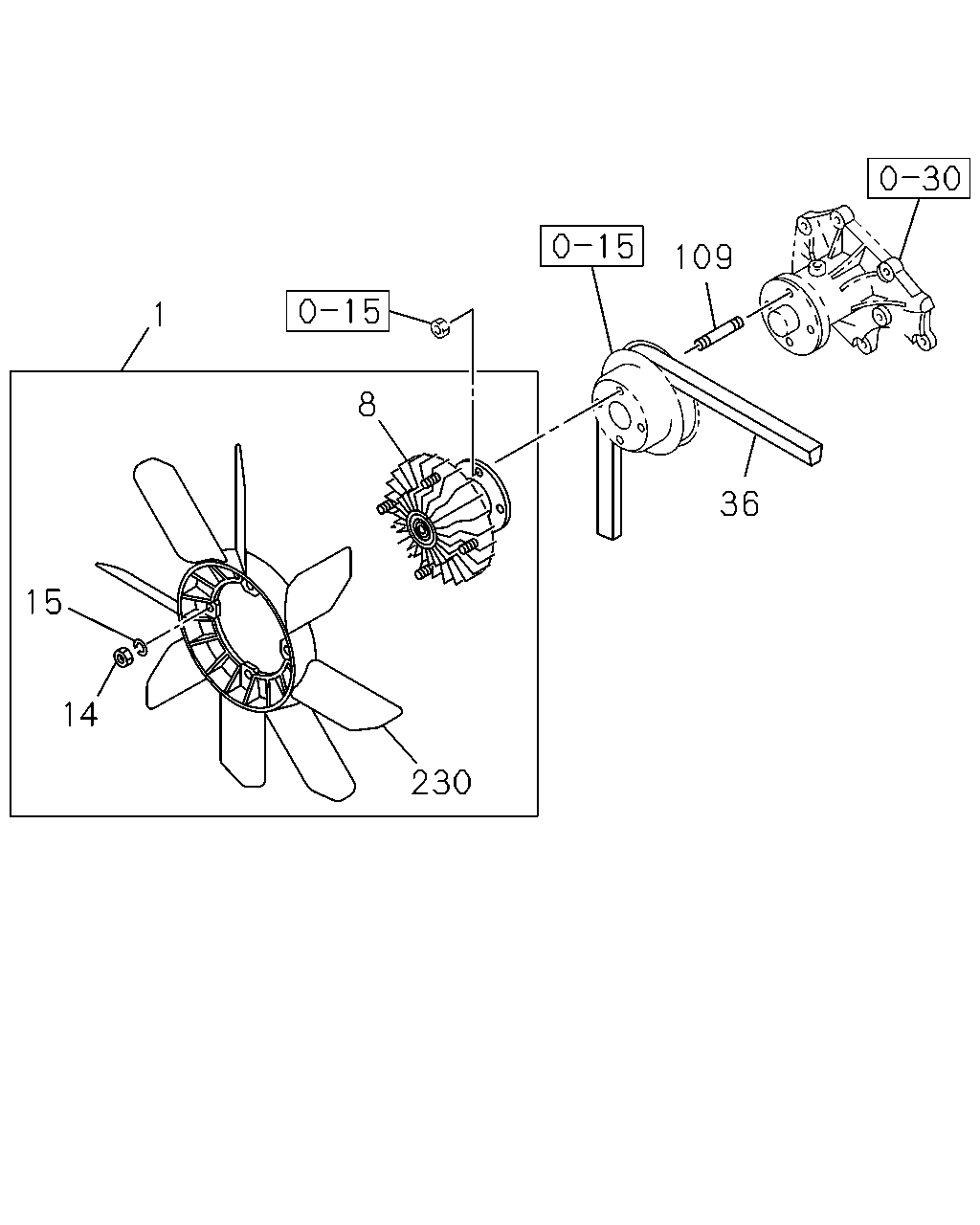

çizim 50468
109 1 8 36 15 14 230
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.064 FAN; COOLING 8-97318-963-0 01 1 0211- ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0211- ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0211- ●
8 01.064 CLUTCH; COOLING FAN 8-97329-954-0 01 1 0211- ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0211- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0211- ● ●
15 01.062 WASHER; LK,COOLING FAN
00.206 ID=6.1 		9-09150-506-0 04 1 0211- ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97943-173-0 01 1 0307- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 0211-0306 ●
36 01.066 BELT; COOLING FAN
L=1025 BANDO 		8-97943-022-0 01 1 0307- ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0211- ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0211- ●
230 01.055 FAN; COOLING 8-97921-857-0 01 1 0211- ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 0211- ●

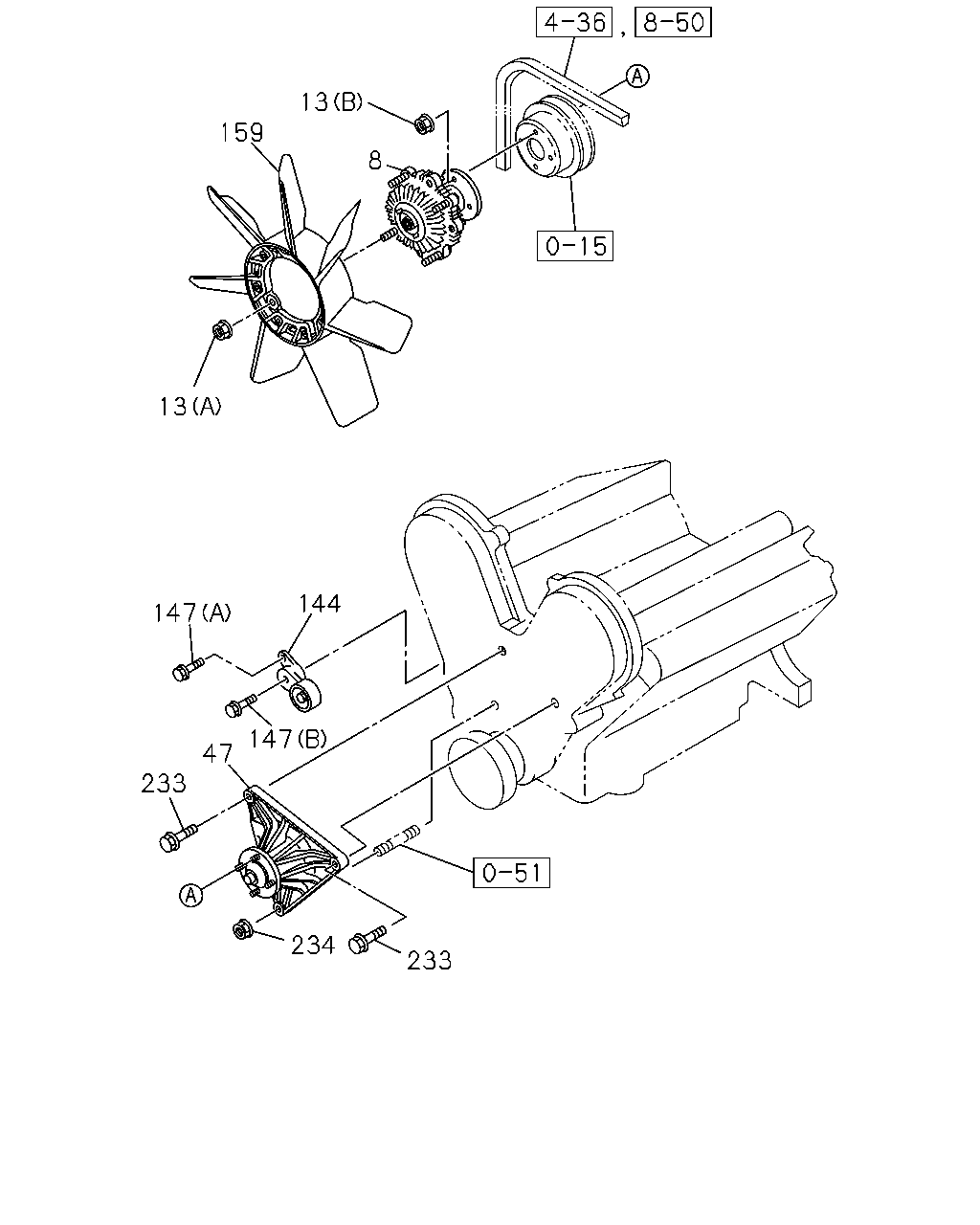

çizim 50513
13 159 8 13 144 147 147 47 233 234 233
BalonParca AdiParca NoAdetTipApplied Date A B C
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0211- ●
8 01.064 CLUTCH; COOLING FAN 8-97329-954-0 01 1 0211- ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0211- ●
13 01.062 NUT; COOLING FAN
(A) M6 FLANGE 		0-91180-106-0 04 1 0211- ●
13 01.062 NUT; COOLING FAN
(B) M8 FLANGE 		0-91180-108-0 04 1 0211- ●
47 01.060 BRACKET; FAN 8-97231-718-0 01 1 0211- ●
47 01.060 BRACKET; FAN 8-92064-194-0 01 1 0211- ●
144 01.060 TENSIONER; DRIVE BELT
09.180 		8-97125-860-1 01 1 0211- ●
147 01.060 BOLT; BELT TENSIONER
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0211- ●
147 01.060 BOLT; BELT TENSIONER
09.190 (B) M10X65 		9-05821-065-0 01 1 0211- ●
159 01.064 BLADE; COOLING FAN 8-97130-757-1 01 1 0211- ●
233 01.060 BOLT; FAN BRKT
M8X98 FLANGE 		8-97182-861-0 02 1 0211- ●
233 01.060 BOLT; FAN BRKT 8-11082-931-0 03 1 0211- ●
234 01.060 NUT; FAN BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0211- ●

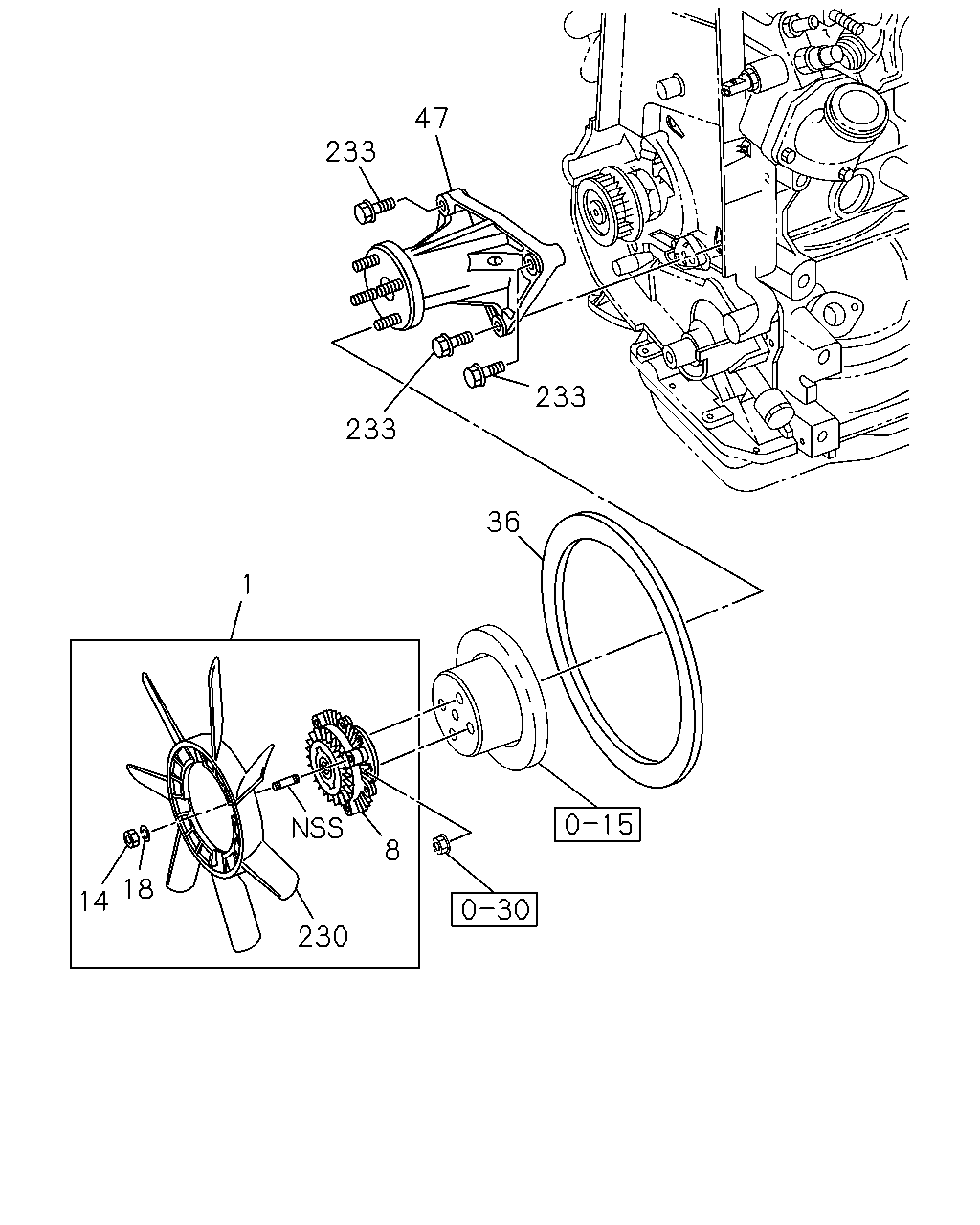

çizim 51680
47 233 233 233 36 1 8 18 14 230
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.064 FAN; COOLING 8-97318-963-0 01 1 0211- ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0211- ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0211- ●
8 01.064 CLUTCH; COOLING FAN 8-97329-954-0 01 1 0211- ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0211- ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0211- ● ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 0211- ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97943-173-0 01 1 0307- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 0211-0306 ●
36 01.066 BELT; COOLING FAN
L=1025 BANDO 		8-97943-022-0 01 1 0307- ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0211- ●
47 01.060 BRACKET; FAN 8-97231-718-0 01 1 0211- ●
47 01.060 BRACKET; FAN 8-92064-194-0 01 1 0211- ●
230 01.055 FAN; COOLING 8-97921-857-0 01 1 0211- ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 0211- ●
233 01.060 BOLT; FAN BRKT
M8X98 FLANGE 		8-97182-861-0 02 1 0211- ●
233 01.060 BOLT; FAN BRKT 8-11082-931-0 03 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
