Isuzu WW
▶
PICKUP
▶
TFR
▶
50936 - TFR/TFS(AUSTRALIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#48573) — 27 parça
Tümü
A - 6VE1 ENG
B - 4JH1-TC ENG
C - C24SE ENG
◀
[032A] 6VE1 (2 parça)
[032A] 4JH1-TC(NO.2) (2 parça)
[032A] 4JH1-TC(NO.1) (8 parça)
[032A] C24SE (15 parça)
▶

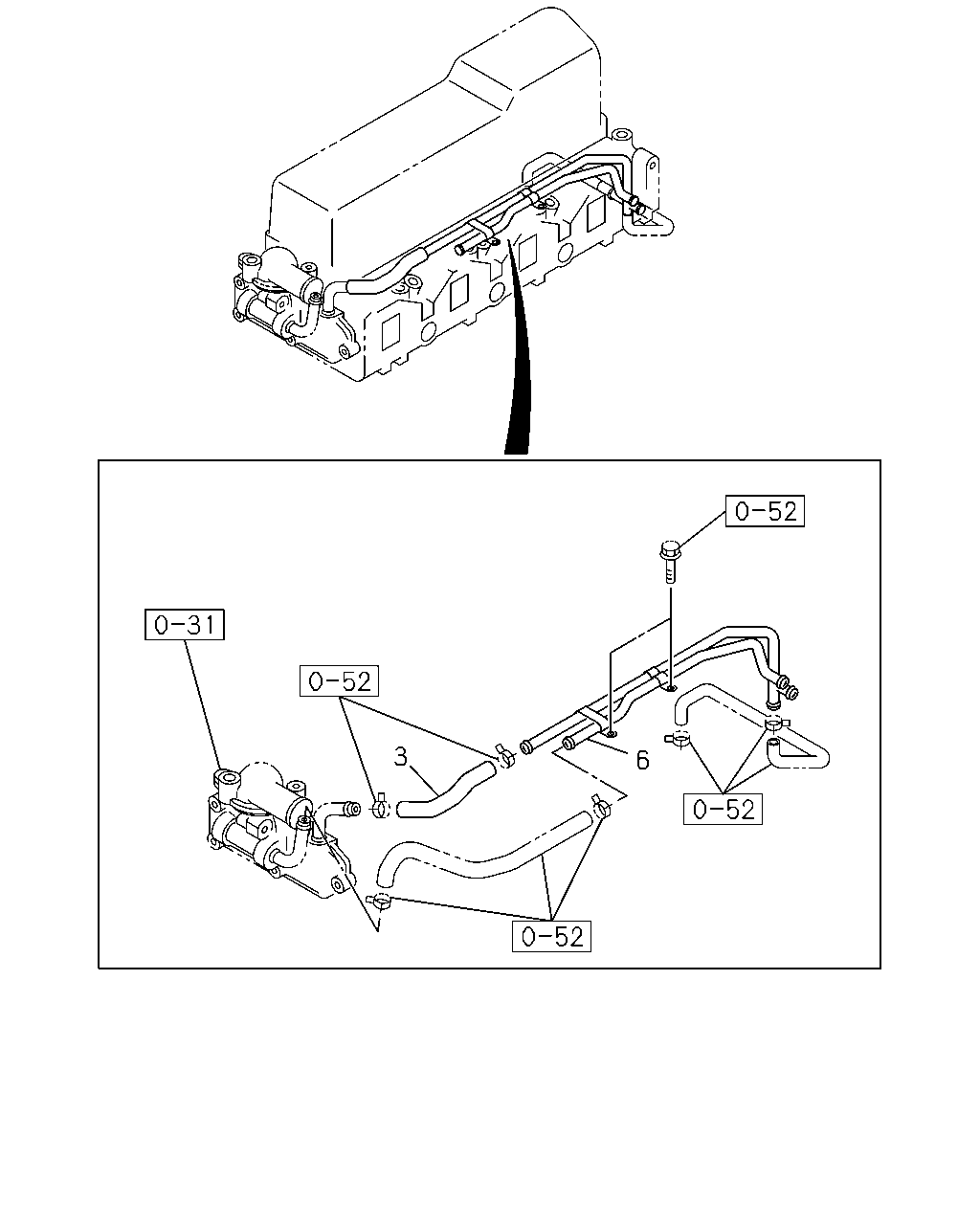

2
148
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
01.097 HOSE; WATER,BY-PASS
8-97167-694-2
01
1
0211-
●
148
01.097 CLIP; BYPASS HOSE
01.540 ID=18.9
8-94478-875-0
02
1
0211-
●
3
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
01.540 HOSE; WATER,OIL COOLER
8-97256-046-0
01
1
0211-
●
6
09.190 CONNECTOR; HTR & COOLER HOSE
8-97256-045-0
01
1
0211-
●

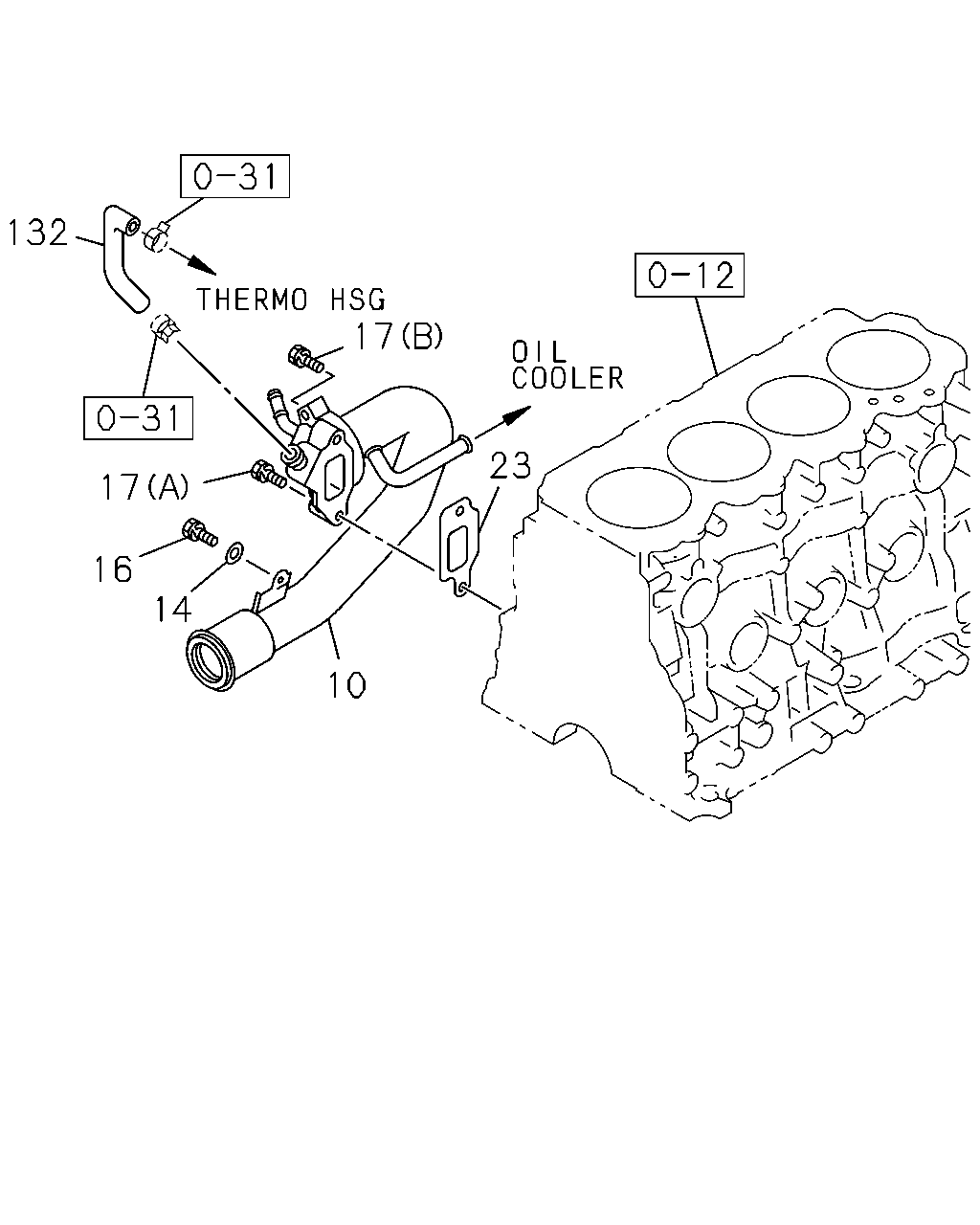

132
17
23
17
16
14
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
10
01.153 PIPE; SUCTION
8-97328-455-1
01
1
0211-
●
14
01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3
8-94174-537-0
01
1
0211-
●
16
01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER
0-50040-820-0
01
1
0211-
●
17
01.153 BOLT; SUCTION PIPE
00.727 (A) M8X22 W/LK WASHER
0-50040-822-0
01
1
0211-0212
●
17
01.153 BOLT; SUCTION PIPE
07.010 (A) M8X20 FLANGE
0-28080-820-0
01
1
0301-
●
17
01.153 BOLT; SUCTION PIPE
01.252 (B) M8X45 W/LK WASHER
0-50040-845-0
01
1
0211-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
0211-
●
132
01.153 HOSE; WATER PIPE
01.097
8-94382-247-1
01
1
0211-
●

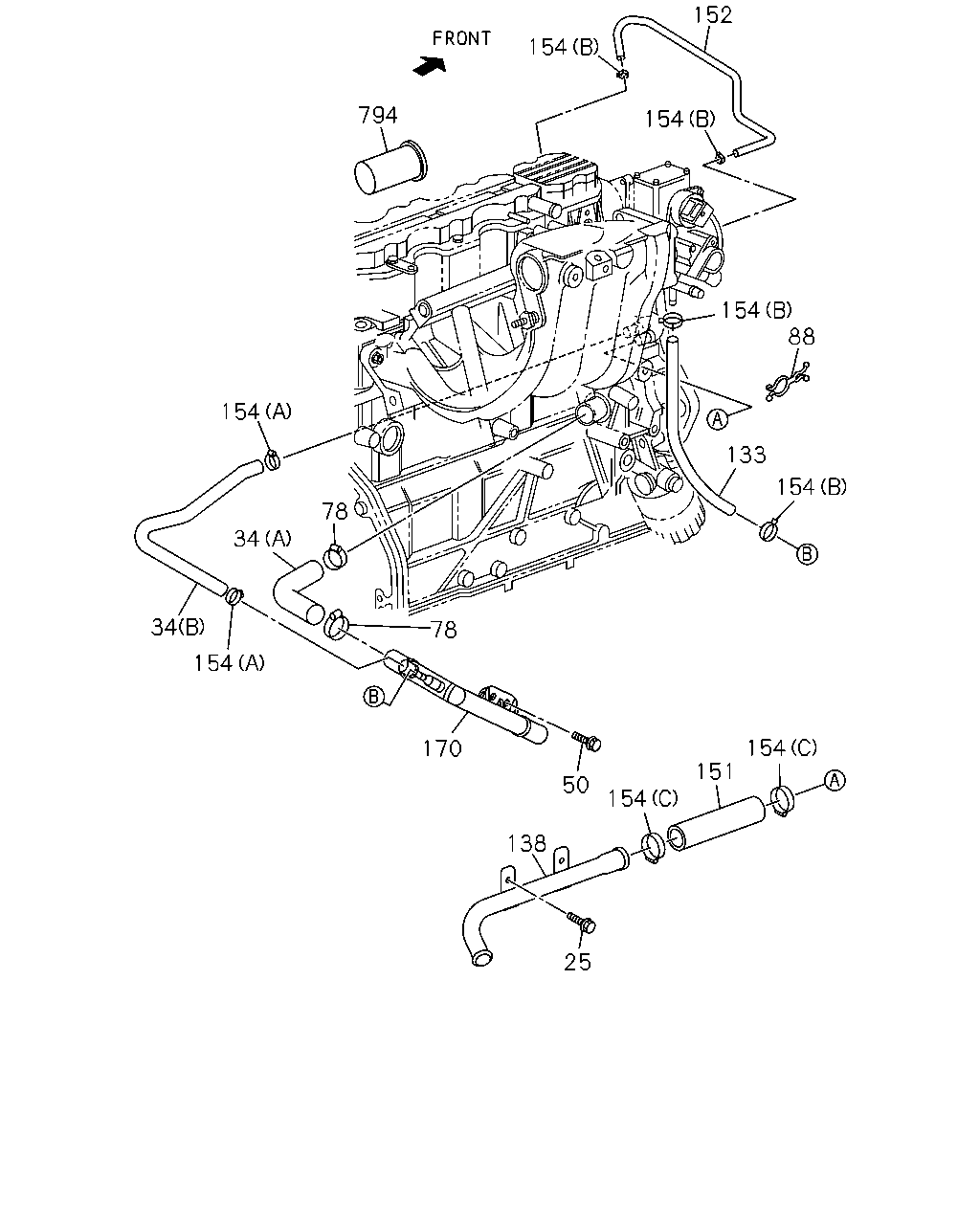

152
154
794
154
154
88
154
133
154
78
34
34
78
154
154
170
151
50
154
138
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
25
01.251 BOLT; WATER PIPE
03.670
8-11041-103-0
02
1
0211-
●
34
01.242 HOSE; RUBBER,WATER PIPE
(A)
8-92066-042-0
01
1
0211-
●
34
01.242 HOSE; RUBBER,WATER PIPE
(B)
8-92066-241-0
01
1
0211-
●
50
01.153 BOLT; WATER PIPE INL
8-11090-684-0
02
1
0211-
●
78
01.153 HOSE; RUBBER,HTR
8-92138-529-0
02
1
0211-
●
88
01.097 CLIP; HOSE,HTR
8-92063-869-0
01
1
0211-
●
133
03.276 HOSE; WATER,T/V
8-92064-835-0
01
1
0211-
●
138
01.251 PIPE; WATER
8-92065-499-0
01
1
0211-
●
151
01.153 HOSE; WATER OUTLET
8-92063-463-0
01
1
0211-
●
152
01.153 HOSE; WATER INL
8-92063-652-0
01
1
0211-
●
154
01.153 CLIP; WATER HOSE
01.166 (C)
8-90467-195-0
02
1
0211-
●
154
01.153 CLIP; WATER HOSE
(B)
8-90467-519-0
04
1
0211-
●
154
01.153 CLIP; WATER HOSE
(A)
8-92138-530-0
02
1
0211-
●
170
01.159 PIPE; WATER,INL
8-92063-653-0
01
1
0211-
●
794
03.276 CONNECTOR; WATER HOSE
8-90572-544-0
01
1
0211-
●
