0-28 — VENTILATION SYSTEM (#48570) — 18 parça

12 13 65 32 32 52 32 43 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	0211-0212	●
12	01.745 VENTILATOR; AIR 03.415	8-97119-887-0	01	1	0301-	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0211-	●
32	03.417 CLIP; VENT HOSE 03.265 ID=20.4	8-94121-113-0	04	1	0211-	●
43	03.278 HOSE; PCV	8-97304-253-1	01	1	0211-	●
52	03.278 HOSE; PCV	8-97349-608-0	01	1	0211-	●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	0211-	●

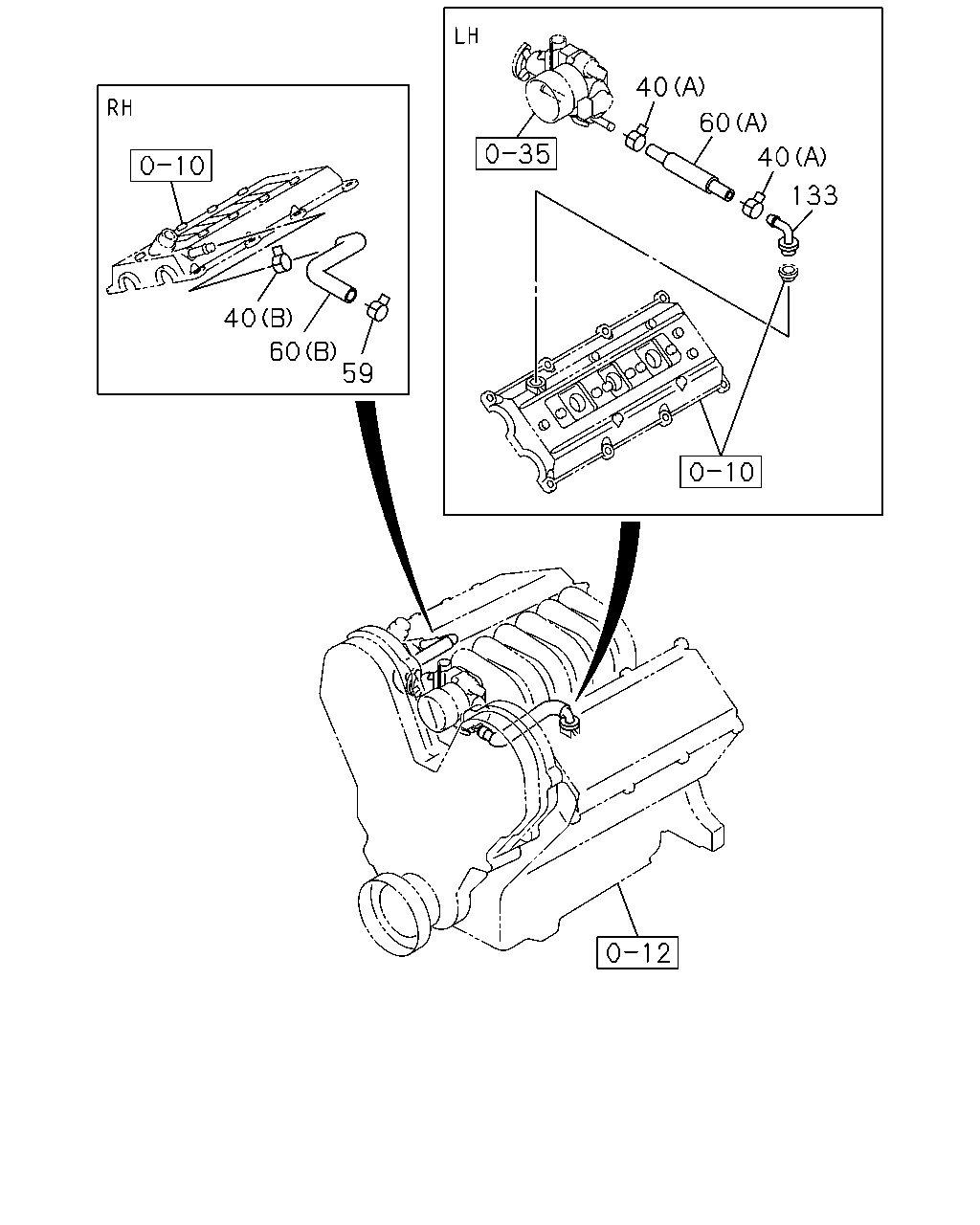

40 60 40 133 40 60 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
40	03.680 CLIP; PCV HOSE 04.128 (A) ID=15	8-94140-431-0	02	1	0211-	●
40	03.680 CLIP; PCV HOSE 01.762 (B) ID=19	8-94238-569-0	01	1	0211-	●
59	08.846 CLIP; HOSE 01.762 ID=19	8-94238-569-0	01	1	0211-	●
60	03.278 HOSE; RUBBER,PCV (A)	8-97136-216-1	01	1	0211-	●
60	03.278 HOSE; RUBBER,PCV (B)	8-97234-461-1	01	1	0211-	●
133	01.750 VALVE; PCV	8-97118-860-0	01	1	0211-	●

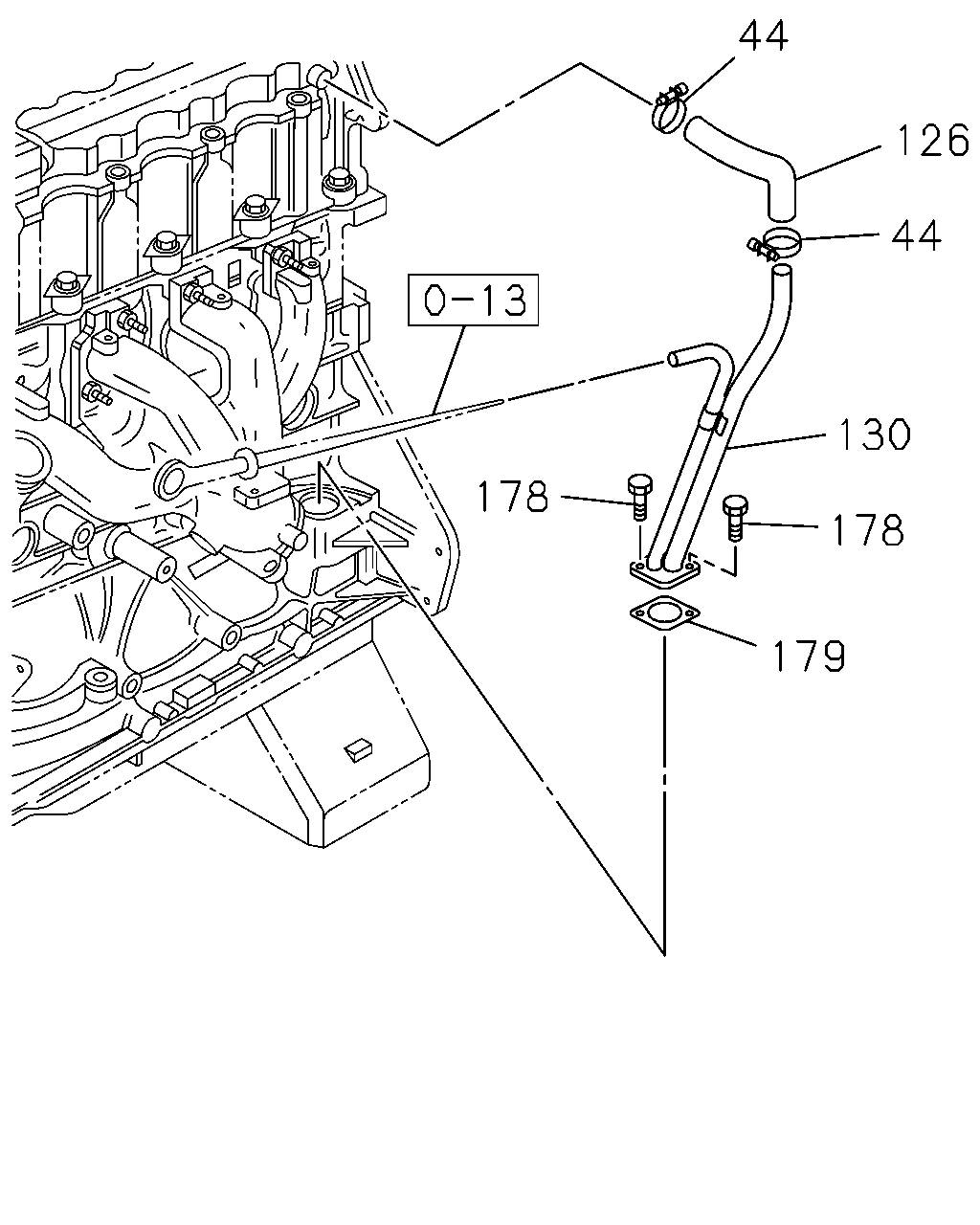

44 126 44 130 178 178 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
44	03.278 CLIP; HOSE,PCV	8-90467-971-0	02	1	0211-	●
126	01.762 HOSE; RUBBER,PCV	8-90409-617-0	01	1	0211-	●
130	03.278 PIPE; PCV	8-92062-793-0	01	1	0211-	●
178	03.278 BOLT; PIPE	8-11052-954-0	02	1	0211-	●
179	03.278 GASKET; PIPE	8-90500-571-0	01	1	0211-	●
