0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#48566) — 60 parça

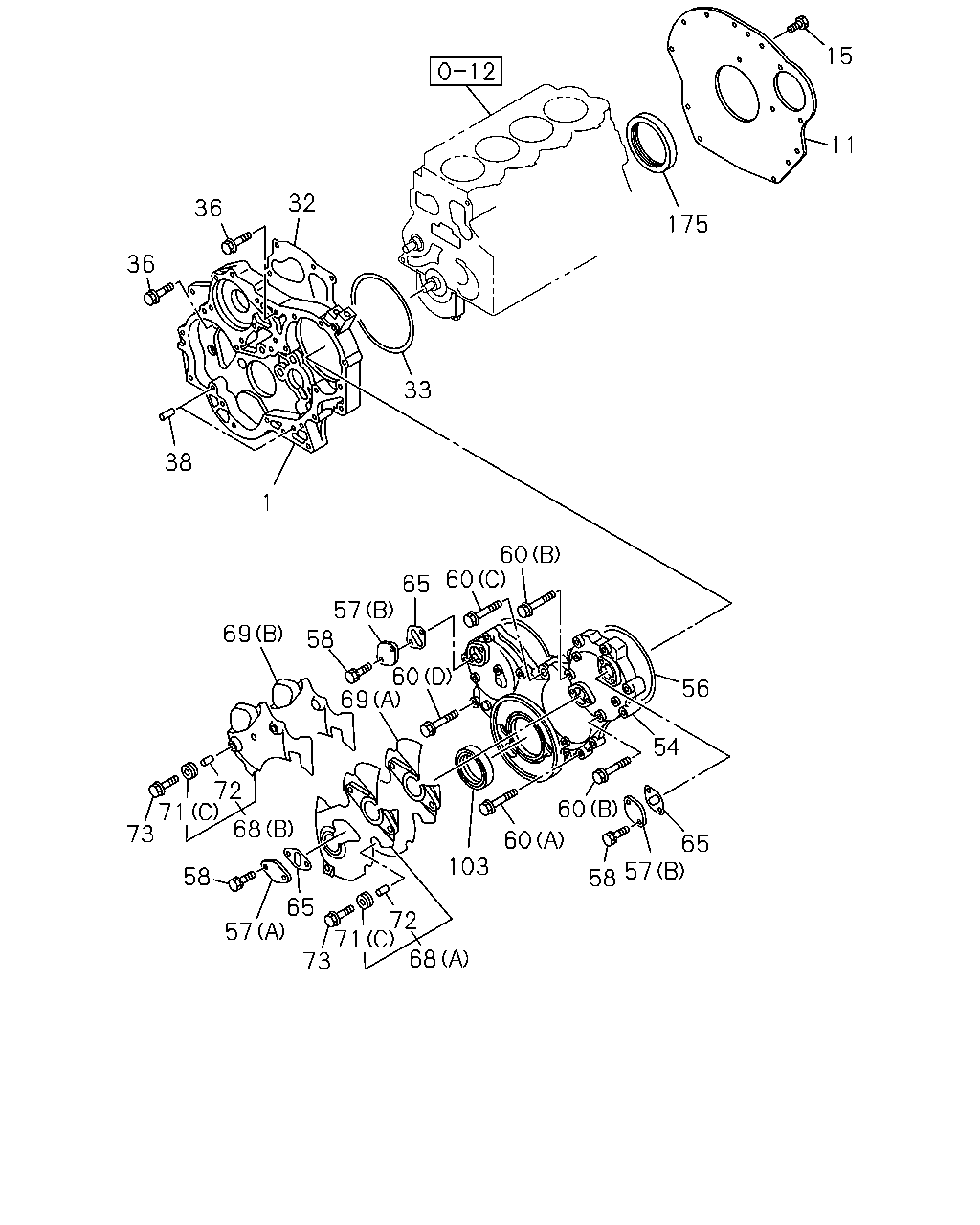

15 11 32 36 175 36 33 38 1 60 60 65 57 58 69 60 56 69 54 72 71 73 60 68 60 65 57 58 103 58 65 72 71 73 57 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0211-	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0211-	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0211-	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	0211-	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0211-	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0211-	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0211-	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0211-	●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0211-	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0211-	●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0211-	●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-97304-608-1	01	1	0211-	●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0211-	●
60	00.206 BOLT; COVER TO CASE 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-	●
60	00.206 BOLT; COVER TO CASE 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0211-	●
60	00.206 BOLT; COVER TO CASE (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0211-	●
60	00.206 BOLT; COVER TO CASE 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0211-	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0211-	●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97255-034-1	01	1	0211-	●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97358-022-0	01	1	0211-	●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97255-035-1	01	1	0211-0302	●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97329-009-0	01	1	0303-	●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97239-992-0	01	1	0211-0211	●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97358-025-0	01	1	0212-0302	●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-011-0	01	1	0303-	●
71	00.206 RUBBER; MTG,COVER (C)	5-19389-002-0	05	1	0211-	●
71	00.206 RUBBER; MTG,COVER (A)	8-97149-003-0	10	1	0211-		●
71	00.206 RUBBER; MTG,COVER (B)	8-97149-253-0	11	1	0211-		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0211-	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0211-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0211-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0211-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	0211-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	0211-			●

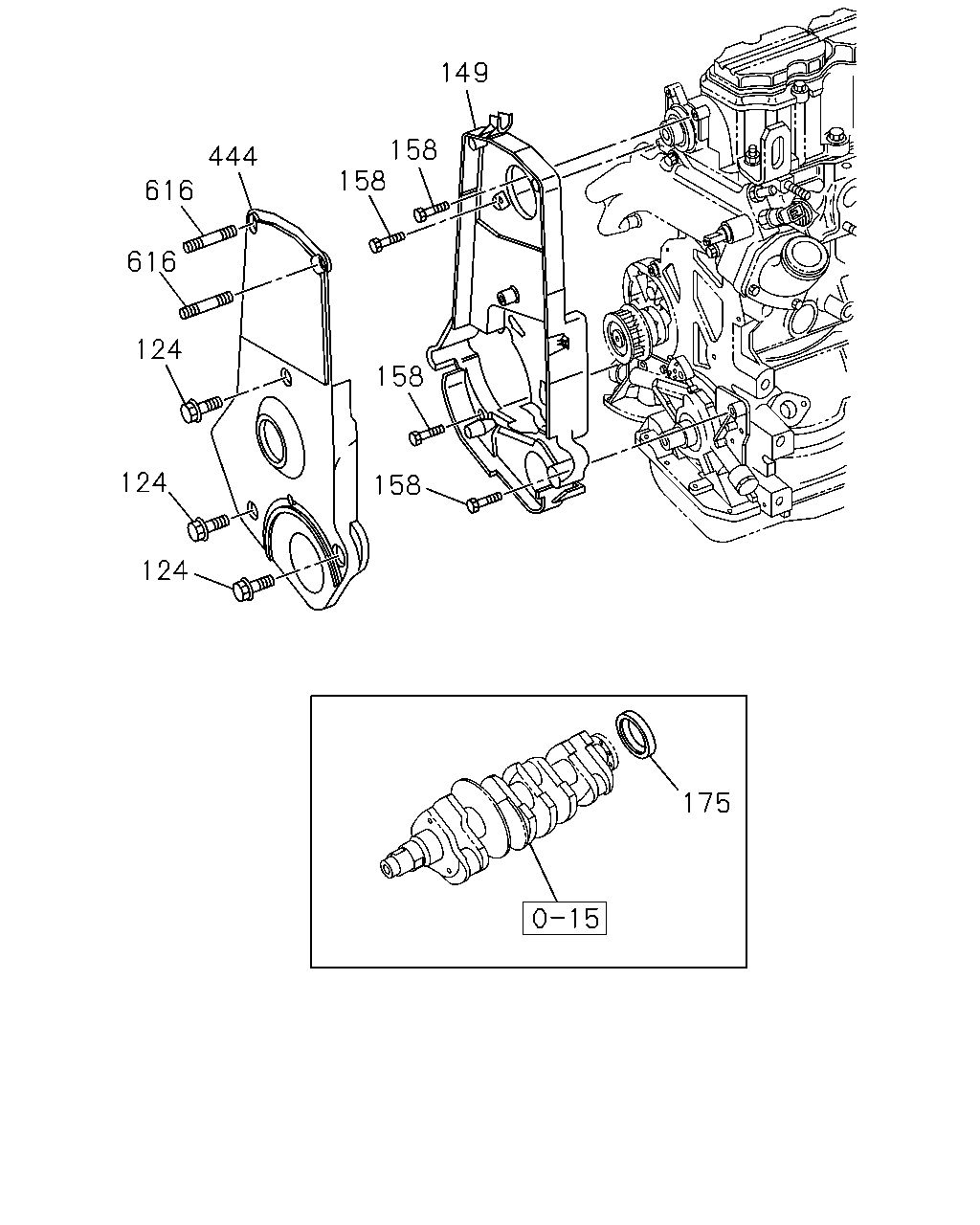

149 158 158 444 616 616 124 158 124 158 124 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	0211-		●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	03	1	0211-			●
149	00.206 PLATE; FRT,C/BL	8-92063-474-0	01	1	0211-			●
158	00.206 BOLT; FRT PLATE	8-90265-761-0	04	1	0211-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0211-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	0211-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	0211-			●
444	00.206 COVER; TIMING CASE	8-92063-648-0	01	1	0211-			●
616	00.206 STUD; TIMING COVER	8-92064-377-0	03	1	0211-			●

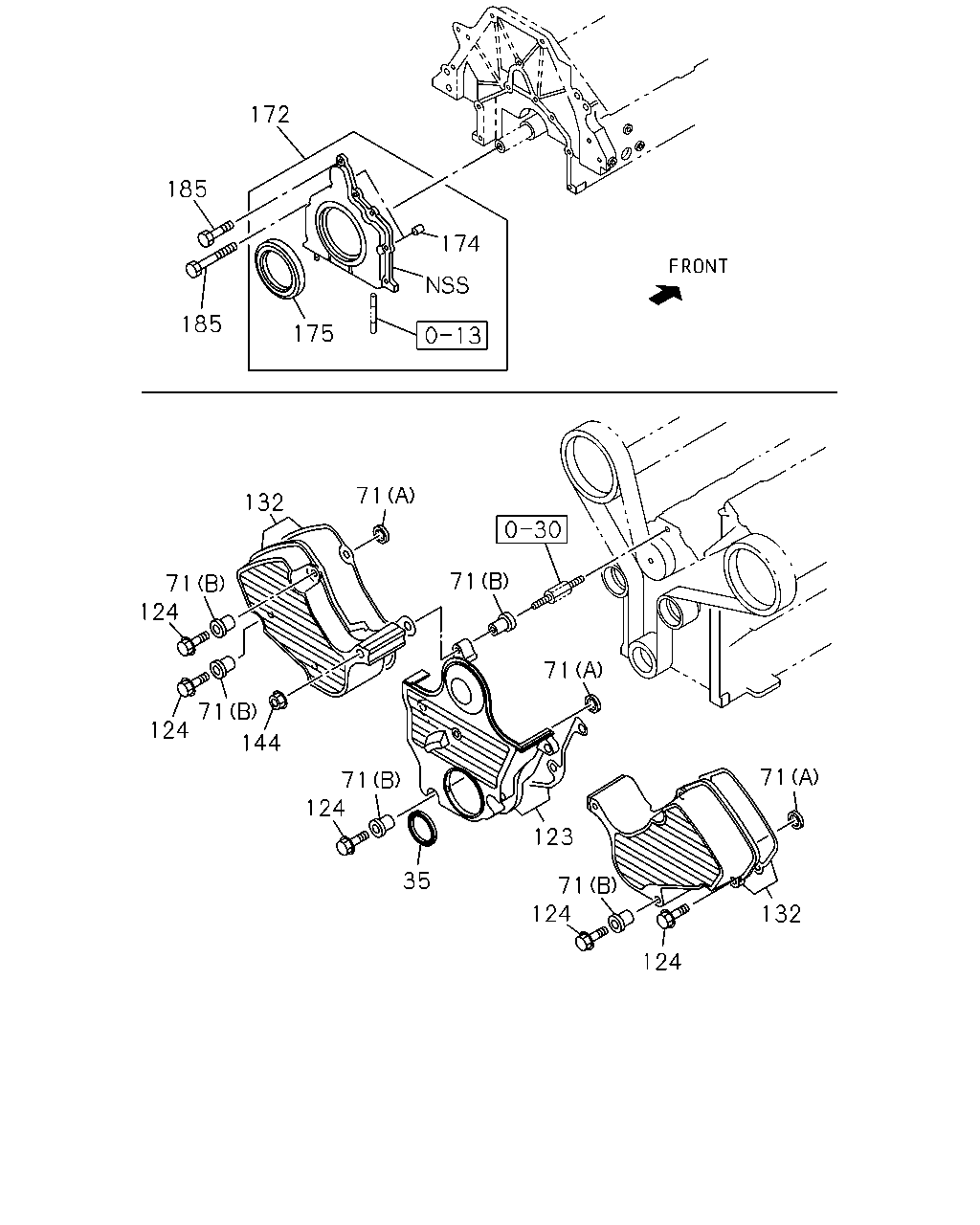

172 185 174 185 175 71 132 71 71 124 71 71 124 144 71 71 124 123 35 71 124 132 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=55 T=6.0	8-97023-373-0	01	1	0211-		●
71	00.206 RUBBER; MTG,COVER (C)	5-19389-002-0	05	1	0211-	●
71	00.206 RUBBER; MTG,COVER (A)	8-97149-003-0	10	1	0211-		●
71	00.206 RUBBER; MTG,COVER (B)	8-97149-253-0	11	1	0211-		●
123	00.206 COVER; TIMING,LWR	8-97131-872-3	01	1	0211-		●
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	0211-		●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	03	1	0211-			●
132	00.206 COVER; TIMING,UPR	8-97131-882-3	01	1	0211-		●
132	00.206 COVER; TIMING,UPR	8-97131-883-2	01	1	0211-		●
144	00.206 NUT; COVER 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-		●
172	00.137 RETAINER; CR/SHF	8-97149-390-1	01	1	0211-		●
174	00.683 DOWEL; RET TO C/BL	8-97103-336-0	02	1	0211-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0211-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	0211-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	0211-			●
185	00.727 BOLT; RET TO C/BL 01.062 M8X16 FLANGE	0-28080-816-0	06	1	0211-		●
185	00.727 BOLT; RET TO C/BL 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0211-		●
