Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#48565) — 235 parça

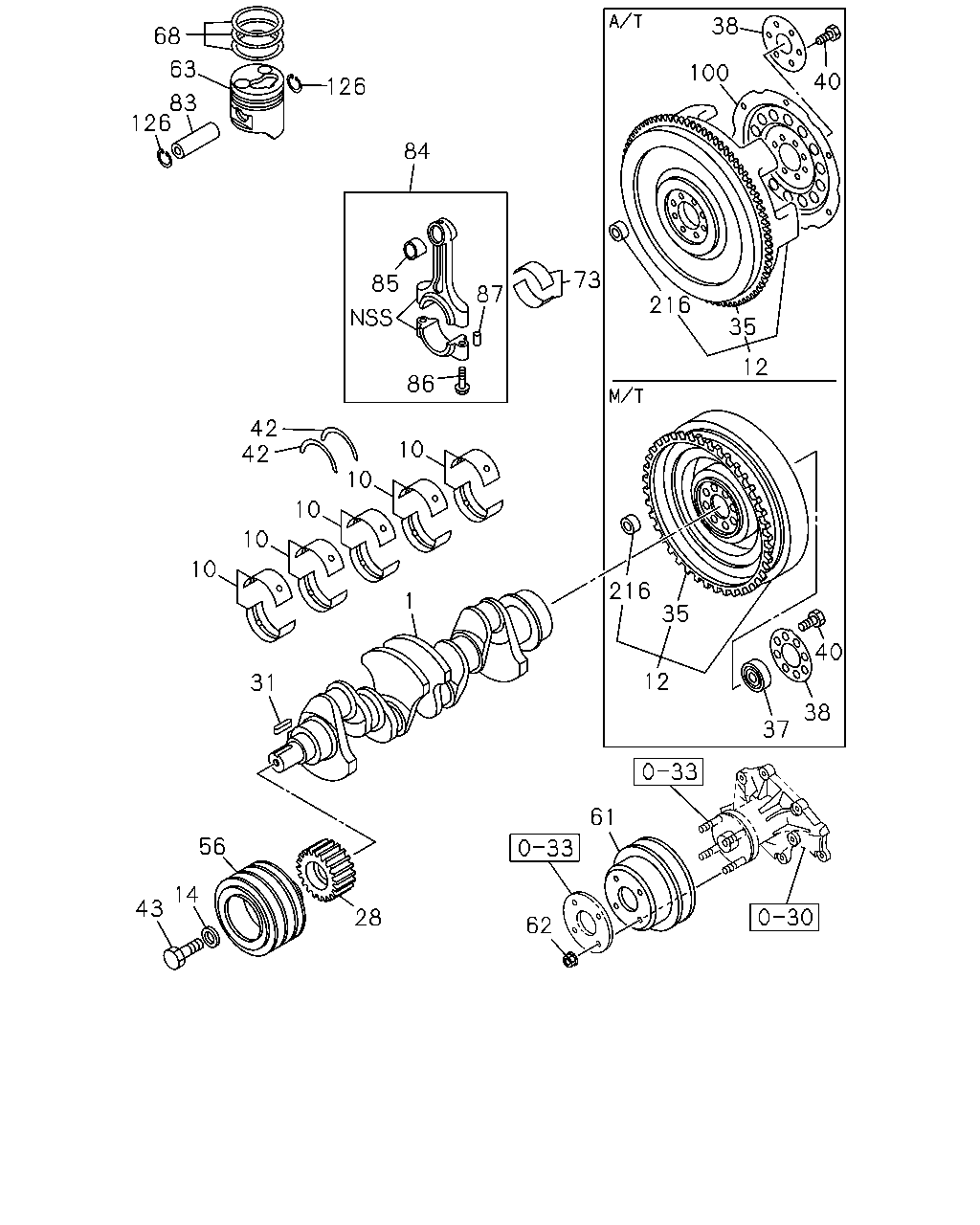

38 68 63 100 40 126 83 126 84 73 85 87 216 35 12 86 42 42 10 10 10 10 10 216 1 35 40 12 31 38 37 61 56 14 43 28 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0211-	●
1	00.646 CRANKSHAFT	8-97333-958-0	01	1	0211-0302		●
1	00.646 CRANKSHAFT	8-97358-476-0	01	1	0303-		●
1	00.646 CRANKSHAFT	8-93281-999-0	01	1	0211-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO.4 BROWN	8-97179-296-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO.4 GREEN	8-97179-297-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO.4 YELLOW	8-97179-298-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO.4 BLUE	8-97179-299-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO.3 BROWN	8-97179-300-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO.3 GREEN	8-97179-301-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO.3 YELLOW	8-97179-302-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO.3 BLUE	8-97179-303-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD	8-92066-633-0	01	1	0211-			●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97260-663-0	01	1	0211-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97249-214-0	01	1	0211-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97131-860-0	01	1	0211-		●
12	00.666 FLYWHEEL	8-90466-547-0	01	1	0211-			●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0211-	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0211-	●
28	00.728 GEAR; CR/SHF	8-90411-766-0	01	1	0211-			●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0211-	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0211-	●
35	00.673 GEAR; RING A/T AISIN(RMD) Z=121	8-97174-420-0	01	1	0211-		●
35	00.673 GEAR; RING M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) ID=281	8-94374-959-0	01	1	0211-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.649 NSK	9-00090-679-0	01	1	0211-	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.649	8-97031-741-0	01	1	0211-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT	8-90105-743-0	01	1	0211-			●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97038-939-0	01	1	0211-	●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.669	8-94133-970-0	01	1	0211-	●
38	00.862 WASHER; FLYWHEEL 00.669 T=0.8	8-94235-325-1	01	1	0211-		●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0211-	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M13X36	8-97065-984-1	08	1	0211-	●
40	00.669 BOLT; FLYWHEEL A/T AISIN(RMD) M10X17	8-97015-187-0	08	1	0211-		●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M10X31	8-94379-616-0	08	1	0211-		●
40	00.669 BOLT; FLYWHEEL	8-90285-303-0	06	1	0211-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0211-	●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	0211-		●
42	00.095 WASHER; THRUST,CR/SHF	8-90156-055-0	01	1	0211-			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0211-	●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	0211-		●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97350-548-1	01	1	0211-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0211-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-97130-518-0	01	1	0211-0303		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-97352-277-0	01	1	0304-		●
61	00.659 PULLEY; FAN DRIVE 01.062	8-92064-197-0	01	1	0211-			●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	0211-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0211-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0211-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-97289-496-1	06	1	0211-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-97289-497-1	06	1	0211-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-97289-498-1	06	1	0211-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. OVSI=0.25	8-93282-453-0	04	1	0211-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. STD	8-93292-774-0	04	1	0211-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97365-480-0	06	1	0306-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0211-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97170-113-0	06	1	0211-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-92066-631-0	01	1	0211-			●
69	00.643 RING SET; PISTON,O/S=0.50	8-92066-632-0	01	1	0211-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	0211-0211	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97179-293-0	06	1	0211-		●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97179-294-0	06	1	0211-		●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97179-295-0	06	1	0211-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0211-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-97149-195-1	06	1	0211-		●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0211-	●
84	00.603 ROD ASM; CONN	8-97136-202-0	06	1	0211-0302		●
84	00.603 ROD ASM; CONN	8-97351-159-0	06	1	0303-		●
84	00.603 ROD ASM; CONN	8-90530-169-0	04	1	0211-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0211-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0211-	●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	0211-		●
86	00.623 BOLT; CONNROD	8-90281-736-0	08	1	0211-			●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0211-	●
100	00.666 PLATE; FLEX A/T 4 SPEED-JATCO(RMK)	8-97118-308-0	01	1	0211-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. ID=33.9	8-94133-969-0	08	1	0211-	●
216	00.293 DOWEL	8-97259-856-0	01	1	0211-	●

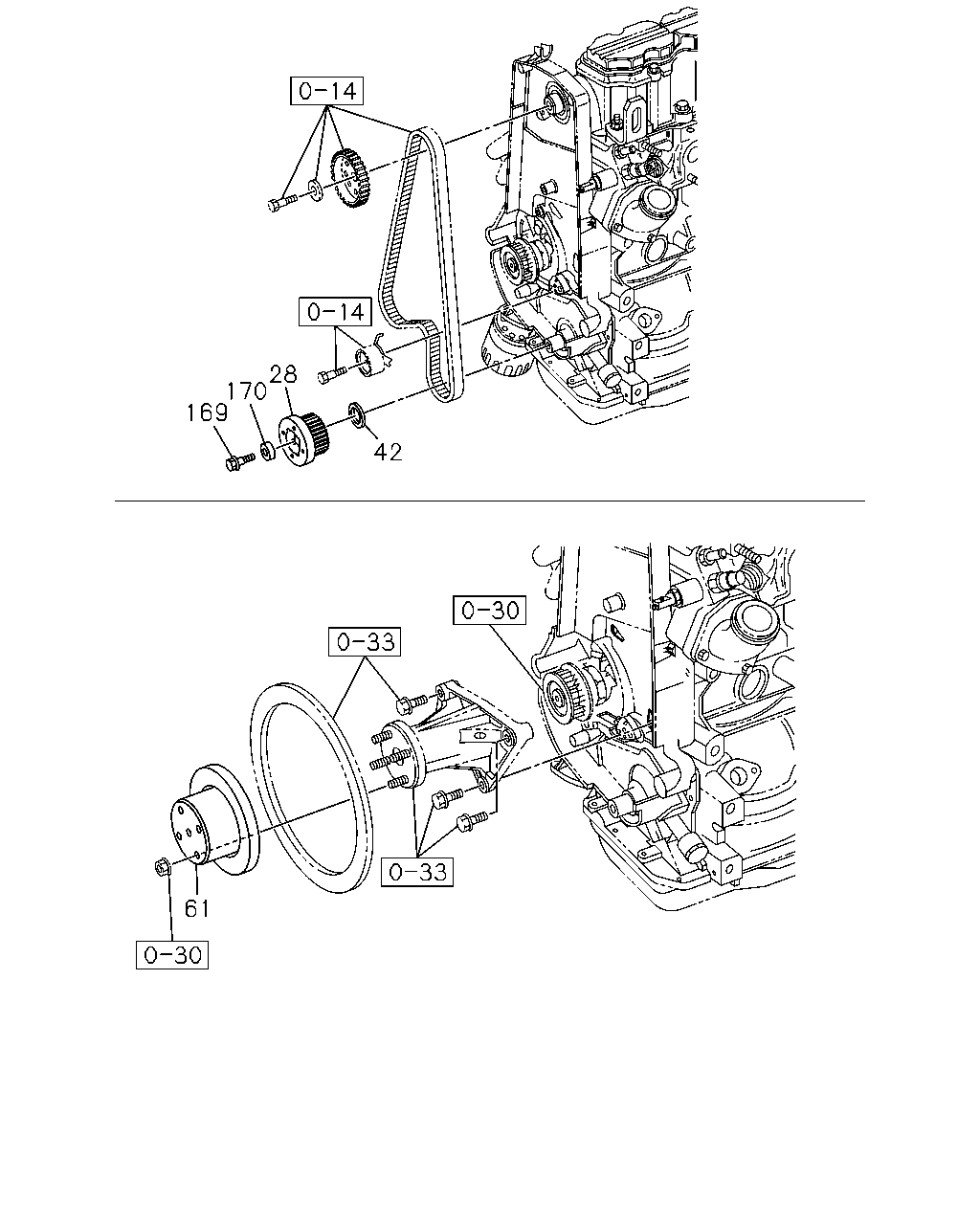

28 170 169 42 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0211-	●
28	00.728 GEAR; CR/SHF	8-90411-766-0	01	1	0211-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0211-	●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	0211-		●
42	00.095 WASHER; THRUST,CR/SHF	8-90156-055-0	01	1	0211-			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0211-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-97130-518-0	01	1	0211-0303		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-97352-277-0	01	1	0304-		●
61	00.659 PULLEY; FAN DRIVE 01.062	8-92064-197-0	01	1	0211-			●
69	00.643 RING SET; PISTON,O/S=0.50	8-92066-632-0	01	1	0211-			●
169	00.659 BOLT; GEAR TO CRANKSHAFT	8-11085-932-0	01	1	0211-			●
170	00.659 WASHER; GEAR TO CRANKSHAFT	8-92023-395-0	01	1	0211-			●

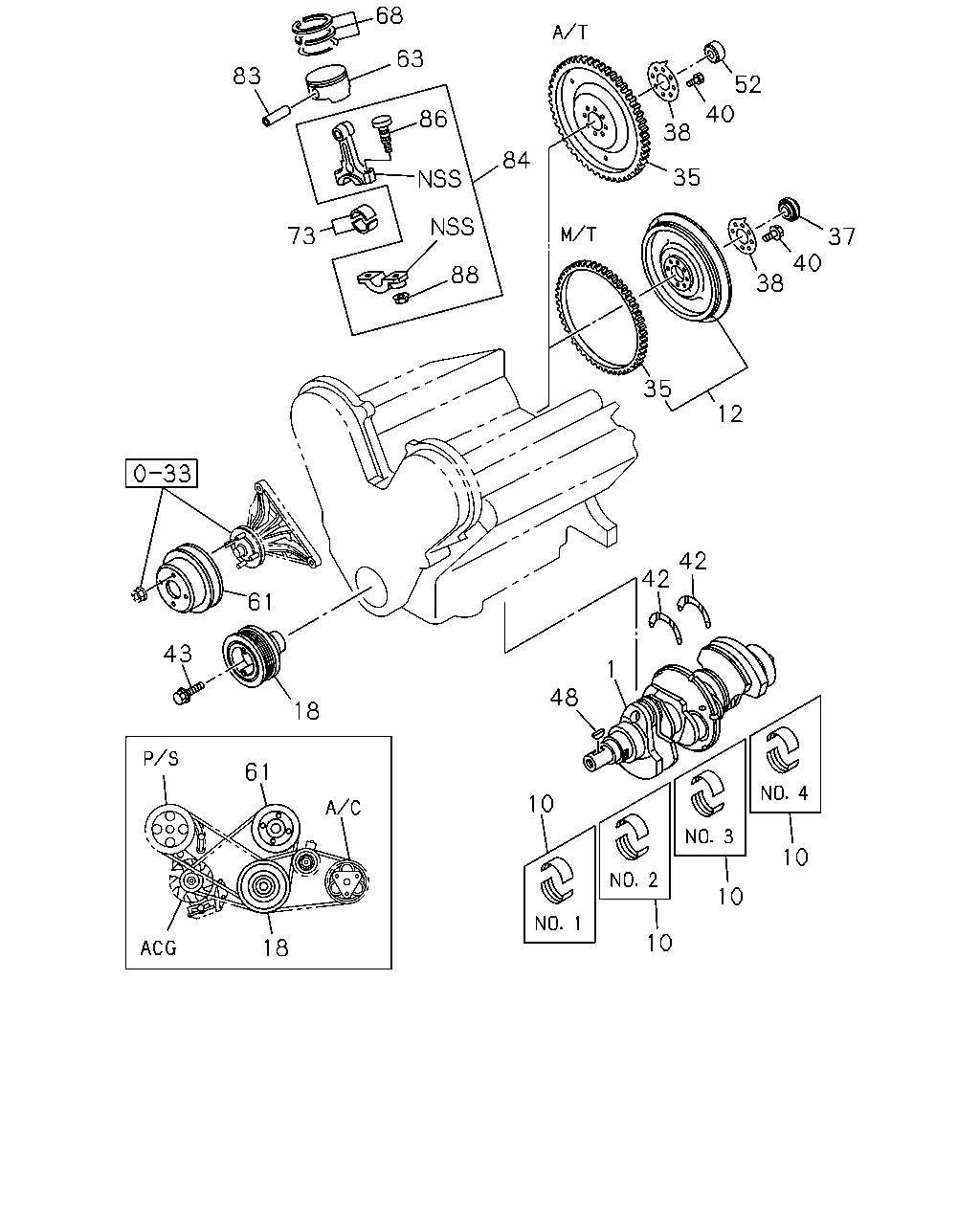

68 63 83 52 40 86 38 84 35 73 37 40 38 88 35 12 42 42 61 43 1 48 18 61 10 10 10 10 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0211-	●
1	00.646 CRANKSHAFT	8-97333-958-0	01	1	0211-0302		●
1	00.646 CRANKSHAFT	8-97358-476-0	01	1	0303-		●
1	00.646 CRANKSHAFT	8-93281-999-0	01	1	0211-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO.4 BROWN	8-97179-296-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO.4 GREEN	8-97179-297-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO.4 YELLOW	8-97179-298-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO.4 BLUE	8-97179-299-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO.3 BROWN	8-97179-300-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO.3 GREEN	8-97179-301-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO.3 YELLOW	8-97179-302-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO.3 BLUE	8-97179-303-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD	8-92066-633-0	01	1	0211-			●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97260-663-0	01	1	0211-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97249-214-0	01	1	0211-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97131-860-0	01	1	0211-		●
12	00.666 FLYWHEEL	8-90466-547-0	01	1	0211-			●
18	00.659 PULLEY; CR/SHF 6-GROOVE	8-97321-296-0	01	1	0211-		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0211-	●
35	00.673 GEAR; RING A/T AISIN(RMD) Z=121	8-97174-420-0	01	1	0211-		●
35	00.673 GEAR; RING M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) ID=281	8-94374-959-0	01	1	0211-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.649 NSK	9-00090-679-0	01	1	0211-	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.649	8-97031-741-0	01	1	0211-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT	8-90105-743-0	01	1	0211-			●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97038-939-0	01	1	0211-	●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.669	8-94133-970-0	01	1	0211-	●
38	00.862 WASHER; FLYWHEEL 00.669 T=0.8	8-94235-325-1	01	1	0211-		●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0211-	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M13X36	8-97065-984-1	08	1	0211-	●
40	00.669 BOLT; FLYWHEEL A/T AISIN(RMD) M10X17	8-97015-187-0	08	1	0211-		●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M10X31	8-94379-616-0	08	1	0211-		●
40	00.669 BOLT; FLYWHEEL	8-90285-303-0	06	1	0211-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0211-	●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	0211-		●
42	00.095 WASHER; THRUST,CR/SHF	8-90156-055-0	01	1	0211-			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0211-	●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	0211-		●
48	00.662 KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	0211-		●
48	00.662 KEY; WOODRUFF,CR/SHF	8-11010-612-0	01	1	0211-			●
52	00.669 SLEEVE; CONV PILOT A/T AISIN(RMD)	8-94384-695-0	01	1	0211-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0211-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-97130-518-0	01	1	0211-0303		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-97352-277-0	01	1	0304-		●
61	00.659 PULLEY; FAN DRIVE 01.062	8-92064-197-0	01	1	0211-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0211-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0211-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-97289-496-1	06	1	0211-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-97289-497-1	06	1	0211-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-97289-498-1	06	1	0211-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. OVSI=0.25	8-93282-453-0	04	1	0211-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. STD	8-93292-774-0	04	1	0211-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97365-480-0	06	1	0306-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0211-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97170-113-0	06	1	0211-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-92066-631-0	01	1	0211-			●
69	00.643 RING SET; PISTON,O/S=0.50	8-92066-632-0	01	1	0211-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	0211-0211	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97179-293-0	06	1	0211-		●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97179-294-0	06	1	0211-		●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97179-295-0	06	1	0211-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0211-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-97149-195-1	06	1	0211-		●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0211-	●
84	00.603 ROD ASM; CONN	8-97136-202-0	06	1	0211-0302		●
84	00.603 ROD ASM; CONN	8-97351-159-0	06	1	0303-		●
84	00.603 ROD ASM; CONN	8-90530-169-0	04	1	0211-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0211-	●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	0211-		●
86	00.623 BOLT; CONNROD	8-90281-736-0	08	1	0211-			●
88	00.623 NUT; CONNROD 00.626 3/8-24 UNF	8-94377-785-0	12	1	0211-		●

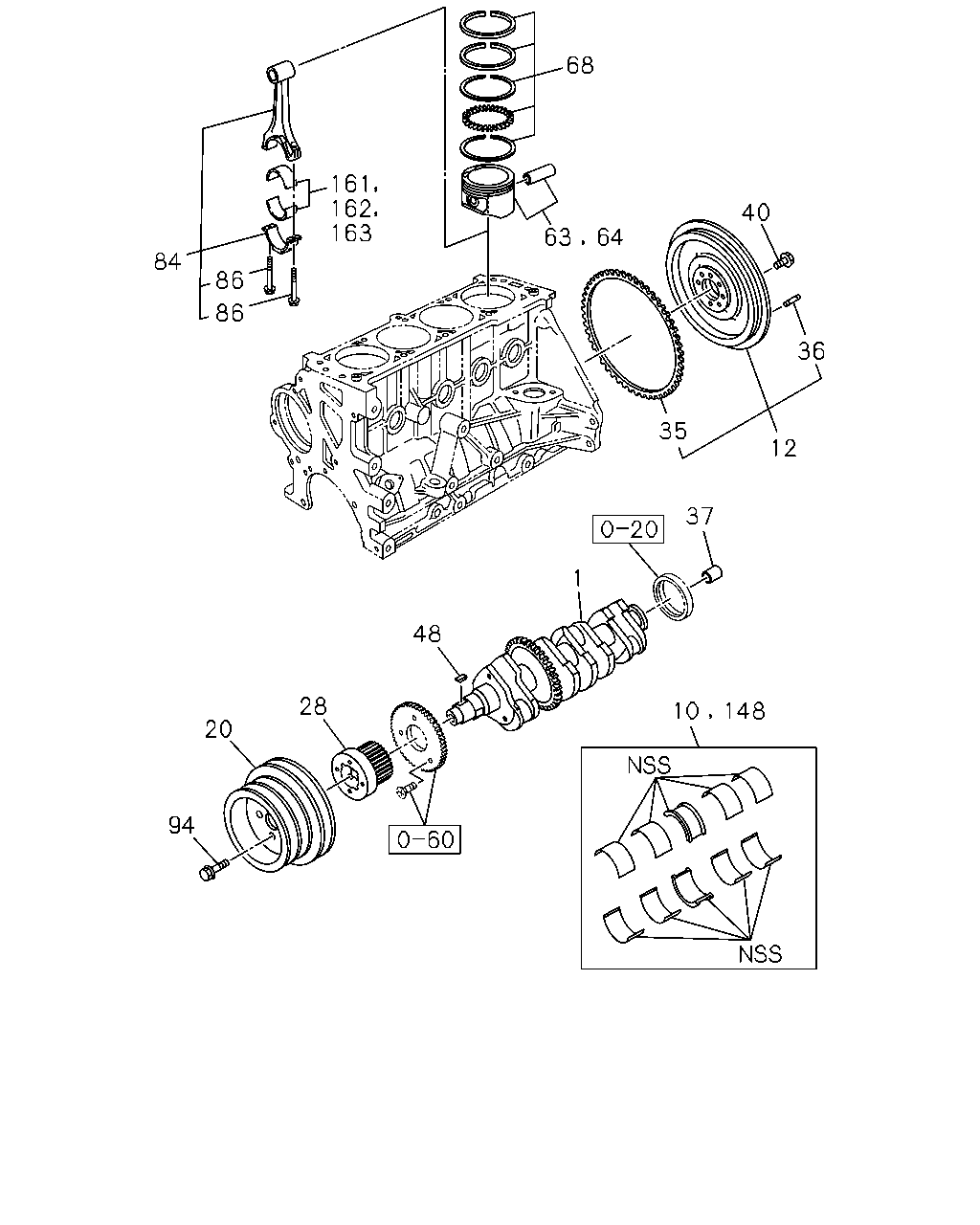

68 161 162 163 40 63 64 84 86 86 36 35 12 37 1 48 28 10 148 20 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0211-	●
1	00.646 CRANKSHAFT	8-97333-958-0	01	1	0211-0302		●
1	00.646 CRANKSHAFT	8-97358-476-0	01	1	0303-		●
1	00.646 CRANKSHAFT	8-93281-999-0	01	1	0211-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0211-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO.4 BROWN	8-97179-296-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO.4 GREEN	8-97179-297-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO.4 YELLOW	8-97179-298-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1,NO.4 BLUE	8-97179-299-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO.3 BROWN	8-97179-300-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO.3 GREEN	8-97179-301-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO.3 YELLOW	8-97179-302-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2,NO.3 BLUE	8-97179-303-0	02	1	0211-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD	8-92066-633-0	01	1	0211-			●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97260-663-0	01	1	0211-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97249-214-0	01	1	0211-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97131-860-0	01	1	0211-		●
12	00.666 FLYWHEEL	8-90466-547-0	01	1	0211-			●
20	00.659 DAMPER; CR/SHF	8-92063-589-0	01	1	0211-			●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0211-	●
28	00.728 GEAR; CR/SHF	8-90411-766-0	01	1	0211-			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0211-	●
35	00.673 GEAR; RING A/T AISIN(RMD) Z=121	8-97174-420-0	01	1	0211-		●
35	00.673 GEAR; RING M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) ID=281	8-94374-959-0	01	1	0211-		●
36	00.862 PIN; FLYWHEEL	8-92061-816-0	03	1	0211-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.649 NSK	9-00090-679-0	01	1	0211-	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.649	8-97031-741-0	01	1	0211-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT	8-90105-743-0	01	1	0211-			●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0211-	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M13X36	8-97065-984-1	08	1	0211-	●
40	00.669 BOLT; FLYWHEEL A/T AISIN(RMD) M10X17	8-97015-187-0	08	1	0211-		●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M10X31	8-94379-616-0	08	1	0211-		●
40	00.669 BOLT; FLYWHEEL	8-90285-303-0	06	1	0211-			●
48	00.662 KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	0211-		●
48	00.662 KEY; WOODRUFF,CR/SHF	8-11010-612-0	01	1	0211-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0211-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0211-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-97289-496-1	06	1	0211-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-97289-497-1	06	1	0211-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-97289-498-1	06	1	0211-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. OVSI=0.25	8-93282-453-0	04	1	0211-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. STD	8-93292-774-0	04	1	0211-			●
64	00.629 PISTON; O/S=0.50	8-93282-455-0	04	1	0211-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97365-480-0	06	1	0306-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0211-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97170-113-0	06	1	0211-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-92066-631-0	01	1	0211-			●
69	00.643 RING SET; PISTON,O/S=0.50	8-92066-632-0	01	1	0211-			●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0211-	●
84	00.603 ROD ASM; CONN	8-97136-202-0	06	1	0211-0302		●
84	00.603 ROD ASM; CONN	8-97351-159-0	06	1	0303-		●
84	00.603 ROD ASM; CONN	8-90530-169-0	04	1	0211-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0211-	●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	0211-		●
86	00.623 BOLT; CONNROD	8-90281-736-0	08	1	0211-			●
94	00.659 BOLT; DAMPER 02.183	8-11094-881-0	04	1	0211-			●
148	00.094 METAL SET; CRANKSHAFT,U/S UNSI=0.25	8-92066-634-0	01	1	0211-			●
148	00.094 METAL SET; CRANKSHAFT,U/S UNSI=0.50	8-92066-635-0	01	1	0211-			●
161	00.616 METAL KIT; CONN ROD,STANDARD 00.094	8-92028-817-0	01	1	0211-			●
162	00.616 METAL KIT; CONN ROD,U/S=0.25 00.094	8-92028-818-0	01	1	0211-			●
163	00.616 METAL KIT; CONN ROD,U/S=0.50 00.094	8-92028-819-0	01	1	0211-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
