Sayfa 0-13 - Isuzu EPC

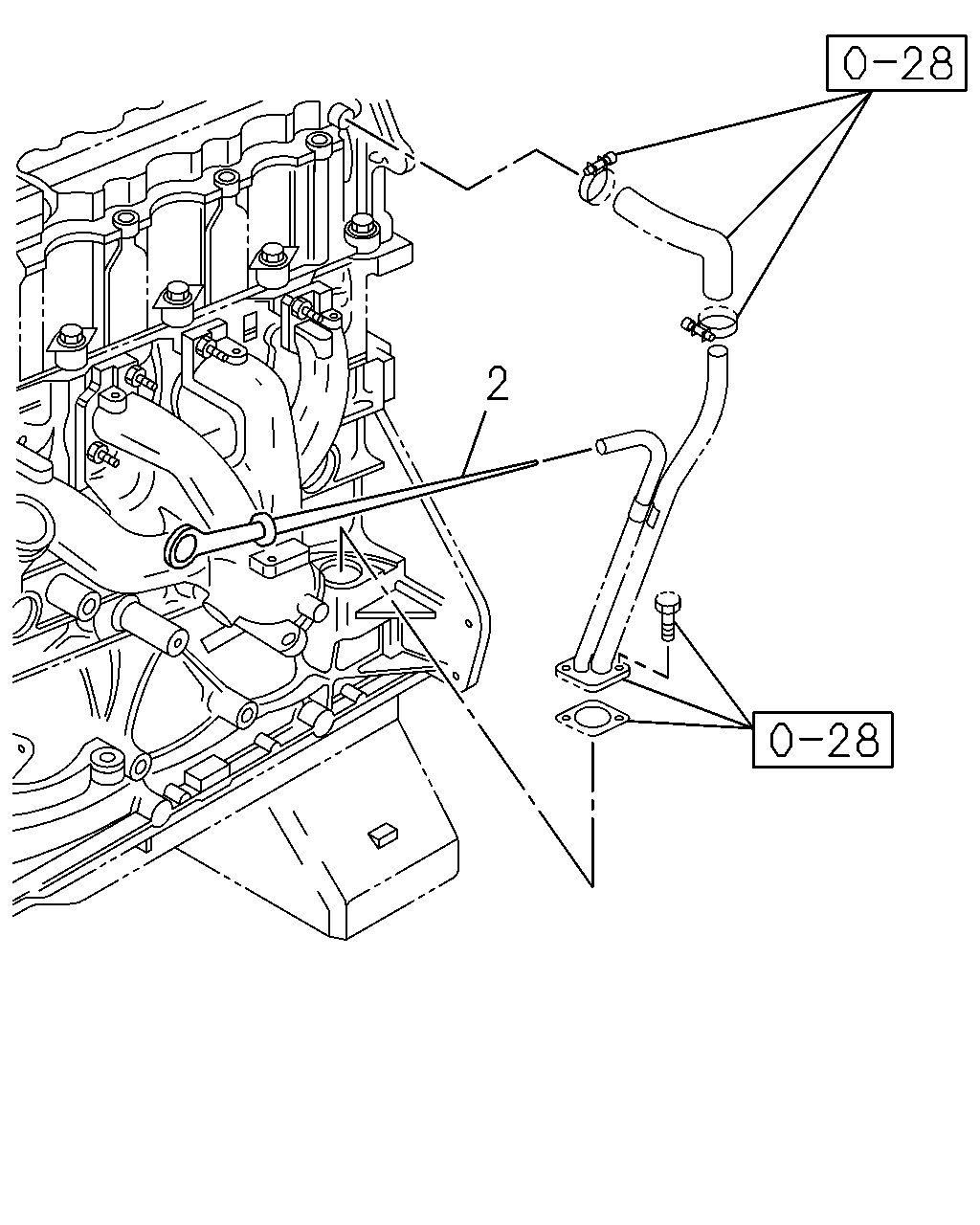

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0211-	●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	0211-		●
2	01.516 GAUGE; OIL LEVEL	8-92063-647-0	01	1	0211-			●

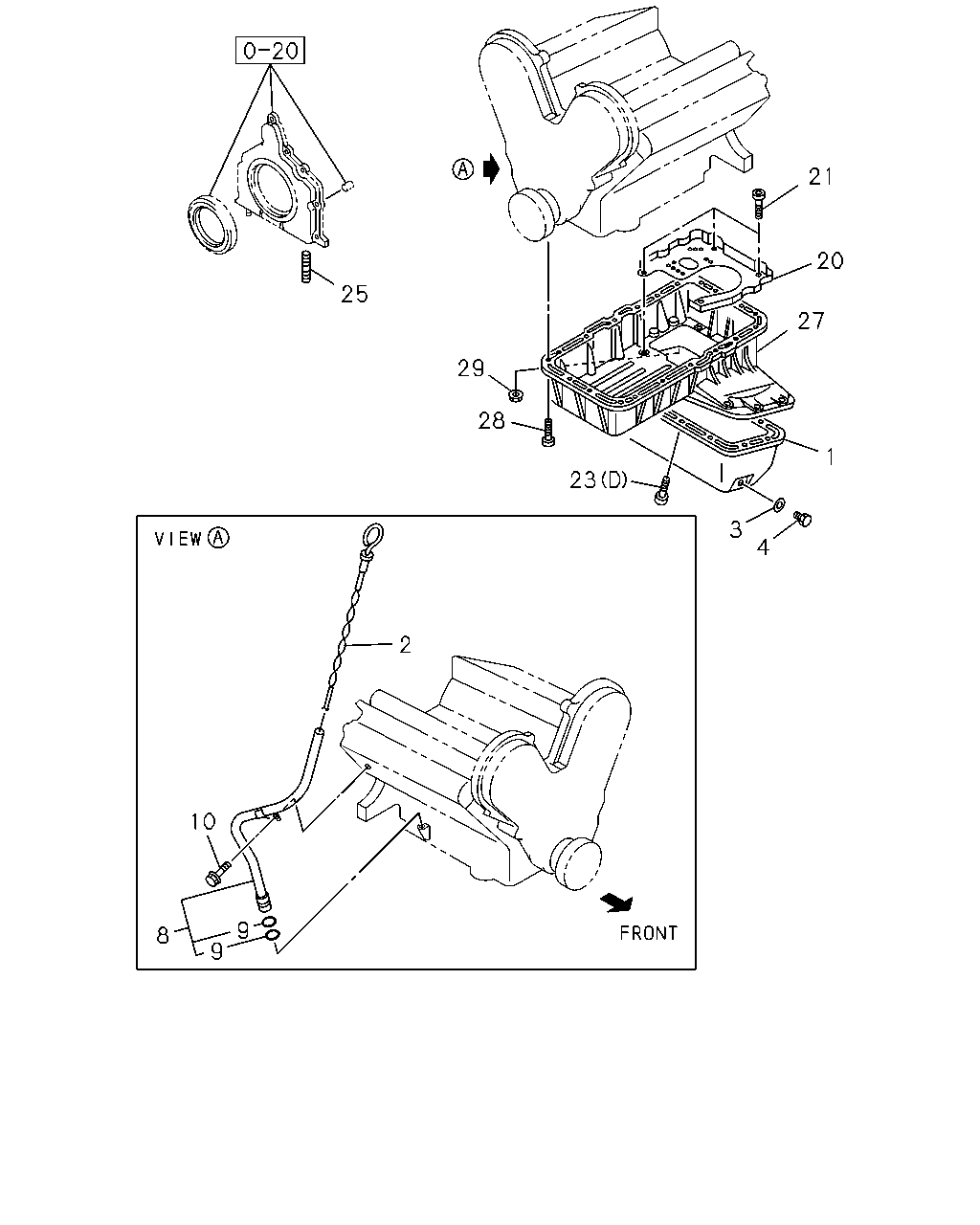

21 20 25 27 29 28 1 23 3 4 2 10 9 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-97248-860-1	01	1	0211-	●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97248-862-1	01	1	0211-	●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0211-		●
1	01.426 PAN ASM; OIL	8-92065-759-0	01	1	0211-			●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0211-	●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	0211-		●
2	01.516 GAUGE; OIL LEVEL	8-92063-647-0	01	1	0211-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0211-	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0211-		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	0211-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0211-	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	0211-		●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	0211-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97249-184-0	01	1	0211-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	0211-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0301-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0211-	●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-		●
20	01.430 PLATE; BAFFLE,CRANKCASE	8-97149-082-1	01	1	0211-		●
21	01.430 BOLT; BAFFLE PLATE,CRANKCASE M6X12 HEX SOCKET	0-58310-612-0	04	1	0211-		●
23	01.428 BOLT; OIL PAN (C) M6X13 W/PL WASHER	8-97135-141-0	15	1	0211-	●
23	01.428 BOLT; OIL PAN 03.330 (D) M8X16 HEX SOCKET	0-58310-816-0	12	1	0211-		●
23	01.428 BOLT; OIL PAN (A) M8X132	8-11093-981-0	03	1	0211-			●
23	01.428 BOLT; OIL PAN 00.662 (B) M8X45	8-11096-481-0	11	1	0211-			●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	0211-	●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	0211-		●
27	01.426 CRANKCASE	8-97191-841-0	01	1	0211-0211	●
27	01.426 CRANKCASE	8-97358-796-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97306-569-0	01	1	0211-		●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	0211-	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	0211-	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 HEX SOCKET	0-58310-625-0	18	1	0211-		●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-	●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-		●

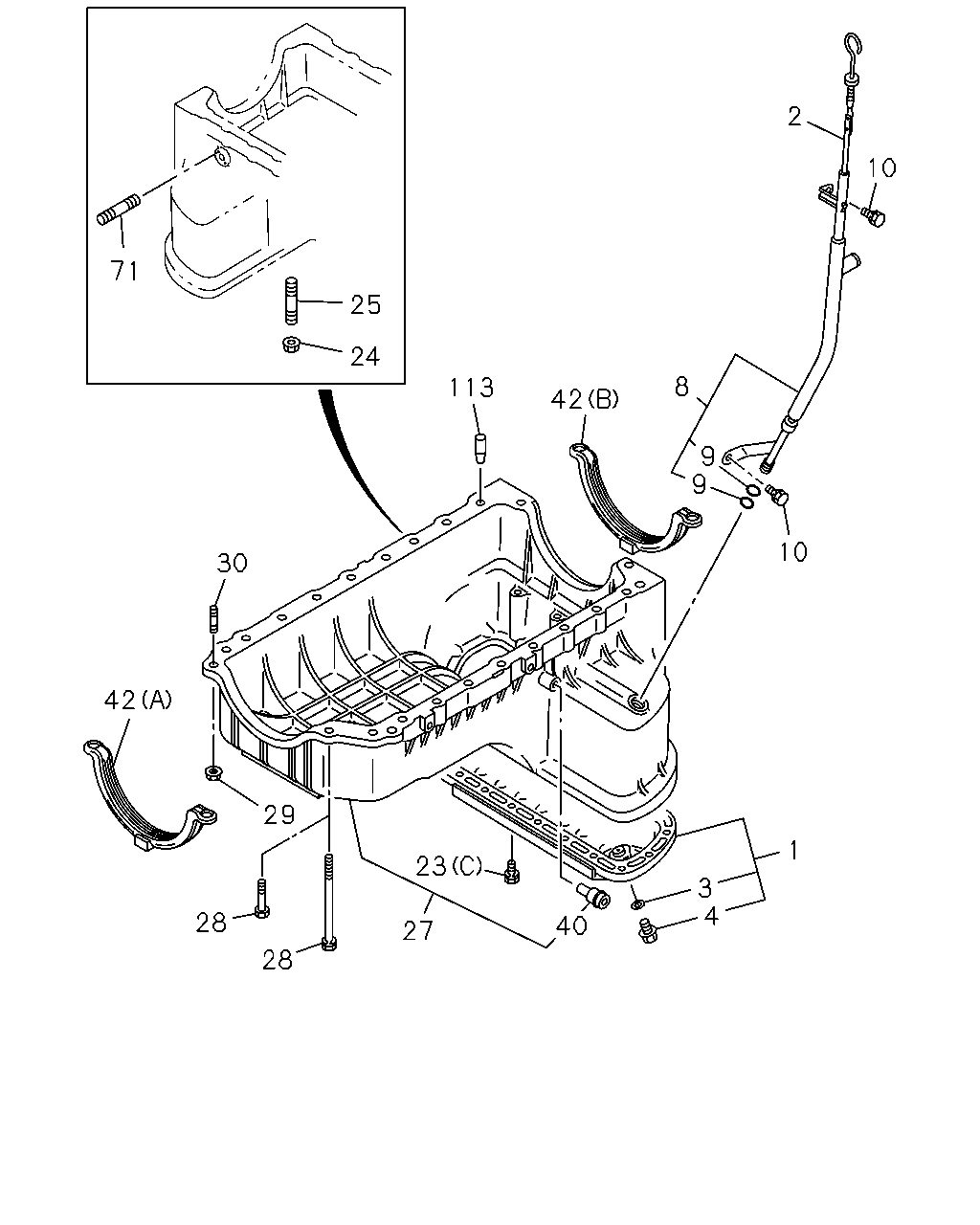

2 10 71 25 24 8 113 42 9 9 10 30 42 29 1 23 3 4 28 40 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-97248-860-1	01	1	0211-	●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97248-862-1	01	1	0211-	●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0211-		●
1	01.426 PAN ASM; OIL	8-92065-759-0	01	1	0211-			●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0211-	●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	0211-		●
2	01.516 GAUGE; OIL LEVEL	8-92063-647-0	01	1	0211-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0211-	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0211-		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	0211-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0211-	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	0211-		●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	0211-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97249-184-0	01	1	0211-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	0211-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0301-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0211-	●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-		●
23	01.428 BOLT; OIL PAN (C) M6X13 W/PL WASHER	8-97135-141-0	15	1	0211-	●
23	01.428 BOLT; OIL PAN 03.330 (D) M8X16 HEX SOCKET	0-58310-816-0	12	1	0211-		●
23	01.428 BOLT; OIL PAN (A) M8X132	8-11093-981-0	03	1	0211-			●
23	01.428 BOLT; OIL PAN 00.662 (B) M8X45	8-11096-481-0	11	1	0211-			●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	0211-	●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	0211-	●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	0211-		●
27	01.426 CRANKCASE	8-97191-841-0	01	1	0211-0211	●
27	01.426 CRANKCASE	8-97358-796-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97306-569-0	01	1	0211-		●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	0211-	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	0211-	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 HEX SOCKET	0-58310-625-0	18	1	0211-		●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-	●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-		●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	0211-	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	0211-	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) FRONT	8-97120-933-0	01	1	0211-	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) REAR	8-97123-342-0	01	1	0211-	●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30	9-04110-818-0	02	1	0211-	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0211-	●

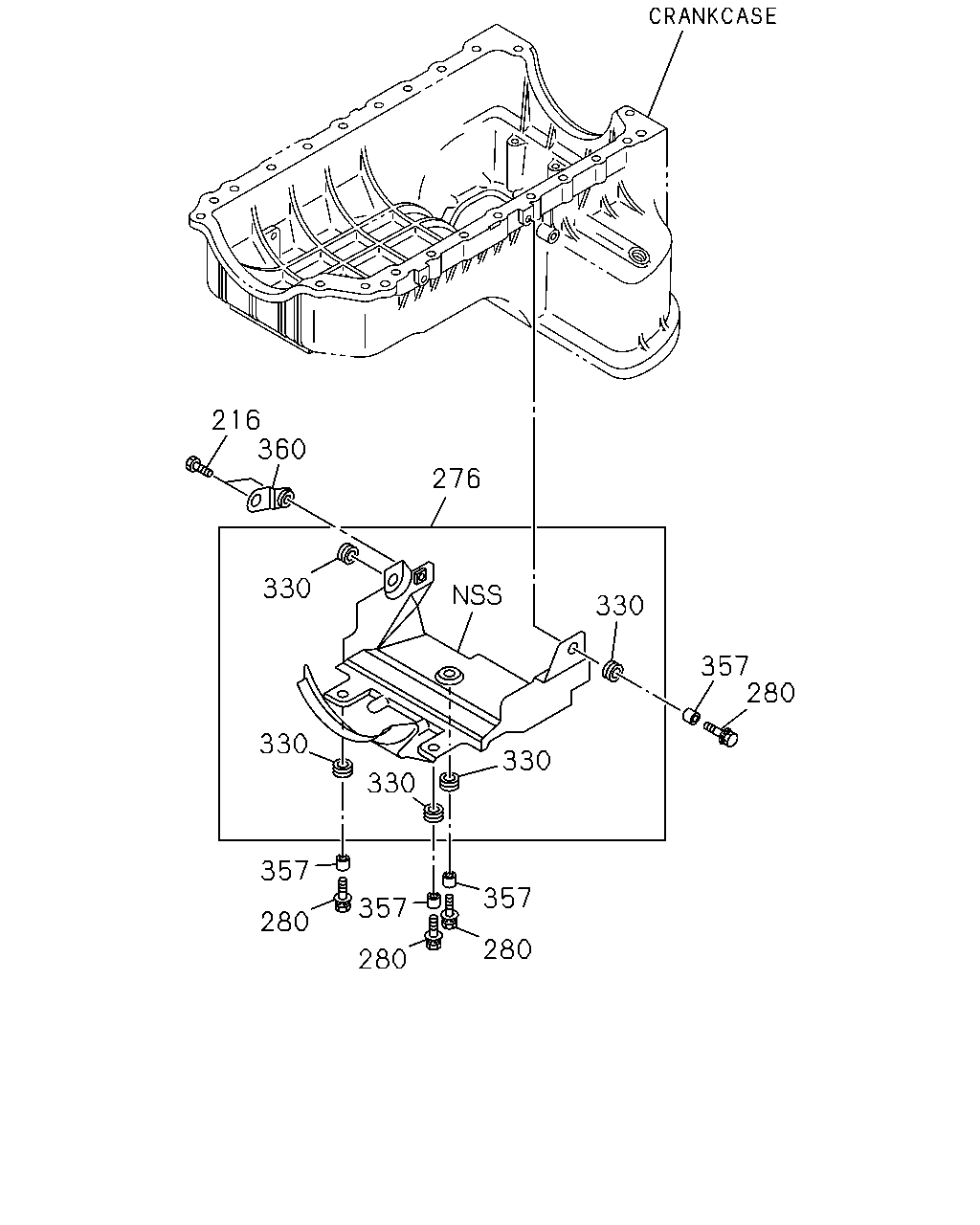

216 360 276 330 330 357 280 330 330 330 357 357 357 280 280 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
216	01.429 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-	●
216	01.429 BOLT; BRKT 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0211-	●
276	01.516 COVER; CRANKCASE	8-97324-158-3	01	1	0211-	●
280	01.430 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0211-	●
330	01.516 RUBBER; MTG,CRANKCASE COVER 00.034 OD=22	8-94140-428-1	05	1	0211-	●
357	01.516 BUSHING; COVER	8-97311-623-0	04	1	0211-0211	●
357	01.516 BUSHING; COVER	8-97361-926-0	04	1	0212-	●
360	01.750 BRACKET; CRANK CASE	8-97329-650-1	01	1	0211-	●

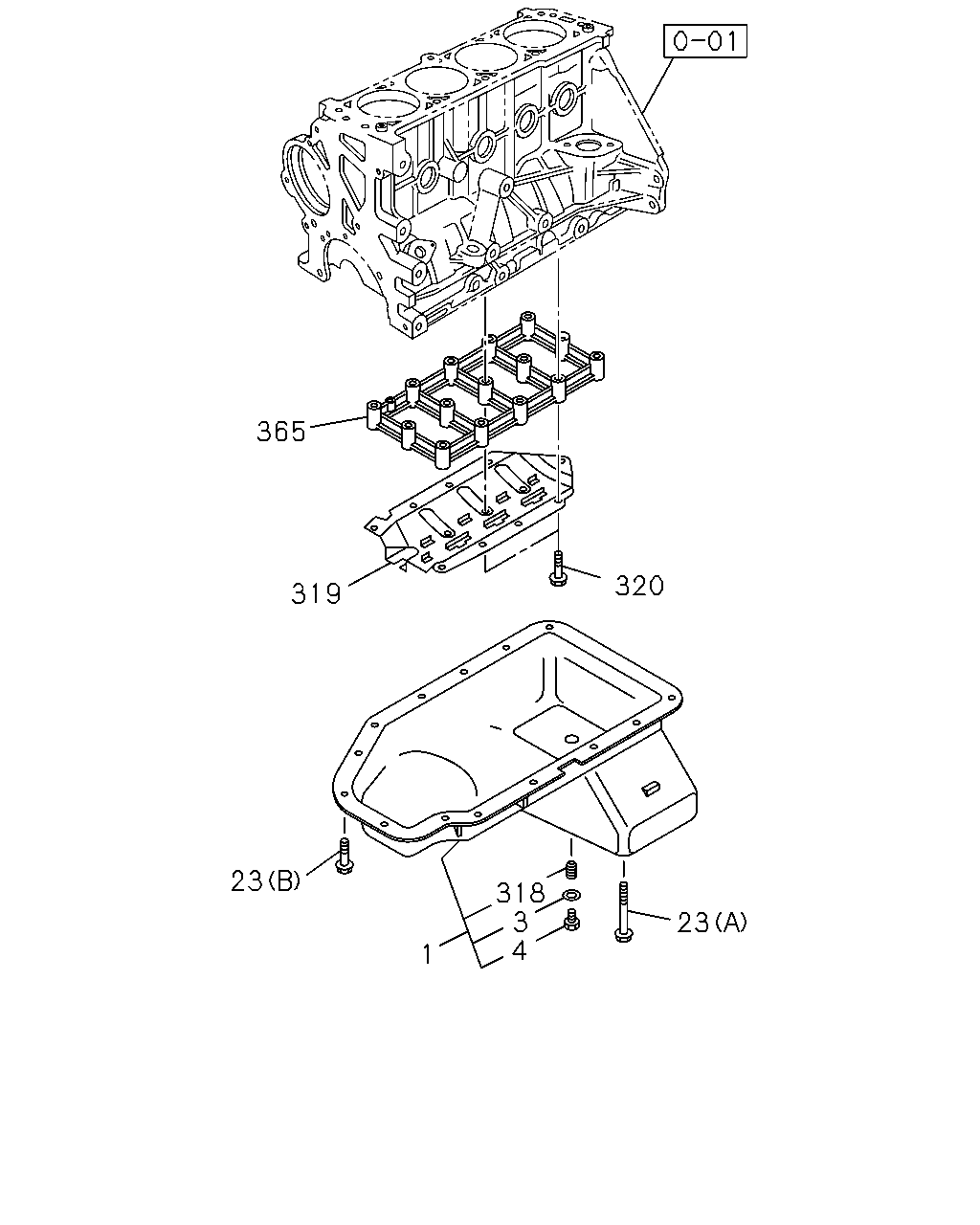

365 320 319 23 318 3 4 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-97248-860-1	01	1	0211-	●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97248-862-1	01	1	0211-	●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0211-		●
1	01.426 PAN ASM; OIL	8-92065-759-0	01	1	0211-			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0211-	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0211-		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	0211-			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0211-	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	0211-		●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	0211-			●
23	01.428 BOLT; OIL PAN (C) M6X13 W/PL WASHER	8-97135-141-0	15	1	0211-	●
23	01.428 BOLT; OIL PAN 03.330 (D) M8X16 HEX SOCKET	0-58310-816-0	12	1	0211-		●
23	01.428 BOLT; OIL PAN (A) M8X132	8-11093-981-0	03	1	0211-			●
23	01.428 BOLT; OIL PAN 00.662 (B) M8X45	8-11096-481-0	11	1	0211-			●
318	01.428 INSERT; OIL PAN	8-11065-809-0	01	1	0211-			●
319	01.430 SCRAPER; OIL PAN	8-92063-872-0	01	1	0211-			●
320	01.430 BOLT; SCRAPER 00.662 M8X45	8-11096-481-0	13	1	0211-			●
365	01.426 BRIDGE; MAIN BEARING	8-90501-900-0	01	1	0211-			●
