◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#48562) — 89 parça

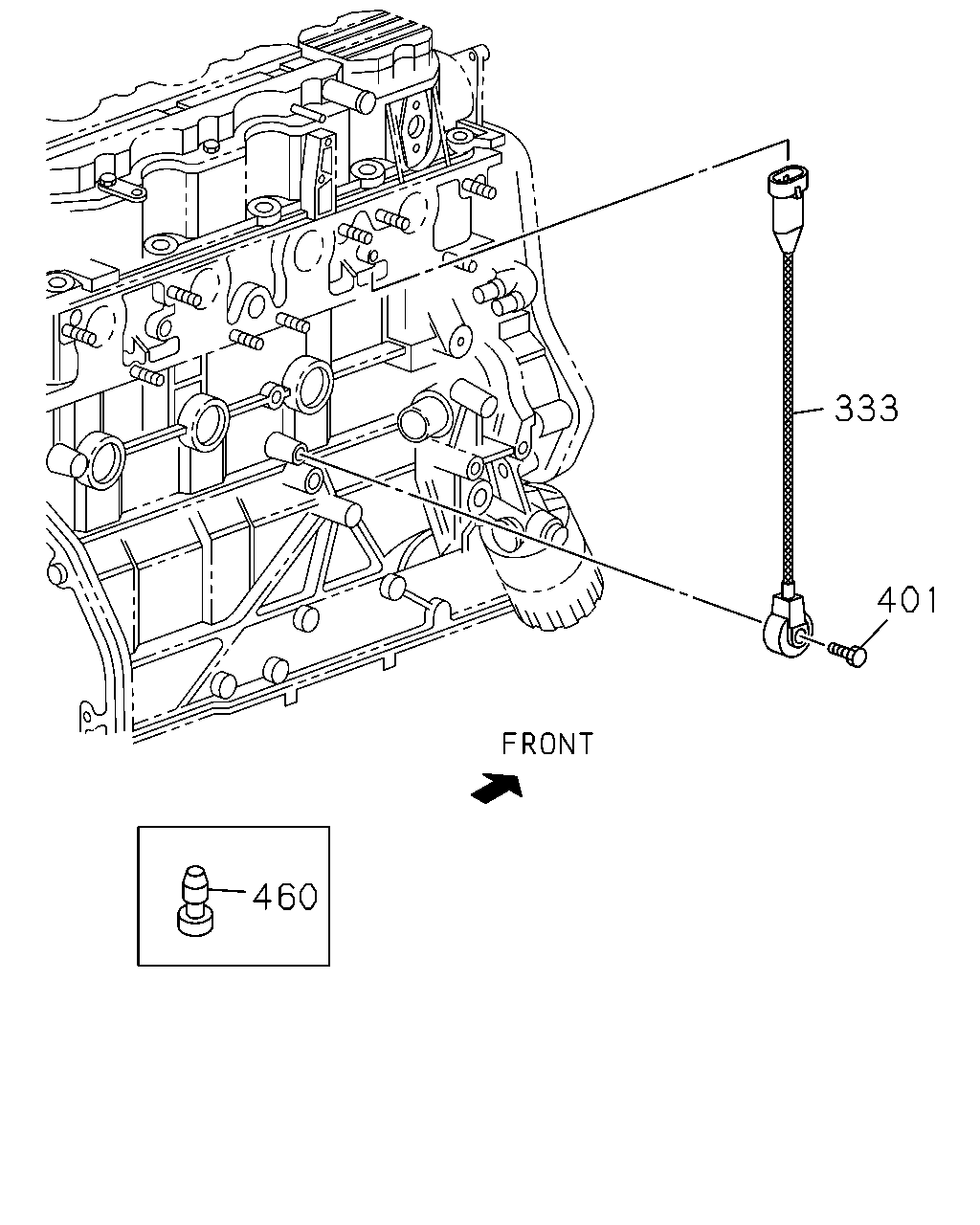

çizim 12471
333 401 460
BalonParca AdiParca NoAdetTipApplied Date A B C
333 03.682 SENSOR; KNOCK 8-10456-669-0 01 1 0211- ●
401 00.724 BOLT; SENSOR
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211- ●
401 00.724 BOLT; SENSOR 8-92063-265-0 01 1 0211- ●
460 00.034 SEAL; CYL BLOCK 8-97163-071-0 01 1 0211- ●

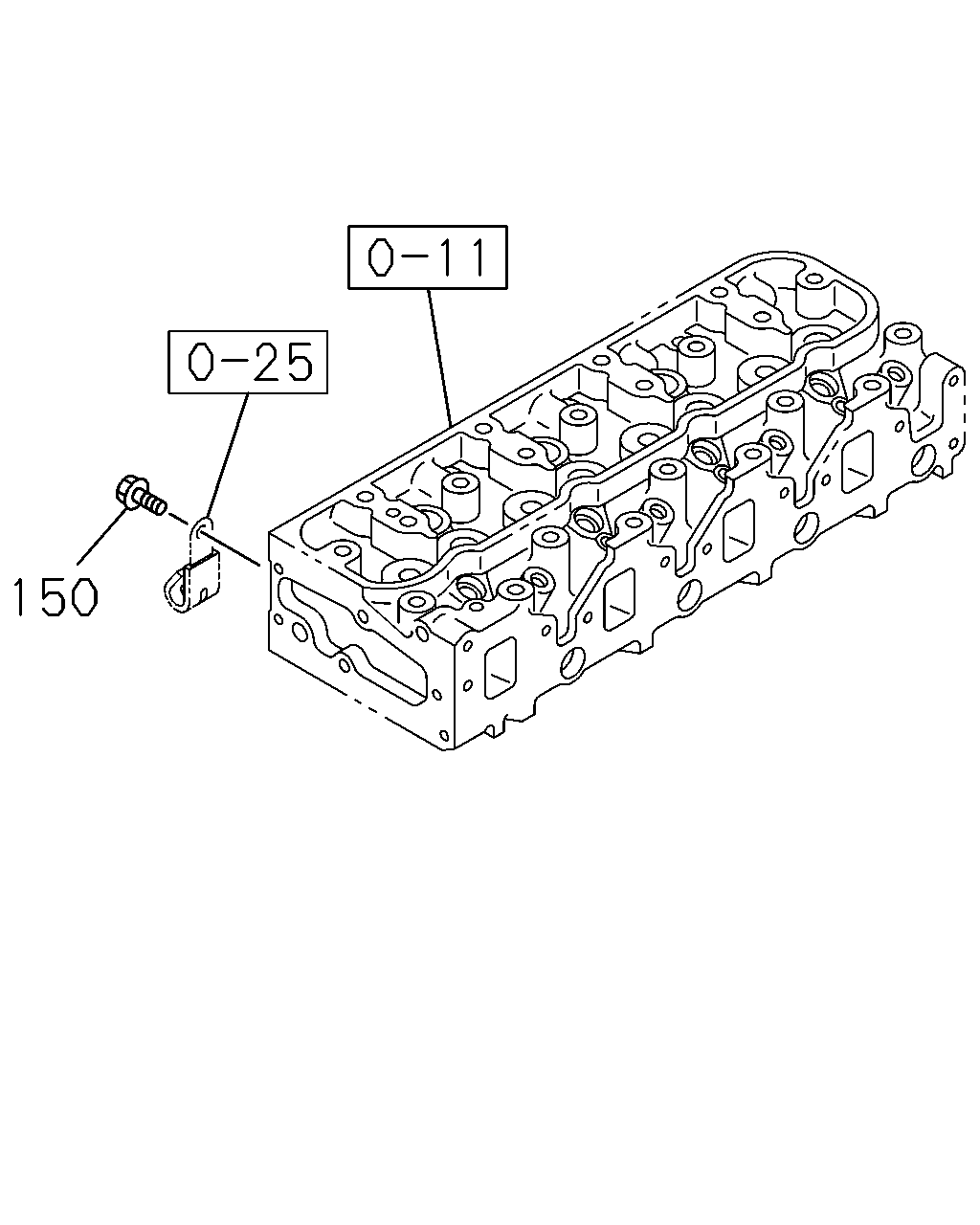

çizim 12472
150
BalonParca AdiParca NoAdetTipApplied Date A B C
150 02.313 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 04 1 0211- ●

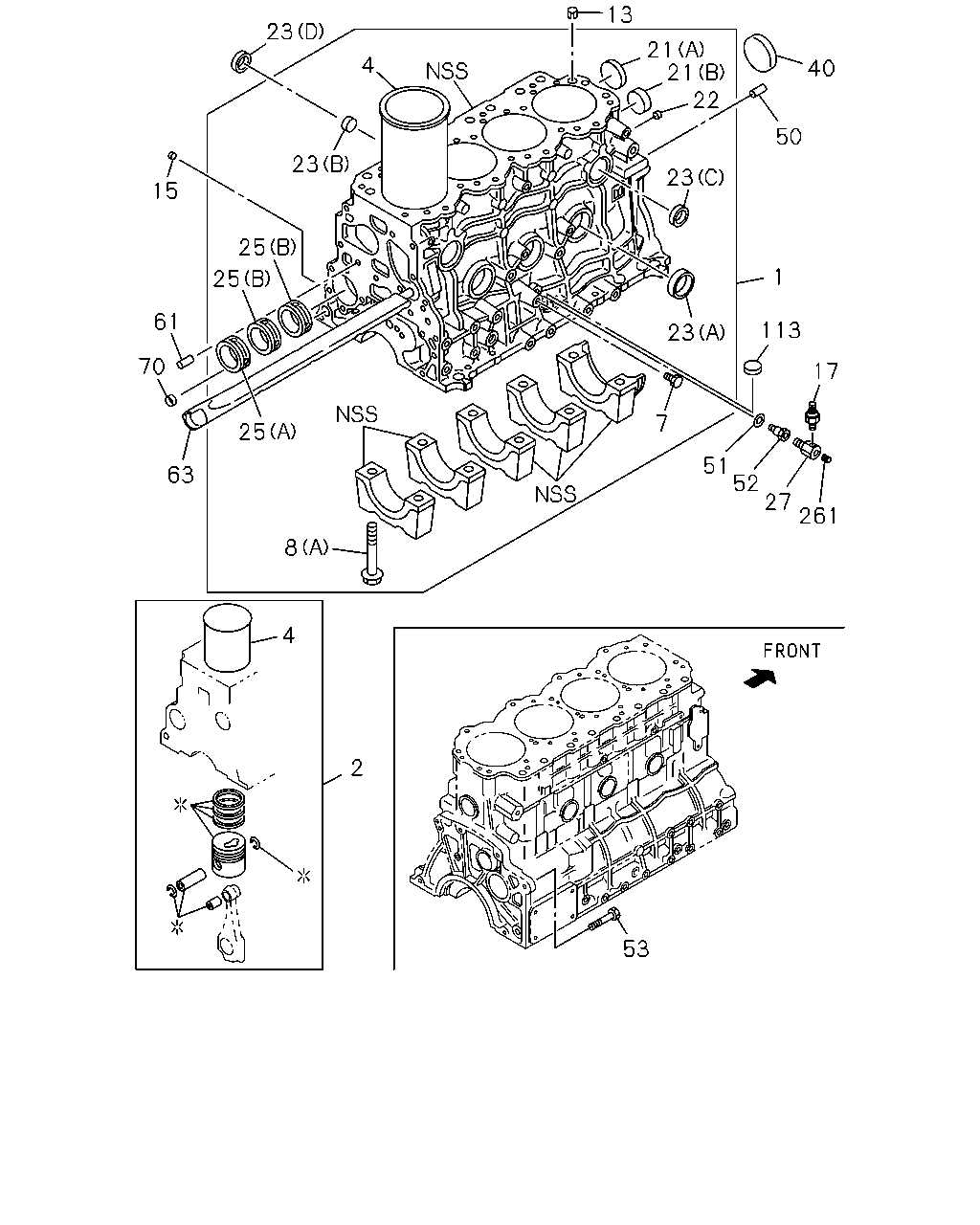

çizim 50502
13 23 21 21 22 4 40 50 23 23 15 25 1 25 61 113 23 70 17 7 25 51 52 27 261 63 8 4 2 53
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 BLOCK ASM; CYL 8-97257-264-2 01 1 0211- ●
1 00.033 BLOCK ASM; CYL 8-97193-231-1 01 1 0211- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87814-090-1 04 1 0211- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87814-091-1 04 1 0211- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87814-092-1 04 1 0211- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87814-093-1 04 1 0211- ●
4 00.030 LINER; C/BL
OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0211- ●
4 00.030 LINER; C/BL
OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0211- ●
4 00.030 LINER; C/BL
OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0211- ●
4 00.030 LINER; C/BL
OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0211- ●
4 00.030 LINER; C/BL
OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0211- ●
4 00.030 LINER; C/BL
OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0211- ●
4 00.030 LINER; C/BL
OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0211- ●
4 00.030 LINER; C/BL
OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0211- ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0211- ●
8 00.056 BOLT; BRG CAP
(D) M9X85 FLANGE 		8-94363-224-1 08 1 0211-0212 ●
8 00.056 BOLT; BRG CAP
(D) M9X85 FLANGE 		8-94363-224-1 08 1 0301- ●
8 00.056 BOLT; BRG CAP
(A) M14X89 FLANGE 		8-94432-642-0 10 1 0211- ●
8 00.056 BOLT; BRG CAP
(B) M11X143 FLANGE 		8-94363-095-1 08 1 0211- ●
8 00.056 BOLT; BRG CAP
(C) 		8-90502-412-0 10 1 0211- ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0211- ●
13 00.293 DOWEL; C/BL TO HD
OD=15.25 		8-94200-819-0 04 1 0211- ●
13 00.293 DOWEL; C/BL TO HD 8-90353-654-0 02 1 0211- ●
15 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 03 1 0211- ●
17 01.800 SWITCH; OIL PRESSURE 9-82720-209-2 01 1 0211- ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0211- ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0211- ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0211- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 03 1 0211- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 02 1 0211- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 03 1 0211- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 0211- ●
25 00.539 METAL; CM/SHF
(B) 		8-94427-201-2 02 1 0211- ●
25 00.539 METAL; CM/SHF
(A) 		8-94427-206-2 01 1 0211- ●
27 01.531 NIPPLE; OIL GALLERY 8-97231-967-3 01 1 0211- ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-1 01 1 0211- ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 0211- ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 0211- ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 0211- ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 0211- ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 0211- ●
63 01.153 DUCT; WATER,C/BL 8-94456-794-3 01 1 0211- ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0211- ●
70 00.034 CUP; SEALING,FRT & RR
OD=34 		8-11056-093-0 07 1 0211- ●
70 00.034 CUP; SEALING,FRT & RR
OD=36 		8-11070-803-0 07 1 0211- ●
113 00.034 CUP; SEALING
OD=15.6 		5-11129-003-0 01 1 0211- ●
261 00.034 PLUG; OIL PRESS UNIT
01.531 PT1/8 		1-09605-050-0 01 1 0211- ●

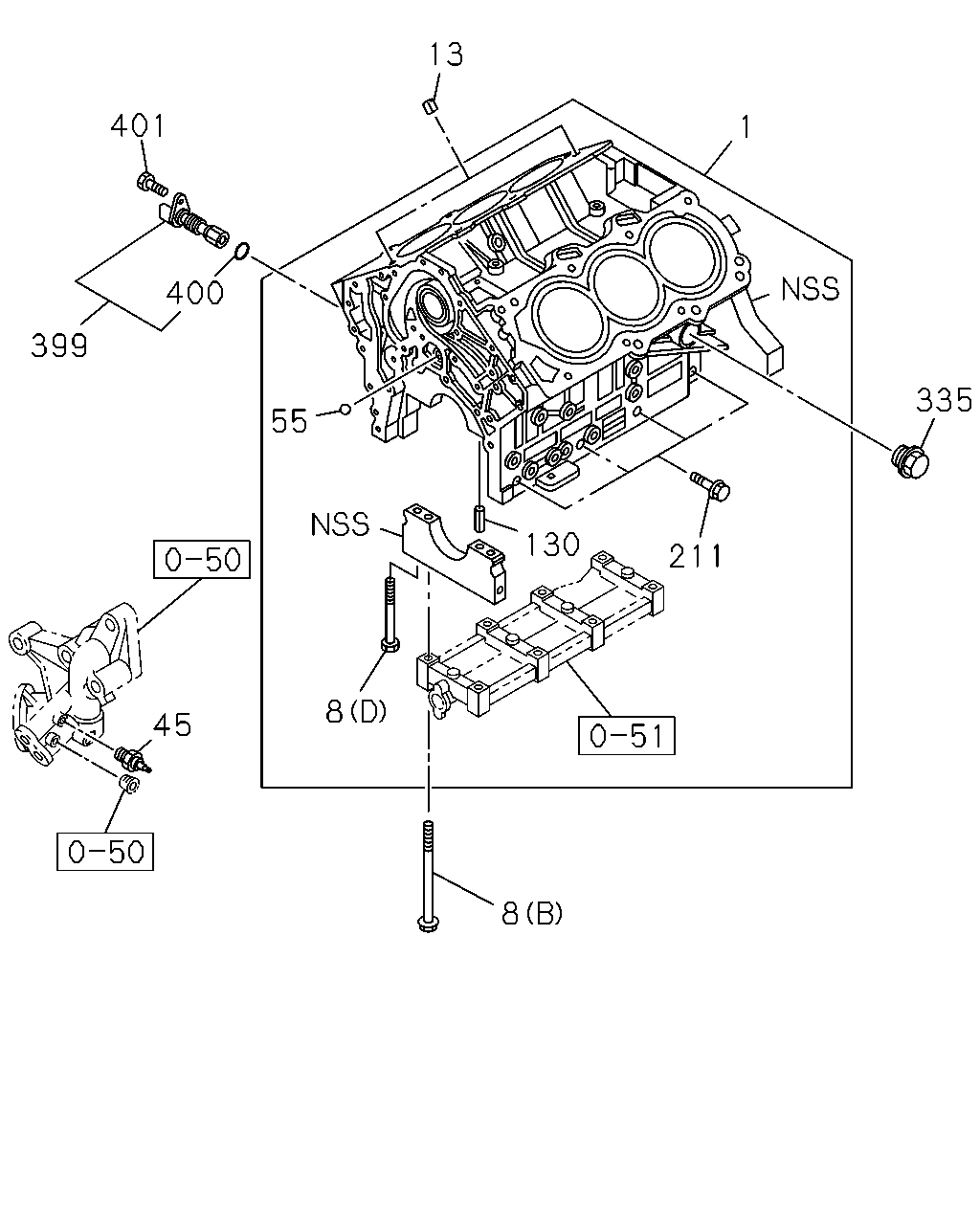

çizim 51067
13 401 1 400 399 335 55 130 211 8 45 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 BLOCK ASM; CYL 8-97257-264-2 01 1 0211- ●
1 00.033 BLOCK ASM; CYL 8-97193-231-1 01 1 0211- ●
8 00.056 BOLT; BRG CAP
(D) M9X85 FLANGE 		8-94363-224-1 08 1 0211-0212 ●
8 00.056 BOLT; BRG CAP
(D) M9X85 FLANGE 		8-94363-224-1 08 1 0301- ●
8 00.056 BOLT; BRG CAP
(A) M14X89 FLANGE 		8-94432-642-0 10 1 0211- ●
8 00.056 BOLT; BRG CAP
(B) M11X143 FLANGE 		8-94363-095-1 08 1 0211- ●
8 00.056 BOLT; BRG CAP
(C) 		8-90502-412-0 10 1 0211- ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0211- ●
13 00.293 DOWEL; C/BL TO HD
OD=15.25 		8-94200-819-0 04 1 0211- ●
13 00.293 DOWEL; C/BL TO HD 8-90353-654-0 02 1 0211- ●
45 01.800 SWITCH; OIL PRESSURE 8-94312-940-0 01 1 0211- ●
55 01.531 PLUG; OIL GALLERY
01.837 3/8" BALL 		9-00097-011-0 01 1 0211-0212 ●
55 01.531 PLUG; OIL GALLERY
01.837 3/8" BALL 		9-00097-011-0 01 1 0301- ●
130 00.056 DOWEL; BRG CAP 8-94382-070-0 08 1 0211-0212 ●
130 00.056 DOWEL; BRG CAP 8-94382-070-0 08 1 0301- ●
211 01.428 BOLT; CRANKCASE
M10X31 FLANGE 		8-94363-094-1 08 1 0211-0212 ●
211 01.428 BOLT; CRANKCASE
M10X31 FLANGE 		8-94363-094-1 08 1 0301- ●
335 01.531 PLUG; C/BL,SIDE
M28X16 FLANGE 		8-97028-246-2 01 1 0211- ●
399 00.724 SENSOR; CRANKSHAFT POSITION 8-97258-523-0 01 1 0211- ●
400 00.724 GASKET; CRANKSHAFT POSITION SENS 8-97131-356-0 01 1 0211- ●
401 00.724 BOLT; SENSOR
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211- ●
401 00.724 BOLT; SENSOR 8-92063-265-0 01 1 0211- ●

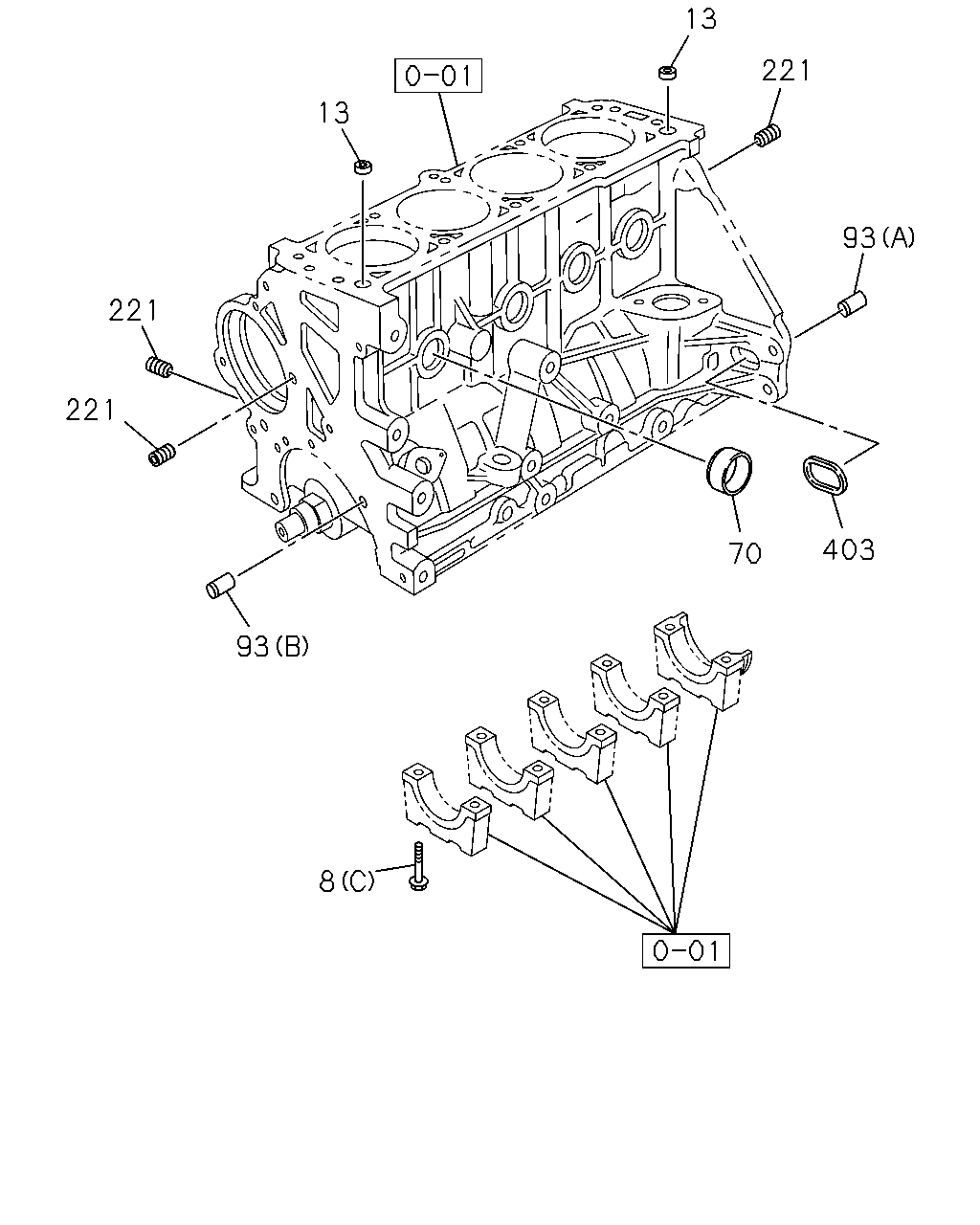

çizim 52921
13 221 13 93 221 221 403 70 93 8
BalonParca AdiParca NoAdetTipApplied Date A B C
8 00.056 BOLT; BRG CAP
(D) M9X85 FLANGE 		8-94363-224-1 08 1 0211-0212 ●
8 00.056 BOLT; BRG CAP
(D) M9X85 FLANGE 		8-94363-224-1 08 1 0301- ●
8 00.056 BOLT; BRG CAP
(A) M14X89 FLANGE 		8-94432-642-0 10 1 0211- ●
8 00.056 BOLT; BRG CAP
(B) M11X143 FLANGE 		8-94363-095-1 08 1 0211- ●
8 00.056 BOLT; BRG CAP
(C) 		8-90502-412-0 10 1 0211- ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0211- ●
13 00.293 DOWEL; C/BL TO HD
OD=15.25 		8-94200-819-0 04 1 0211- ●
13 00.293 DOWEL; C/BL TO HD 8-90353-654-0 02 1 0211- ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0211- ●
70 00.034 CUP; SEALING,FRT & RR
OD=34 		8-11056-093-0 07 1 0211- ●
70 00.034 CUP; SEALING,FRT & RR
OD=36 		8-11070-803-0 07 1 0211- ●
93 00.206 DOWEL; RET TO C/BL
(A) 		8-90108-591-0 02 1 0211- ●
93 00.206 DOWEL; RET TO C/BL
01.609 (B) 		8-90351-709-0 02 1 0211- ●
221 01.531 PLUG; OIL GALLERY 8-11056-321-0 04 1 0211- ●
403 01.519 GUIDE; GALLERY 8-90501-712-0 01 1 0211- ●
