◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#48561) — 177 parça

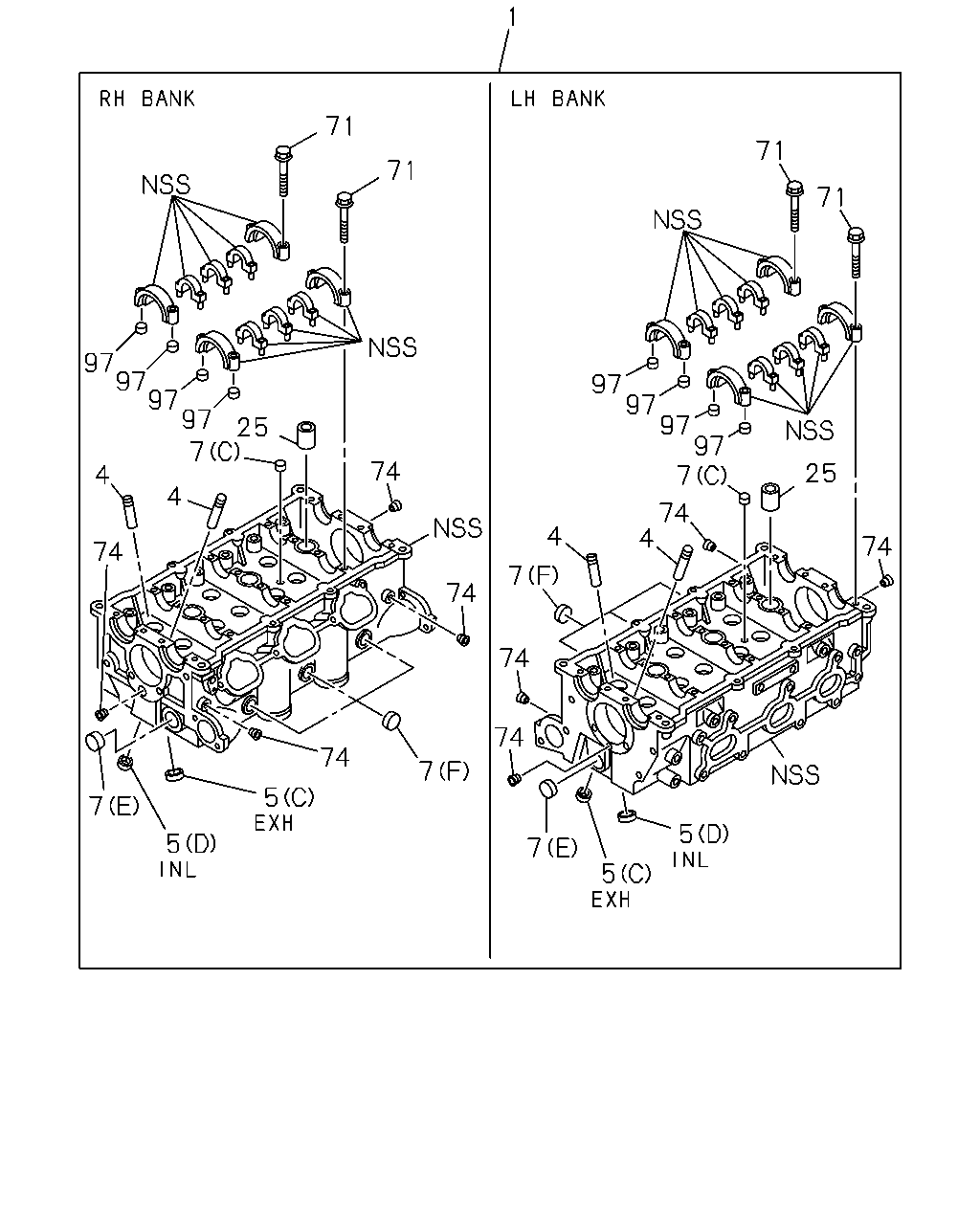

çizim 11646
1 71 71 71 71 97 97 97 97 25 7 97 97 97 97 7 74 25 4 4 74 4 4 74 74 7 74 74 74 74 7 5 7 5 5 5 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-97361-245-0 01 1 0211-0303 ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0304- ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0211- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0211- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0211- ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 0211- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0211- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0211- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=42.7 		8-97254-813-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(D) INLET 		8-97131-854-1 12 1 0211- ●
5 00.253 SEAT; VLV INSERT
(C) EXHAUST 		8-97131-855-1 12 1 0211- ●
5 00.253 SEAT; VLV INSERT
(F) INLET 		8-90233-708-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST 		8-90233-709-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(E) INLET 		8-90233-712-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST 		8-90233-713-0 04 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 04 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=28 		5-11219-014-0 06 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (F) OD=36 		5-11219-018-0 06 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=54 		8-97136-590-0 02 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) STD OD=26 		8-11044-142-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30.8 		8-11067-433-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30 		8-11072-963-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OVSI OD=28 		8-11084-312-0 01 1 0211- ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 0211- ●
71 00.413 BOLT; CAM BRKT
M6X40 FLANGE 		0-28690-640-0 40 1 0211- ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 0211- ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 0211- ●
97 00.349 DOWEL; CAM BRKT SET 8-97014-295-1 24 1 0211- ●

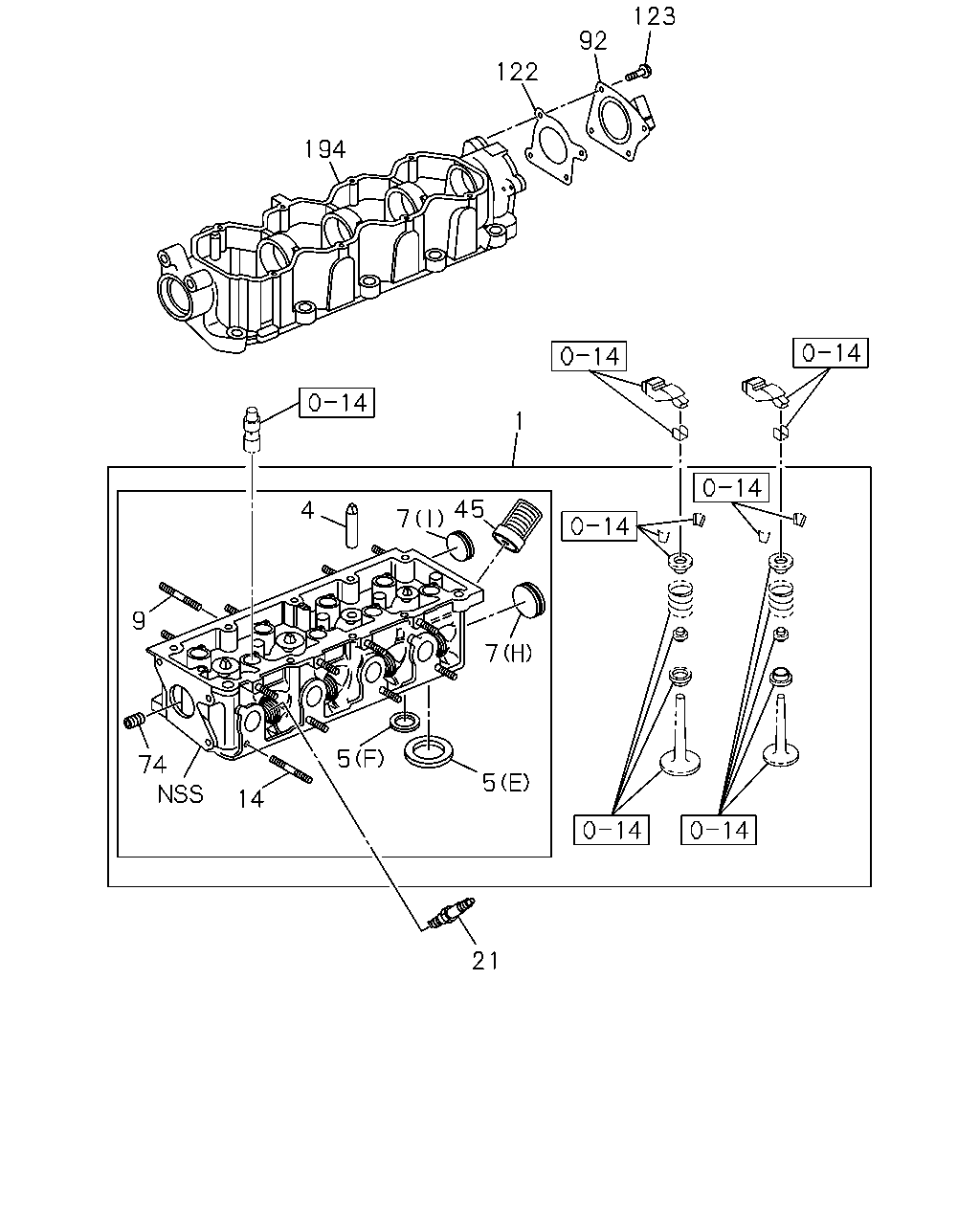

çizim 50283
123 92 122 194 1 45 7 4 9 7 5 74 5 14 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-97361-245-0 01 1 0211-0303 ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0304- ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0211- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0211- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0211- ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 0211- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0211- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0211- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=42.7 		8-97254-813-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(D) INLET 		8-97131-854-1 12 1 0211- ●
5 00.253 SEAT; VLV INSERT
(C) EXHAUST 		8-97131-855-1 12 1 0211- ●
5 00.253 SEAT; VLV INSERT
(F) INLET 		8-90233-708-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST 		8-90233-709-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(E) INLET 		8-90233-712-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST 		8-90233-713-0 04 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 04 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=28 		5-11219-014-0 06 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (F) OD=36 		5-11219-018-0 06 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=54 		8-97136-590-0 02 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) STD OD=26 		8-11044-142-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30.8 		8-11067-433-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30 		8-11072-963-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OVSI OD=28 		8-11084-312-0 01 1 0211- ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 0211- ●
9 03.275 STUD; INL MANIF 8-92066-276-0 09 1 0211- ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 0211- ●
14 03.275 STUD; EXH MANIF 8-92066-276-0 08 1 0211- ●
21 02.270 PLUG; SPARK
CHAMPION 		8-97125-969-0 06 1 0211- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 0211- ●
45 00.293 VALVE; OIL RELIEF,CYL HD 8-90136-113-0 01 1 0211- ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 0211- ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 0211- ●
92 00.206 COVER; CM/SHF,CYL HD 8-92063-831-0 01 1 0211- ●
122 00.206 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-92062-158-0 01 1 0211- ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 0211- ●
194 00.349 CARRIER; CAM SHAFT 8-92066-103-0 01 1 0211- ●

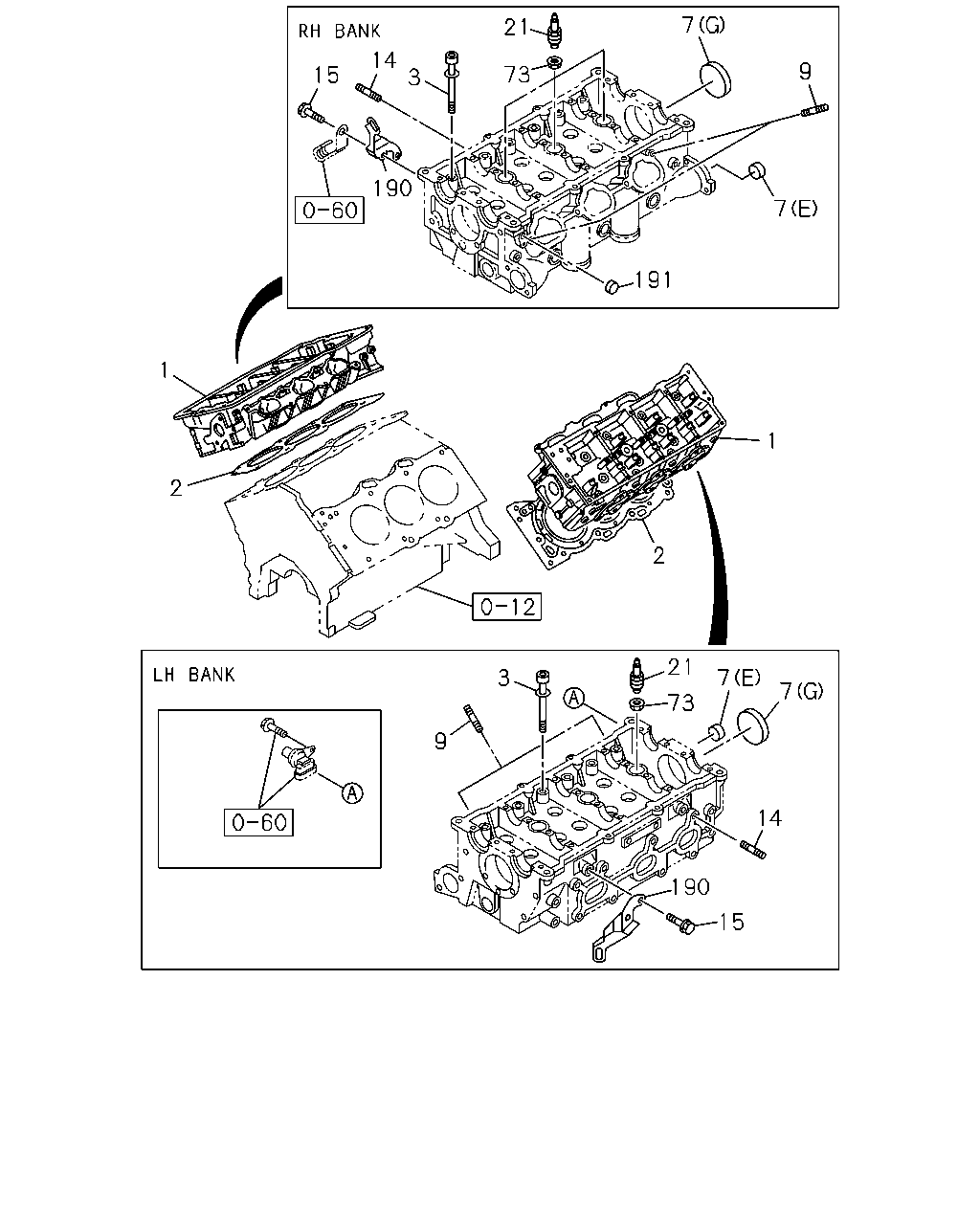

çizim 50435
7 21 14 9 73 15 3 190 7 191 1 1 2 2 21 3 7 7 73 9 14 190 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-97361-245-0 01 1 0211-0303 ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0304- ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0211- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-096-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-094-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-93282-665-0 01 1 0211- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0211- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 0211- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 04 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=28 		5-11219-014-0 06 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (F) OD=36 		5-11219-018-0 06 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=54 		8-97136-590-0 02 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) STD OD=26 		8-11044-142-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30.8 		8-11067-433-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30 		8-11072-963-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OVSI OD=28 		8-11084-312-0 01 1 0211- ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 0211- ●
9 03.275 STUD; INL MANIF 8-92066-276-0 09 1 0211- ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 0211- ●
14 03.275 STUD; EXH MANIF 8-92066-276-0 08 1 0211- ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0211- ●
21 02.270 PLUG; SPARK
CHAMPION 		8-97125-969-0 06 1 0211- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 0211- ●
73 00.293 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97136-173-0 06 1 0211- ●
190 00.004 HANGER; ENG 8-97288-729-0 02 1 0211- ●
191 00.293 CAP; BLIND 8-97167-998-0 01 1 0211- ●

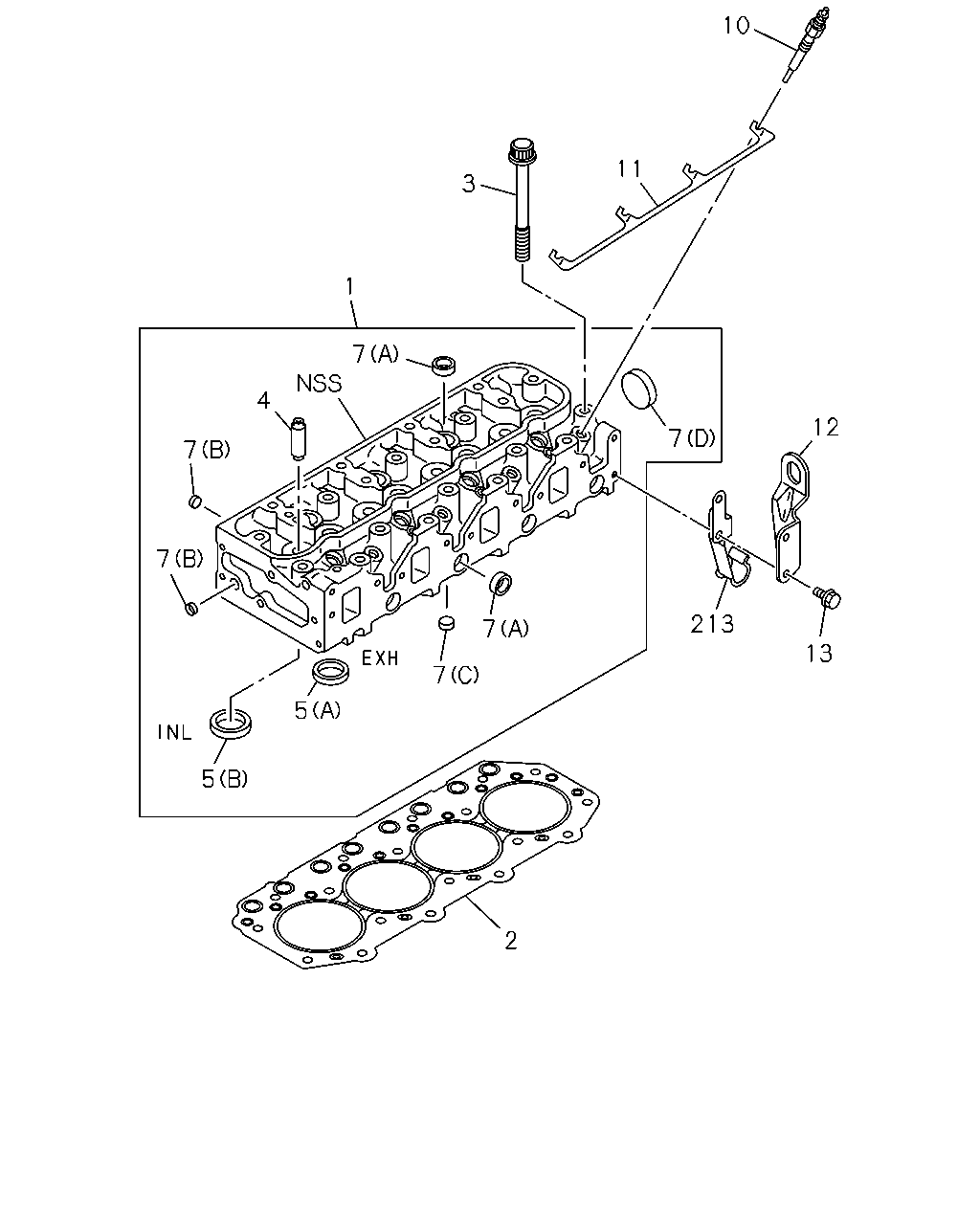

çizim 50472
10 11 3 1 7 4 12 7 7 7 213 7 13 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-97361-245-0 01 1 0211-0303 ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0304- ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0211- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-096-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-094-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-93282-665-0 01 1 0211- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0211- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 0211- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 0211- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0211- ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 0211- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0211- ●
4 00.283 GUIDE; VLV
OVSI 		8-90108-700-0 08 1 0211- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=42.7 		8-97254-813-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(D) INLET 		8-97131-854-1 12 1 0211- ●
5 00.253 SEAT; VLV INSERT
(C) EXHAUST 		8-97131-855-1 12 1 0211- ●
5 00.253 SEAT; VLV INSERT
(F) INLET 		8-90233-708-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST 		8-90233-709-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(E) INLET 		8-90233-712-0 04 1 0211- ●
5 00.253 SEAT; VLV INSERT
(E) EXHAUST 		8-90233-713-0 04 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 04 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=28 		5-11219-014-0 06 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (F) OD=36 		5-11219-018-0 06 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=54 		8-97136-590-0 02 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) STD OD=26 		8-11044-142-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30.8 		8-11067-433-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=30 		8-11072-963-0 01 1 0211- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OVSI OD=28 		8-11084-312-0 01 1 0211- ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-8 04 1 0211- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0211- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0211- ●
12 00.004 HANGER; ENG,RR 8-97019-563-0 01 1 0211- ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 0211- ●
13 00.004 BOLT; HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0211- ●
13 00.004 BOLT; HANGER
03.670 		8-11041-103-0 01 1 0211- ●
213 02.559 CLIP; RUBBER HOSE
01.540 		8-97039-302-0 01 1 0211-0302 ●

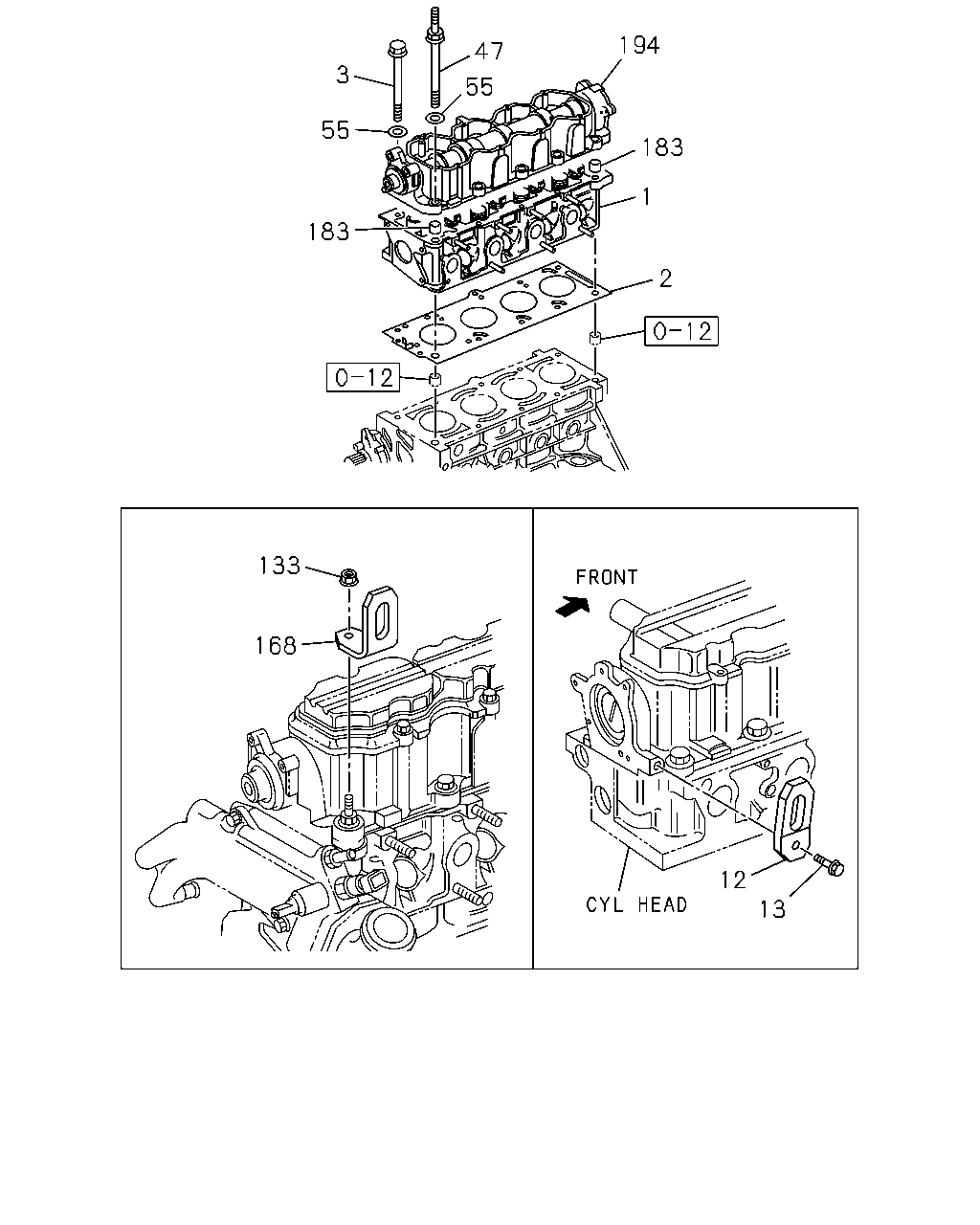

çizim 51065
194 47 3 55 55 183 1 183 2 1 133 168 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-97361-245-0 01 1 0211-0303 ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0304- ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0211- ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-096-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-094-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-93282-665-0 01 1 0211- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0211- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 0211- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 0211- ●
12 00.004 HANGER; ENG,RR 8-97019-563-0 01 1 0211- ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 0211- ●
13 00.004 BOLT; HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0211- ●
13 00.004 BOLT; HANGER
03.670 		8-11041-103-0 01 1 0211- ●
47 00.413 STUD; CYL HD 8-92061-632-0 01 1 0211- ●
55 00.004 WASHER; PL,CYL HD TO BLOCK 8-90325-497-0 10 1 0211- ●
133 00.004 NUT; HANGER 8-92066-006-0 01 1 0211- ●
168 00.004 HANGER; ENG,FRT 8-90323-004-0 01 1 0211- ●
183 00.206 DOWEL; CYL HEAD
00.293 		8-90353-654-0 02 1 0211- ●
194 00.349 CARRIER; CAM SHAFT 8-92066-103-0 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
