◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 3 - Brakes, Brake System ▶ 3-34 - BRAKE VALVE; AIR ▶
3-34 — BRAKE VALVE; AIR (#4856) — 67 parça

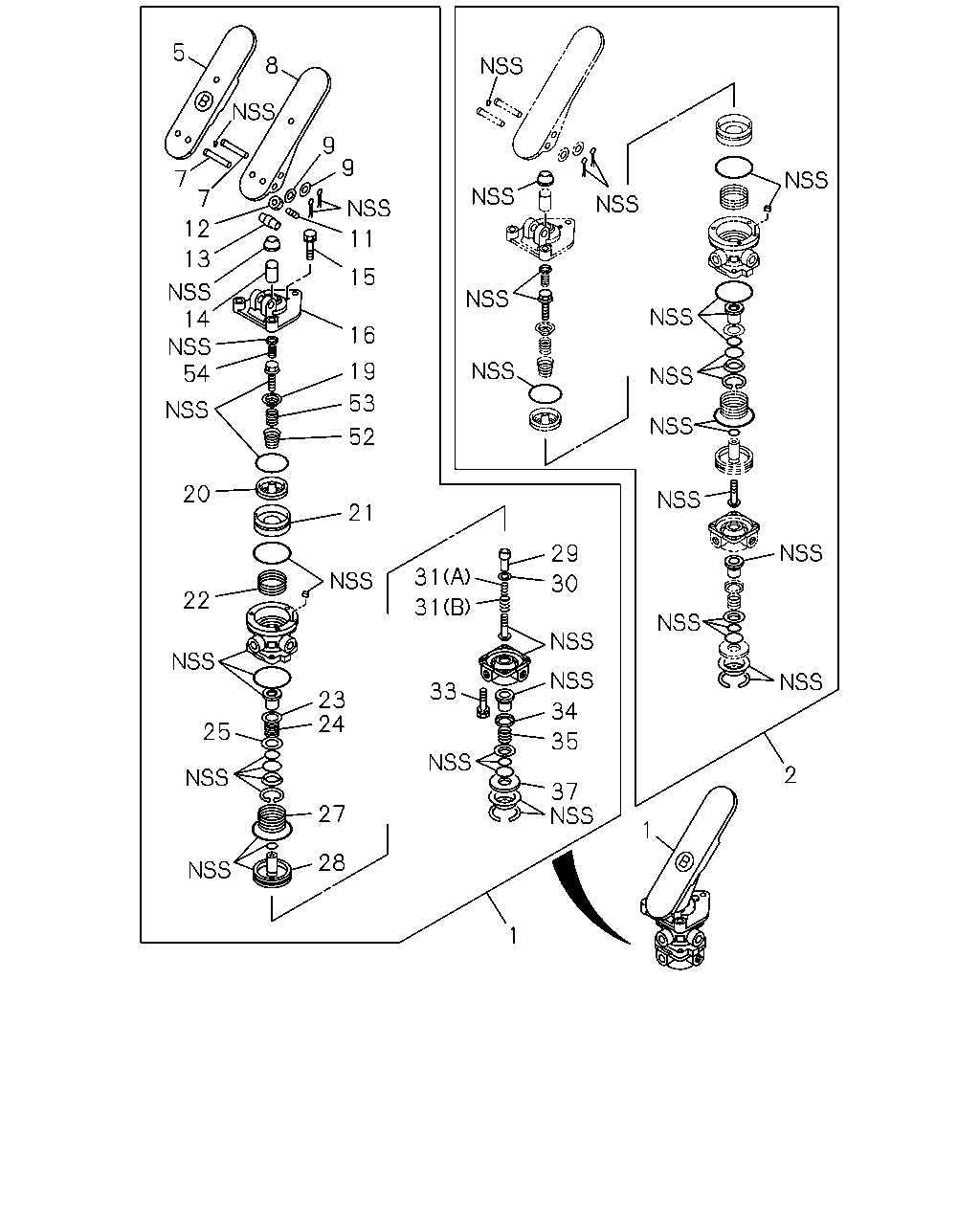

çizim 6598
5 8 9 9 7 7 12 11 13 15 14 54 16 19 53 52 20 21 29 31 30 22 31 33 23 24 34 25 35 2 37 27 1 28 1
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; BRK 1-48100-711-1 01 1 9601-9603
1 VALVE; BRK 1-48100-773-0 01 1 9604-9610
1 VALVE; BRK
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48100-773-0 01 1 9611-0101
1 VALVE; BRK
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48100-843-0 01 1 0102-
1 VALVE; BRK
NEW ZEALAND EQUIPMENT(PK5) 		1-48100-774-0 01 1 9611-
2 REPAIR KIT; BRK VLV 1-85576-147-0 01 1 9601-9603
2 REPAIR KIT; BRK VLV 1-85576-182-0 01 1 9604-0101
2 REPAIR KIT; BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-85576-182-0 01 1 0102-
2 REPAIR KIT; BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-85576-285-0 01 1 0102-
5 COVER; PEDAL,BRK VLV 1-48119-333-0 01 1 9601-0101
5 COVER; PEDAL,BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-333-0 01 1 0102-
5 COVER; PEDAL,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-432-0 01 1 0102-
7 PIN; PEDAL,BRK VLV 1-48119-244-0 02 1 9601-0101
7 PIN; PEDAL,BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-244-0 02 1 0102-
7 PIN; PEDAL,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-431-0 02 1 0102-
8 PEDAL; BRK VLV 1-48119-332-0 01 1 9601-0101
8 PEDAL; BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-332-0 01 1 0102-
8 PEDAL; BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-429-0 01 1 0102-
9 WASHER; PIN,BRK VLV 1-48119-106-0 02 1 9601-0101
9 WASHER; PIN,BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-106-0 02 1 0102-
11 SCREW; SET,BRK VLV 1-48119-245-0 01 1 9601-0101
11 SCREW; SET,BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-245-0 01 1 0102-
11 SCREW; SET,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-003-1 01 1 0102-
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9601-
13 ROLLER; PEDAL,BRK VLV 1-48119-243-0 01 1 9601-0101
13 ROLLER; PEDAL,BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-243-0 01 1 0102-
13 ROLLER; PEDAL,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-430-0 01 1 0102-
14 PLUNGER; BRK VLV 1-48119-362-0 01 1 9601-9603
14 PLUNGER; BRK VLV 1-48119-383-0 01 1 9604-0101
14 PLUNGER; BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-383-0 01 1 0102-
14 PLUNGER; BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-561-0 01 1 0102-
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 9601-
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 9601-0101
16 PLATE; MTG,BRKT VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-268-0 01 1 0102-
16 PLATE; MTG,BRKT VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-547-0 01 1 0102-
19 SEAT; SPRING,BRK VLV 1-48123-041-0 01 1 9601-
20 PISTON; UPR,BRK VLV 1-48119-336-0 01 1 9601-9603
20 PISTON; UPR,BRK VLV 1-48119-381-0 01 1 9604-9610
20 PISTON; UPR,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-381-0 01 1 9611-0101
20 PISTON; UPR,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48119-560-0 01 1 0102-
20 PISTON; UPR,BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-336-0 01 1 9611-
21 BUSHING; UPR BODY 1-48119-293-0 01 1 9601-9603
21 BUSHING; UPR BODY
NEW ZEALAND EQUIPMENT(PK5) 		1-48119-293-0 01 1 9611-
22 SPRING; PISTON,LWR,BRK VLV 1-48143-009-0 01 1 9601-9603
22 SPRING; PISTON,LWR,BRK VLV 1-48123-071-0 01 1 9604-9610
22 SPRING; PISTON,LWR,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48123-071-0 01 1 9611-
22 SPRING; PISTON,LWR,BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48143-009-0 01 1 9611-
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 9601-
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9601-
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 9601-
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 9601-
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9601-9610
28 PISTON; LWR,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-140-0 01 1 9611-0101
28 PISTON; LWR,BRK VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-313-0 01 1 0102-
28 PISTON; LWR,BRK VLV
NEW ZEALAND EQUIPMENT(PK5) 		1-48129-292-0 01 1 9611-
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 9601-
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9601-
31 SPRING; VLV,BRK VLV
(A) 		1-48123-032-0 01 1 9601-
31 SPRING; VLV,BRK VLV
(B) 		1-48123-033-0 01 1 9601-
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 9601-
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 9601-
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 9601-
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9601-
52 SPRING; PISTON,OUTER,BRK VLV 1-48123-040-0 01 1 9601-9603
52 SPRING; PISTON,OUTER,BRK VLV 1-48123-074-0 01 1 9604-
53 SPRING; PISTON,INNER,BRK VLV 1-48123-068-0 01 1 9601-
54 SPRING; PISTON,UPR,BRK VLV 1-48123-067-0 01 1 9601-
