6-76 — FLOOR EQUIPMENT AND SEALING (#48557) — 407 parça

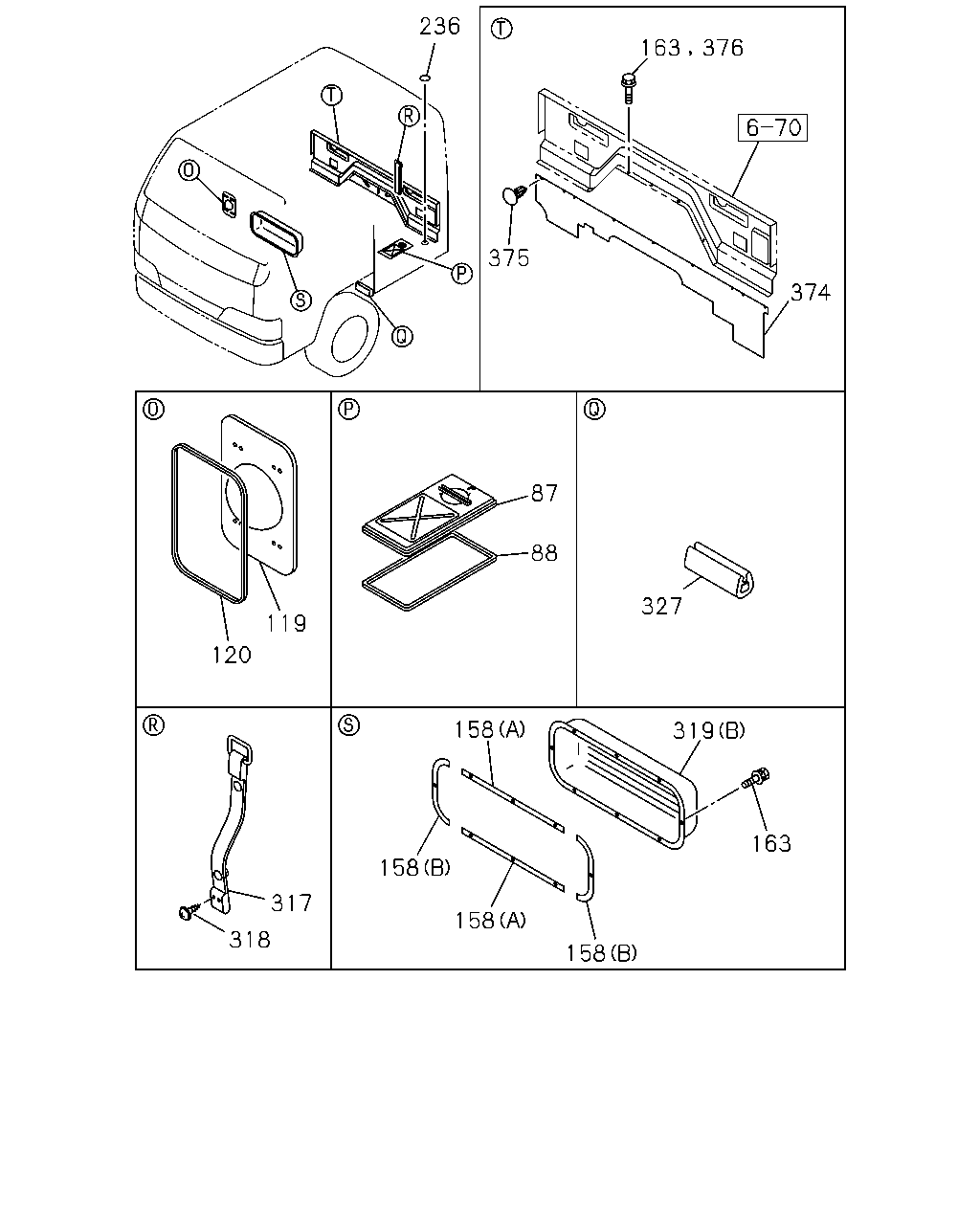

çizim 47633
236 375 374 87 88 327 119 120 158 319 163 158 317 158 318 158 163 376
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 9811- ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 9811- ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 9811- ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 9811- ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HF1 ENG(RLS) (A) 		8-97853-660-0 02 1 0203-0206 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HF1 ENG(RLS) (B) 		8-97853-661-0 02 1 0203-0206 ●
158 16.549 SEAL; RR,ENG COVER,FRT
(C) 		8-97892-531-4 01 1 9811-0102 ●
158 16.549 SEAL; RR,ENG COVER,FRT
(C) 		8-97995-002-0 01 1 0103-0202 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97995-002-0 01 1 0203-0206 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97995-002-0 01 1 0207- ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97995-002-0 01 1 0207- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0203-0206 ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 13 1 9811-9905 ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9906-9908 ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9909-0202 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HF1 ENG(RLS) 04.439 M6X16 FLANGE 		0-28680-616-0 08 1 0203-0206 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0207- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0207- ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 9906-9908 ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 9909-0103 ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0104-0202 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0203-0206 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0207- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0207- ●
236 16.549 SEAL; CHECK HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9811- ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9811- ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9811- ● ● ● ● ● ●
319 16.549 COVER; ENG RR,FLOOR
4HF1 ENG(RLS) (B) 		8-97850-241-3 01 1 0203-0206 ●
319 16.549 COVER; ENG RR,FLOOR
(A) 		8-97892-724-3 01 1 9811-0202 ●
319 16.549 COVER; ENG RR,FLOOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97892-724-3 01 1 0203-0203 ●
319 16.549 COVER; ENG RR,FLOOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97997-526-0 01 1 0204-0206 ●
319 16.549 COVER; ENG RR,FLOOR
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97997-526-0 01 1 0207- ●
319 16.549 COVER; ENG RR,FLOOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97997-526-0 01 1 0207- ●
327 16.545 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 9811- ●
374 16.549 COVER; ENG,RR LWR 8-97994-696-0 01 1 0201-0202 ●
374 16.549 COVER; ENG,RR LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97994-696-0 01 1 0203- ●
375 16.549 CLIP; COVER,ENG
16.320 OD=8.3 		8-94279-989-0 09 1 0201-0202 ●
375 16.549 CLIP; COVER,ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.320 OD=8.3 		8-94279-989-0 09 1 0203- ●
376 16.549 BOLT; RR ENG COVER
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 9906-0010 ●
376 16.549 BOLT; RR ENG COVER
02.334 M6X16 W/PL WASHER 		8-97803-781-0 05 1 0011-0102 ●
376 16.549 BOLT; RR ENG COVER
02.334 M6X16 W/PL WASHER 		8-97803-781-0 04 1 0103-0202 ●
376 16.549 BOLT; RR ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.334 M6X16 W/PL WASHER 		8-97803-781-0 04 1 0203-0206 ●
376 16.549 BOLT; RR ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X16 W/PL WASHER 		8-97803-781-0 04 1 0207- ●
376 16.549 BOLT; RR ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.334 M6X16 W/PL WASHER 		8-97803-781-0 04 1 0207- ●

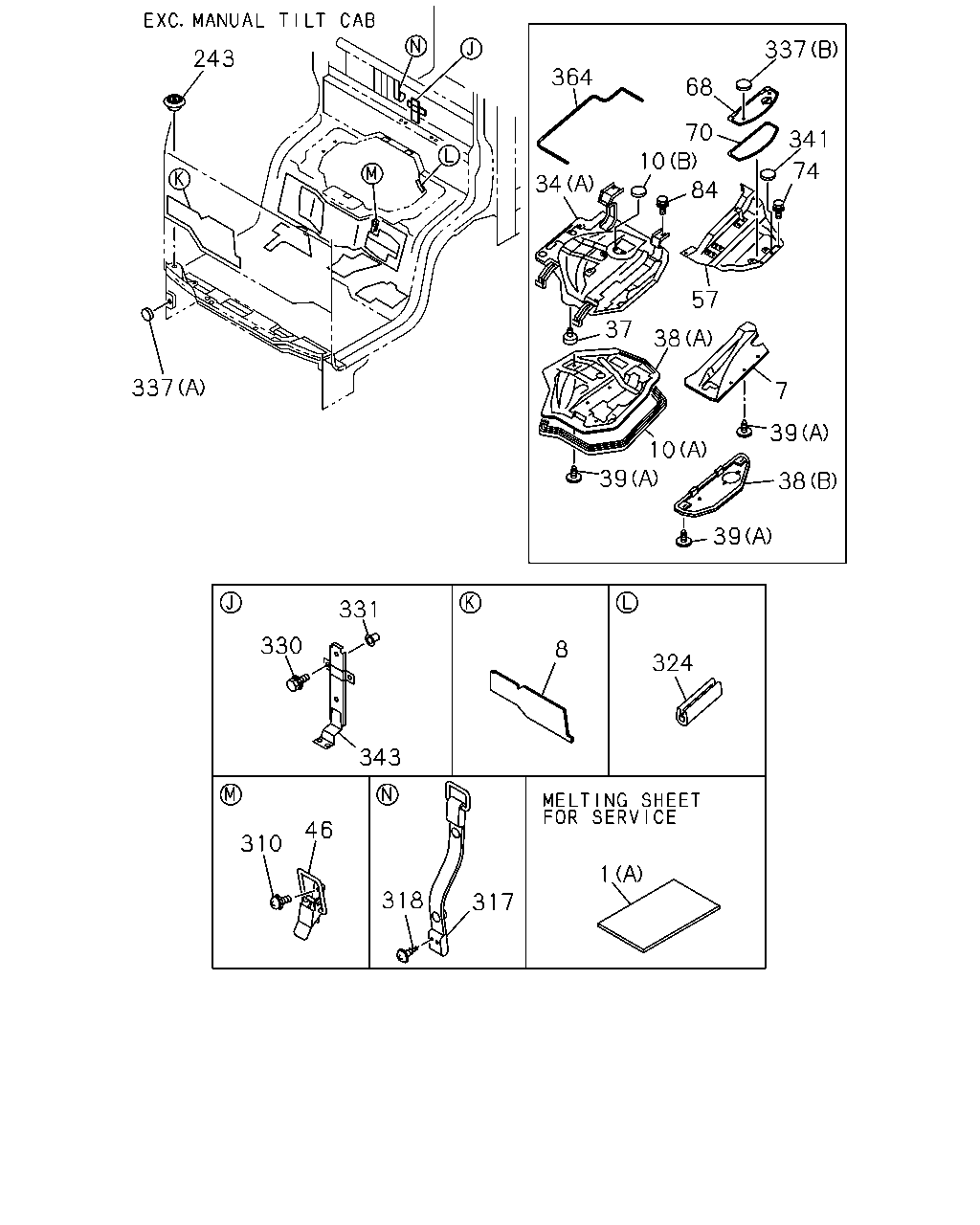

çizim 48192
337 243 364 68 70 10 84 341 74 34 57 37 38 337 7 39 10 39 38 39 331 330 8 324 343 46 310 1 318 317
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
SAUDI ARABIA EQUIPMENT(EU2) (B) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 0202- ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
(A) NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 9811- ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 9811-0201 ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-896-0 01 1 0202- ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0202- ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 9811- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 9811- ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-606-1 01 1 9811- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-605-2 01 1 9811- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-4 01 1 9811-0201 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97853-267-5 01 1 0202- ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0202- ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9812- ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9812- ● ● ● ●
10 16.549 SEAL; ENG COVER
(C) L=424 		8-97892-725-3 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(C) L=519 		8-97995-003-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
(D) L=842 		8-97892-726-4 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(D) L=804 		8-97995-004-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
(E) L=530 		8-97892-727-3 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(E) L=519 		8-97995-005-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
(F) L=503 		8-97892-728-4 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(F) L=467 		8-97995-006-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0207- ●
34 16.549 COVER ASM; ENG,CAB FLOOR
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97850-893-1 01 1 0202- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-0 01 1 9811-0201 ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97850-679-1 01 1 0202- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0202- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9811-0201 ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.155 OD=30 T=10 		5-74917-001-2 02 1 0202- ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0202- ● ●
38 16.549 INSULATOR; ENG COVER
SAUDI ARABIA EQUIPMENT(EU2) (C) 		1-65380-234-3 01 1 0202- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 9811-0201 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97856-450-3 01 1 0202- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0202- ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 9811-0202 ●
38 16.549 INSULATOR; ENG COVER
4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0203- ●
39 16.549 CLIP; INSULATOR,COVER
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94279-996-0 11 1 0202- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (A) OD=28 		8-94279-997-0 09 1 9811-9904 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 9905-0201 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) OD=30 		8-94279-952-0 09 1 0202- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0202- ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=28 		8-94279-997-0 06 1 9811-9904 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=28 		8-94279-997-0 06 1 9811-9904 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 9905- ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 06 1 9905- ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=28 		8-94279-997-0 05 1 9811-9904 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 9905-0201 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) OD=30 		8-94279-952-0 05 1 0202- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0202- ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=28 		8-94279-997-0 02 1 9811-9904 ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 02 1 9905-0202 ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) (A) OD=30 		8-94279-952-0 02 1 0203- ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9811-0201 ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97853-632-2 02 1 0202- ● ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0202- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 9811-0201 ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-888-0 01 1 0202- ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0202- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 9811- ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 9811- ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 9811- ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 9811- ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 9811- ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 9811- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 9811-0201 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0202- ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0202- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0201 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0202- ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0202- ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9811-0201 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0202- ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0202- ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9811-0002 ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0003- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9811-0201 ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0202- ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0202- ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9811- ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9811- ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 9811-0201 ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=140 		8-97892-742-0 01 1 0202- ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0202- ● ●
330 16.545 BOLT; BRKT
BRAZIL EQUIPMENT(RWF) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9811- ● ● ● ●
331 16.545 NUT; BRKT
BRAZIL EQUIPMENT(RWF) 08.143 		1-09984-156-0 03 1 9811-9909 ● ● ● ●
331 16.545 NUT; BRKT
BRAZIL EQUIPMENT(RWF) 16.570 M6 POP NUT 		8-94279-537-0 03 1 9910- ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9811-9901 ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9811-9901 ●
337 16.545 SEAL; CLIP HOLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9902-0203 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9902-0203 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0204- ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4HF1 ENG(RLS) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0204- ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9811-0010 ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0011- ● ● ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 01 1 9811- ● ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 01 1 9811- ●
343 16.587 BRACKET; FIRE EXTINGUISHER
BRAZIL EQUIPMENT(RWF) 		8-97859-427-1 01 1 9811- ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97890-597-0 01 1 9811-9812 ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 9901-0201 ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=1000 		8-97892-743-0 01 1 0202- ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0202- ● ●

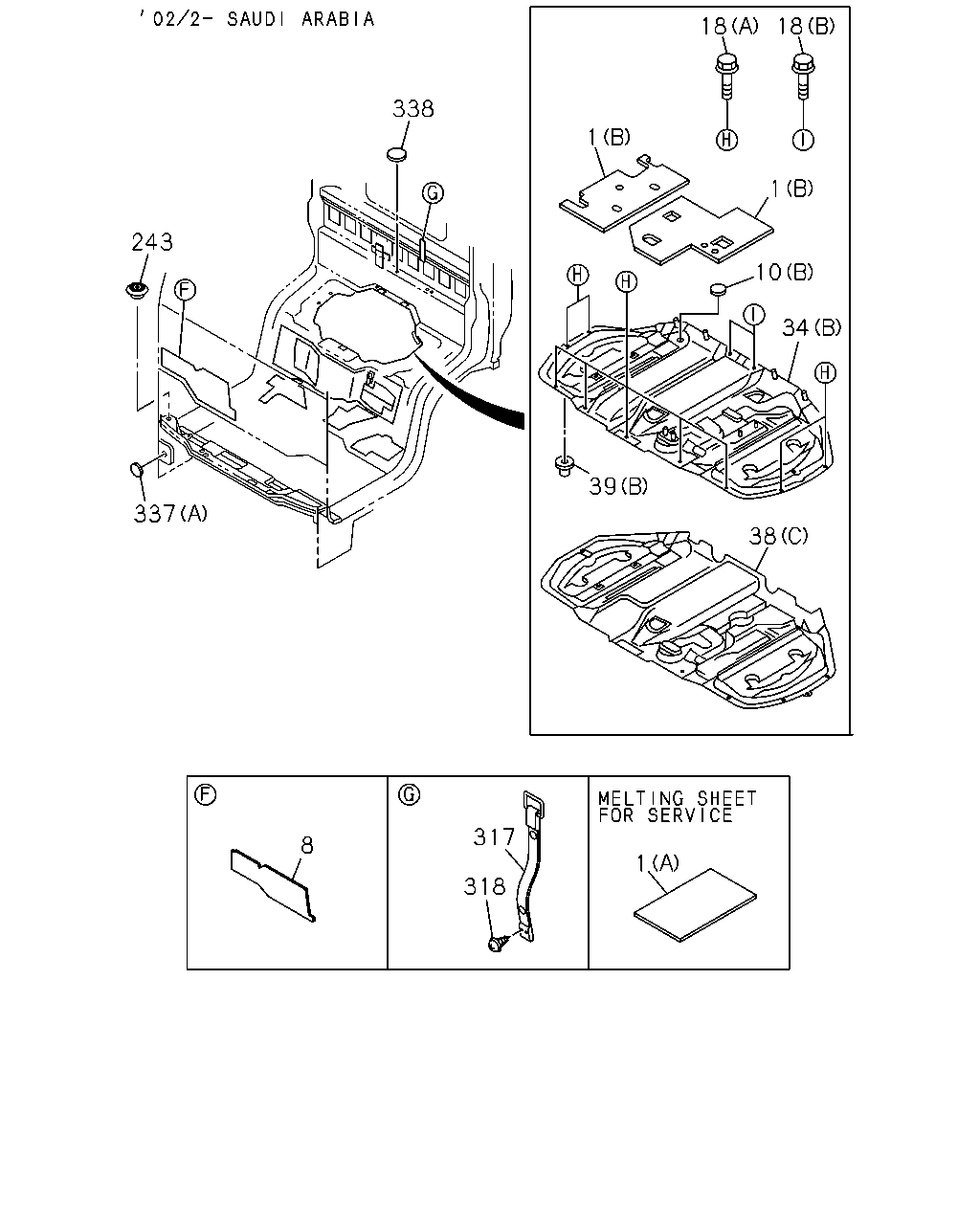

çizim 49155
18 18 338 1 1 243 10 34 39 337 38 317 8 1 318
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
SAUDI ARABIA EQUIPMENT(EU2) (B) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 0202- ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
(A) NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 9811- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-606-1 01 1 9811- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-605-2 01 1 9811- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-4 01 1 9811-0201 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97853-267-5 01 1 0202- ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0202- ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9812- ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9812- ● ● ● ●
10 16.549 SEAL; ENG COVER
(C) L=424 		8-97892-725-3 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(C) L=519 		8-97995-003-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
(D) L=842 		8-97892-726-4 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(D) L=804 		8-97995-004-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
(E) L=530 		8-97892-727-3 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(E) L=519 		8-97995-005-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
(F) L=503 		8-97892-728-4 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(F) L=467 		8-97995-006-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0207- ●
18 16.549 BOLT; ENG COVER
SAUDI ARABIA EQUIPMENT(EU2) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 09 1 0202- ● ● ● ●
18 16.549 BOLT; ENG COVER
SAUDI ARABIA EQUIPMENT(EU2) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0202- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97850-893-1 01 1 0202- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-0 01 1 9811-0201 ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97850-679-1 01 1 0202- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0202- ● ●
38 16.549 INSULATOR; ENG COVER
SAUDI ARABIA EQUIPMENT(EU2) (C) 		1-65380-234-3 01 1 0202- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 9811-0201 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97856-450-3 01 1 0202- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0202- ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 9811-0202 ●
38 16.549 INSULATOR; ENG COVER
4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0203- ●
39 16.549 CLIP; INSULATOR,COVER
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94279-996-0 11 1 0202- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (A) OD=28 		8-94279-997-0 09 1 9811-9904 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 9905-0201 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) OD=30 		8-94279-952-0 09 1 0202- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0202- ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=28 		8-94279-997-0 06 1 9811-9904 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=28 		8-94279-997-0 06 1 9811-9904 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 9905- ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 06 1 9905- ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=28 		8-94279-997-0 05 1 9811-9904 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 9905-0201 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) OD=30 		8-94279-952-0 05 1 0202- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0202- ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=28 		8-94279-997-0 02 1 9811-9904 ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 02 1 9905-0202 ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) (A) OD=30 		8-94279-952-0 02 1 0203- ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9811-0002 ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0003- ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9811- ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9811- ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9811-9901 ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9811-9901 ●
337 16.545 SEAL; CLIP HOLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9902-0203 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9902-0203 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0204- ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4HF1 ENG(RLS) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0204- ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9811-0010 ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0011- ● ● ● ● ● ●
338 16.545 SEAL; CHECK ARM
EXC. BRAZIL EQUIPMENT(RWF) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9811- ● ● ● ●
338 16.545 SEAL; CHECK ARM
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9811- ●

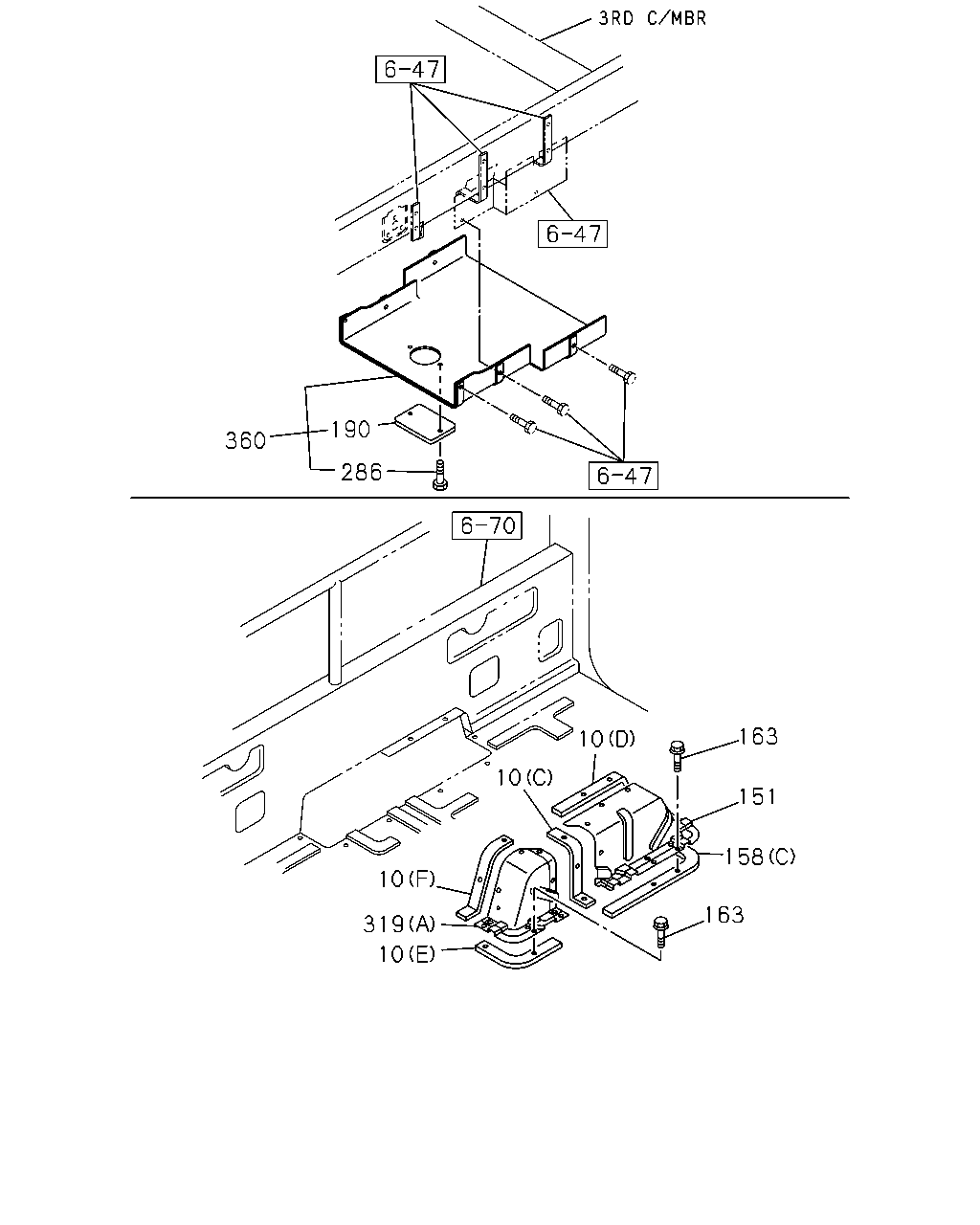

çizim 50612
190 360 286 163 10 10 151 158 10 163 319 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-4 01 1 9811-0201 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97853-267-5 01 1 0202- ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0202- ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9812- ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9812- ● ● ● ●
10 16.549 SEAL; ENG COVER
(C) L=424 		8-97892-725-3 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(C) L=519 		8-97995-003-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
(D) L=842 		8-97892-726-4 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(D) L=804 		8-97995-004-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
(E) L=530 		8-97892-727-3 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(E) L=519 		8-97995-005-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
(F) L=503 		8-97892-728-4 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(F) L=467 		8-97995-006-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0207- ●
151 16.549 COVER ASM; ENG 8-97892-514-3 01 1 9811-0202 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97892-514-3 01 1 0203-0203 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97996-192-0 01 1 0204-0206 ●
151 16.549 COVER ASM; ENG
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97996-192-0 01 1 0207- ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97996-192-0 01 1 0207- ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HF1 ENG(RLS) (A) 		8-97853-660-0 02 1 0203-0206 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HF1 ENG(RLS) (B) 		8-97853-661-0 02 1 0203-0206 ●
158 16.549 SEAL; RR,ENG COVER,FRT
(C) 		8-97892-531-4 01 1 9811-0102 ●
158 16.549 SEAL; RR,ENG COVER,FRT
(C) 		8-97995-002-0 01 1 0103-0202 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97995-002-0 01 1 0203-0206 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97995-002-0 01 1 0207- ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97995-002-0 01 1 0207- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0203-0206 ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 13 1 9811-9905 ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9906-9908 ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9909-0202 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HF1 ENG(RLS) 04.439 M6X16 FLANGE 		0-28680-616-0 08 1 0203-0206 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0207- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0207- ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 9906-9908 ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 9909-0103 ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0104-0202 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0203-0206 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0207- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0207- ●
190 16.549 LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97180-904-1 01 1 9811-0105 ● ● ● ● ●
190 16.549 LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97180-904-1 01 1 0106-0202 ● ● ●
190 16.549 LID 8-97180-904-1 01 1 0106-0202 ● ●
190 16.549 LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97180-904-1 01 1 0203- ● ● ● ●
190 16.549 LID 8-97180-904-1 01 1 0203- ●
286 16.545 BOLT; LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9811-0105 ● ● ● ● ●
286 16.545 BOLT; LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0106-0202 ● ● ●
286 16.545 BOLT; LID
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0106-0202 ● ●
286 16.545 BOLT; LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0203- ● ● ● ●
286 16.545 BOLT; LID
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0203- ●
319 16.549 COVER; ENG RR,FLOOR
4HF1 ENG(RLS) (B) 		8-97850-241-3 01 1 0203-0206 ●
319 16.549 COVER; ENG RR,FLOOR
(A) 		8-97892-724-3 01 1 9811-0202 ●
319 16.549 COVER; ENG RR,FLOOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97892-724-3 01 1 0203-0203 ●
319 16.549 COVER; ENG RR,FLOOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97997-526-0 01 1 0204-0206 ●
319 16.549 COVER; ENG RR,FLOOR
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97997-526-0 01 1 0207- ●
319 16.549 COVER; ENG RR,FLOOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97997-526-0 01 1 0207- ●
360 16.549 COVER; LWR
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97205-597-4 01 1 9811-0105 ●
360 16.549 COVER; LWR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97183-607-2 01 1 9811-0105 ● ● ● ● ●
360 16.549 COVER; LWR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97183-607-2 01 1 0106-0202 ● ● ●
360 16.549 COVER; LWR 8-97183-607-2 01 1 0106-0202 ● ●
360 16.549 COVER; LWR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97183-607-2 01 1 0203- ● ● ● ●
360 16.549 COVER; LWR 8-97183-607-2 01 1 0203- ●

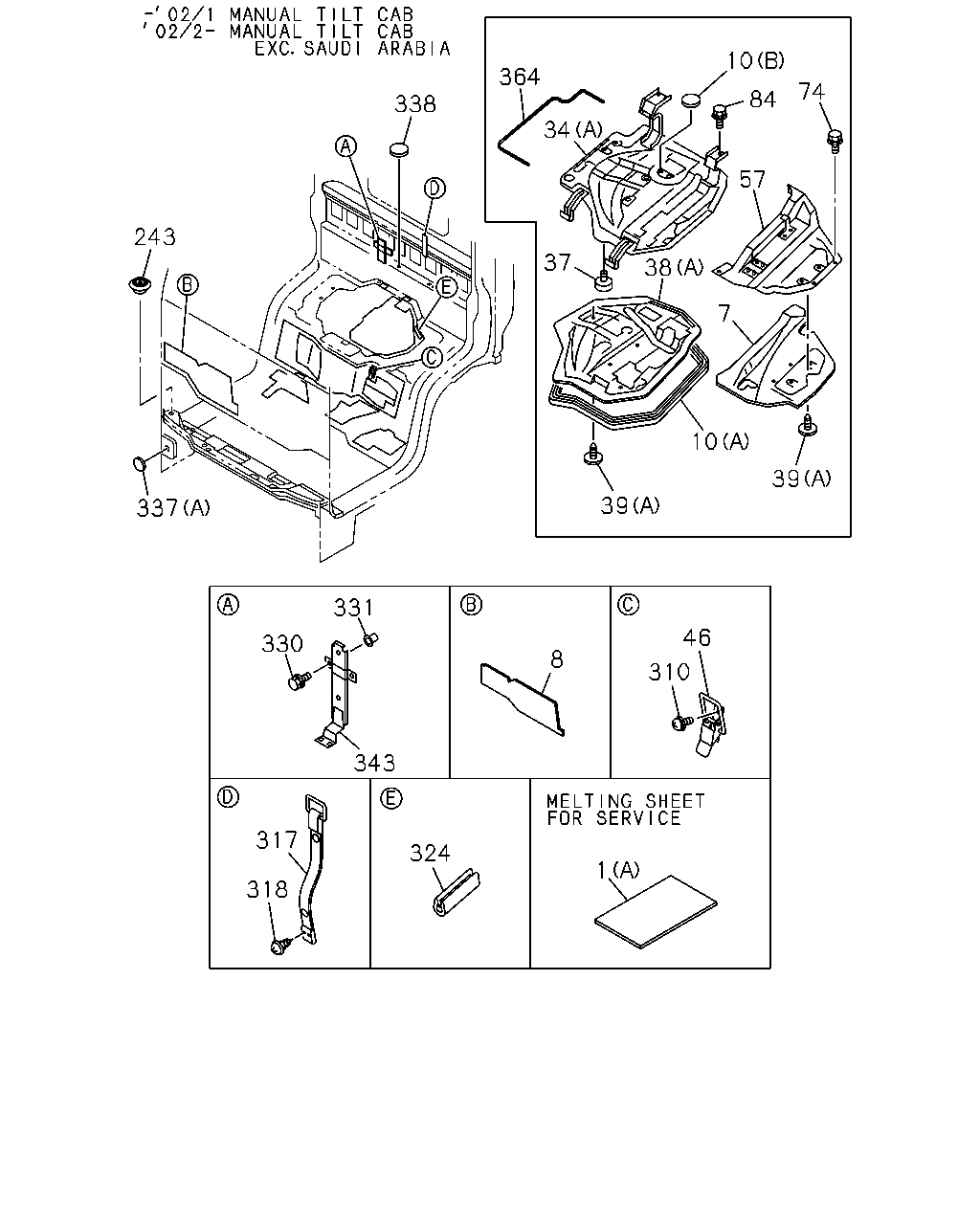

çizim 50646
10 364 74 84 338 34 57 243 37 38 7 10 39 39 337 331 46 330 8 310 343 317 324 1 318
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
SAUDI ARABIA EQUIPMENT(EU2) (B) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 0202- ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
(A) NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 9811- ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 9811-0201 ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-896-0 01 1 0202- ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0202- ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 9811- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 9811- ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-606-1 01 1 9811- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-605-2 01 1 9811- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-4 01 1 9811-0201 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97853-267-5 01 1 0202- ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0202- ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9812- ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9812- ● ● ● ●
10 16.549 SEAL; ENG COVER
(C) L=424 		8-97892-725-3 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(C) L=519 		8-97995-003-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
(D) L=842 		8-97892-726-4 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(D) L=804 		8-97995-004-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
(E) L=530 		8-97892-727-3 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(E) L=519 		8-97995-005-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
(F) L=503 		8-97892-728-4 01 1 9811-0102 ●
10 16.549 SEAL; ENG COVER
(F) L=467 		8-97995-006-0 01 1 0103-0202 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0203-0206 ●
10 16.549 SEAL; ENG COVER
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0207- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0207- ●
34 16.549 COVER ASM; ENG,CAB FLOOR
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97850-893-1 01 1 0202- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-0 01 1 9811-0201 ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97850-679-1 01 1 0202- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0202- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9811-0201 ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.155 OD=30 T=10 		5-74917-001-2 02 1 0202- ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0202- ● ●
38 16.549 INSULATOR; ENG COVER
SAUDI ARABIA EQUIPMENT(EU2) (C) 		1-65380-234-3 01 1 0202- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 9811-0201 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97856-450-3 01 1 0202- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0202- ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 9811-0202 ●
38 16.549 INSULATOR; ENG COVER
4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0203- ●
39 16.549 CLIP; INSULATOR,COVER
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94279-996-0 11 1 0202- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (A) OD=28 		8-94279-997-0 09 1 9811-9904 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 9905-0201 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) OD=30 		8-94279-952-0 09 1 0202- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0202- ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=28 		8-94279-997-0 06 1 9811-9904 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=28 		8-94279-997-0 06 1 9811-9904 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 9905- ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 06 1 9905- ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=28 		8-94279-997-0 05 1 9811-9904 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 9905-0201 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) OD=30 		8-94279-952-0 05 1 0202- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0202- ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=28 		8-94279-997-0 02 1 9811-9904 ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 02 1 9905-0202 ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) (A) OD=30 		8-94279-952-0 02 1 0203- ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9811-0201 ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97853-632-2 02 1 0202- ● ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0202- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 9811-0201 ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-888-0 01 1 0202- ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0202- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 9811- ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 9811- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 9811-0201 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0202- ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0202- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0201 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0202- ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0202- ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9811-0201 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0202- ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0202- ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9811-0002 ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0003- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9811-0201 ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0202- ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0202- ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9811- ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9811- ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 9811-0201 ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=140 		8-97892-742-0 01 1 0202- ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0202- ● ●
330 16.545 BOLT; BRKT
BRAZIL EQUIPMENT(RWF) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9811- ● ● ● ●
331 16.545 NUT; BRKT
BRAZIL EQUIPMENT(RWF) 08.143 		1-09984-156-0 03 1 9811-9909 ● ● ● ●
331 16.545 NUT; BRKT
BRAZIL EQUIPMENT(RWF) 16.570 M6 POP NUT 		8-94279-537-0 03 1 9910- ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9811-9901 ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9811-9901 ●
337 16.545 SEAL; CLIP HOLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9902-0203 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9902-0203 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0204- ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4HF1 ENG(RLS) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0204- ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9811-0010 ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0011- ● ● ● ● ● ●
338 16.545 SEAL; CHECK ARM
EXC. BRAZIL EQUIPMENT(RWF) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9811- ● ● ● ●
338 16.545 SEAL; CHECK ARM
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9811- ●
343 16.587 BRACKET; FIRE EXTINGUISHER
BRAZIL EQUIPMENT(RWF) 		8-97859-427-1 01 1 9811- ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97890-597-0 01 1 9811-9812 ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 9901-0201 ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=1000 		8-97892-743-0 01 1 0202- ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
