6-75 — MAT AND CARPET (#48556) — 78 parça

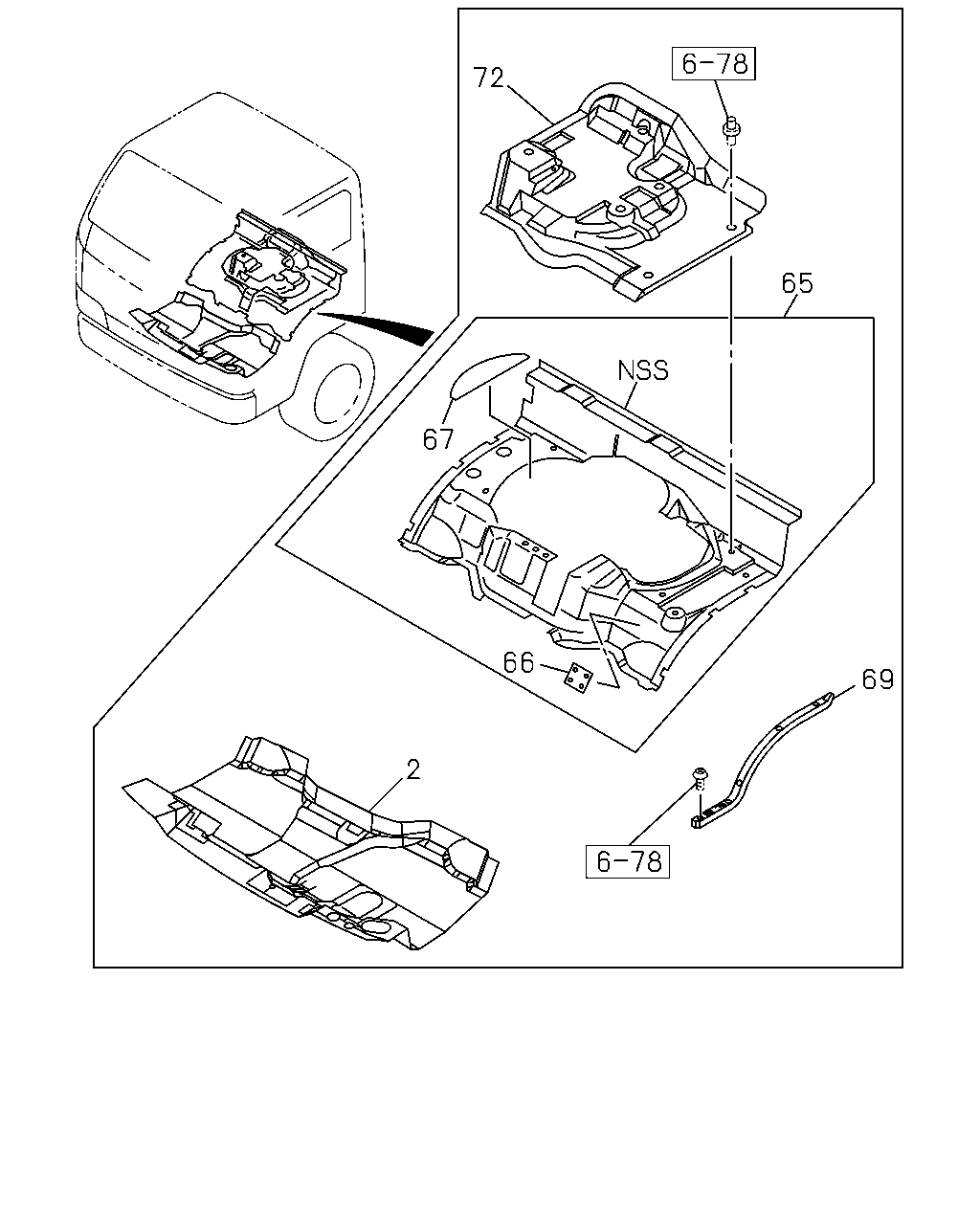

72 65 67 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97098-519-4	01	1	9811-0203	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-638-1	01	1	0204-	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97098-520-4	01	1	9811-0203	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-640-1	01	1	0204-	●	●	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97867-809-1	01	1	0202-0203	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97997-864-0	01	1	0204-	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-397-5	01	1	9811-0201	●	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97868-397-5	01	1	0202-0203	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-397-5	01	1	0202-0203					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97996-702-0	01	1	0204-	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-702-0	01	1	0204-					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-356-6	01	1	9811-0203						●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-707-0	01	1	0204-						●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9811-0201	●	●	●	●	●	●
66	16.549 HOOK; COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97859-705-0	02	1	0202-0203	●	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	0202-0203					●	●
66	16.549 HOOK; COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97997-582-0	02	1	0204-	●	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0204-					●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9811-0201	●	●	●	●	●	●
67	16.549 LID; COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97868-518-0	01	1	0202-0203	●	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	0202-0203					●	●
67	16.549 LID; COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97997-588-0	01	1	0204-	●	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97997-588-0	01	1	0204-					●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	9811-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	9811-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97890-496-0	01	1	9811-0201	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97890-496-0	01	1	0202-0203	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97890-496-0	01	1	0202-0203					●	●
72	16.800 MAT; SILENCER,ENG COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97996-766-0	01	1	0204-	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-766-0	01	1	0204-					●	●

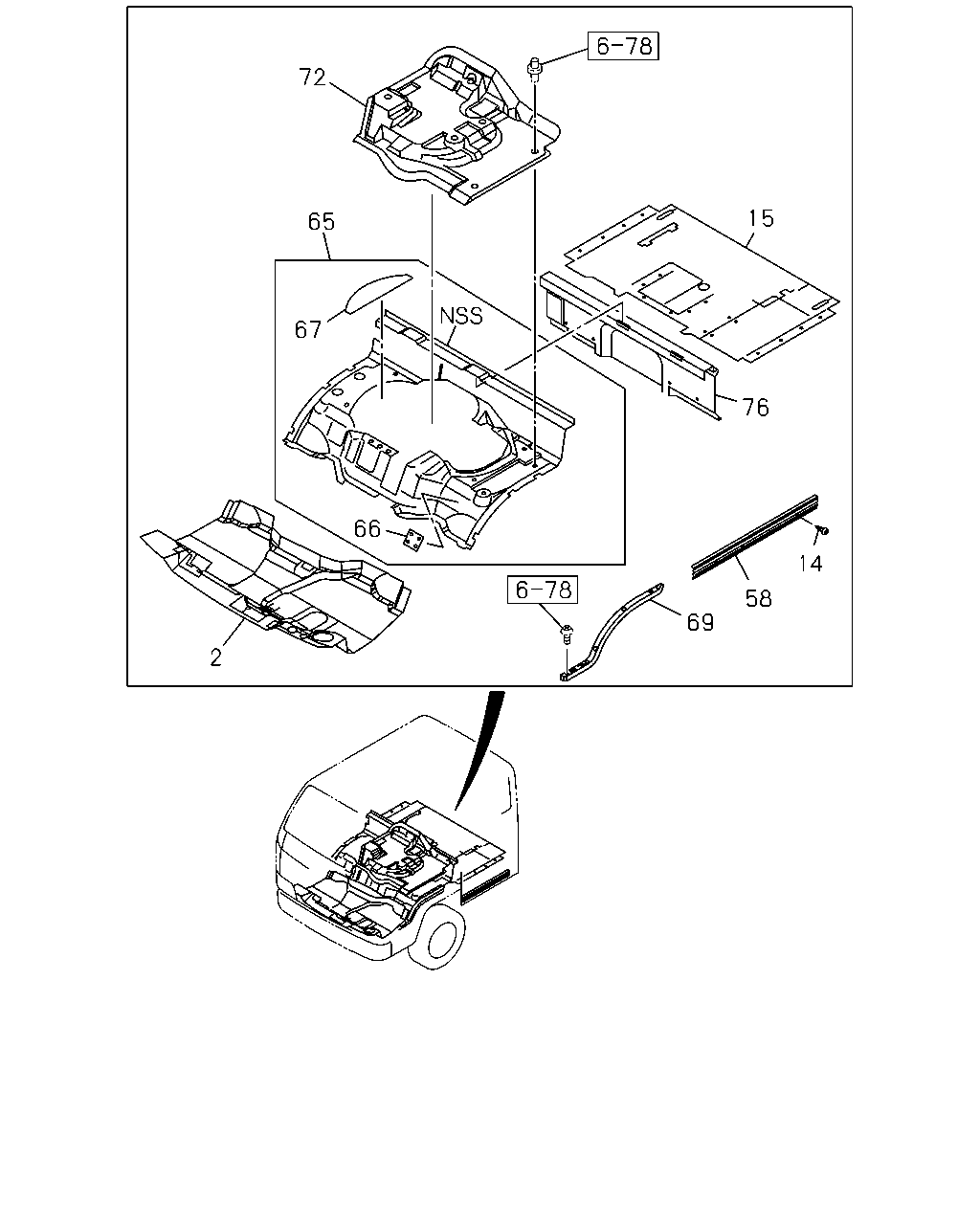

72 15 65 67 76 66 14 58 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97098-519-4	01	1	9811-0203	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-638-1	01	1	0204-	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97098-520-4	01	1	9811-0203	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-640-1	01	1	0204-	●	●	●	●	●	●
14	16.870 SCREW; PLATE 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	9811-						●
15	16.800 MAT; FLOOR REAR 4HF1 ENG(RLS)	8-97868-334-0	01	1	0203-0203						●
15	16.800 MAT; FLOOR REAR 4HF1 ENG(RLS)	8-97996-670-0	01	1	0204-0206						●
15	16.800 MAT; FLOOR REAR DARK GRAY	8-97892-678-1	01	1	9811-0202						●
15	16.800 MAT; FLOOR REAR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY	8-97892-678-1	01	1	0203-0203						●
15	16.800 MAT; FLOOR REAR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY	8-97996-770-0	01	1	0204-0206						●
15	16.800 MAT; FLOOR REAR 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> DARK GRAY	8-97996-770-0	01	1	0207-						●
15	16.800 MAT; FLOOR REAR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY	8-97996-770-0	01	1	0207-						●
58	08.153 PLATE; GUARD,RR FLOOR MAT	8-97081-344-3	02	1	9811-						●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97867-809-1	01	1	0202-0203	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97997-864-0	01	1	0204-	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-397-5	01	1	9811-0201	●	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97868-397-5	01	1	0202-0203	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-397-5	01	1	0202-0203					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97996-702-0	01	1	0204-	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-702-0	01	1	0204-					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-356-6	01	1	9811-0203						●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-707-0	01	1	0204-						●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9811-0201	●	●	●	●	●	●
66	16.549 HOOK; COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97859-705-0	02	1	0202-0203	●	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	0202-0203					●	●
66	16.549 HOOK; COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97997-582-0	02	1	0204-	●	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0204-					●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9811-0201	●	●	●	●	●	●
67	16.549 LID; COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97868-518-0	01	1	0202-0203	●	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	0202-0203					●	●
67	16.549 LID; COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97997-588-0	01	1	0204-	●	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97997-588-0	01	1	0204-					●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	9811-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	9811-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97890-496-0	01	1	9811-0201	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97890-496-0	01	1	0202-0203	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97890-496-0	01	1	0202-0203					●	●
72	16.800 MAT; SILENCER,ENG COVER EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY	8-97996-766-0	01	1	0204-	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-766-0	01	1	0204-					●	●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HF1 ENG(RLS) DARK GRAY	8-97898-314-0	01	1	0203-0203						●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HF1 ENG(RLS) DARK GRAY	8-97996-794-0	01	1	0204-0206						●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97892-676-0	01	1	9811-0202						●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY	8-97892-676-0	01	1	0203-0203						●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY	8-97996-772-0	01	1	0204-0206						●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> DARK GRAY	8-97996-772-0	01	1	0207-0211						●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY	8-97996-772-0	01	1	0207-0211						●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> DARK GRAY	8-97985-070-0	01	1	0212-						●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY	8-97985-070-0	01	1	0212-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
