◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#48555) — 73 parça
çizim 10442
27 27 170 27 1 171 71 71 171
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.742 LINING; HD
INTERIOR DELUXE(RBB) LIGHT GRAY 		8-97859-858-7 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE(RBB),TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-645-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. INTERIOR DELUXE(RBB) LIGHT GRAY 		8-97868-646-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE(RBB),TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-644-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE(RBB) LIGHT GRAY 		8-97859-861-3 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-651-2 01 1 9811- ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-650-2 01 1 9811- ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-648-2 01 1 9811- ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97868-649-3 01 1 9811- ● ●
27 16.165 INSULATION; ROOF
INTERIOR DELUXE(RBB) (A) 		8-97856-987-5 02 1 9811- ● ● ● ●
27 16.165 INSULATION; ROOF
INTERIOR DELUXE(RBB) (B) 		8-97856-988-2 01 1 9811- ● ● ● ●
71 16.742 FASTENER; HD LINING
(A) LIGHT GRAY 		8-97867-230-2 03 1 9811- ● ● ● ●
71 16.742 FASTENER; HD LINING
INTERIOR DELUXE(RBB) (B) D5.8X20 		8-97857-353-0 04 1 9811- ● ● ● ●
71 16.742 FASTENER; HD LINING
(A) LIGHT GRAY 		8-97867-230-2 06 1 9811- ● ●
170 16.742 FINISHER; HEAD LINING
INTERIOR DELUXE(RBB) EXC. AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY 		8-97859-864-3 01 1 9811- ● ● ● ●
171 16.742 CLIP; HEAD LINING
INTERIOR DELUXE(RBB) (A) LIGHT GRAY 		8-97859-865-0 02 1 9811- ● ● ● ●
171 16.742 CLIP; HEAD LINING
INTERIOR DELUXE(RBB) (B) LIGHT GRAY 		8-97859-866-0 05 1 9811- ● ● ● ●
çizim 44742
175 6 175 6 1 6 175 71 6 215 215 172 173
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.742 LINING; HD
INTERIOR DELUXE(RBB) LIGHT GRAY 		8-97859-858-7 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE(RBB),TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-645-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. INTERIOR DELUXE(RBB) LIGHT GRAY 		8-97868-646-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE(RBB),TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-644-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE(RBB) LIGHT GRAY 		8-97859-861-3 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-651-2 01 1 9811- ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-650-2 01 1 9811- ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-648-2 01 1 9811- ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97868-649-3 01 1 9811- ● ●
6 16.742 SPACER; HD LINING
EXC. INTERIOR DELUXE(RBB) (A) 		8-94353-014-0 03 1 9811- ● ● ● ●
6 16.742 SPACER; HD LINING
EXC. INTERIOR DELUXE(RBB) 16.588 (B) H=10 L=55 		8-97857-444-0 02 1 9811- ● ● ● ●
6 16.742 SPACER; HD LINING
(C) 		8-94353-014-0 06 1 9811- ● ●
71 16.742 FASTENER; HD LINING
(A) LIGHT GRAY 		8-97867-230-2 03 1 9811- ● ● ● ●
71 16.742 FASTENER; HD LINING
INTERIOR DELUXE(RBB) (B) D5.8X20 		8-97857-353-0 04 1 9811- ● ● ● ●
71 16.742 FASTENER; HD LINING
(A) LIGHT GRAY 		8-97867-230-2 06 1 9811- ● ●
172 16.742 RETAINER; HEAD LINING
EXC. INTERIOR DELUXE(RBB) LIGHT GRAY 		8-97867-191-4 01 1 9811- ● ● ● ●
172 16.742 RETAINER; HEAD LINING
LIGHT GRAY 		8-97867-191-4 01 1 9811- ● ●
173 16.742 CLIP; RETAINER,HEAD LINING
EXC. INTERIOR DELUXE(RBB) LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 04 1 9811- ● ● ● ●
173 16.742 CLIP; RETAINER,HEAD LINING
LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 04 1 9811- ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR DELUXE(RBB) (B) 		8-97856-791-1 02 1 9811-0105 ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-97856-791-1 02 1 9811-0105 ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR DELUXE(RBB) (B) 		8-97856-791-1 02 1 0106-0110 ● ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR DELUXE(RBB) (B) 		8-97856-791-2 02 1 0111- ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-97856-791-2 02 1 0111- ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR DELUXE(RBB) (A) 		8-97856-792-2 01 1 9811- ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-97856-793-2 02 1 9811- ● ●
175 16.742 CUSHION; HEAD LINING
(D) 		8-97857-294-1 01 1 9811- ● ●
215 16.592 CUSHION; TRAY BACK PANEL
ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE(RBB) 16.587 L=100 		8-97866-625-0 02 1 0112- ● ● ● ●

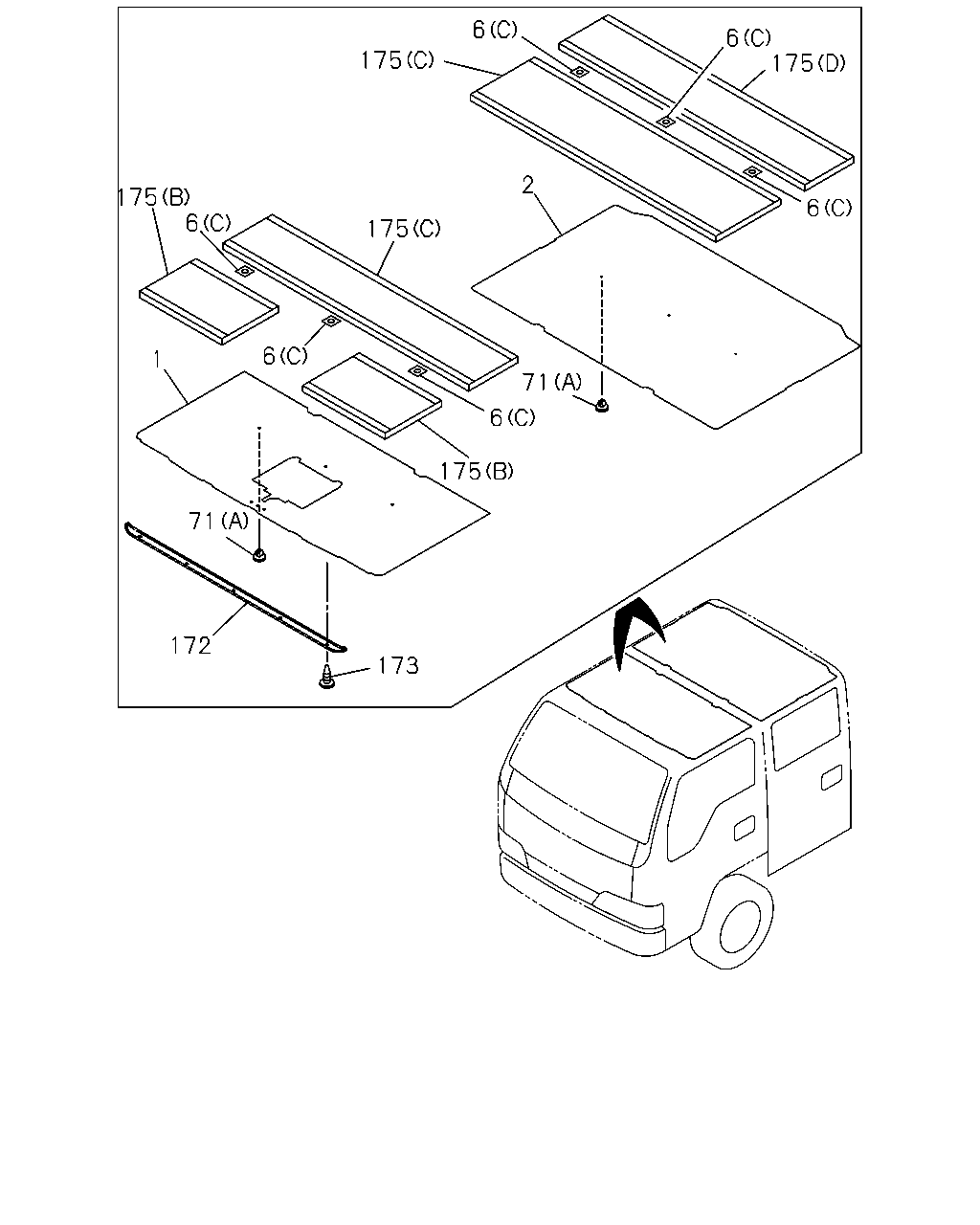

çizim 45326
6 6 175 175 2 175 6 6 175 6 1 71 6 175 71 172 173
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.742 LINING; HD
INTERIOR DELUXE(RBB) LIGHT GRAY 		8-97859-858-7 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE(RBB),TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-645-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. INTERIOR DELUXE(RBB) LIGHT GRAY 		8-97868-646-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE(RBB),TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-644-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE(RBB) LIGHT GRAY 		8-97859-861-3 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-651-2 01 1 9811- ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-650-2 01 1 9811- ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-648-2 01 1 9811- ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97868-649-3 01 1 9811- ● ●
2 16.742 LINING; HD,ROOF RR
LIGHT GRAY 		8-97868-652-2 01 1 9811- ● ●
6 16.742 SPACER; HD LINING
EXC. INTERIOR DELUXE(RBB) (A) 		8-94353-014-0 03 1 9811- ● ● ● ●
6 16.742 SPACER; HD LINING
EXC. INTERIOR DELUXE(RBB) 16.588 (B) H=10 L=55 		8-97857-444-0 02 1 9811- ● ● ● ●
6 16.742 SPACER; HD LINING
(C) 		8-94353-014-0 06 1 9811- ● ●
71 16.742 FASTENER; HD LINING
(A) LIGHT GRAY 		8-97867-230-2 03 1 9811- ● ● ● ●
71 16.742 FASTENER; HD LINING
INTERIOR DELUXE(RBB) (B) D5.8X20 		8-97857-353-0 04 1 9811- ● ● ● ●
71 16.742 FASTENER; HD LINING
(A) LIGHT GRAY 		8-97867-230-2 06 1 9811- ● ●
172 16.742 RETAINER; HEAD LINING
EXC. INTERIOR DELUXE(RBB) LIGHT GRAY 		8-97867-191-4 01 1 9811- ● ● ● ●
172 16.742 RETAINER; HEAD LINING
LIGHT GRAY 		8-97867-191-4 01 1 9811- ● ●
173 16.742 CLIP; RETAINER,HEAD LINING
EXC. INTERIOR DELUXE(RBB) LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 04 1 9811- ● ● ● ●
173 16.742 CLIP; RETAINER,HEAD LINING
LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 04 1 9811- ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR DELUXE(RBB) (B) 		8-97856-791-1 02 1 9811-0105 ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-97856-791-1 02 1 9811-0105 ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR DELUXE(RBB) (B) 		8-97856-791-1 02 1 0106-0110 ● ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR DELUXE(RBB) (B) 		8-97856-791-2 02 1 0111- ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-97856-791-2 02 1 0111- ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR DELUXE(RBB) (A) 		8-97856-792-2 01 1 9811- ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-97856-793-2 02 1 9811- ● ●
175 16.742 CUSHION; HEAD LINING
(D) 		8-97857-294-1 01 1 9811- ● ●
